SEAT BELT

0001 1FRONT SEAT 0002 1REAR SEAT 0003 1REAR NO.1 SEAT 0004 1REAR NO.2 SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-0E020-B0iVXKA70,75..CMAX..(L,S);VXKA70,75,VXKH85..(DCB,SRF)..S;VXKA71,72,76,77,VXKH70,71,76,80..L,S202111-202409

LT.GRAY,TRIM13,21

main73023-0E020-B0iVXKH75,85..L202203-202409

LT.GRAY,TRIM13,21,33

main73023-0E020-C0iVXKA70,75..DCB..L202111-202408

BLACK,TRIM2#,4#

main73023-0E020-C0iVXKA71,VXKH71,80..Z202111-202409

BLACK,TRIM13,21

main73023-0E020-C0iVXKA75..CMAX..S202111-202409

BLACK,TRIM13,21,27

main73023-0E020-C0iVXKA70,75..CMAX..(L,S);VXKA70,75,VXKH85..(DCB,SRF)..S;VXKA71,72,76,77,VXKH70,71,76,80..L,S202203

BLACK,TRIM1#,2#

main73023-0E020-C0iVXKH75,85..L202203-202409

BLACK,TRIM13,21,33

main73023-0E020-C0iVXKH85..Z202207

BLACK,TRIM1#,2#,4#

main73023-0E020-C0iVXKH75,85..L202409

BLACK,TRIM1#,2#,3#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-0C020-B0iVXKH75,85..L202203-202409

LT.GRAY,TRIM13,21,33

main73024-0C020-B0iVXKA70,75..CMAX..(L,S);VXKA70,75,VXKH85..(DCB,SRF)..S;VXKA71,72,76,77,VXKH70,71,76,80..L,S202111-202409

LT.GRAY,TRIM13,21

main73024-0C020-C0iVXKA75..CMAX..L;VXKA70..CMAX..(L,S);VXKA70,75,VXKH85..(DCB,SRF)..S;VXKA71,72,76,77,VXKH70,71,76,80..L,S202111-202409

BLACK,TRIM13,21

main73024-0C020-C0iVXKA70,75..DCB..L202111-202408

BLACK,TRIM2#,4#

main73024-0C020-C0iVXKA75..CMAX..S202111-202409

BLACK,TRIM13,21,27

main73024-0C020-C0iVXKH75,85..L202203-202409

BLACK,TRIM13,21,33

main73024-0C020-C0iVXKH75..U202203

BLACK,TRIM1#,2#

main73024-0C020-C0iVXKH85..Z202207

BLACK,TRIM1#,2#,4#

main73024-0C020-C0iVXKH75,85..L202409

BLACK,TRIM1#,2#,3#

73200BADJUSTER ASSY, REAR SHOULDER BELT ANCHOR

main73200-0R010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0C160-C0iVXKA70,75..DCB..L202111-202408

BLACK,TRIM1#,2#

main73210-0C160-C1iVXKA71,VXKH71,80..Z202111-202408

BLACK,TRIM2#,4#

main73210-0C160-C1iVXKA75..CMAX..S202111-202409

BLACK,TRIM13,21,27

main73210-0C160-C1iVXKA75..CMAX..S202111-202409

BLACK,TRIM13,21

main73210-0C160-C1iVXKH75..U202203

BLACK,TRIM1#,2#

main73210-0C160-C1iVXKH85..Z202207

BLACK,TRIM1#,2#,4#

main73210-0C160-D0iVXKH75,85..L202203-202308

RED,TRIM3#

main73210-0C160-D1iVXKH75,85..L202308

RED,TRIM3#

73214PLATE, FRONT SEAT BELT ANCHOR

main72151-06010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

73219STOPPER, TONGUE PLATE

main73219-02010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

BLACK

main73219-02020iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408

GRAY

main73219-02030iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0C161-C0iVXKA70,75..DCB..L202111-202408

BLACK,TRIM1#,2#

main73220-0C161-C1iVXKA75..CMAX..L;VXKA70,75..DCB..S;VXKA70..CMAX..(L,S);VXKA71,72,76,77,VXKH7#,8#..L,S202111-202409

BLACK,TRIM13,21

main73220-0C161-C1iVXKA71,VXKH71..Z202111-202408

BLACK,TRIM2#,4#

main73220-0C161-C1iVXKH80..Z202207-202408

BLACK,TRIM2#

main73220-0C161-C1iVXKA75..CMAX..S202111-202409

BLACK,TRIM13,21,27

main73220-0C161-C1iVXKH75..U202203

BLACK,TRIM1#,2#

main73220-0C161-C1iVXKH85..Z202207

BLACK,TRIM1#,2#,4#

main73220-0C161-D0iVXKH75,85..L202203-202308

RED,TRIM3#

main73220-0C161-D1iVXKH75,85..L202308

RED,TRIM3#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0C170-C0iVXKA7#..S202111

BLACK,TRIM1#,2#

main73230-0C180-C0iVXKA70,75..DCB..L202111-202408

BLACK,TRIM2#,4#

main73230-0C180-C0iVXKA71,VXKH71,80..Z202111-202408

BLACK,TRIM1#,2#

main73230-0C180-C0iVXKA70,75,76,VXKH70,75,76..Z202111

SR5-PREMIUM,BLACK,TRIM1#,2#

main73230-0C180-C0iVXKH75,85..L202203

BLACK,TRIM1#,2#,3#

main73230-0C180-C0iVXKH85..Z202207

BLACK,TRIM1#,2#,4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-0C010-C1iVXKA70,75..DCB..L202111-202408

BLACK,TRIM1#,2#

main73233-0C010-C1iVXKA70,75..DCB..L202111-202408

BLACK,TRIM2#,4#

main73233-0C010-C1iVXKH75,85..L202203

BLACK,TRIM1#,2#,3#

main73233-0C010-C1iVXKH85..Z202207

BLACK,TRIM1#,2#,4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-0C140-C0iVXKA7#..S202111-202409

BLACK,TRIM1#,2#

main73240-0C150-C0iVXKH8#..S202207

BLACK,TRIM1#,2#

main73240-0C160-C0iVXKH75..U;VXKA70,71,75,76,VXKH70,71,76,80..(CMAX,SRF)..L202111-202408

BLACK,TRIM1#,2#

main73240-0C160-C0iVXKA70,75..DCB..L202111-202408

BLACK,TRIM2#,4#

main73240-0C160-C0iVXKH75,85..L202203

BLACK,TRIM1#,2#,3#

main73240-0C160-C0iVXKH85..Z202207

BLACK,TRIM1#,2#,4#

9008017195

main90080-17195

9010510523

main90105-10523

90105A0082

main90105-A0082

90105A0186

main90105-A0186

9010911059

main90109-11059

90109A0033

main90109-A0033

9017811002

main90178-11002

90178A0081

main90178-A0081

9017911010

main90179-11010

9155380612

main91553-80612

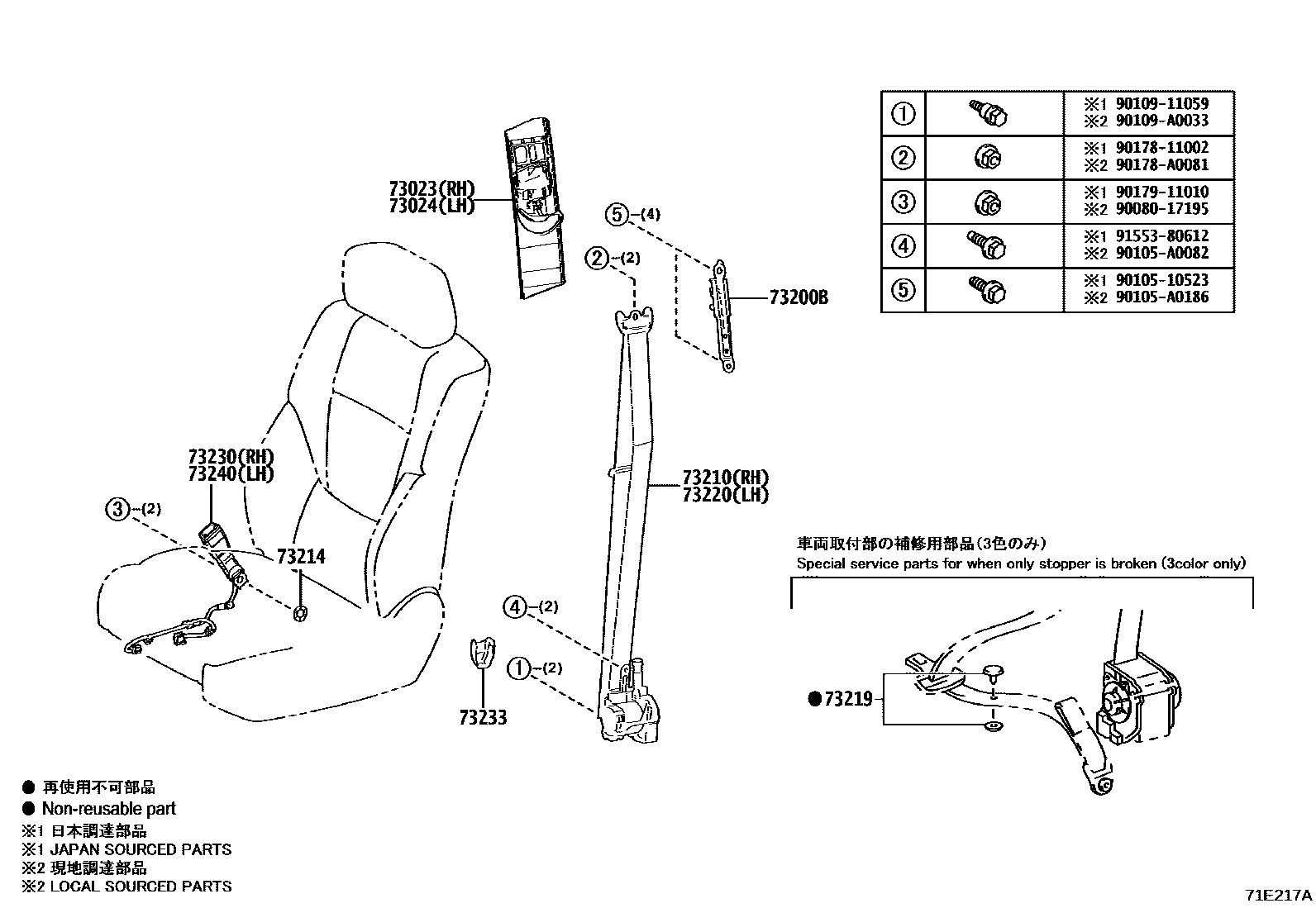

20 parts on this diagram · 4 diagrams in section
