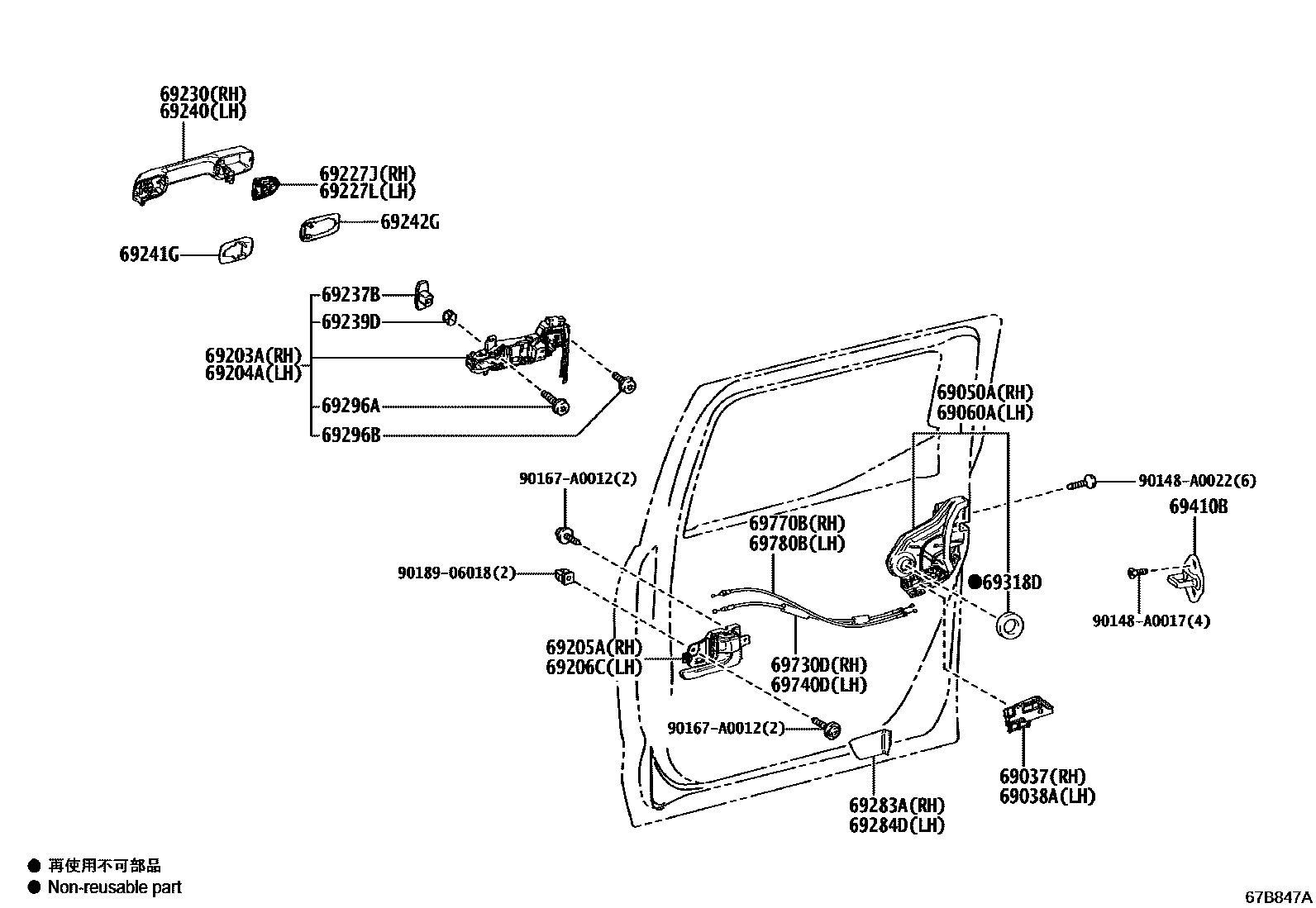

REAR DOOR LOCK & HANDLE

69037COVER SUB-ASSY, REAR DOOR LOCK, RH

main69037-02030iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH

main69038-02030iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-0E030iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71..L,S;VXKA70,75,76,VXKH70,75,76..CMAX202111-202408

main69050-0E070iVXKH80..Z202207-202408

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-0E030iVXKA71,VXKH71..Z;VXKA70,75..DCB..L202111-202408

main69060-0E070iVXKH80..Z202207-202408

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-0C020iVXKA71,VXKH71..Z;VXKA70,75..DCB..L202111-202408

main69203-0C040iVXKH80..Z202207-202408

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-0C020iVXKA71,VXKH71..Z;VXKA70,75..DCB..L202111-202408

main69204-0C040iVXKH80..Z202207-202408

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-0C100iVXKH8#..S;VXKA7#,VXKH7#..L,S202111-202402

main69205-0C101iVXKA70,75..CMAX..(L,S);VXKA71,72,76,77,VXKH7#..L,S;VXKA70,75,VXKH8#..(DCB,SRF)..S202402-202408

main69205-0C110iVXKH8#..L,Z;VXKA70,71,75,76,VXKH7#..U,Z202111-202402

main69205-0C111iVXKA71,VXKH71,80..Z202402-202508

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-0C100iVXKH8#..S;VXKA7#,VXKH7#..L,S202111-202402

main69206-0C101iVXKA70,75..DCB..L202402-202408

main69206-0C110iVXKH8#..L,Z;VXKA70,71,75,76,VXKH7#..U,Z202111-202402

main69206-0C111iVXKH80..L;VXKH85..L,Z;VXKA70,75,76,VXKH70,75,76..U,Z202402-202508

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-0R070iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69227-0R070iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69211-0C040-A0iVXKA71,VXKH71,80..Z202111-202408

PLATINUM WHITE PEARL MC.,089

main69211-0C040-A1iVXKH8#..S202207

TRD PRO PACKAGE,SUPER WHITE 2,040

main69211-0C040-A1iVXKA71,VXKH71..Z202111-202408

SUPER WHITE 2,089

main69211-0C040-A1iVXKH85..L202207

SUPER WHITE 2,040

main69211-0C040-A1iVXKA75,76..S202111

TRD OFFROAD PACKAGE,SUPER WHITE 2,040

main69211-0C040-A1iVXKA75,76..S202111

SX,SUPER WHITE 2,040

main69211-0C040-A1iVXKA75,76..S202111

SR5-PREMIUM&TRD OFFROAD PACKAGE,SUPER WHITE 2,040

main69211-0C040-A1iVXKA75,76..S202111

SR5-PREMIUM,SUPER WHITE 2,040

main69211-0C040-B0iVXKA75,76..S202111

SX,GRAY ME.,1G3

main69211-0C040-B0iVXKA71,VXKH71,80..Z202111-202408

GRAY ME.,1G3

main69211-0C040-B0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

SR5-PREMIUM,GRAY ME.,1G3

main69211-0C040-B0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

SR5-PREMIUM&TRD OFFROAD PACKAGE,GRAY ME.,1G3

main69211-0C040-B0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

TRD OFFROAD PACKAGE,GRAY ME.,1G3

main69211-0C040-B1iVXKA70,75..S202111

SX,SILVER ME.,1J9

main69211-0C040-B1iVXKA70,75..S202111

SR5-PREMIUM&TRD OFFROAD PACKAGE,SILVER ME.,1J9

main69211-0C040-B1iVXKA70,75..S202111

SR5-PREMIUM,SILVER ME.,1J9

main69211-0C040-B1iVXKA70,75..S202111-202408

SILVER ME.,1J9

main69211-0C040-B1iVXKA75,76..S202111

TRD OFFROAD PACKAGE,SILVER ME.,1J9

main69211-0C040-C0iVXKA75,76..S202111-202408

ATTITUDE BLACK MC.,218

main69211-0C040-C0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

SR5-PREMIUM,ATTITUDE BLACK MC.,218

main69211-0C040-C0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

SR5-PREMIUM&TRD OFFROAD PACKAGE,ATTITUDE BLACK MC.,218

main69211-0C040-C0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

SX,ATTITUDE BLACK MC.,218

main69211-0C040-C0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

TRD OFFROAD PACKAGE,ATTITUDE BLACK MC.,218

main69211-0C040-D0iVXKA75,76..S202111

TRD OFFROAD PACKAGE,EMOTIONAL RED 2,3U5

main69211-0C040-D0iVXKA70,75..S202111

SR5-PREMIUM,EMOTIONAL RED 2,3U5

main69211-0C040-D0iVXKA70,75..S202111

SR5-PREMIUM&TRD OFFROAD PACKAGE,EMOTIONAL RED 2,3U5

main69211-0C040-D0iVXKA70,75..S202111

SX,EMOTIONAL RED 2,3U5

main69211-0C040-D0iVXKA75,76..S202111-202408

EMOTIONAL RED 2,3U5

main69211-0C040-E0iVXKH75..Z202308-202508

APPEARANCE PACKAGE,VINTAGE BROWN PEARL CS.,4X4

main69211-0C040-E0iVXKA70,71,75,76,VXKH7#..CMAX..L202207-202508

VINTAGE BROWN PEARL CS.,4X4

main69211-0C040-E0iVXKH85..L202207-202409

TRD PRO PACKAGE,VINTAGE BROWN PEARL CS.,4X4

main69211-0C040-E1iVXKH85..L202207-202408

POP ORANGE CS.,4W5

main69211-0C040-E1iVXKH85..L202207-202408

TRD PRO PACKAGE,POP ORANGE CS.,4W5

main69211-0C040-E2iVXKA70,75..S202409-202508

SR5-PREMIUM&TRD OFFROAD PACKAGE,TERRA,4Z0

main69211-0C040-E2iVXKA70,75..S202409-202508

TRD OFFROAD PACKAGE,TERRA,4Z0

main69211-0C040-E2iVXKA70,75..S202308-202508

APPEARANCE PACKAGE,TERRA,4Z0

main69211-0C040-E2iVXKA75,76..S202308-202508

TERRA,4Z0

main69211-0C040-E2iVXKA75,76..S202409-202508

SR5-PREMIUM,TERRA,4Z0

main69211-0C040-E2iVXKA75,76..S202409-202508

SX,TERRA,4Z0

main69211-0C040-E2iVXKH85..L202308-202508

TRD PRO PACKAGE,TERRA,4Z0

main69211-0C040-E3iVXKH85..S,Z202408

MUD BATH,4Z2

main69211-0C040-E3iVXKH85..S,Z202408

TRD PRO PACKAGE,MUD BATH,4Z2

main69211-0C040-E3iVXKH85..S,Z202408

APPEARANCE PACKAGE,MUD BATH,4Z2

main69211-0C040-G0iVXKH85..L202207-202308

DK.GREEN,6V7

main69211-0C040-G0iVXKH8#..S202207-202308

TRD PRO PACKAGE,DK.GREEN,6V7

main69211-0C040-G1iVXKA70,75..S202111

SR5-PREMIUM,URBAN KHAKI,6X3

main69211-0C040-G1iVXKA70,75..S202111

SR5-PREMIUM&TRD OFFROAD PACKAGE,URBAN KHAKI,6X3

main69211-0C040-G1iVXKA70,75..S202111

SX,URBAN KHAKI,6X3

main69211-0C040-G1iVXKA70,75..S202111

TRD OFFROAD PACKAGE,URBAN KHAKI,6X3

main69211-0C040-G1iVXKA75,76..S202111-202408

URBAN KHAKI,6X3

main69211-0C040-J0iVXKA75,76..S202111

SX,DK. BLUE MC.,8X8

main69211-0C040-J0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111-202408

DK. BLUE MC.,8X8

main69211-0C040-J0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

SR5-PREMIUM,DK. BLUE MC.,8X8

main69211-0C040-J0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

SR5-PREMIUM&TRD OFFROAD PACKAGE,DK. BLUE MC.,8X8

main69211-0C040-J0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

TRD OFFROAD PACKAGE,DK. BLUE MC.,8X8

main69211-0C060iVXKA7#..S202111

NO PAINT REQ.

main69211-0C070iVXKA70,71,75,76,VXKH7#,8#..(CMAX,SRF)..(L,U)202111-202408

NO PAINT REQ.,1794

main69211-0C070iVXKA70,71,75,76,VXKH7#,8#..(CMAX,SRF)..(L,U)202111-202408

NO PAINT REQ.

69237BNUT, REAR DOOR HANDLE

main69237-62010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

sub69237-0E010

69239DBUSH, REAR DOOR HANDLE

main69239-06040iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69211-0C040-A0iVXKA71,VXKH71,80..Z202111-202408

PLATINUM WHITE PEARL MC.,089

main69211-0C040-A1iVXKA70,75,76,VXKH70,75,76..Z202111

SR5-PREMIUM&TRD OFFROAD PACKAGE,SUPER WHITE 2,040

main69211-0C040-A1iVXKA71,VXKH71..Z202111-202408

SUPER WHITE 2,089

main69211-0C040-A1iVXKA70,75,76,VXKH70,75,76..Z202111

SR5-PREMIUM,SUPER WHITE 2,040

main69211-0C040-A1iVXKA70,75,76,VXKH70,75,76..Z202111

SX,SUPER WHITE 2,040

main69211-0C040-A1iVXKA70,75,76,VXKH70,75,76..Z202111

TRD OFFROAD PACKAGE,SUPER WHITE 2,040

main69211-0C040-A1iVXKH8#..S202207

SUPER WHITE 2,040

main69211-0C040-A1iVXKH8#..S202207

TRD PRO PACKAGE,SUPER WHITE 2,040

main69211-0C040-B0iVXKA75,76..S202111

SR5-PREMIUM,GRAY ME.,1G3

main69211-0C040-B0iVXKA71,VXKH71,80..Z202111-202408

GRAY ME.,1G3

main69211-0C040-B0iVXKA70,75..S202111

TRD OFFROAD PACKAGE,GRAY ME.,1G3

main69211-0C040-B0iVXKA70,75..S202111

SX,GRAY ME.,1G3

main69211-0C040-B0iVXKA70,75..S202111

SR5-PREMIUM&TRD OFFROAD PACKAGE,GRAY ME.,1G3

main69211-0C040-B1iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

TRD OFFROAD PACKAGE,SILVER ME.,1J9

main69211-0C040-B1iVXKA71,VXKH71,80..Z202111-202408

SILVER ME.,1J9

main69211-0C040-B1iVXKA75,76..S202111

SX,SILVER ME.,1J9

main69211-0C040-B1iVXKA75,76..S202111

SR5-PREMIUM&TRD OFFROAD PACKAGE,SILVER ME.,1J9

main69211-0C040-B1iVXKA75,76..S202111

SR5-PREMIUM,SILVER ME.,1J9

main69211-0C040-C0iVXKA75,76..S202111

SX,ATTITUDE BLACK MC.,218

main69211-0C040-C0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111-202408

ATTITUDE BLACK MC.,218

main69211-0C040-C0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

SR5-PREMIUM,ATTITUDE BLACK MC.,218

main69211-0C040-C0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

SR5-PREMIUM&TRD OFFROAD PACKAGE,ATTITUDE BLACK MC.,218

main69211-0C040-C0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

TRD OFFROAD PACKAGE,ATTITUDE BLACK MC.,218

main69211-0C040-D0iVXKA70,75..S202111-202408

EMOTIONAL RED 2,3U5

main69211-0C040-D0iVXKA70,75..S202111

SR5-PREMIUM,EMOTIONAL RED 2,3U5

main69211-0C040-D0iVXKA70,75..S202111

SR5-PREMIUM&TRD OFFROAD PACKAGE,EMOTIONAL RED 2,3U5

main69211-0C040-D0iVXKA70,75..S202111

SX,EMOTIONAL RED 2,3U5

main69211-0C040-D0iVXKA70,75..S202111

TRD OFFROAD PACKAGE,EMOTIONAL RED 2,3U5

main69211-0C040-E0iVXKA70,71,75,76,VXKH7#..CMAX..L202308-202508

APPEARANCE PACKAGE,VINTAGE BROWN PEARL CS.,4X4

main69211-0C040-E0iVXKH85..L202207-202409

TRD PRO PACKAGE,VINTAGE BROWN PEARL CS.,4X4

main69211-0C040-E0iVXKH75..Z202207-202508

VINTAGE BROWN PEARL CS.,4X4

main69211-0C040-E1iVXKH8#..S202207-202408

TRD PRO PACKAGE,POP ORANGE CS.,4W5

main69211-0C040-E1iVXKH85..L202207-202408

POP ORANGE CS.,4W5

main69211-0C040-E2iVXKA75,76..S202308-202508

APPEARANCE PACKAGE,TERRA,4Z0

main69211-0C040-E2iVXKH85..L202308-202508

TERRA,4Z0

main69211-0C040-E2iVXKH85..L202308-202508

TRD PRO PACKAGE,TERRA,4Z0

main69211-0C040-E2iVXKA75,76,VXKH75,76..Z202409-202508

SR5-PREMIUM,TERRA,4Z0

main69211-0C040-E2iVXKA75,76,VXKH75,76..Z202409-202508

SR5-PREMIUM&TRD OFFROAD PACKAGE,TERRA,4Z0

main69211-0C040-E2iVXKA75,76,VXKH75,76..Z202409-202508

SX,TERRA,4Z0

main69211-0C040-E2iVXKA75,76,VXKH75,76..Z202409-202508

TRD OFFROAD PACKAGE,TERRA,4Z0

main69211-0C040-E3iVXKH85..L202408

TRD PRO PACKAGE,MUD BATH,4Z2

main69211-0C040-E3iVXKH85..L202408

MUD BATH,4Z2

main69211-0C040-E3iVXKH85..L202408

APPEARANCE PACKAGE,MUD BATH,4Z2

main69211-0C040-G0iVXKH8#..S202207-202308

TRD PRO PACKAGE,DK.GREEN,6V7

main69211-0C040-G0iVXKH8#..S202207-202308

DK.GREEN,6V7

main69211-0C040-G1iVXKA70,75..S202111

SR5-PREMIUM,URBAN KHAKI,6X3

main69211-0C040-G1iVXKA70,75..S202111

SR5-PREMIUM&TRD OFFROAD PACKAGE,URBAN KHAKI,6X3

main69211-0C040-G1iVXKA70,75..S202111

SX,URBAN KHAKI,6X3

main69211-0C040-G1iVXKA70,75..S202111

TRD OFFROAD PACKAGE,URBAN KHAKI,6X3

main69211-0C040-G1iVXKA75,76..S202111-202408

URBAN KHAKI,6X3

main69211-0C040-J0iVXKA75,76..S202111

SR5-PREMIUM&TRD OFFROAD PACKAGE,DK. BLUE MC.,8X8

main69211-0C040-J0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111-202408

DK. BLUE MC.,8X8

main69211-0C040-J0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

SR5-PREMIUM,DK. BLUE MC.,8X8

main69211-0C040-J0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

SX,DK. BLUE MC.,8X8

main69211-0C040-J0iVXKH80..S;VXKH85..S,Z;VXKA70,75,76,VXKH70,75,76..Z202111

TRD OFFROAD PACKAGE,DK. BLUE MC.,8X8

main69211-0C060iVXKA7#..S202111

NO PAINT REQ.

main69211-0C070iVXKA70,75..DCB..L202111-202408

NO PAINT REQ.

main69211-0C070iVXKA70,75,76,VXKH70,75,76..Z202111-202408

NO PAINT REQ.,1794

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-0C030iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-0C030iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main69283-0C030iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main69284-0C020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

69296ASCREW, DOOR INSIDE HANDLE

main69296-0T010iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408

69296BSCREW, DOOR INSIDE HANDLE

main90084-14006iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-AA010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-02020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-0C070iVXKA70,75..DCB..L202111-202408

main69730-0C080iVXKA71,VXKH71..L,S;VXKA70,75,76,VXKH70,75,76..CMAX202111-202408

main69730-0C090iVXKH80..Z202207-202408

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-0C070iVXKA70,75..DCB..L202111-202408

main69730-0C080iVXKA71,VXKH71..L,S;VXKA70,75,76,VXKH70,75,76..CMAX202111-202408

main69730-0C090iVXKH80..Z202207-202408

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-0C070iVXKA70,75..DCB..L202111-202408

main69770-0C080iVXKA71,VXKH71..L,S;VXKA70,75,76,VXKH70,75,76..CMAX202111-202408

main69770-0C090iVXKH85;VXKH80..L,S202207-202408

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-0C070iVXKA70,72,75,77..DCB..S202111-202408

main69770-0C080iVXKA71,VXKH71..L,S;VXKA70,75,76,VXKH70,75,76..CMAX202111-202408

main69770-0C090iVXKH80..Z202207-202408

90148A0017

main90148-A0017

90148A0022

main90148-A0022

90167A0012

main90167-A0012

9018906018

main90189-06018

30 parts on this diagram · 1 diagram in section
