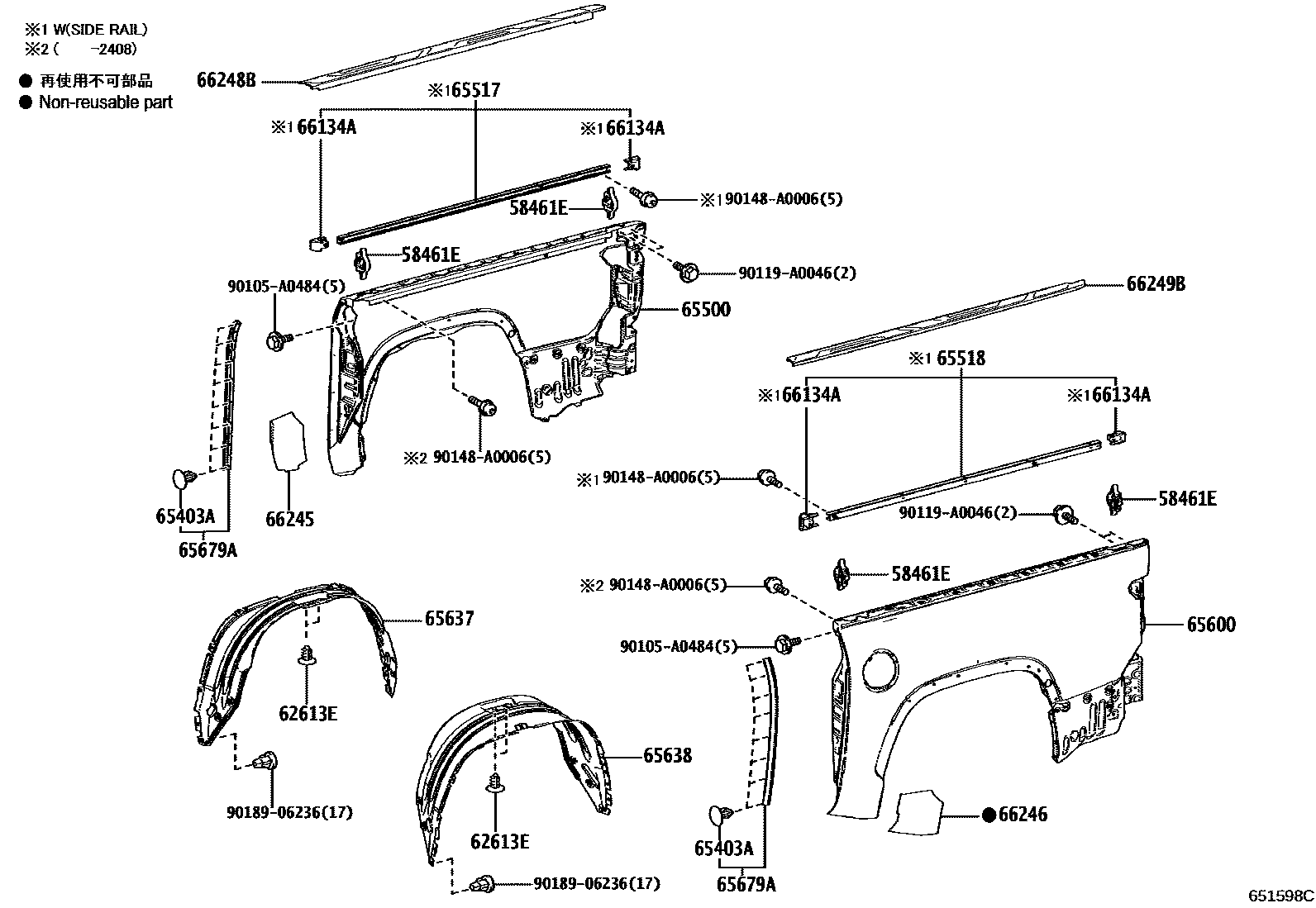

REAR BODY SIDE PANEL

0001 1 0002 1 0003 1

58461ESTRIKER, LUGGAGE HOLD BELT

main58461-04030iVXKA70,75..DCB..L202111-202408

DECK RAIL-WITH(HEADER PANEL & SIDE PANEL)

main58461-04030iVXKA76,VXKH76;VXKA71,72,77,VXKH71..L,S;VXKA70,75,VXKH70,75..U,Z202111

62613ECLIP (FOR QUARTER WHEEL HOUSE COVER)

main90467-08186-C3iVXKA71,VXKH71..Z;VXKA70,75..DCB..L202111-202408

BLACK

sub90467-08186

65403ACLIP, CORNER PROTECTOR

main90467-10005-C0iVXKA71,VXKH71..Z;VXKA70,75..DCB..L202111-202408

BLACK

sub90467-10005

sub90467-06017

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-0C250iVXKA70,75,VXKH70,75..CMAX202111-202408

sub65500-AN040

main65500-0C260iVXKA70,75..DCB;VXKA71,76,VXKH71,76202111-202408

sub65500-AN050

main65500-0C270iVXKA72,77202111-202408

sub65500-AN060

main65500-AN040iVXKA70,75,VXKH70,75..CMAX202409

main65500-AN050iVXKA76,VXKH76;VXKA70,75..DCB..S;VXKA71,VXKH71..L,S202409

main65500-AN060iVXKA72,77202409

65517RAIL, SIDE PANEL TOP, REAR RH

main65335-0C080iVXKA70,75,VXKH70,75..U,Z202111

main65335-0C090iVXKA70,75..DCB..L202111-202408

DECK RAIL-WITH(HEADER PANEL & SIDE PANEL)

main65335-0C090iVXKA76,VXKH76;VXKA71,VXKH71..L,S202111

main65335-0C100iVXKA72,77202111

65518RAIL, SIDE PANEL TOP, REAR LH

main65335-0C080iVXKA70,75,VXKH70,75..U,Z202111

main65335-0C090iVXKA70,75..DCB..S202111

main65335-0C090iVXKA71,VXKH71..Z202111-202408

DECK RAIL-WITH(HEADER PANEL & SIDE PANEL)

main65335-0C100iVXKA72,77202111

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-0C250iVXKA70,75,VXKH70,75..CMAX202111-202408

main65600-0C260iVXKA70,75..DCB;VXKA71,76,VXKH71,76202111-202408

sub65600-AN050

main65600-0C270iVXKA72,77202111-202408

main65600-AN040iVXKA70,75,VXKH70,75..CMAX202409

main65600-AN050iVXKA76,VXKH76;VXKA70,75..DCB..S;VXKA71,VXKH71..L,S202409

main65600-AN060iVXKA72,77202409

65637LINER, REAR WHEEL HOUSE, RH

main65637-0C050iVXKA71,VXKH71..Z;VXKA70,75..DCB..L202111-202408

65638LINER, REAR WHEEL HOUSE, LH

main65638-0C050iVXKA71,VXKH71..Z;VXKA70,75..DCB..L202111-202408

65679ASEAL, SIDE GATE

main65679-0C010iVXKA71,VXKH71..Z;VXKA70,75..DCB..L202111-202408

66134ACAP, SIDE GATE SUPPORT

main66134-04010iVXKA71,VXKH71..Z202111-202408

DECK RAIL-WITH(HEADER PANEL & SIDE PANEL)

main66134-04010iVXKA76,VXKH76;VXKA71,72,77,VXKH71..L,S;VXKA70,75,VXKH70,75..U,Z202111

66245PROTECTOR, REAR BODY, NO.3 RH

main66243-0C030iVXKA70,75,VXKH70,75..CMAX202111

main66245-0C050iVXKA71,VXKH71..Z;VXKA70,75..DCB..L202111-202408

main66245-0C060iVXKA72,77202111

66246PROTECTOR, REAR BODY, NO.3 LH

main66244-0C030iVXKA70,75,VXKH70,75..CMAX202111

main66246-0C050iVXKA76,VXKH76;VXKA70,75..DCB..S;VXKA71,VXKH71..L,S202111-202408

main66246-0C060iVXKA72,77202111

66248BPROTECTOR, REAR BODY SIDE PANEL, RH

main66248-0C110iVXKA70,75,VXKH70,75..CMAX202111

main66248-0C120iVXKA71,VXKH71..Z;VXKA70,75..DCB..L202111-202408

main66248-0C130iVXKA72,77202111

66249BPROTECTOR, REAR BODY SIDE PANEL, LH

main66249-0C110iVXKA70,75,VXKH70,75..CMAX202111

main66249-0C120iVXKA71,VXKH71..Z;VXKA70,75..DCB..L202111-202408

main66249-0C130iVXKA72,77202111

90105A0484

main90105-A0484

90119A0046

main90119-A0046

90148A0006

main90148-A0006

9018906236

main90189-06236

19 parts on this diagram · 3 diagrams in section
