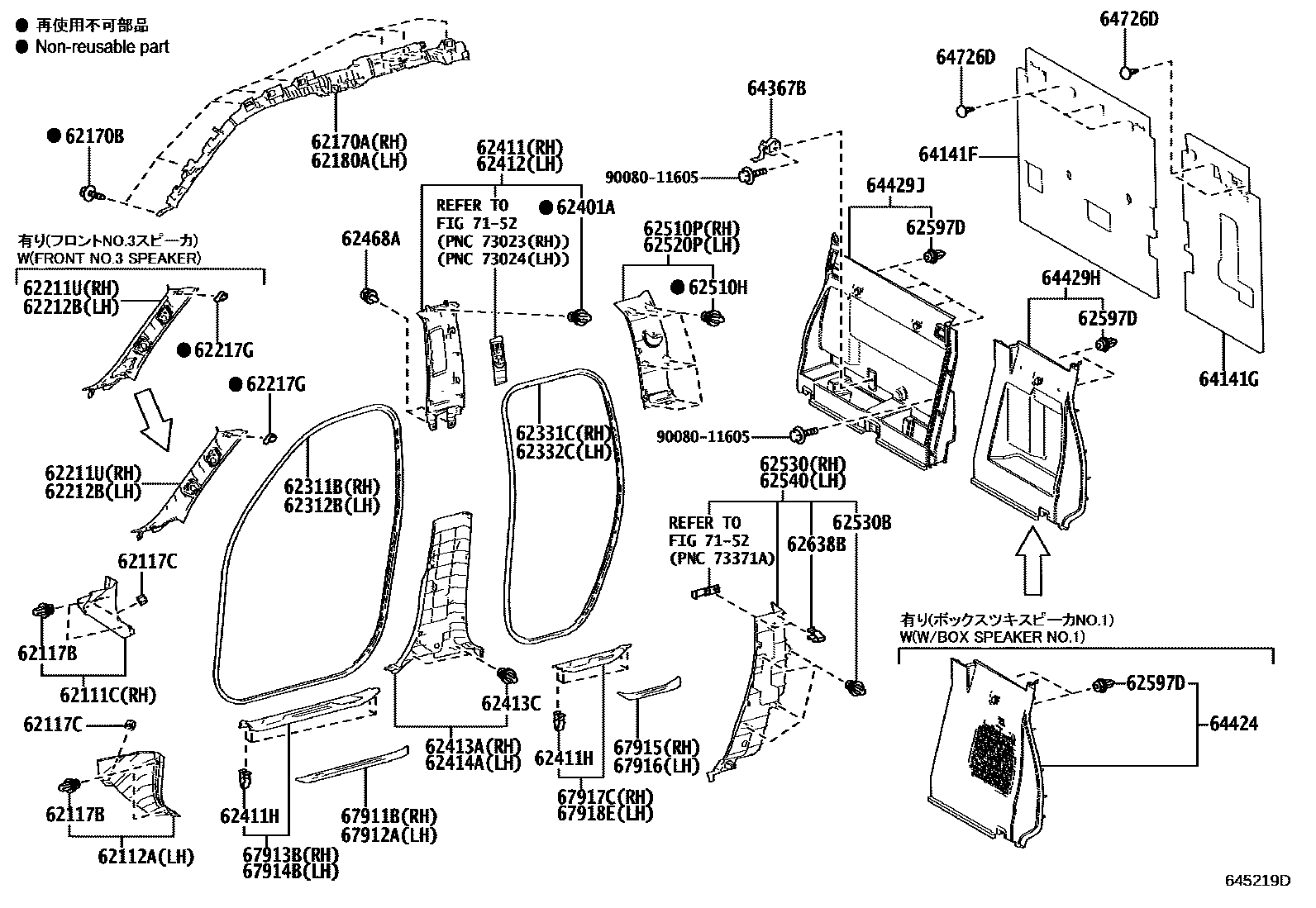

INSIDE TRIM BOARD

0001 1 0002 1 0003 1 0004 1RH SIDE 0005 1LH SIDE

62111CBOARD, COWL SIDE TRIM, RH

main62111-0C050-C0iVXKH75,85..S,U;VXKA70,75..DCB..S;VXKA70,75..CMAX..(L,S);VXKA71,72,76,77,VXKH70,71,76,80..L,S202111-202408

BLACK,TRIM2#,4#

main62111-0C050-C0iVXKH75,85..S,U;VXKA70,75..DCB..S;VXKA70,75..CMAX..(L,S);VXKA71,72,76,77,VXKH70,71,76,80..L,S202111-202408

BLACK,TRIM1#,2#

main62111-0C050-C0iVXKH85..Z202207

BLACK,TRIM1#,2#,4#

main62111-0C050-C0iVXKH75,85..L202203

BLACK,TRIM1#,2#,3#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62112-0C050-C0iVXKH75,85..S,U;VXKA70,75..DCB..S;VXKA70,75..CMAX..(L,S);VXKA71,72,76,77,VXKH70,71,76,80..L,S202111-202408

BLACK,TRIM2#,4#

main62112-0C050-C0iVXKA70,75..DCB..L202111-202408

BLACK,TRIM1#,2#

main62112-0C050-C0iVXKH75,85..L202203

BLACK,TRIM1#,2#,3#

main62112-0C050-C0iVXKH85..Z202207

BLACK,TRIM1#,2#,4#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-A0006iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-06147iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-0C150iVXKA70,72,75,77..DCB..S202111-202408

main62170-0C160iVXKA71,VXKH71..Z202111-202408

main62170-0C170iVXKH80..Z202207-202408

62170BBOLT, W/WASHER

main90080-11699iVXKH85;VXKH80..L,S202111-202408

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-0C150iVXKA70,75..DCB..L202111-202408

main62180-0C160iVXKA71,VXKH71..L,S;VXKA70,75,76,VXKH70,75,76..CMAX202111-202408

main62180-0C170iVXKH80..Z202207-202408

62211UGARNISH ASSY, FRONT PILLAR, RH

main62210-0C070-B0iVXKH75,85..L202203-202409

LT.GRAY,TRIM1#,2#,3#

main62210-0C070-B0iVXKA70,75..DCB..L202111-202409

LT.GRAY,TRIM1#,2#

main62210-0C070-C0iVXKA70,75..DCB..S;VXKA70,75..CMAX..(L,S);VXKA71,72,76,77,VXKH7#,8#..L,S202409

BLACK,TRIM1#,2#

main62210-0C080-C2iVXKA70,75..DCB..L202111-202408

SPEAKER-12SPEAKER & JBL,BLACK,TRIM13,21

main62210-0C080-C2iVXKA70,75,76,VXKH70,75,76,85..Z202111-202408

BLACK,TRIM2#,4#

main62210-0C080-C2iVXKH75..U202203-202508

BLACK,TRIM1#,2#

62212BGARNISH ASSY, FRONT PILLAR, LH

main62220-0C070-B0iVXKA70,75..DCB..L202111-202409

LT.GRAY,TRIM1#,2#

main62220-0C070-B0iVXKH75,85..L202203-202409

LT.GRAY,TRIM1#,2#,3#

main62220-0C070-C0iVXKA70,75..DCB..S;VXKA70,75..CMAX..(L,S);VXKA71,72,76,77,VXKH7#,8#..L,S202409

BLACK,TRIM1#,2#

main62220-0C080-C2iVXKA71,VXKH71,80..Z202111-202408

SPEAKER-12SPEAKER & JBL,BLACK,TRIM13,21

main62220-0C080-C2iVXKA71,VXKH71,80..Z202111-202408

BLACK,TRIM2#,4#

main62220-0C080-C2iVXKH75..U202203-202508

BLACK,TRIM1#,2#

62217GCLIP, FRONT PILLAR GARNISH

main62217-04010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-0C060iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-0C060iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408

62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-0C060iVXKA71,VXKH71..Z202111-202408

main62331-0C070iVXKA70,72,75,77..DCB..S202111-202408

main62331-0C080iVXKH80..Z202207-202408

62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-0C060iVXKA71,VXKH71..L,S;VXKA70,75,76,VXKH70,75,76..CMAX202111-202408

main62332-0C070iVXKA70,75..DCB..L202111-202408

main62332-0C080iVXKH80..Z202207-202408

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main62217-13010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

62411GARNISH, CENTER PILLAR, RH

main62410-0C050-B0iVXKH75,85..L202203-202409

LT.GRAY,TRIM13,21,33

main62410-0C050-B0iVXKA70,75..DCB..L202111-202409

LT.GRAY,TRIM13,21

main62410-0C050-C0iVXKA70,75..CMAX..(L,S);VXKA70,75,VXKH85..(DCB,SRF)..S;VXKA71,72,76,77,VXKH70,71,76,80..L,S202409

BLACK,TRIM1#,2#,3#

main62410-0C050-C0iVXKA70,75..CMAX..(L,S);VXKA70,75,VXKH85..(DCB,SRF)..S;VXKA71,72,76,77,VXKH70,71,76,80..L,S202203

BLACK,TRIM1#,2#

main62410-0C050-C0iVXKA70,75..DCB..L202111-202409

BLACK,TRIM13,21

main62410-0C050-C0iVXKA70,75..DCB..L202111-202408

BLACK,TRIM2#,4#

main62410-0C050-C0iVXKA75..CMAX..S202111-202409

BLACK,TRIM13,21,27

main62410-0C050-C0iVXKH75,85..L202203-202409

BLACK,TRIM13,21,33

main62410-0C050-C0iVXKH85..Z202207

BLACK,TRIM1#,2#,4#

62411HCLIP

main90467-05171iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71..L,S;VXKA70,75,76,VXKH70,75,76..CMAX202111-202408

62412GARNISH, CENTER PILLAR, LH

main62420-0C050-B0iVXKA70,75..DCB..L202111-202409

LT.GRAY,TRIM13,21

main62420-0C050-B0iVXKH75,85..L202203-202409

LT.GRAY,TRIM13,21,33

main62420-0C050-C0iVXKA71,VXKH71,80..Z202111-202409

BLACK,TRIM13,21

main62420-0C050-C0iVXKA71,VXKH71,80..Z202111-202408

BLACK,TRIM2#,4#

main62420-0C050-C0iVXKA75..CMAX..S202111-202409

BLACK,TRIM13,21,27

main62420-0C050-C0iVXKH75,85..L202203-202409

BLACK,TRIM13,21,33

main62420-0C050-C0iVXKH75..U202203

BLACK,TRIM1#,2#

main62420-0C050-C0iVXKH85..Z202207

BLACK,TRIM1#,2#,4#

main62420-0C050-C0iVXKH75,85..L202409

BLACK,TRIM1#,2#,3#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-0C050-C0iVXKA70,75..DCB..L202111-202408

BLACK,TRIM1#,2#

main62413-0C050-C0iVXKA70,75..DCB..L202111-202408

BLACK,TRIM2#,4#

main62413-0C050-C0iVXKH75,85..L202203

BLACK,TRIM1#,2#,3#

main62413-0C050-C0iVXKH85..Z202207

BLACK,TRIM1#,2#,4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-A0006iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-0C050-C0iVXKH75,85..S,U;VXKA70,75..DCB..S;VXKA70,75..CMAX..(L,S);VXKA71,72,76,77,VXKH70,71,76,80..L,S202111-202408

BLACK,TRIM1#,2#

main62414-0C050-C0iVXKA70,75..DCB..L202111-202408

BLACK,TRIM2#,4#

main62414-0C050-C0iVXKH75,85..L202203

BLACK,TRIM1#,2#,3#

main62414-0C050-C0iVXKH85..Z202207

BLACK,TRIM1#,2#,4#

62468ACLIP (FOR CENTER PILLAR REAR GARNISH)

main90467-10216iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

62510HCLIP(FOR QUARTER TRIM FRONT PANEL)

main90467-A0006iVXKA71,VXKH71..Z;VXKA70,75..DCB..L202111-202408

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-0C180-B0iVXKA70,72,75,77..DCB..S202111-202409

LT.GRAY,TRIM1#,2#

main62510-0C180-C0iVXKA70,72,75,77..DCB..S202409

BLACK,TRIM1#,2#

main62510-0C190-B0iVXKA70,71,75,76,VXKH70,71,76..CMAX..(L,S)202111-202409

LT.GRAY,TRIM13,21

main62510-0C190-B0iVXKH75..L202203-202409

LT.GRAY,TRIM13,21,33

main62510-0C190-C0iVXKH75..L202203

BLACK,TRIM1#,2#

main62510-0C190-C0iVXKH75..L202409

BLACK,TRIM1#,2#,3#

main62510-0C190-C0iVXKA70,75,76,VXKH70,75,76..Z202111-202408

BLACK,TRIM2#,4#

main62510-0C190-C0iVXKA75..CMAX..S202111-202409

BLACK,TRIM13,21,27

main62510-0C190-C0iVXKA75..CMAX..S202111-202409

BLACK,TRIM13,21

main62510-0C190-C0iVXKH75..L202203-202409

BLACK,TRIM13,21,33

main62510-0C200-C0iVXKH85..L202207-202409

BLACK,TRIM1#,2#

main62510-0C200-C0iVXKH80..Z202207-202409

BLACK,TRIM2#

main62510-0C200-C0iVXKH85..L202207-202409

BLACK,TRIM1#,2#,3#

main62510-0C230-C0iVXKH8#..S202207-202409

BLACK,TRIM1#,2#

main62510-AN010-C0iVXKH85..L202409

BLACK,TRIM1#,2#,3#

main62510-AN010-C0iVXKH85..L202409

BLACK,TRIM1#,2#

main62510-AN010-C0iVXKH85..L202409

BLACK,TRIM1#,2#,4#

main62510-AN020-C0iVXKH8#..S202409-202508

BLACK,TRIM1#,2#

62520PPANEL ASSY, QUARTER TRIM, FRONT LH

main62520-0C180-B0iVXKA70,72,75,77..DCB..S202111-202409

LT.GRAY,TRIM1#,2#

main62520-0C180-C0iVXKA70,72,75,77..DCB..S202409

BLACK,TRIM1#,2#

main62520-0C190-B0iVXKH75..L202203-202409

LT.GRAY,TRIM13,21,33

main62520-0C190-B0iVXKA70,71,75,76,VXKH70,71,76..CMAX..(L,S)202111-202409

LT.GRAY,TRIM13,21

main62520-0C190-C0iVXKA70,71,75,76,VXKH70,71,76..CMAX..(L,S)202203

BLACK,TRIM1#,2#

main62520-0C190-C0iVXKA70,75,76,VXKH70,75,76..Z202111-202408

BLACK,TRIM2#,4#

main62520-0C190-C0iVXKH75..L202409

BLACK,TRIM1#,2#,3#

main62520-0C190-C0iVXKA75..CMAX..S202111-202409

BLACK,TRIM13,21,27

main62520-0C190-C0iVXKA75..CMAX..S202111-202409

BLACK,TRIM13,21

main62520-0C190-C0iVXKH75..L202203-202409

BLACK,TRIM13,21,33

main62520-0C200-C0iVXKH85..Z202207-202409

BLACK,TRIM2#

main62520-0C200-C0iVXKH85..Z202207-202409

SPEAKER-14SPEAKER & JBL,BLACK,TRIM1#,2#,3#

main62520-0C200-C0iVXKH85..Z202207-202409

SPEAKER-14SPEAKER & JBL,BLACK,TRIM1#,2#

main62520-0C240-C0iVXKH8#..S202207-202409

BLACK,TRIM1#,2#

main62520-0C250-C0iVXKH8#..L202207-202409

BLACK,TRIM1#,2#

main62520-AN010-C0iVXKH85..Z202409

SPEAKER-14SPEAKER & JBL,BLACK,TRIM1#,2#,3#

main62520-AN010-C0iVXKH85..Z202409

SPEAKER-14SPEAKER & JBL,BLACK,TRIM1#,2#

main62520-AN010-C0iVXKH85..L202409

BLACK,TRIM1#,2#,4#

main62520-AN030-C0iVXKH8#..S202409-202508

BLACK,TRIM1#,2#

main62520-AN040-C0iVXKH8#..L202409

BLACK,TRIM1#,2#

62530PANEL ASSY, QUARTER TRIM, LOWER RH

main62530-0C050-C0iVXKA70,72,75,77..DCB..S202111-202408

BLACK,TRIM1#,2#

main62530-0C070-C0iVXKA70,75,76,VXKH70,75,76..Z202111-202408

BLACK,TRIM2#,4#

main62530-0C070-C0iVXKA70,75,76,VXKH70,75,76..Z202111

BLACK,TRIM1#,2#

main62530-0C070-C0iVXKH75..L202203

BLACK,TRIM1#,2#,3#

62530BCLIP, QUARTER TRIM NO.1

main90467-A0006iVXKA71,VXKH71..Z202111-202408

62540PANEL ASSY, QUARTER TRIM, LOWER LH

main62540-0C050-C0iVXKA70,75..DCB..L202111-202408

BLACK,TRIM1#,2#

main62540-0C070-C0iVXKH75..U;VXKA70,71,75,76,VXKH70,71,76..CMAX..(L,S)202111-202408

BLACK,TRIM2#,4#

main62540-0C070-C0iVXKA70,75,76,VXKH70,75,76..Z202111

BLACK,TRIM1#,2#

main62540-0C070-C0iVXKH75..L202203

BLACK,TRIM1#,2#,3#

62597DCLIP

main90467-A0048iVXKA71,VXKH71..Z;VXKA70,75..DCB..L202111-202408

62638BCLIP

main90467-05171iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71..L,S;VXKA70,75,76,VXKH70,75,76..CMAX202111-202408

64141FSHEET, ROOM PARTITION PANEL SILENCER, NO.1 RH

main64141-0C070iVXKA70,75..DCB..L202111-202408

main64141-0C110iVXKA71,VXKH71..L,S;VXKA70,75,76,VXKH70,75,76..CMAX202111-202408

64141GSHEET, ROOM PARTITION PANEL SILENCER, NO.1 LH

main64141-0C180iVXKA71,VXKH71..L,S;VXKA70,75,76,VXKH70,75,76..CMAX202111-202408

main64141-0C190iVXKA70,72,75,77..DCB..S202111-202408

64367BSTRAP, PACKAGE TRAY TRIM

main64367-0C010iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71..L,S;VXKA70,75,76,VXKH70,75,76..CMAX202111-202408

64424SEPARATOR, LUGGAGE ROOM BOX

main64424-0C020-C0iVXKA70,75,76,VXKH70,75,76..Z202111-202408

BLACK,TRIM2#,4#

main64424-0C020-C0iVXKA70,75,76,VXKH70,75,76..Z202111

SPEAKER-12SPEAKER & JBL,BLACK,TRIM1#,2#

main64424-0C020-C0iVXKH75..U202203

BLACK,TRIM1#,2#

main64424-0C020-C0iVXKH75..U202203

SPEAKER-12SPEAKER & JBL,BLACK,TRIM1#,2#,3#

64429HTRAY, LUGGAGE COMPARTMENT SIDE

main64429-0C040-C0iVXKA70,75..DCB..L202111-202408

BLACK,TRIM1#,2#

main64429-0C050-C0iVXKA70,71,75,76,VXKH7#..CMAX..(L,S)202111

BLACK,TRIM1#,2#

64429JTRAY, LUGGAGE COMPARTMENT SIDE

main64429-0C020iVXKA70,75..DCB..L202111-202408

main64429-0C030iVXKA71,VXKH71..Z202111-202408

64726DCLIP, LUGGAGE TRIM, REAR

main90467-A0002-C4iVXKA71,VXKH71..Z;VXKA70,75..DCB..L202111-202408

BLACK

sub90467-A0002

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-0C010-C0iVXKA70,75..DCB..L202111-202408

BLACK,TRIM1#,2#

main67911-0C010-C0iVXKA70,75..DCB..L202111-202408

BLACK,TRIM2#,4#

main67911-0C010-C0iVXKH75,85..L202203

BLACK,TRIM1#,2#,3#

main67911-0C010-C0iVXKH85..Z202207

BLACK,TRIM1#,2#,4#

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-0C010-C0iVXKA70,75,76,VXKH70,75,76..Z202111-202408

BLACK,TRIM1#,2#

main67912-0C010-C0iVXKA70,75..DCB..L202111-202408

BLACK,TRIM2#,4#

main67912-0C010-C0iVXKH75,85..L202203

BLACK,TRIM1#,2#,3#

main67912-0C010-C0iVXKH85..Z202207

BLACK,TRIM1#,2#,4#

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-0C060-C0iVXKA71,VXKH71,80..Z202111-202408

BLACK,TRIM2#,4#

main67913-0C060-C0iVXKA70,75..DCB..L202111-202408

BLACK,TRIM1#,2#

main67913-0C060-C0iVXKH75,85..L202203

BLACK,TRIM1#,2#,3#

main67913-0C060-C0iVXKH85..Z202207

BLACK,TRIM1#,2#,4#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-0C060-C0iVXKA70,75,76,VXKH70,75,76..Z202111-202408

BLACK,TRIM2#,4#

main67914-0C060-C0iVXKA70,75..DCB..L202111-202408

BLACK,TRIM1#,2#

main67914-0C060-C0iVXKH75,85..L202203

BLACK,TRIM1#,2#,3#

main67914-0C060-C0iVXKH85..Z202207

BLACK,TRIM1#,2#,4#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-0C010-C0iVXKA70,72,75,77..DCB..S202111-202408

BLACK,TRIM1#,2#

main67915-0C020-C0iVXKH75..L202203

BLACK,TRIM1#,2#,3#

main67915-0C020-C0iVXKA70,75,76,VXKH70,75,76..Z202111-202408

BLACK,TRIM2#,4#

main67915-0C020-C0iVXKA70,75,76,VXKH70,75,76..Z202111

BLACK,TRIM1#,2#

main67915-0C060-C0iVXKH85..Z202207

BLACK,TRIM1#,2#

main67915-0C060-C0iVXKH80..Z202207-202408

BLACK,TRIM2#,4#

main67915-0C060-C0iVXKH85..S;VXKH80..L,S202207

BLACK,TRIM1#,2#,3#

main67915-0C060-C0iVXKH85..S;VXKH80..L,S202207

BLACK,TRIM1#,2#,4#

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-0C010-C0iVXKA70,75..DCB..L202111-202408

BLACK,TRIM1#,2#

main67916-0C020-C0iVXKA70,75,76,VXKH70,75,76..Z202111-202408

BLACK,TRIM2#,4#

main67916-0C020-C0iVXKA70,75,76,VXKH70,75,76..Z202111

BLACK,TRIM1#,2#

main67916-0C020-C0iVXKH75..L202203

BLACK,TRIM1#,2#,3#

main67916-0C060-C0iVXKH85..S;VXKH80..L,S202207

BLACK,TRIM1#,2#,3#

main67916-0C060-C0iVXKH85..S;VXKH80..L,S202207

BLACK,TRIM1#,2#,4#

main67916-0C060-C0iVXKH85..L202207

BLACK,TRIM1#,2#

main67916-0C060-C0iVXKH80..Z202207-202408

BLACK,TRIM2#,4#

67917CPLATE, REAR DOOR SCUFF, RH

main67917-0C050-C0iVXKA70,75..DCB..L202111-202408

BLACK,TRIM1#,2#

main67917-0C060-C0iVXKA71,VXKH71..Z202111-202408

BLACK,TRIM2#,4#

main67917-0C060-C0iVXKA70,75,76,VXKH70,75,76..Z202111

BLACK,TRIM1#,2#

main67917-0C060-C0iVXKH75..L202203

BLACK,TRIM1#,2#,3#

main67917-0C080-C0iVXKH85..S;VXKH80..L,S202207

BLACK,TRIM1#,2#,3#

main67917-0C080-C0iVXKH85..S;VXKH80..L,S202207

BLACK,TRIM1#,2#,4#

main67917-0C080-C0iVXKH85..L202207

BLACK,TRIM1#,2#

main67917-0C080-C0iVXKH80..Z202207-202408

BLACK,TRIM2#,4#

67918EPLATE, REAR DOOR SCUFF, LH

main67918-0C050-C0iVXKA70,72,75,77..DCB..S202111-202408

BLACK,TRIM1#,2#

main67918-0C060-C0iVXKH75..U;VXKA70,71,75,76,VXKH70,71,76..CMAX..(L,S)202111-202408

BLACK,TRIM2#,4#

main67918-0C060-C0iVXKH75..U;VXKA70,71,75,76,VXKH70,71,76..CMAX..(L,S)202111

BLACK,TRIM1#,2#

main67918-0C060-C0iVXKH75..L202203

BLACK,TRIM1#,2#,3#

main67918-0C080-C0iVXKH85..L202207

BLACK,TRIM1#,2#,4#

main67918-0C080-C0iVXKH80..Z202207-202408

BLACK,TRIM2#,4#

main67918-0C080-C0iVXKH85..S;VXKH80..L,S202207

BLACK,TRIM1#,2#

main67918-0C080-C0iVXKH85..S;VXKH80..L,S202207

BLACK,TRIM1#,2#,3#

7152

9008011605

main90080-11605

47 parts on this diagram · 5 diagrams in section
