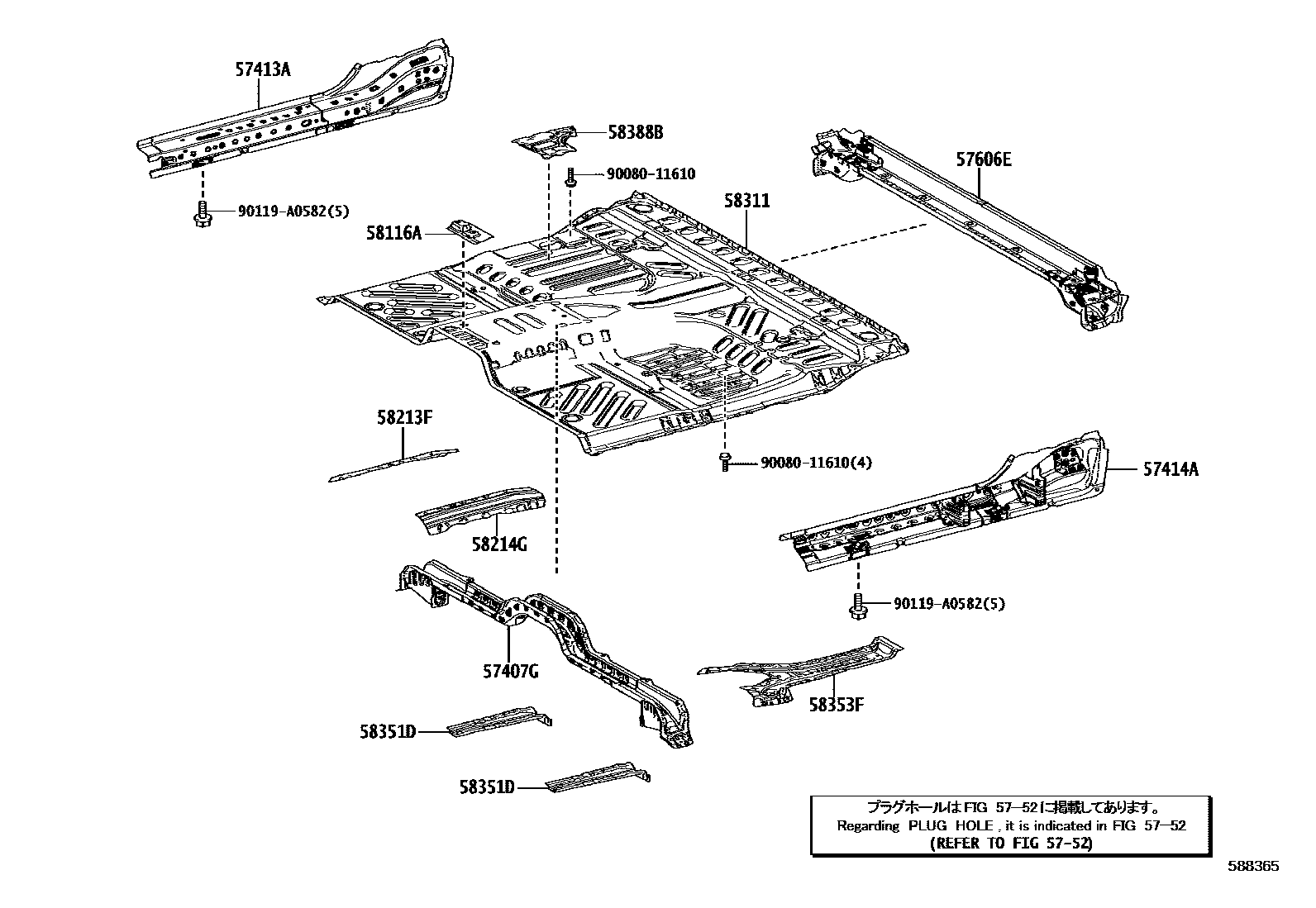

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1

57407GMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-0C040iVXKA71,VXKH71..Z;VXKA70,75..DCB..L202111-202408

57413AMEMBER, FLOOR SIDE, INNER REAR RH

main57403-0C080iVXKA71,VXKH71..Z202111-202408

main57403-0C090iVXKA70,72,75,77..DCB..S202111-202408

main57403-0C100iVXKH80..Z202207-202408

57414AMEMBER, FLOOR SIDE, INNER REAR LH

main57404-0C060iVXKA71,VXKH71..Z202111-202408

main57404-0C070iVXKA70,72,75,77..DCB..S202111-202408

main57404-0C080iVXKH85;VXKH80..L,S202207-202408

5752

57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-0C060iVXKH71..Z202203-202408

main57606-0C070iVXKA70,75..DCB..L202111-202408

main57606-0C080iVXKH80..Z202207-202408

main57606-0C090iVXKA71..Z202111-202408

58116APANEL, FRONT FLOOR REAR UPPER SIDE, RH

main58116-0C010iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71..L,S;VXKA70,75,76,VXKH70,75,76..CMAX202111-202408

58213FREINFORCEMENT, CENTER FLOOR PANEL

main58213-0C060iVXKA71,VXKH71..Z202111-202408

main58213-0C070iVXKA70,72,75,77..DCB..S202111-202408

main58213-0C080iVXKH80..Z202207-202408

58214GREINFORCEMENT, CENTER FLOOR PANEL, LH

main58214-0C040iVXKA71,VXKH71..Z202111-202408

main58214-0C050iVXKA70,72,75,77..DCB..S202111-202408

main58214-0C060iVXKH80..Z202207-202408

58311PAN, REAR FLOOR

main58311-0C140iVXKA71,VXKH71..Z202111-202408

main58311-0C160iVXKA70,72,75,77..DCB..S202111-202408

main58311-0C180iVXKH8#..L,S202207

main58311-0C190iVXKH85..Z202207-202408

58351DREINFORCEMENT, REAR FLOOR PANEL

main58351-0C050iVXKA71,VXKH71..Z202111-202408

main58351-0C070iVXKA70,72,75,77..DCB..S202111-202408

58353FREINFORCEMENT, REAR FLOOR PANEL, NO.3

main58353-0C070iVXKA71,VXKH71..Z202111-202408

main58353-0C080iVXKA70,75..DCB..L202111-202408

58388BBRACKET, PLATE REAR FLOOR

main58388-0C030iVXKA71,VXKH71..Z;VXKA70,75..DCB..L202111-202408

9008011610

main90080-11610

90119A0582

main90119-A0582

14 parts on this diagram · 4 diagrams in section
