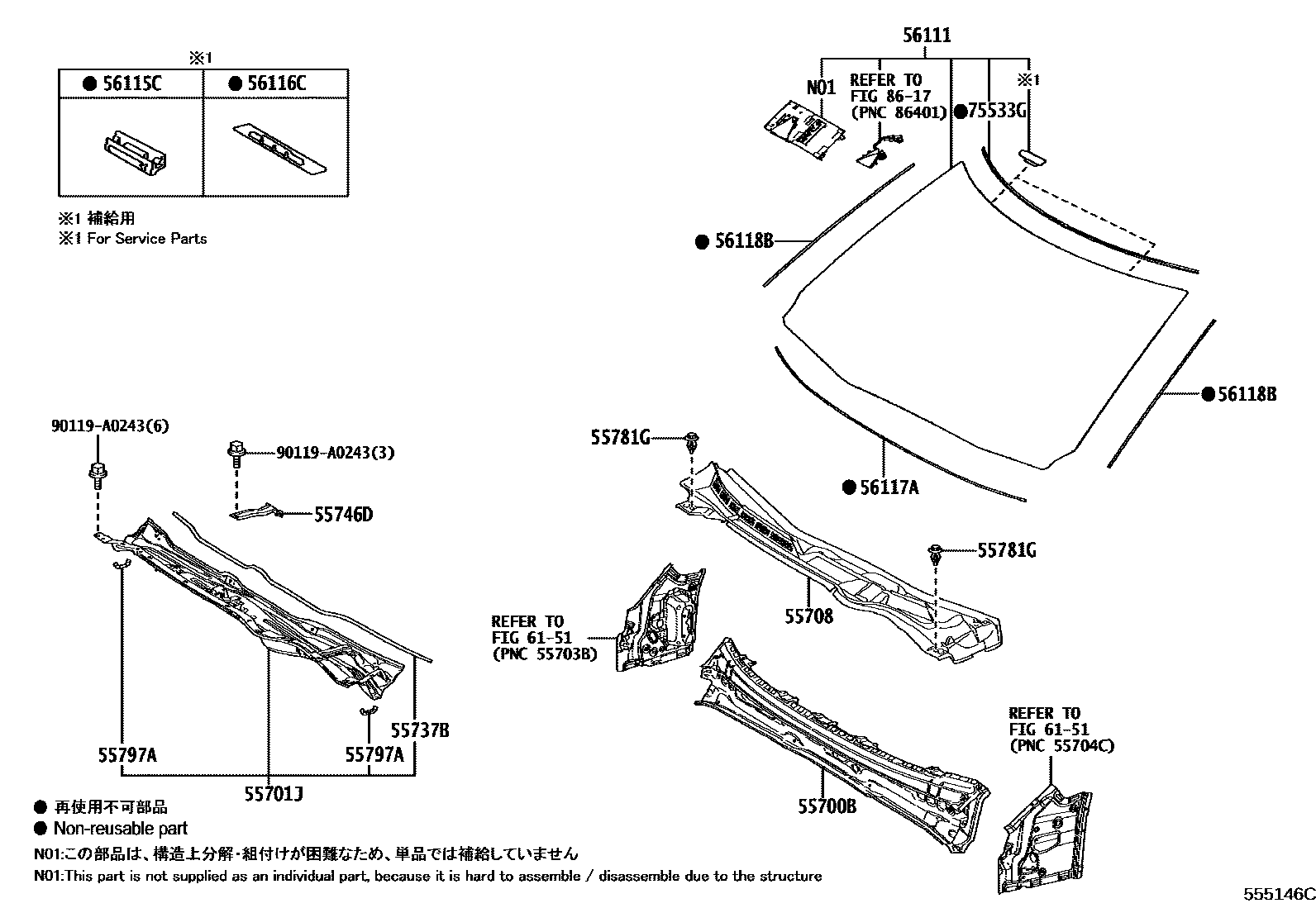

COWL PANEL & WINDSHIELD GLASS
55700BCOWL ASSY
55701JPANEL SUB-ASSY, COWL TOP, OUTER
main55701-0C030iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
main55708-0C070iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
main55737-0C020iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408
55746DREINFORCEMENT, COWL TOP, INNER NO.2
main55746-0C020iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408
55781GCLIP, COWL TOP VENTILATOR LOUVER
55797ASEAL, COWL WATER EXTRACT
main55797-0C010iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408
56111GLASS, WINDSHIELD
56115CSTOPPER, WINDSHIELD GLASS
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
L=1428,HEAD UP DISPLAY-WITH
L=1428
L=1428,TOWING PACKAGE-TOW TECH PACKAGE
L=1428,TOWING PACKAGE-TOW TECH PACKAGE&WINDSHIELD DEICER-WITH
L=1428,TOWING PACKAGE-TOW TECH PACKAGE&WINDSHIELD DEICER-WITH&HEAD UP DISPLAY-WITH
L=1428,TOWING PACKAGE-TOW TECH PACKAGE&HEAD UP DISPLAY-WITH
L=1428,WINDSHIELD DEICER-WITH
L=1428,WINDSHIELD DEICER-WITH&HEAD UP DISPLAY-WITH
main56117-0C100iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111
L=1428,NEW CALEDONIA SPEC
56118BDAM, WINDOW GLASS ADHESIVE, NO.2
L=587
L=587,TOWING PACKAGE-TOW TECH PACKAGE
L=587,TOWING PACKAGE-TOW TECH PACKAGE&WINDSHIELD DEICER-WITH
L=587,TOWING PACKAGE-TOW TECH PACKAGE&WINDSHIELD DEICER-WITH&HEAD UP DISPLAY-WITH
L=587,TOWING PACKAGE-TOW TECH PACKAGE&HEAD UP DISPLAY-WITH
L=587,WINDSHIELD DEICER-WITH
L=587,WINDSHIELD DEICER-WITH&HEAD UP DISPLAY-WITH
L=587,HEAD UP DISPLAY-WITH
main56118-0C010iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111
L=587,NEW CALEDONIA SPEC
6151
75533GMOULDING, WINDSHIELD, OUTSIDE
8617
90119A0243
main90119-A0243
16 parts on this diagram · 1 diagram in section
