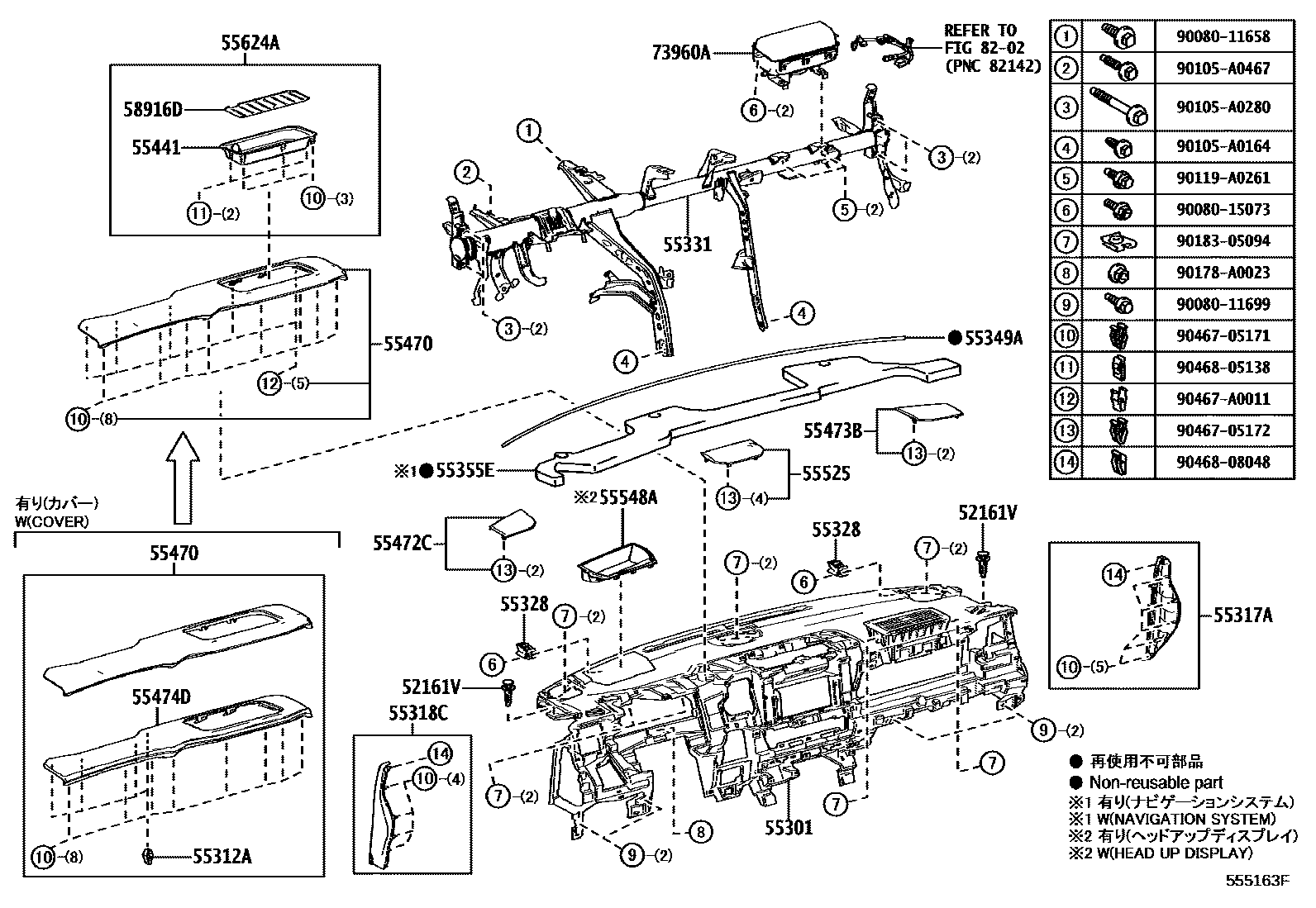

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-02020iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF¥200202111-202408

55301PANEL SUB-ASSY, INSTRUMENT

main55301-0C060-C0iVXKA70,75..DCB..L202111-202408

BLACK,TRIM1#,2#

main55301-0C060-C0iVXKA70,75..DCB..L202111-202408

BLACK,TRIM2#,4#

main55301-0C060-C0iVXKH75,85..L202203

BLACK,TRIM1#,2#,3#

main55301-0C070-C0iVXKH75..U202203

BLACK,TRIM1#,2#

55312ACLIP, INSTRUMENT PANEL

main90467-13082-A0iVXKA71,VXKH71,80..Z202111-202408

MELLOW WHITE

sub90467-13082¥80

55317APANEL, INSTRUMENT SIDE, RH

main55317-0C030-C0iVXKA70,75..DCB..L202111-202408

BLACK,TRIM1#,2#

main55317-0C030-C0iVXKA70,75..DCB..L202111-202408

BLACK,TRIM2#,4#

main55317-0C030-C0iVXKH75,85..L202203

BLACK,TRIM1#,2#,3#

main55317-0C030-C0iVXKH85..Z202207

BLACK,TRIM1#,2#,4#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-0C030-C0iVXKA70,75..DCB..L202111-202408

BLACK,TRIM1#,2#

main55318-0C030-C0iVXKA70,75..DCB..L202111-202408

BLACK,TRIM2#,4#

main55318-0C030-C0iVXKH75,85..L202203

BLACK,TRIM1#,2#,3#

main55318-0C030-C0iVXKH85..Z202207

BLACK,TRIM1#,2#,4#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-10040iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z¥370202111-202408

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-0C120iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

55349ACUSHION, INSTRUMENT PANEL

main55349-0C060iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

55355ECUSHION, INSTRUMENT PANEL

main55355-0C040iVXKA71,VXKH71,80..Z202111-202408

55441BOX, INSTRUMENT PANEL

main55451-0C010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

55470GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL

main55470-0C060-C0iVXKH75..Z202111-202408

BLACK/BEIGE,TRIM4#

main55470-0C060-C0iVXKH75..Z202308-202408

BLACK/BEIGE,TRIM41,44

main55470-0C060-C1iVXKH75..U202203-202508

BLACK/WHITE,TRIM2#

main55470-0C060-C1iVXKH80..Z202207-202508

BLACK/WHITE,TRIM25

main55470-0C060-C3iVXKH85..Z202207-202508

BLACK/BLUE,TRIM21

main55470-0C060-C3iVXKA71,VXKH71..Z202111-202408

BLACK/BLUE,TRIM2#

main55470-0C060-C5iVXKH75..Z202308-202408

BLACK/BLACK,TRIM47

main55470-0C090-C0iVXKH75,85..L202203

BLACK,TRIM1#,2#,3#

main55470-0C090-C0iVXKA70,75..CMAX..(L,S);VXKA70,75,VXKH85..(DCB,SRF)..S;VXKA71,72,76,77,VXKH70,71,76,80..L,S202111-202408

BLACK,TRIM1#,2#

55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1

main55472-0C030iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408

55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2

main55473-0C030iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

55474DGARNISH, INSTRUMENT PANEL SAFETY PAD

main55474-0C190iVXKA70,75,76,VXKH70,75,76,85..U,Z202111-202408

55525COVER, SPEAKER HOLE, NO.1

main55525-0C020iVXKA70,75..DCB..L202111-202408

main55525-0C030iVXKH85..Z;VXKA71,VXKH71..L,S;VXKA70,75,76,VXKH70,75,76..CMAX202111

main55525-0C030iVXKA70,75..DCB..L202111-202408

SPEAKER-12SPEAKER & JBL

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-0C020iVXKH75..U202203

55624ATRAY, INSTRUMENT PANEL, CENTER

main55445-0C050iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

58916DMAT, BOX BOTTOM

main58916-0C150iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0C040iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z¥75,600202111-202408

8202

9008011658

main90080-11658

9008011699

main90080-11699¥110

9008015073

main90080-15073

90105A0164

main90105-A0164

90105A0280

main90105-A0280

90105A0467

main90105-A0467

90119A0261

main90119-A0261

90178A0023

main90178-A0023

9018305094

main90183-05094¥90

9046705171

main90467-05171¥60

9046705172

main90467-05172¥60

90467A0011

main90467-A0011

9046805138

main90468-05138¥80

9046808048

main90468-08048¥60

34 parts on this diagram · 4 diagrams in section
