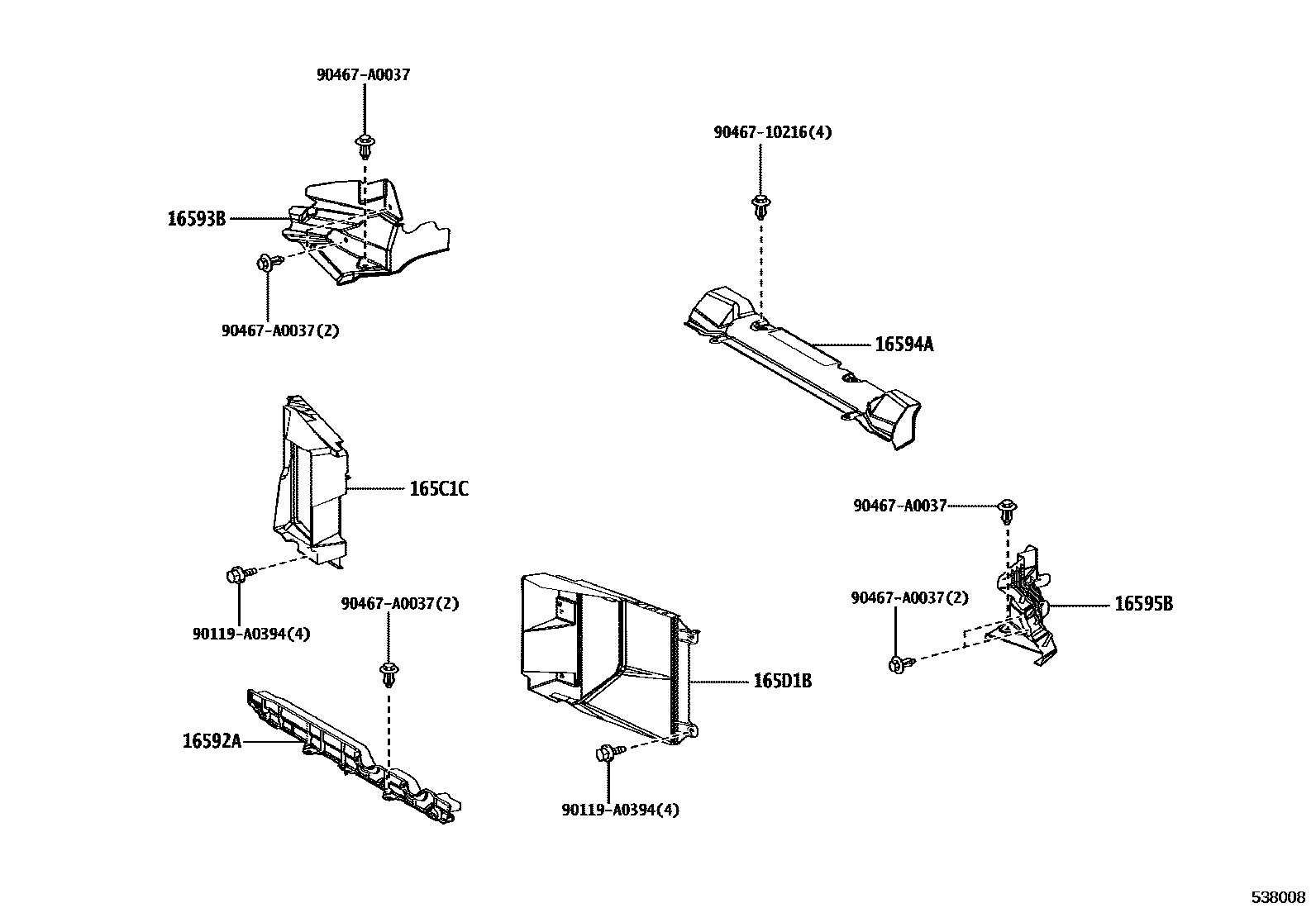

FRONT FENDER APRON & DASH PANEL

0001 1AIR GUIDE 0002 1AIR GUIDE 0003 1RADIATOR SUPPORT & FENDER APR0004 1DASH PANEL

16592AGUIDE, RADIATOR AIR, NO.3

main16592-F4010iV35AFTS..VXKA7#,VXKH7#,8#202111-202402

main16592-F4011iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202403-202408

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-F4010iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76..CMAX202111-202408

main16593-F4020iV35AFTS..VXKH85;V35AFTS..VXKH80..L,S202207-202408

16594AGUIDE, RADIATOR AIR, NO.2

main16594-F4010iV35AFTS..VXKA70,75..DCB..L;V35AFTS..VXKA71,VXKH71,80..Z202111-202408

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-F4010iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76..CMAX202111-202408

main16595-F4020iV35AFTS..VXKH85;V35AFTS..VXKH80..L,S202207-202408

165C1CDUCT, SUB-RADIATOR, RH NO.1

main165C1-F4010iV35AFTS..VXKA71,VXKH71..Z;V35AFTS..VXKA70,75..DCB..L202111-202408

main165C1-F4020iV35AFTS..VXKH80..Z202207-202408

165D1BDUCT, SUB-RADIATOR, LH NO.1

main165D1-F4010iV35AFTS..VXKA70,75..DCB..S;V35AFTS..VXKA71,72,77,VXKH71..L,S;V35AFTS..VXKA70,75,76,VXKH70,75,76..CMAX202111-202408

main165D1-F4020iV35AFTS..VXKH80..Z202207-202408

90119A0394

main90119-A0394

9046710216

main90467-10216

90467A0037

main90467-A0037

9 parts on this diagram · 4 diagrams in section
