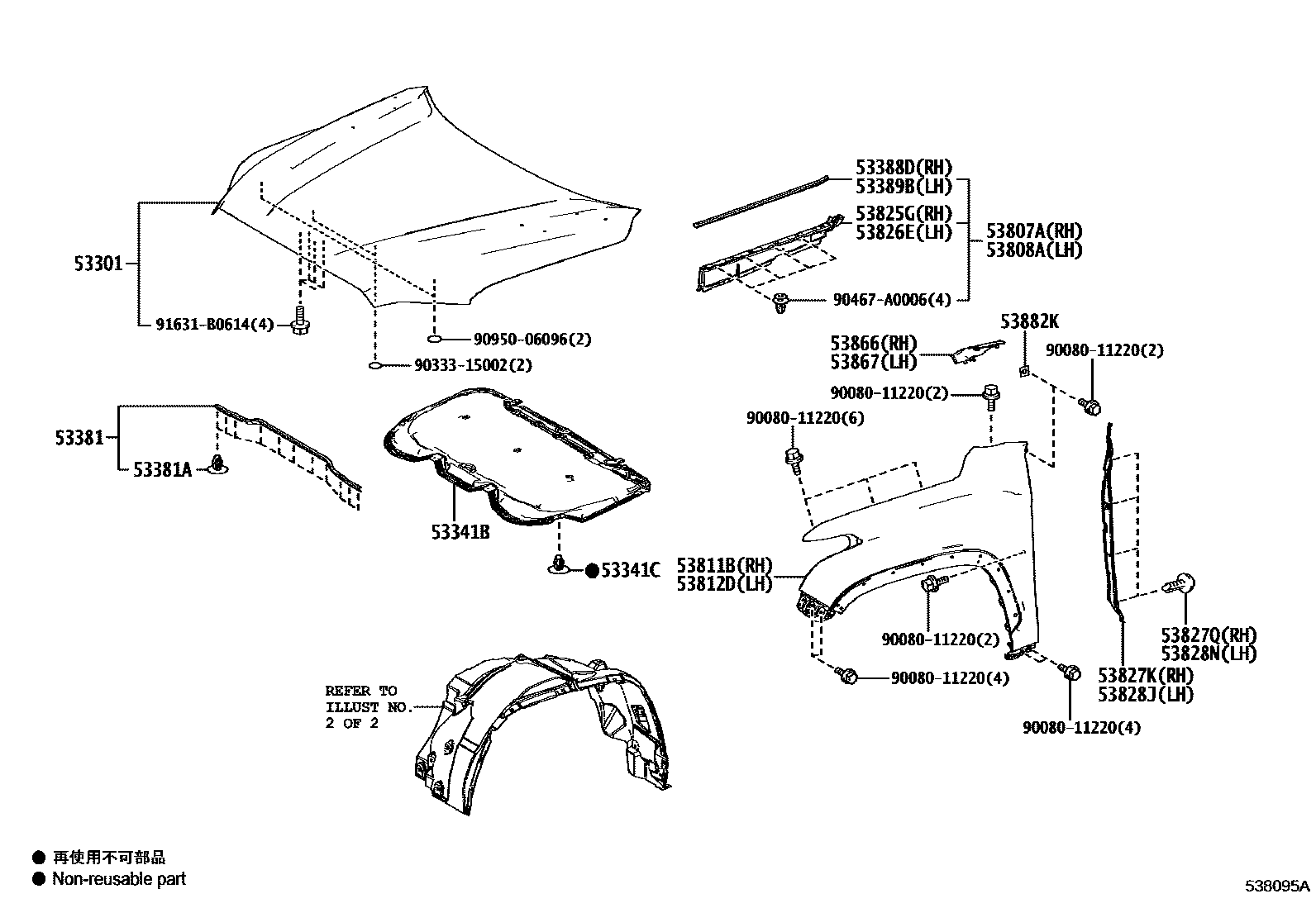

HOOD & FRONT FENDER

0001 1 0002 1 0003 1W/O(FRONT BUMPER SPOILER) 0004 1

53301HOOD SUB-ASSY

main53301-0C070iVXKH71..L;VXKH70,75,76202111-202408

main53301-0C080iVXKH71..Z202203-202409

53341BINSULATOR, HOOD

main53341-0C030iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

SR&TOWING PACKAGE-WITHOUT

main53341-0C030iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

SR&TOWING PACKAGE-WITH (HITCH&7PIN ONLY)

53341CCLIP(FOR HOOD INSULATOR)

main90467-A0003iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

SR&TOWING PACKAGE-WITHOUT

main90467-A0003iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111

SR&TOWING PACKAGE-WITH (HITCH&7PIN ONLY)

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-0C030iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-0C040iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

53389BSEAL, HOOD TO FRONT FENDER, LH

main53388-0C040iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

53807ASHIELD SUB-ASSY, FENDER SPLASH, REAR RH

main53807-0C060iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

53808ASHIELD SUB-ASSY, FENDER SPLASH, REAR LH

main53808-0C040iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

53811BPANEL, FRONT FENDER, RH

main53811-0C120iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

53812DPANEL, FRONT FENDER, LH

main53812-0C100iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

53825GPROTECTOR, FRONT FENDER, UPPER RH

main53825-0C020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

53826EPROTECTOR, FRONT FENDER, UPPER LH

main53826-0C020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0C030iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

53827QCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1

main90467-A0002-C4iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

BLACK

sub90467-A0002

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0C020iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408

53828NCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1

main90467-A0002-C4iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408

BLACK

sub90467-A0002

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0C060iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0C070iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408

53882KSEAL, FRONT FENDER

main53882-33060iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

9008011220

main90080-11220

9033315002

main90333-15002

90467A0006

main90467-A0006

9095006096

main90950-06096

91631B0614

main91631-B0614

25 parts on this diagram · 4 diagrams in section
