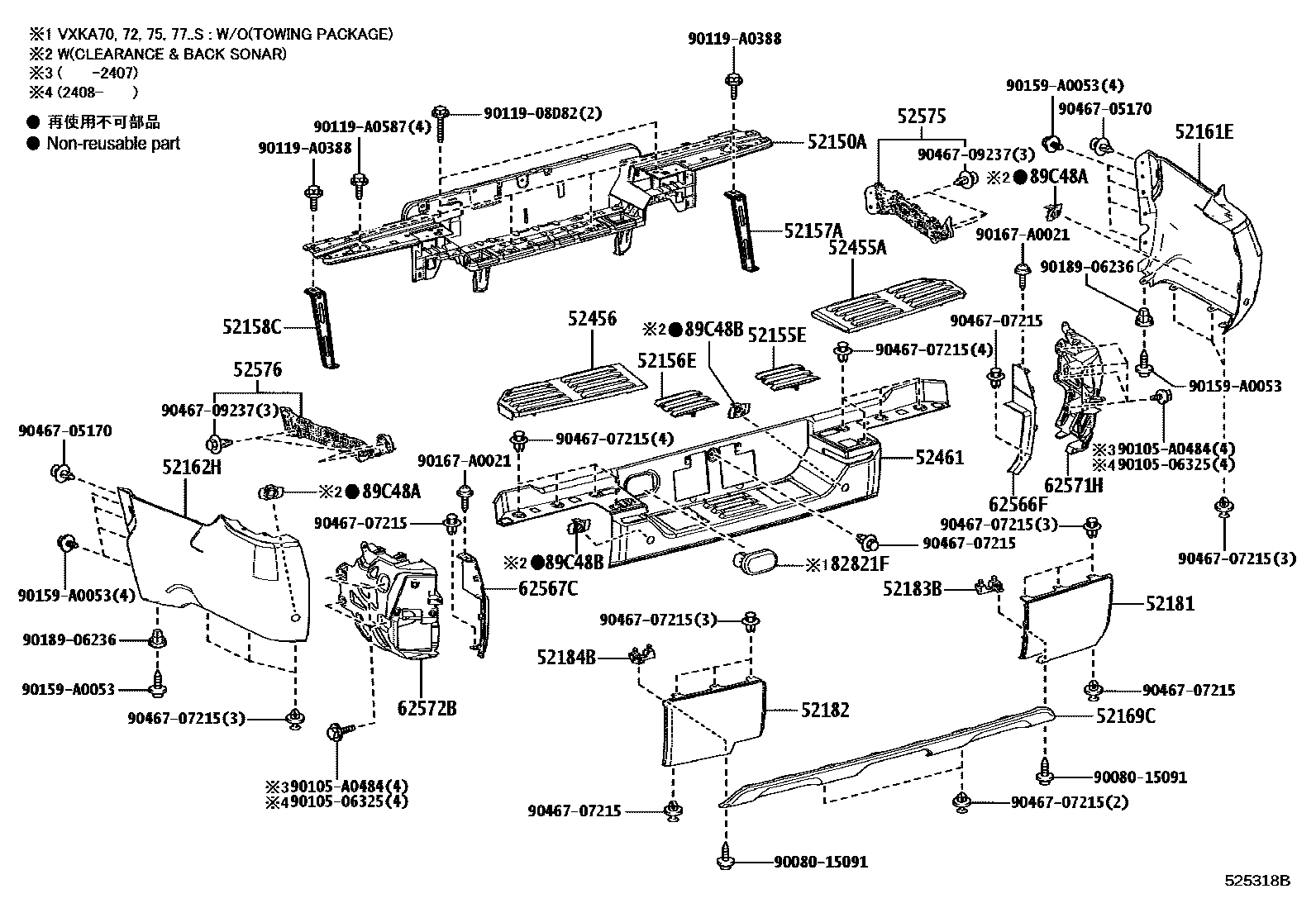

REAR BUMPER & BUMPER STAY
52150ABUMPER ASSY, REAR
52155EINSERT, REAR BUMPER EXTENSION, RH
main52155-0C050iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71..L,S;VXKA70,75,76,VXKH70,75,76..CMAX¥1,090202111-202408
52156EINSERT, REAR BUMPER EXTENSION, LH
52157ASUPPORT, REAR BUMPER SIDE, NO.2 RH
main52157-0C020iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71..L,S;VXKA70,75,76,VXKH70,75,76..CMAX¥1,230202111-202408
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
main52157-0C020iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71..L,S;VXKA70,75,76,VXKH70,75,76..CMAX¥1,230202111-202408
52161EEXTENSION, REAR BUMPER SIDE, RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
CLEARANCE & BACK SONAR-WITH(8SENSOR)
CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
CLEARANCE & BACK SONAR-WITHOUT
52162HEXTENSION, REAR BUMPER SIDE, LH
CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA)
CLEARANCE & BACK SONAR-WITH(8SENSOR)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
CLEARANCE & BACK SONAR-WITHOUT
52169CCOVER, REAR BUMPER, LOWER
main52169-0C040iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71..L,S;VXKA70,75,76,VXKH70,75,76..CMAX¥2,860202111-202408
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
52181ARM, REAR BUMPER, RH
52182ARM, REAR BUMPER, LH
52183BARM, REAR BUMPER, LOWER RH
52184BARM, REAR BUMPER, LOWER LH
52455AINSERT, REAR BUMPER GUARD, UPPER RH
52456INSERT, REAR BUMPER GUARD, UPPER LH
52461PAD, REAR BUMPER, CENTER
TRD OFFROAD PACKAGE&CLEARANCE & BACK SONAR-WITHOUT
CLEARANCE & BACK SONAR-WITHOUT
SX&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
SX&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BLIND SPOT MONITOR-WITH
TRD OFFROAD PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
TRD OFFROAD PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BLIND SPOT MONITOR-WITH
CLEARANCE & BACK SONAR-WITH(8SENSOR)
CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA)&BLIND SPOT MONITOR-WITH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BLIND SPOT MONITOR-WITH
52575RETAINER, REAR BUMPER SIDE, RH
main52575-0C040iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71..L,S;VXKA70,75,76,VXKH70,75,76..CMAX¥3,860202111-202408
52576RETAINER, REAR BUMPER SIDE, LH
62566FCOVER, REAR PILLAR, RH
62567CCOVER, REAR PILLAR, LH
62571HGARNISH, REAR PILLAR, LOWER RH
62572BGARNISH, REAR PILLAR, LOWER LH
82821FCOVER, CONNECTOR
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
SUPER WHITE 2,040
SUPER WHITE 2,089
CLEARANCE & BACK SONAR-WITH(8SENSOR),SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITHOUT,SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA),SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
CLEARANCE & BACK SONAR-WITHOUT,GRAY ME.,1G3
CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA),GRAY ME.,1G3
CLEARANCE & BACK SONAR-WITH(8SENSOR),GRAY ME.,1G3
GRAY ME.,1G3
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAY ME.,1G3
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),GRAY ME.,1G3
CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA),SILVER ME.,1J9
SILVER ME.,1J9
CLEARANCE & BACK SONAR-WITH(8SENSOR),SILVER ME.,1J9
CLEARANCE & BACK SONAR-WITHOUT,SILVER ME.,1J9
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SILVER ME.,1J9
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SILVER ME.,1J9
DUMMY-MAT BLACK
CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA),DUMMY-MAT BLACK
CLEARANCE & BACK SONAR-WITHOUT,DUMMY-MAT BLACK
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),DUMMY-MAT BLACK
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),DUMMY-MAT BLACK
CLEARANCE & BACK SONAR-WITH(8SENSOR),DUMMY-MAT BLACK
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),ATTITUDE BLACK MC.,218
ATTITUDE BLACK MC.,218
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),ATTITUDE BLACK MC.,218
CLEARANCE & BACK SONAR-WITHOUT,ATTITUDE BLACK MC.,218
CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA),ATTITUDE BLACK MC.,218
CLEARANCE & BACK SONAR-WITH(8SENSOR),ATTITUDE BLACK MC.,218
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),EMOTIONAL RED 2,3U5
EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITHOUT,EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITH(8SENSOR),EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA),EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA),POP ORANGE CS.,4W5
CLEARANCE & BACK SONAR-WITHOUT,POP ORANGE CS.,4W5
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),POP ORANGE CS.,4W5
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),POP ORANGE CS.,4W5
CLEARANCE & BACK SONAR-WITH(8SENSOR),POP ORANGE CS.,4W5
POP ORANGE CS.,4W5
VINTAGE BROWN PEARL CS.,4X4
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),TERRA,4Z0
CLEARANCE & BACK SONAR-WITHOUT,TERRA,4Z0
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRA,4Z0
CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA),TERRA,4Z0
CLEARANCE & BACK SONAR-WITH(8SENSOR),TERRA,4Z0
TERRA,4Z0
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MUD BATH,4Z2
MUD BATH,4Z2
CLEARANCE & BACK SONAR-WITH(8SENSOR),MUD BATH,4Z2
CLEARANCE & BACK SONAR-WITHOUT,MUD BATH,4Z2
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),MUD BATH,4Z2
CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA),MUD BATH,4Z2
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),DK.GREEN,3U5 ,6V7
DK.GREEN,6V7
DK.GREEN,3U5 ,6V7
CLEARANCE & BACK SONAR-WITH(8SENSOR),DK.GREEN,3U5 ,6V7
CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA),DK.GREEN,3U5 ,6V7
CLEARANCE & BACK SONAR-WITHOUT,DK.GREEN,3U5 ,6V7
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),DK.GREEN,3U5 ,6V7
CLEARANCE & BACK SONAR-WITHOUT,URBAN KHAKI,6X3
URBAN KHAKI,6X3
CLEARANCE & BACK SONAR-WITH(8SENSOR),URBAN KHAKI,6X3
CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA),URBAN KHAKI,6X3
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),URBAN KHAKI,6X3
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),URBAN KHAKI,6X3
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),DK. BLUE MC.,8X8
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),DK. BLUE MC.,8X8
CLEARANCE & BACK SONAR-WITHOUT,DK. BLUE MC.,8X8
CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA),DK. BLUE MC.,8X8
CLEARANCE & BACK SONAR-WITH(8SENSOR),DK. BLUE MC.,8X8
DK. BLUE MC.,8X8
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
BLACK,LH
TRD PRO PACKAGE,DUMMY-MAT BLACK,LH
DUMMY-MAT BLACK,RH
CLEARANCE & BACK SONAR-WITH(8SENSOR),DUMMY-MAT BLACK,RH
CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA),DUMMY-MAT BLACK,RH
CLEARANCE & BACK SONAR-WITHOUT,DUMMY-MAT BLACK,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),DUMMY-MAT BLACK,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),DUMMY-MAT BLACK,RH
DUMMY-MAT BLACK,LH
BLACK,RH
DUMMY-MAT BLACK,LH
TRD PRO PACKAGE,DUMMY-MAT BLACK,RH
DUMMY-MAT BLACK,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),DUMMY-MAT BLACK,LH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),DUMMY-MAT BLACK,LH
CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA),DUMMY-MAT BLACK,LH
CLEARANCE & BACK SONAR-WITH(8SENSOR),DUMMY-MAT BLACK,LH
9008015091
9010506325
90105A0484
main90105-A0484
9011908D82
main90119-08D82
90119A0388
main90119-A0388
90119A0587
main90119-A0587
90159A0053
main90159-A0053
90167A0021
main90167-A0021
9018906236
9046705170
9046707215
9046709237
36 parts on this diagram · 2 diagrams in section
