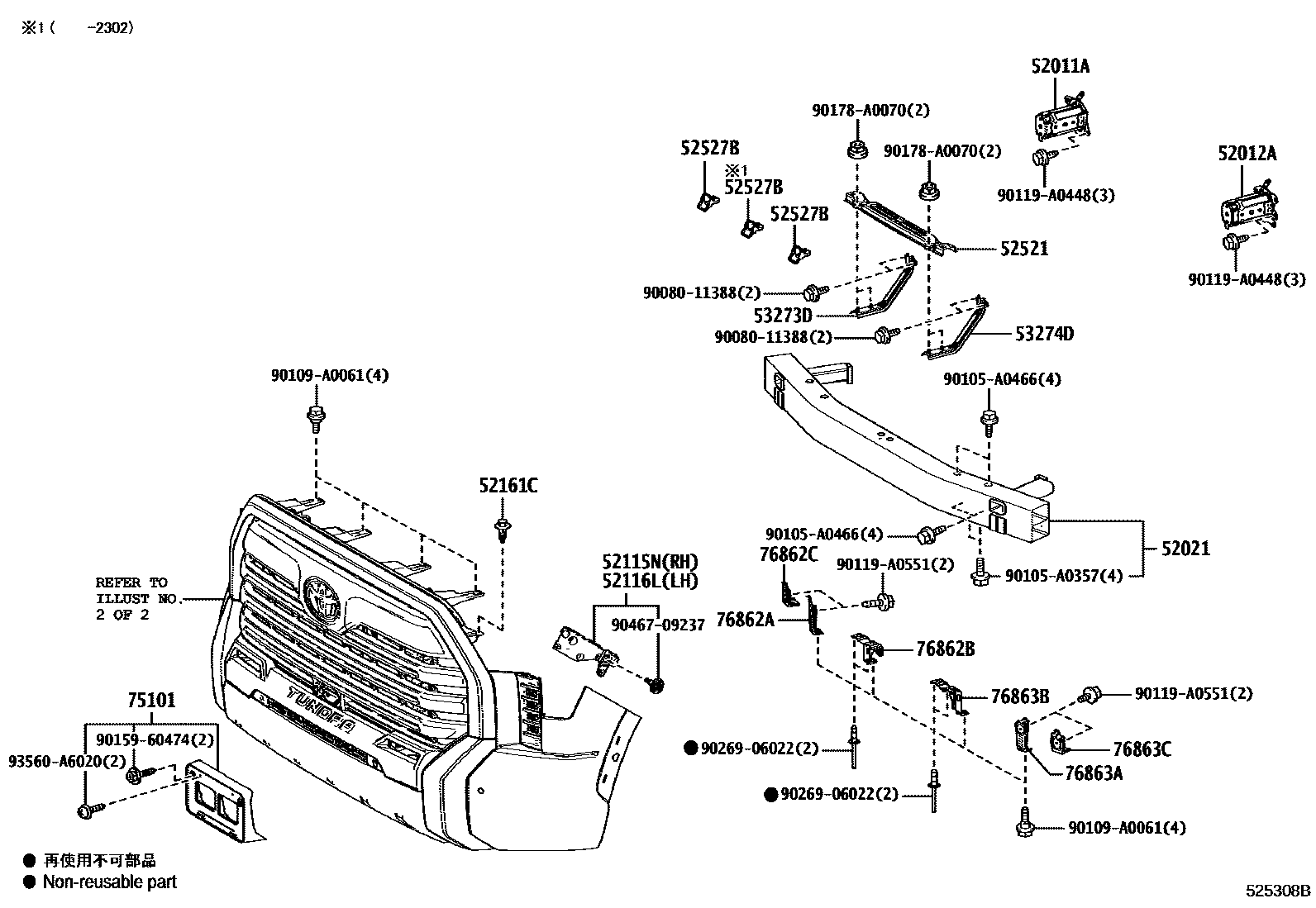

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-0C010iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-0C010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-0C080iVXKH85;VXKH80..L,S202207-202408

main52021-0C090iVXKA71,VXKH71..Z;VXKA70,75..DCB..L202111-202408

52115NINSERT, FRONT BUMPER EXTENSION, RH

main52115-0C140iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

52116LINSERT, FRONT BUMPER EXTENSION, LH

main52116-0C140iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

52161CPIECE, FRONT BUMPER

main52161-02020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-0C090iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

52527BRETAINER, FRONT BUMPER, LOWER NO.2

main52527-0C010iVXKA7#,VXKH7#,8#202111-202408

53273DBRACKET, FRONT BUMPER ARM MOUNTING, RH

main53273-0C050iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

53274DBRACKET, FRONT BUMPER ARM MOUNTING, LH

main53273-0C050iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

75101BRACKET SUB-ASSY, FRONT LICENSE PLATE

main75101-0C040iVXKA71,VXKH71..Z;VXKA70,75..DCB..L202111-202408

main75101-0C050iVXKH85;VXKH80..L,S202207-202408

76862ABRACKET, FRONT SPOILER, RH NO.1

main76862-0C010iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408

76862BBRACKET, FRONT SPOILER, RH NO.2

main76862-0C020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

76862CBRACKET, FRONT SPOILER, RH NO.3

main76862-0C030iVXKA71,VXKH71..Z;VXKA70,75..DCB..L202111-202408

SR&TOWING PACKAGE-WITHOUT

main76862-0C030iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71..L,S;VXKA70,75,76,VXKH70,75,76..CMAX202111

SR&TOWING PACKAGE-WITH (HITCH&7PIN ONLY)

main76862-0C030iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71..L,S;VXKA70,75,76,VXKH70,75,76..CMAX202111

FRONT BUMPER SPOILER-WITHOUT

76863ABRACKET, FRONT SPOILER, LH NO.1

main76863-0C010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

76863BBRACKET, FRONT SPOILER, LH NO.2

main76863-0C020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

76863CBRACKET, FRONT SPOILER, LH NO.3

main76862-0C030iVXKA70,72,77..S202111-202408

SR&TOWING PACKAGE-WITHOUT

main76862-0C030iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71..L,S;VXKA70,75,76,VXKH70,75,76..CMAX202111

SR&TOWING PACKAGE-WITH (HITCH&7PIN ONLY)

main76862-0C030iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71..L,S;VXKA70,75,76,VXKH70,75,76..CMAX202111

FRONT BUMPER SPOILER-WITHOUT

9008011388

main90080-11388

90105A0357

main90105-A0357

90105A0466

main90105-A0466

90109A0061

main90109-A0061

90119A0448

main90119-A0448

90119A0551

main90119-A0551

9015960474

main90159-60474

90178A0070

main90178-A0070

9026906022

main90269-06022

9046709237

main90467-09237

93560A6020

main93560-A6020

28 parts on this diagram · 4 diagrams in section
