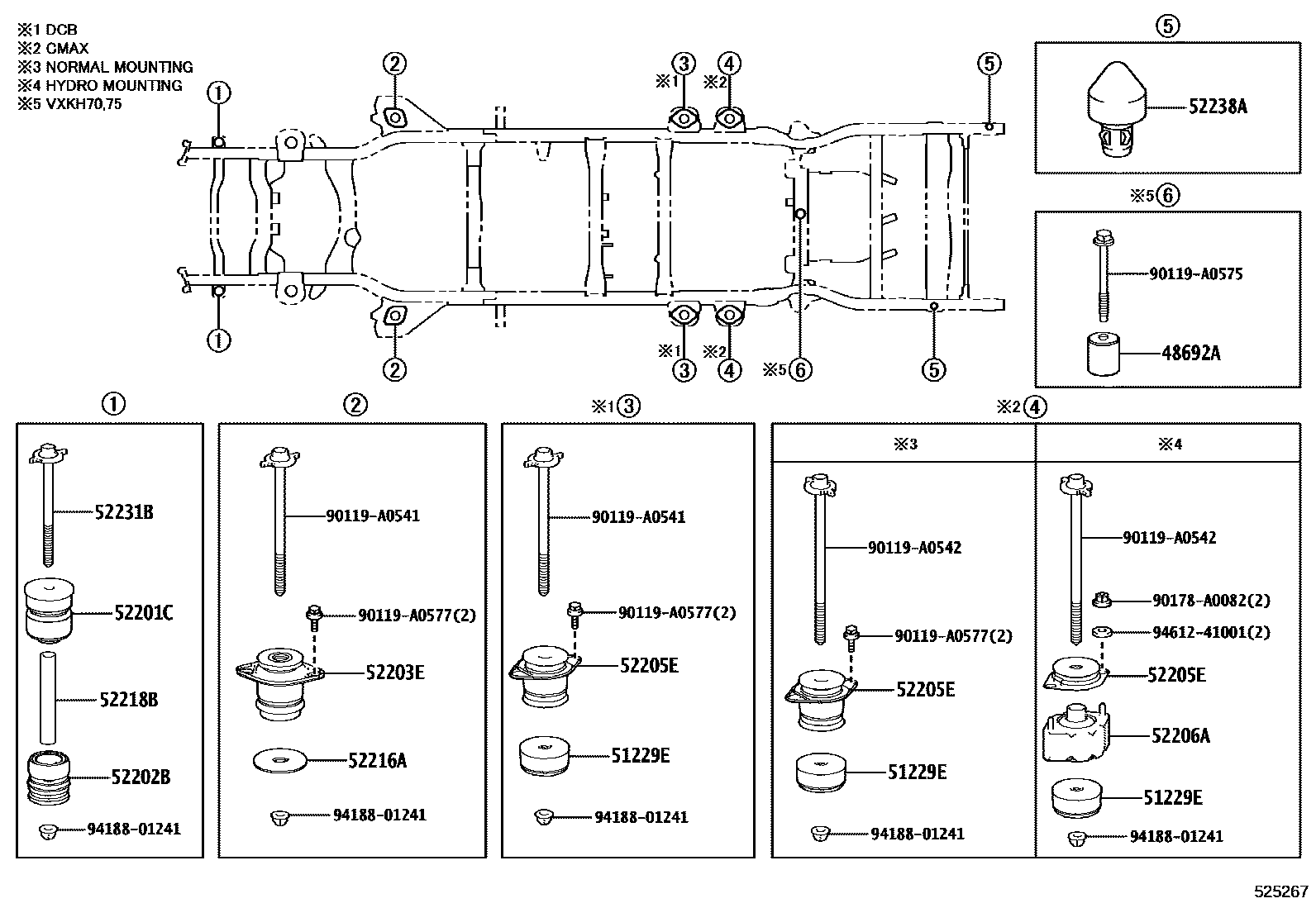

CAB MOUNTING & BODY MOUNTING

0001 1 0004 1 0005 1

48692ADAMPER, REAR REINFORCEMENT

main51229-0C010iVXKH70,75202203-202403

main51229-0C020iVXKH85;VXKH80..L,S202207-202408

51229EDAMPER, FRAME DYNAMIC

main51229-0C030iVXKA75..DCB..L202111-202408

main51229-0C040iVXKA70..DCB..L;VXKA71,VXKH71..Z202111-202408

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-0C030iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-0C030iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-0C090iVXKA71,VXKH71..Z;VXKA70,75..DCB..L202111-202408

main52203-0C100iVXKH85;VXKH80..L,S202207-202408

52205ECUSHION SUB-ASSY, CAB MOUNTING, NO.3

main52205-0C131iVXKA70,72,75,77..S202111-202408

main52205-0C150iVXKH85;VXKH80..L,S202207-202408

main52205-0C160iVXKA71,VXKH71..L,S;VXKA76,VXKH70,75,76;VXKA70,75..CMAX..(L,Z)202111

SR5-PREMIUM

main52205-0C160iVXKA71,VXKH71..Z202111-202408

52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER

main52206-0C020iVXKH80..Z202207-202408

main52206-0C031iVXKA71,VXKH71..L,S;VXKA76,VXKH70,75,76;VXKA70,75..CMAX..(L,Z)202111

SR5-PREMIUM

main52206-0C031iVXKA71,VXKH71..Z202111-202408

52216ASTOPPER, CAB MOUNTING CUSHION

main52216-0C020iVXKA71,VXKH71..Z;VXKA70,75..DCB..L202307-202408

main52216-0C070iVXKH80..Z202207-202408

main52216-0C100iVXKA7#,VXKH7#202111-202307

sub52216-0C020

52218BHOLDER, CAB MOUNT CUSHION, NO.1

main52218-34040iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

52231BBOLT(FOR BODY MOUNT NO.3 CUSHION)

main90119-A0540iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

52238AHOLDER, BODY MOUNTING, REAR

main52238-0C020iVXKA71,VXKH71..Z;VXKA70,75..DCB..L202111-202408

90119A0541

main90119-A0541

90119A0542

main90119-A0542

90119A0575

main90119-A0575

90119A0577

main90119-A0577

90178A0082

main90178-A0082

9418801241

main94188-01241

9461241001

main94612-41001

18 parts on this diagram · 3 diagrams in section
