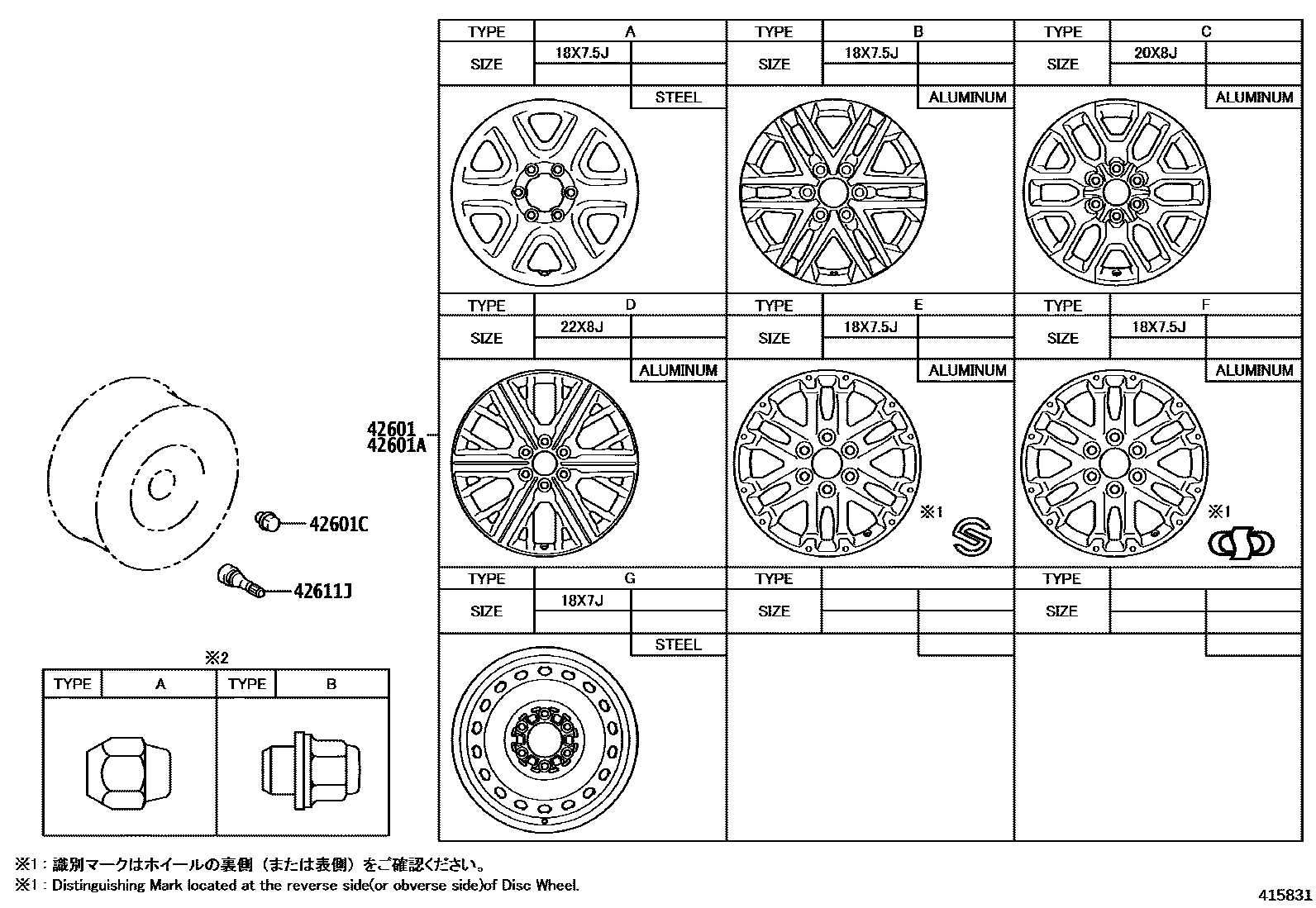

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
22X8J,#,TYPE D:REFER ILLUST.
18X7.5J, #,TIRE & DISC WHEEL-265/60R20, 8.5J,TYPE B:REFER ILLUST.
18X7.5J, #,TYPE B:REFER ILLUST.
20X8J, #,TYPE C:REFER ILLUST.
20X8J, #,TRD OFFROAD PACKAGE&TIRE & DISC WHEEL-265/60R20, 8.5J,TYPE C:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
main42601-0C080iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408
18X7J,#,TYPE G:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
ULTRA SUV&TIRE & DISC WHEEL-265/50R22, 8J,(J),TYPE B:REF ILL.
(J),TYPE B:REF ILL.
1794&TIRE & DISC WHEEL-265/60R20, 8J,(J),TYPE B:REF ILL.
WHEEL LOCKS-WITH&TIRE & DISC WHEEL-265/60R20, 8J,(J),TYPE B:REF ILL.
TIRE & DISC WHEEL-265/50R22, 8J,(J),TYPE B:REF ILL.
WHEEL LOCKS-WITH,TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
TRD OFFROAD PACKAGE&WHEEL LOCKS-WITH&TIRE & DISC WHEEL-265/70R18, 7.5J,TYPE B:REFER ILLUST.
WHEEL LOCKS-WITH&TIRE & DISC WHEEL-265/70R18, 7.5J,TYPE B:REFER ILLUST.
1794&WHEEL LOCKS-WITH&TIRE & DISC WHEEL-265/60R20, 8J,TYPE B:REFER ILLUST.
main90942-A1007iVXKA70,75..DCB..S;VXKA70,75..CMAX..(L,S);VXKA71,72,76,77,VXKH7#,8#..L,S,U202403-202408
(L),TYPE B:REF ILL.
main90942-A1007iVXKA70,75..DCB..S;VXKA70,75..CMAX..(L,S);VXKA71,72,76,77,VXKH7#,8#..L,S,U202403-202408
1794&TIRE & DISC WHEEL-265/60R20, 8J,(L),TYPE B:REF ILL.
TIRE & DISC WHEEL-265/50R22, 8J,(L),TYPE B:REF ILL.
WHEEL LOCKS-WITH&TIRE & DISC WHEEL-265/60R20, 8J,TYPE B:REFER ILLUST.
ULTRA SUV&TIRE & DISC WHEEL-265/50R22, 8J,(L),TYPE B:REF ILL.
TRD OFFROAD PACKAGE&WHEEL LOCKS-WITH&TIRE & DISC WHEEL-265/70R18, 7.5J,TYPE B:REFER ILLUST.
TRD OFFROAD PACKAGE&TIRE & DISC WHEEL-265/60R20, 8.5J,TYPE B:REFER ILLUST.
TRD PRO PACKAGE&TIRE & DISC WHEEL-285/65R18, 8.5J,TYPE B:REFER ILLUST.
WHEEL LOCKS-WITH&TIRE & DISC WHEEL-265/70R18, 7.5J,TYPE B:REFER ILLUST.
TIRE & DISC WHEEL-265/60R20, 8.5J,TYPE B:REFER ILLUST.
APPEARANCE PACKAGE&TIRE & DISC WHEEL-265/60R20, 8J,TYPE B:REFER ILLUST.
WHEEL LOCKS-WITH&TIRE & DISC WHEEL-265/60R20, 8J,TYPE B:REFER ILLUST.
TRD PRO PACKAGE&WHEEL LOCKS-WITH&TIRE & DISC WHEEL-285/65R18, 8.5J,TYPE B:REFER ILLUST.
WHEEL LOCKS-WITH,TYPE B:REFER ILLUST.
WHEEL LOCKS-WITH&TIRE & DISC WHEEL-265/60R20, 8.5J,TYPE B:REFER ILLUST.
APPEARANCE PACKAGE&WHEEL LOCKS-WITH&TIRE & DISC WHEEL-265/60R20, 8J,TYPE B:REFER ILLUST.
TRD OFFROAD PACKAGE&WHEEL LOCKS-WITH&TIRE & DISC WHEEL-265/60R20, 8.5J,TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
TRD OFFROAD PACKAGE&TIRE & DISC WHEEL-265/70R18, 7.5J,TYPE B:REFER ILLUST.
42611JVALVE (FOR TUBELESS TIRE SPARE)
4 parts on this diagram · 2 diagrams in section
