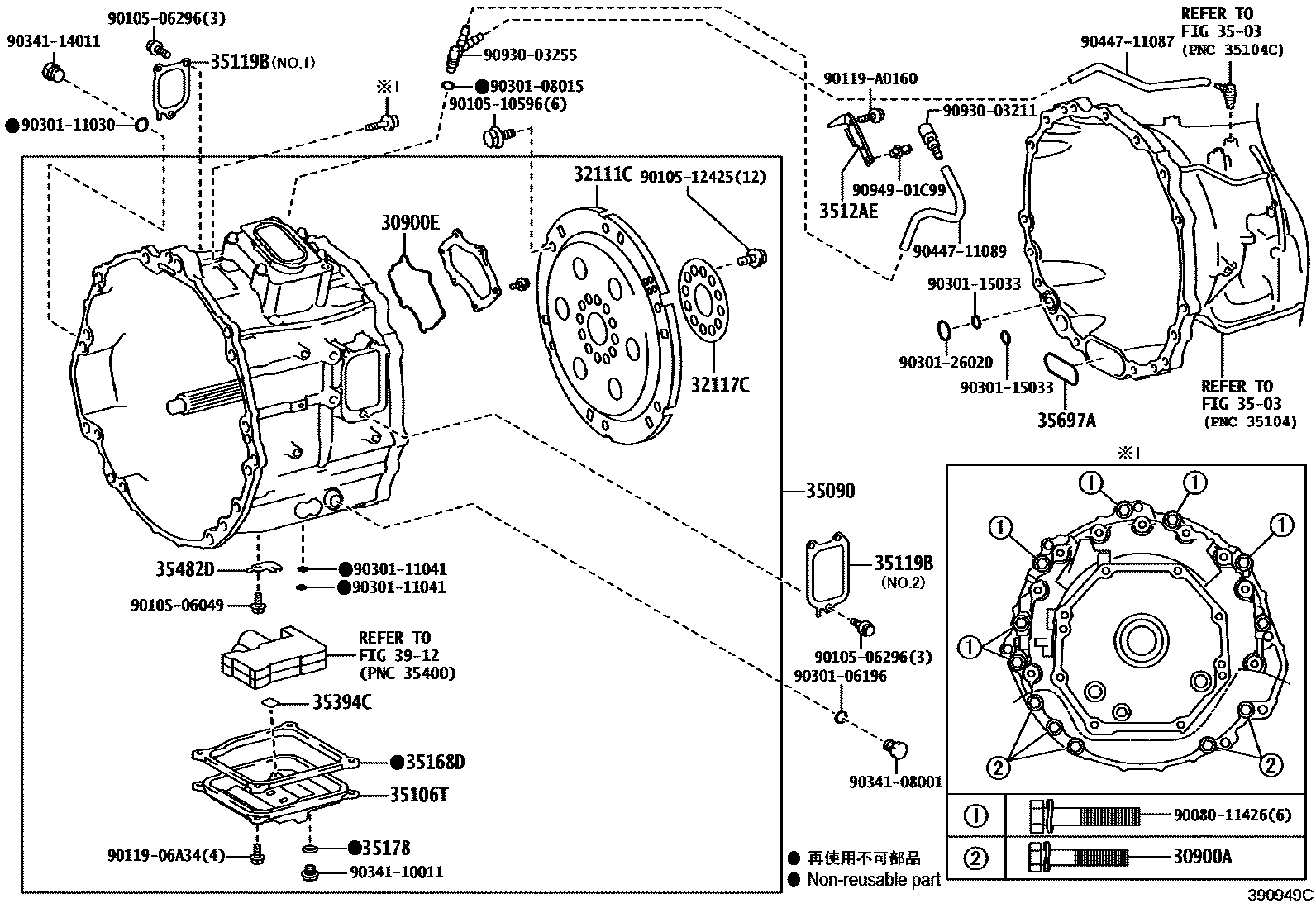

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1

30900ABOLT(FOR HYBRID VEHICLE TRANSAXLE & ENGINE SETTING)

main90119-A0140iVXKH71..L;VXKH70,75,76202203-202408

*10-1.25PX45-30

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main35172-34010iVXKH71,80..Z202203-202408

32111CPLATE, DRIVEN CONVERTER

main32111-34020iVXKH71,80..Z202203-202408

32117CSPACER, DRIVE PLATE, REAR

main32117-34020iVXKH71,80..Z202203-202408

3503

35090MODULE ASSY, HYBRID

main350A0-34010iVXKH71,80..Z202203-202408

35106TPAN SUB-ASSY, TRANSMISSION OIL

main35106-34050iVXKH71,80..L,S;VXKH70,75,76,85202203-202408

35119BCOVER, TRANSMISSION HOUSING

main35119-34010iVXKH71,80..L,S;VXKH70,75,76,85202203-202408

NO.1

main35119-34030iVXKH71,80..Z202203-202408

NO.2

3512AEBRACKET, TRANSMISSION BREATHER

main3512A-0C010iVXKH71,80..Z202203-202408

35168DGASKET, TRANSMISSION OIL PAN

main35168-34030iVXKH71,80..L,S;VXKH70,75,76,85202203-202408

35178GASKET, TRANSMISSION DRAIN PLUG

main35178-30010iVXKH71,80..Z202203-202408

35394CMAGNET, OIL CLEANER

main35394-48010iVXKH71,80..Z202203-202408

35482DCLAMP, TEMPERATURE SENSOR

main35482-34010iVXKH71,80..Z202203-202408

35697ARING, TRANSAXLE OIL SEAL

main35697-34010iVXKH71,80..Z202203-202408

3912

9008011426

main90080-11426

9010506049

main90105-06049

9010506296

main90105-06296

9010510596

main90105-10596

9010512425

main90105-12425

9011906A34

main90119-06A34

90119A0160

main90119-A0160

9030106196

main90301-06196

9030108015

main90301-08015

9030111030

main90301-11030

9030111041

main90301-11041

9030115033

main90301-15033

9030126020

main90301-26020

9034108001

main90341-08001

9034110011

main90341-10011

9034114011

main90341-14011

9044711087

main90447-11087

9044711089

main90447-11089

9093003211

main90930-03211

9093003255

main90930-03255

9094901C99

main90949-01C99
