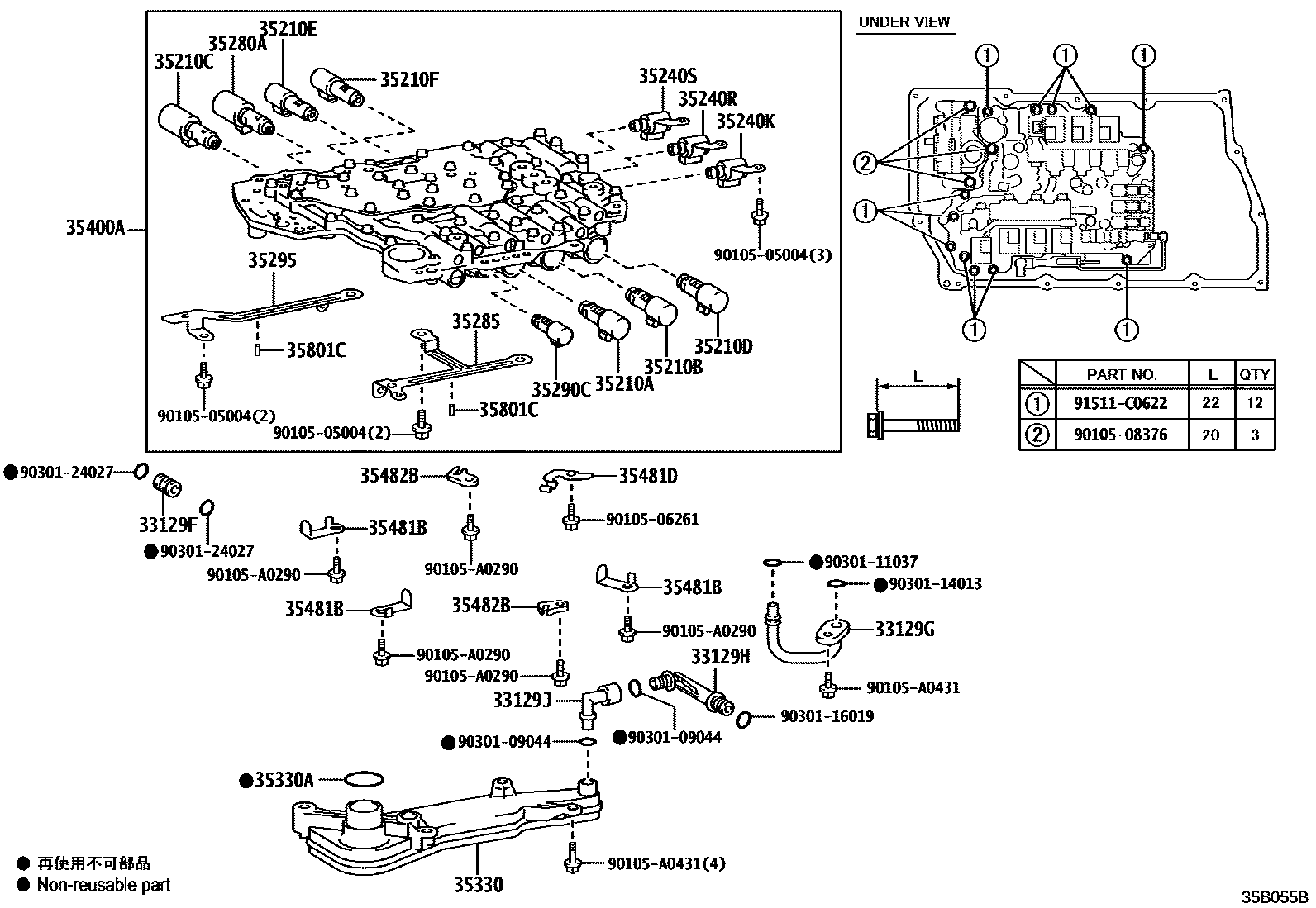

VALVE BODY & OIL STRAINER (ATM)

0001 1AJA0E,AJA0F 0002 1L4A0E,L4A0F 0003 1AJA0E,AJA0F,L4A0E,L4A0F

33129FPIPE, TRANSMISSION OIL

main33129-60040iVXKA70,75..DCB..S;VXKA71,72,77,VXKH71,80..L,S;VXKA70,75,76,VXKH70,75,76,85..CMAX,SRF202111-202408

33129GPIPE, TRANSMISSION OIL, NO.2

main33129-34010iVXKH7#,8#202203-202212

main33129-34030iVXKH71,80..Z202212-202408

main33129-60010iVXKA7#202111-202212

main33129-60080iVXKA71..Z;VXKA70,75..DCB..L202212-202408

33129HPIPE, TRANSMISSION OIL, NO.3

main33129-60020iVXKA71..Z;VXKA70,75..DCB..L202111-202408

33129JPIPE, TRANSMISSION OIL, NO.4

main33129-60030iVXKA71..Z;VXKA70,75..DCB..L202111-202408

35210AVALVE, SOLENOID(SL1)

main35210-0C020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

35210BVALVE, SOLENOID(SL3)

main35210-0C020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

35210CVALVE, SOLENOID(SL2)

main35210-0C020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

35210DVALVE, SOLENOID(SL4)

main35210-0C020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

35210EVALVE, SOLENOID(SL5)

main35210-0C020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

35210FVALVE, SOLENOID(SL6)

main35210-0C020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

35240KSOLENOID ASSY, TRANSMISSION 3WAY(SC1)

main35240-11020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

35240RSOLENOID ASSY, TRANSMISSION 3WAY(SR)

main35240-60050iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

35240SSOLENOID ASSY, TRANSMISSION 3WAY(SL)

main35240-60050iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

35280AVALVE, SOLENOID(SLU)

main35280-0C030iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

35285PLATE, SOLENOID LOCK

main35285-60050iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

35290CVALVE, SOLENOID(SLT)

main35290-0C020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

35295PLATE, SOLENOID LOCK, NO.2

main35285-60060iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

35330STRAINER ASSY, VALVE BODY OIL

main35330-0C030iVXKA71..Z;VXKA70,75..DCB..L202111-202408

main35330-0C040iVXKH71,80..L,S;VXKH70,75,76,85202203-202408

35330ARING, O (FOR OIL STRAINER)

main90301-24026iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

35400ABODY ASSY, TRANSMISSION VALVE W/SOLENOID

main35400-0C080iVXKA7#202111-202212

sub35400-0C120

sub33129-60080

main35400-0C090iVXKH7#,8#202203-202212

main35400-0C120iVXKA71..Z;VXKA70,75..DCB..L202212-202408

main35400-0C130iVXKH71,80..Z202212-202408

35481BCLAMP, VALVE BODY WIRE HARNESS

main35481-50060iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

35481DCLAMP, VALVE BODY WIRE HARNESS, NO.2

main35481-11010iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

35482BCLAMP, TEMPERATURE SENSOR

main35482-50020iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

35801CPIN, STRAIGHT

main90250-03112iVXKA70,75..DCB..L;VXKA71,VXKH71,80..Z202111-202408

9010505004

main90105-05004

9010506261

main90105-06261

9010508376

main90105-08376

90105A0290

main90105-A0290

90105A0431

main90105-A0431

9030109044

main90301-09044

9030111037

main90301-11037

9030114013

main90301-14013

9030116019

main90301-16019

9030124027

main90301-24027

91511C0622

main91511-C0622

35 parts on this diagram · 3 diagrams in section
