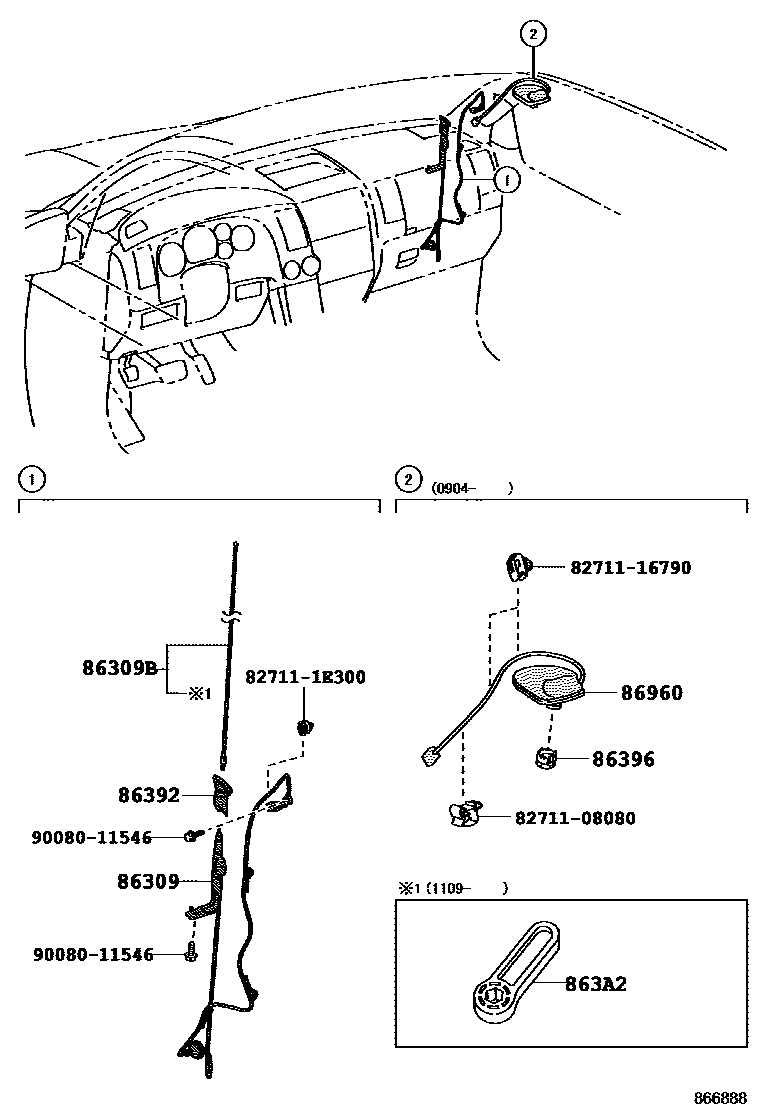

ANTENNA

0001 1 0002 1 0003 1

86309POLE SUB-ASSY, PILLAR ANTENNA

main86309-0C040iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57200611-201308

86309BPOLE SUB-ASSY, PULL TOP ANTENNA

main86309-0C020iGSK5#,UPK5#,USK5#201109-201908

main86309-AA041iGSK5#,UPK5#,USK5#200611-200912

sub86309-0C020

main86309-AA042iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57201001-201109

sub86309-0C020

86392ORNAMENT, ANTENNA

main86392-0C030iGSK51201308-201908

main86392-0C040iGSK5#,UCK5#,USK5#200611-201308

86396NUT, ANTENNA

main86396-30050iUPK51,56,USK51,56..CMAX..S200904-201007

USA POSSESSION SPEC

main86396-30050iUPK51,56,USK51,56..CMAX..S200904-201007

MEXICO SPEC

main86396-30050iUPK51,56,USK51,56..CMAX..S200904-201007

AUDIO-AM/FM CD CHANGER 8SPEAKER & 2TWEETER JBL

main86396-30050iUPK51,56,USK51,56..CMAX..S200904-201007

AUDIO-AM/FM CD CHANGER 8SPEAKER & 4TWEETER JBL

main86396-30050iUPK51,56,USK51,56..CMAX..S200904-201007

AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER

main86396-30050iGSK5#,UPK50,USK51,55,56..D200904-201007

AUDIO-AM/FM & CD & SDARS & *BT & 6SPEAKER

main86396-47010iUSK5#..DCB..HTWC..S201308-201907

AUDIO-ENTRY DISPLAY

main86396-47010iUPK51,56,USK51,56..CMAX..S201008-201907

USA POSSESSION SPEC

main86396-47010iUSK51,56..L201008-201308

MEXICO SPEC

main86396-47010iUSK51,56..L201008-201308

AUDIO-AM/FM CD CHANGER 8SPEAKER & 2TWEETER JBL

main86396-47010iUSK51,56..L201008-201308

AUDIO-AM/FM CD CHANGER 8SPEAKER & 4TWEETER JBL

main86396-47010iUSK51,56..L201008-201308

AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER

main86396-47010iUSK51,56..L201008-201308

AUDIO-AM/FM & CD & SDARS & *BT & 6SPEAKER

main86396-47010iGSK51201308-201907

USA POSSESSION SPEC&AUDIO-ENTRY DISPLAY

main86396-47010iGSK51201308-201907

CANADA SPEC&AUDIO-ENTRY DISPLAY

main86396-47010iUPK5#,USK5#201708-201907

NEW CALEDONIA SPEC&AUDIO-ENTRY DISPLAY

main86396-47010iUPK5#,USK5#201708-201907

SOUTH AMERICA SPEC

863A2TOOL, POLE ANTENNA

main863A2-0C010iGSK5#,UPK5#,USK5#201109-201908

86960ANTENNA ASSY, SATELLITE RADIO

main86960-0C010iUPK51,56..L200904-201907

USA POSSESSION SPEC

main86960-0C010iUPK51,56..L200904-201308

AUDIO-AM/FM CD CHANGER 8SPEAKER & 2TWEETER JBL

main86960-0C010iUPK51,56..L200904-201308

AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER

main86960-0C010iUPK51,56..L200904-201308

AUDIO-AM/FM & CD & SDARS & *BT & 6SPEAKER

main86960-0C010iUSK51,56..L200904-201308

MEXICO SPEC

main86960-0C010iUSK51,56..L200904-201308

AUDIO-AM/FM CD CHANGER 8SPEAKER & 4TWEETER JBL

main86960-0C010iGSK51201308-201907

USA POSSESSION SPEC&AUDIO-ENTRY DISPLAY

main86960-0C010iGSK51201308-201907

CANADA SPEC&AUDIO-ENTRY DISPLAY

main86960-0C010iGSK51201308-201907

AUDIO-ENTRY DISPLAY

main86960-0C010iUPK5#,USK5#201708-201907

NEW CALEDONIA SPEC&AUDIO-ENTRY DISPLAY

main86960-0C010iUPK5#,USK5#201708-201907

SOUTH AMERICA SPEC

8271108080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-08080

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300

9008011546

main90080-11546

10 parts on this diagram · 3 diagrams in section
