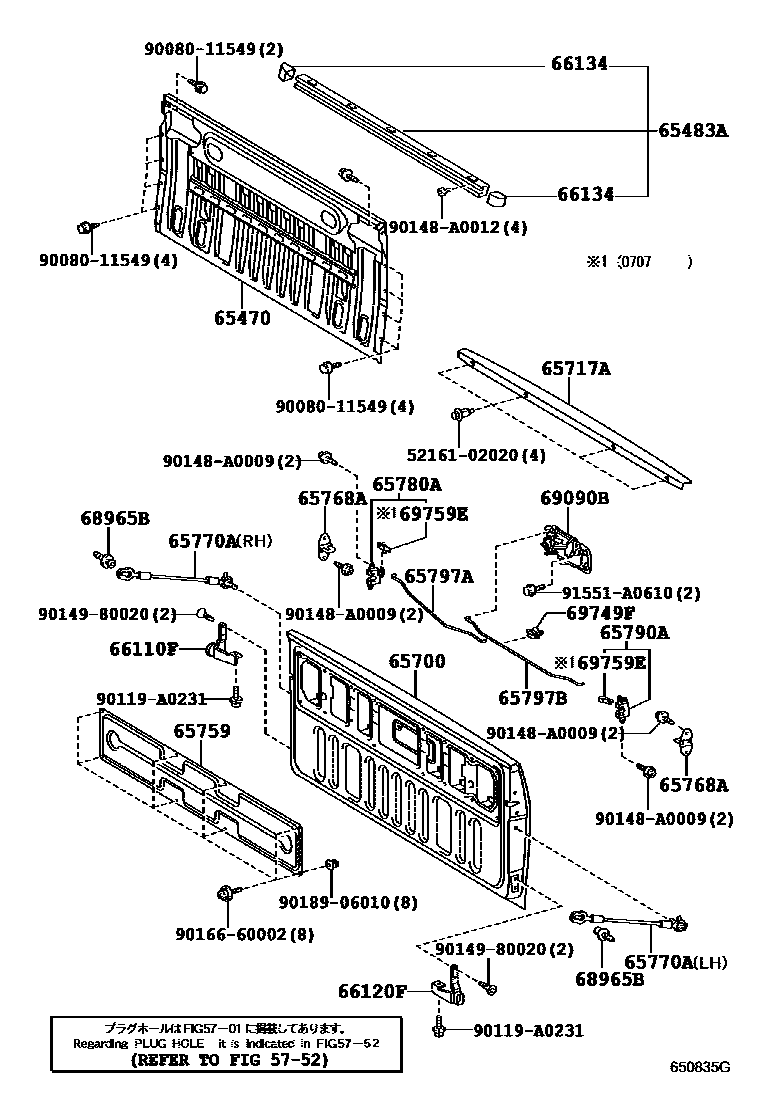

REAR BODY GUARD FRAME & TAIL GATE

65470BOARD ASSY, HEADER

main65405-0C040iUPK5#;USK56,57..HTWCF¥23,600200611-201907

65483ARAIL, HEADER BOARD, UPPER

main65483-0C010iUCK51,56,USK51,56..L200611-200709

DECK RAIL-WITH

sub65483-0C011¥6,800

main65483-0C011iUSK56..HTWCF..(L,Z)¥6,800200710-201907

DECK RAIL-WITH

65700GATE ASSY, REAR BODY TAIL

main65700-0C072iUPK52,57;UPK51,55,56,USK50..D,L201002-201109

sub65700-0C073¥69,400

sub90950-01956¥100

main65700-0C073iGSK5#,UPK5#,USK5#¥69,400201110-201308

main65700-0C080iGSK5#,UCK5#,USK5#200611-200702

sub65700-0C081

main65700-0C081iGSK5#,UCK5#,USK5#200703-200801

sub65700-0C082

main65700-0C082iGSK5#,UCK5#,USK5#200801-200802

sub65700-0C083

main65700-0C083iGSK5#,UPK5#,USK5#200803-201002

sub65700-0C072

main65700-0C090iGSK51¥48,200201308-201907

65717APROTECTOR, TAIL GATE, RH

main65717-0C050iGSK5#,UCK5#,USK5#200611-200712

sub65717-0C051¥9,400

main65717-0C051iGSK5#,UCK5#,USK5#¥9,400200801-201308

main65717-0C080iUPK5#;USK56,57..HTWCF¥7,900201308-201907

65759COVER, TAIL GATE SERVICE HOLE

main65759-0C030iUPK52,57;UPK51,55,56,USK50..D,L¥7,900200611-201907

65768ASTRIKER, TAIL GATE LOCK

main65768-0C010iGSK5#,UCK5#,USK5#¥1,220200611-201907

65770ASTAY ASSY, TAIL GATE

main65770-0C060iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57¥1,960200611-201907

RH

main65770-0C070iUPK5#,USK5#¥1,960200611-201907

LH

65780ALOCK ASSY, TAIL GATE, RH

main65780-0C040iGSK5#,UCK5#,USK5#200611-200707

sub65780-0C041¥2,440

sub65655-0C011¥580

main65780-0C041iUPK5#,USK5#¥2,440200707-201907

65790ALOCK ASSY, TAIL GATE, LH

main65790-0C040iGSK5#,UCK5#,USK5#200611-200707

sub65790-0C041¥2,440

sub65656-0C011¥630

main65790-0C041iUSK5#..HTWC¥2,440200707-201907

65797ALINK, TAIL GATE LOCK CONTROL

main65655-0C010iGSK5#,UCK5#,USK5#200611-200707

sub65655-0C011¥580

sub69759-0C040¥80

main65655-0C011iUPK52,57;UPK51,55,56,USK50..D,L¥580200707-201907

65797BLINK, TAIL GATE LOCK CONTROL

main65656-0C010iGSK5#,UCK5#,USK5#200611-200707

sub65656-0C011¥630

sub69759-0C050¥80

main65656-0C011iUSK5#..HTWC¥630200707-201907

66110FHINGE ASSY, TAIL GATE, RH

main66110-0C020iGSK5#,UCK5#,USK5#¥1,770200611-201907

66120FHINGE ASSY, TAIL GATE, LH

main66120-0C020iGSK5#,UCK5#,USK5#¥2,030200611-201907

66134CAP, HEADER BOARD RAIL

main66134-04010iUSK51,56..L,Z¥600201206-201907

DECK RAIL-WITH

main66134-0C010iGSK5#,UCK5#,USK5#..SR5200611-200709

DECK RAIL-WITH

sub66134-YY010

main66134-YY010iGSK5#,UCK5#,USK5#..SR5200710-200904

DECK RAIL-WITH

sub66134-YY020

main66134-YY020iUPK51,56..L200910-201205

DECK RAIL-WITH

sub66134-04010¥600

68965BSHAFT, TAIL GATE STAY

main68965-0C030iUSK5#..HTWC¥320200611-201907

69090BHANDLE ASSY, TAIL GATE

main69090-0C040iGSK5#,UCK5#,USK5#¥9,300200611-201308

main69090-0C090iGSK51¥9,300201308-201808

sub69090-0C091¥7,700

main69090-0C091iUPK5#;USK56,57..HTWCF¥7,700201809-201907

69749FCLAMP, RAIL GATE LOCK LINK

main69749-34010iUPK5#,USK5#¥110200611-201907

69759ESNAP, TAIL GATE LOCK LINK

main69759-0C040iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57¥80200707-201907

RH

main69759-0C050iUSK5#..HTWC¥80200707-201907

LH

5216102020CUSHION, REAR BUMPER GUARD, NO.1

main52161-02020¥200

9008011549

main90080-11549¥90

90119A0231

main90119-A0231

90148A0009

main90148-A0009¥60

90148A0012

main90148-A0012¥60

9014980020

main90149-80020¥80

9016660002

main90166-60002¥70

9018906010

main90189-06010¥220

91551A0610

main91551-A0610¥60

27 parts on this diagram · 1 diagram in section
