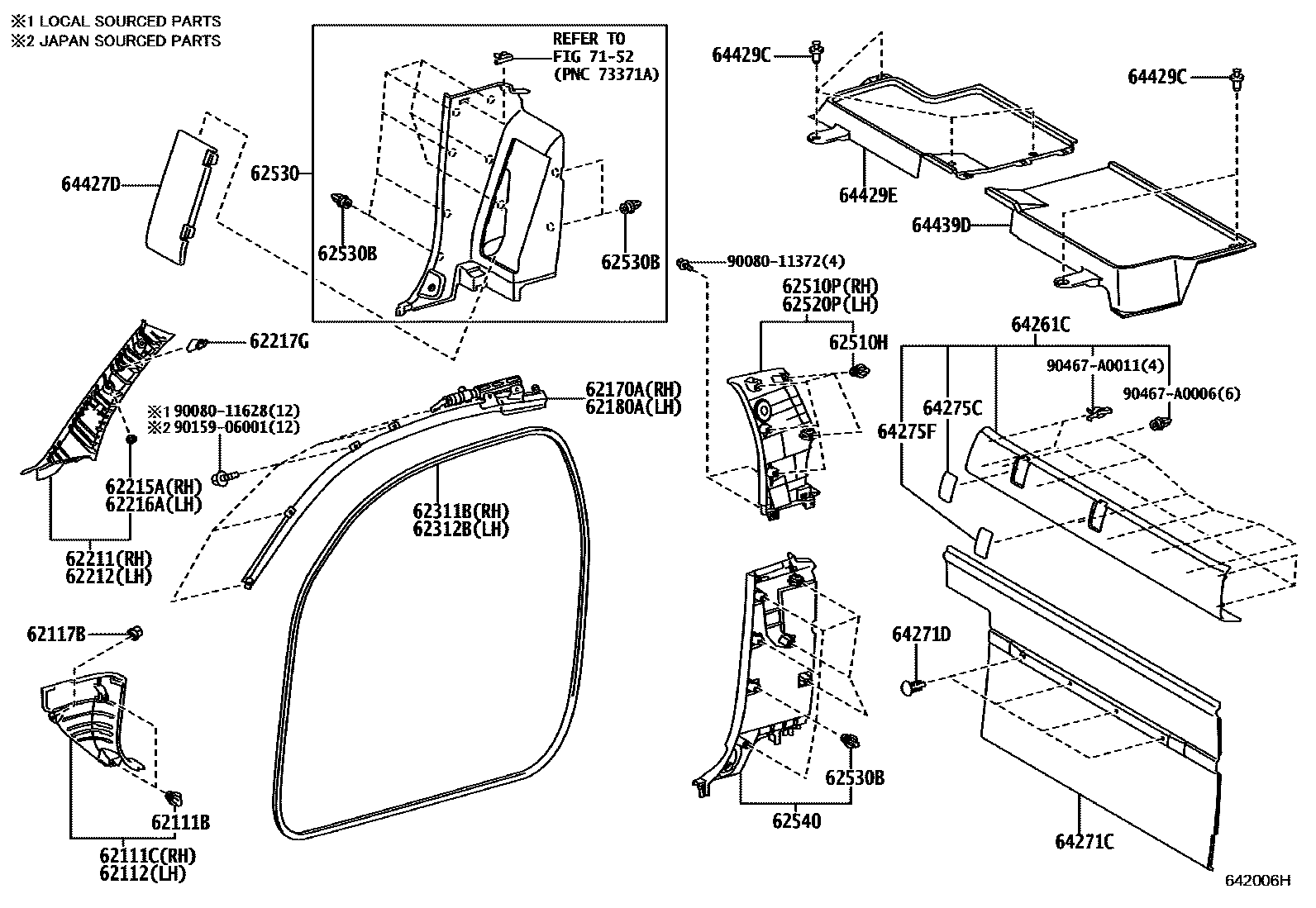

INSIDE TRIM BOARD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

62111BCLIP(FOR COWL SIDE TRIM)

main90467-09212iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57200611-201708

62111CBOARD, COWL SIDE TRIM, RH

main62111-0C030-C0iUSK50;GSK51,UCK51,52,56,57,USK51,52,56,57..L,S200611-200904

BLACK,TRIM1#

main62111-0C030-C0iUSK50;GSK51,UCK51,52,56,57,USK51,52,56,57..L,S200611-200904

BLACK,TRIM1#,2#

main62111-0C030-E0iGSK5#,UCK5#,USK5#200611-200904

DK. BROWN,TRIM4#

main62111-0C040-C0iUSK51,56..Z201308-201708

BLACK,TRIM2#

main62111-0C040-C0iUPK52,57;UPK51,55,56,USK50..D,L200904-201005

BLACK,TRIM1#,2#

main62111-0C040-C0iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57200904-201109

BLACK,TRIM1#,2#,44

main62111-0C040-C0iUSK51,56..Z201109-201708

BLACK,TRIM1#,2#,4#

main62111-0C040-E0iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57200904-201109

DK. BROWN,TRIM44

main62111-0C040-E0iUPK52,57;UPK51,55,56,USK50..D,L200904-201005

DK. BROWN,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-0C030-C0iUSK51,56..Z201308-201708

BLACK,TRIM2#

main62112-0C030-C0iGSK5#,UCK50,51,55,56,USK51,55,56..D200611-200904

BLACK,TRIM1#

main62112-0C030-C0iGSK5#,UCK50,51,55,56,USK51,55,56..D200611-201005

BLACK,TRIM1#,2#

main62112-0C030-C0iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57200904-201109

BLACK,TRIM1#,2#,44

main62112-0C030-C0iGSK5#,UPK5#,USK5#201109-201708

BLACK,TRIM1#,2#,4#

main62112-0C030-E0iGSK5#,UCK5#,USK5#200611-201005

DK. BROWN,TRIM4#

main62112-0C030-E0iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57200904-201109

DK. BROWN,TRIM44

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06155iUPK5#,USK5#201003-201708

main90467-A0024iGSK5#,UPK5#,USK5#200611-201002

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-0C041iUPK51,55,56,USK50..D200611-201308

main62170-0C051iGSK51,UCK51,52,56,57,USK51,52,56,57..DCB200611-200904

main62170-0C061iUCK51,56,USK51,56..CMAX200703-200904

main62170-0C090iUPK51,56..DCB..S;GSK51,USK51,52,56,57..DCB200904-201308

main62170-0C100iUPK51,56..CMAX..L200904-201308

main62170-0C110iUSK51,56..RCB201308-201708

main62170-0C120iUPK5#,USK5#..DCB201308-201908

sub62170-0C121

main62170-0C121iUSK5#..DCB201909

main62170-0C130iUPK5#,USK51,56..CMAX201308-201908

sub62170-0C131

main62170-0C131iUSK51,56..CMAX201909

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-0C041iGSK5#,UPK50,USK51,55,56..D200611-201308

main62180-0C051iGSK51,UCK51,52,56,57,USK51,52,56,57..DCB200611-200904

main62180-0C061iUCK51,56,USK51,56..CMAX200703-200904

main62180-0C090iUPK51,56..DCB..S;GSK51,USK51,52,56,57..DCB200904-201308

main62180-0C100iUSK51,56..CMAX;UPK51,56..CMAX..S200904-201308

main62180-0C110iUSK51,56..RCB201308-201708

main62180-0C120iUPK5#,USK5#..DCB201308-201908

sub62180-0C121

main62180-0C121iUSK5#..DCB201909

main62180-0C130iUPK5#,USK51,56..CMAX201308-201908

sub62180-0C131

main62180-0C131iUSK51,56..CMAX201909

62211GARNISH, FRONT PILLAR, RH

main62210-0C050-B0iGSK5#,UCK50,51,55,56,USK51,55,56..D200611-201308

LT.GRAY,TRIM1#,2#

main62210-0C050-B0iUSK50;GSK51,UCK51,52,56,57,USK51,52,56,57..L,S200611-200904

LT.GRAY,TRIM1#

main62210-0C050-E0iUPK52,57;UPK51,55,56,USK50..D,L200611-201308

SAND BEIGE,TRIM4#

main62210-0C060-B0iUSK51,56..Z201308-201708

LT.GRAY,TRIM1#,2#

main62210-0C060-B0iGSK51,UPK5#,USK5#..L,S201308-201708

LT.GRAY,TRIM2#

main62210-0C060-E0iGSK51,UPK5#,USK5#..L,S201308-201708

SAND BEIGE,TRIM4#

62212GARNISH, FRONT PILLAR, LH

main62220-0C050-B0iGSK5#,UCK50,51,55,56,USK51,55,56..D200611-201308

LT.GRAY,TRIM1#,2#

main62220-0C050-B0iUSK50;GSK51,UCK51,52,56,57,USK51,52,56,57..L,S200611-200904

LT.GRAY,TRIM1#

main62220-0C050-E0iUPK52,57;UPK51,55,56,USK50..D,L200611-201308

SAND BEIGE,TRIM4#

main62220-0C060-B0iGSK51,UPK5#,USK5#..L,S201308-201708

LT.GRAY,TRIM1#,2#

main62220-0C060-B0iGSK51,UPK5#,USK5#..L,S201308-201708

LT.GRAY,TRIM2#

main62220-0C060-E0iUPK5#,USK5#..L,S201308-201708

SAND BEIGE,TRIM4#

62215AINSERT, FRONT PILLAR GARNISH, RH

main62215-0C010iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57200611-201708

62216AINSERT, FRONT PILLAR GARNISH, LH

main62215-0C010iUPK5#,USK5#200611-201708

62217GCLIP, FRONT PILLAR GARNISH

main62217-04010iUPK52,57;UPK51,55,56,USK50..D,L200611-201708

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-0C040iUPK51,55,56,USK50..D200611-201708

main62311-0C050iUPK52,57;UPK51,56..L200611-201907

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-0C040iGSK5#,UCK50,51,55,56,USK50,51,55,56..D200611-201708

main62312-0C050iUPK5#;USK56,57..HTWCF200611-201907

62510HCLIP(FOR QUARTER TRIM FRONT PANEL)

main90467-A0006iGSK51,UCK51,52,56,57,USK51,52,56,57..L,S200611-201708

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-0C050-B1iGSK51,USK51,56..RCB200701-201708

LT.GRAY,TRIM1#,2#

main62510-0C050-B1iGSK5#,UCK50,51,55,56,USK51,55,56..D200611-200904

LT.GRAY,TRIM1#

main62510-0C050-E1iGSK5#,UPK50,51,55,56,USK50,51,55,56..D200611-201708

SAND BEIGE,TRIM4#

main62510-0C080-C2iGSK51,UCK51,52,56,57,USK51,52,56,57..DCB200611-200810

BLACK,TRIM1#,2#

sub62510-0C081

main62510-0C080-E2iGSK51,UCK51,52,56,57,USK51,52,56,57..DCB200611-200810

DK. BROWN,TRIM4#

sub62510-0C081

main62510-0C081-C2iGSK51,UPK51,56,USK51,52,56,57..DCB201109-201708

BLACK,TRIM1#,2#,4#

main62510-0C081-C2iGSK51,UCK51,52,56,57,USK51,52,56,57..DCB200811-201005

BLACK,TRIM1#,2#

main62510-0C081-C2iUPK51,56..DCB..S;GSK51,USK51,52,56,57..DCB200904-201109

BLACK,TRIM1#,2#,44

main62510-0C081-E2iGSK51,UCK51,52,56,57,USK51,52,56,57..DCB200811-201005

DK. BROWN,TRIM4#

main62510-0C081-E2iUPK51,56..DCB..S;GSK51,USK51,52,56,57..DCB200904-201109

DK. BROWN,TRIM44

main62510-0C100-B2iUPK51,56,USK51,56..CMAX200703-201308

LT.GRAY,TRIM1#,2#

main62510-0C100-E2iUCK51,56,USK51,56..CMAX200703-201308

SAND BEIGE,TRIM4#

main62510-0C160-B0iUSK51,56..Z201308-201708

LT.GRAY,TRIM1#,2#

main62510-0C160-B0iUPK5#,USK51,56..CMAX..(L,S)201308-201708

LT.GRAY,TRIM2#

main62510-0C160-E0iUPK5#,USK51,56..CMAX..(L,S)201308-201708

SAND BEIGE,TRIM4#

62520PPANEL ASSY, QUARTER TRIM, FRONT LH

main62520-0C050-B1iGSK5#,UCK50,51,55,56,USK51,55,56..D200611-200904

LT.GRAY,TRIM1#

main62520-0C050-B1iGSK5#,UPK50,51,55,56,USK50,51,55,56..D200701-201708

LT.GRAY,TRIM1#,2#

main62520-0C050-E1iGSK51,USK51,56..RCB200611-201708

SAND BEIGE,TRIM4#

main62520-0C080-C2iGSK51,UCK51,52,56,57,USK51,52,56,57..DCB200611-200810

BLACK,TRIM1#,2#

sub62520-0C081

main62520-0C080-E2iGSK51,UCK51,52,56,57,USK51,52,56,57..DCB200611-200810

DK. BROWN,TRIM4#

sub62520-0C081

main62520-0C081-C2iGSK51,UCK51,52,56,57,USK51,52,56,57..DCB200811-201005

BLACK,TRIM1#,2#

main62520-0C081-C2iUPK51,56..DCB..S;GSK51,USK51,52,56,57..DCB200904-201109

BLACK,TRIM1#,2#,44

main62520-0C081-C2iGSK51,UPK5#,USK5#..DCB201109-201708

BLACK,TRIM1#,2#,4#

main62520-0C081-E2iUPK52,57;UPK51,56..DCB..L200811-201005

DK. BROWN,TRIM4#

main62520-0C081-E2iUPK51,56..DCB..S;GSK51,USK51,52,56,57..DCB200904-201109

DK. BROWN,TRIM44

main62520-0C100-B2iUPK51,56,USK51,56..CMAX200703-201308

LT.GRAY,TRIM1#,2#

main62520-0C100-E2iUCK51,56,USK51,56..CMAX200703-201308

SAND BEIGE,TRIM4#

main62520-0C210-B0iUPK5#,USK51,56..CMAX..(L,S)201308-201708

LT.GRAY,TRIM1#,2#

main62520-0C210-B0iUSK51,56..Z201308-201708

LT.GRAY,TRIM2#

main62520-0C210-E0iUPK5#,USK51,56..CMAX..(L,S)201308-201708

SAND BEIGE,TRIM4#

62530PANEL ASSY, QUARTER TRIM, LOWER RH

main62530-0C010-C0iGSK5#,UPK50,USK51,55,56..D201109-201708

BLACK,TRIM1#,2#,4#

main62530-0C010-C0iGSK5#,UCK50,51,55,56,USK51,55,56..D200611-200904

BLACK,TRIM1#

main62530-0C010-C0iUSK50200701-201005

BLACK,TRIM1#,2#

main62530-0C010-C0iGSK5#,UPK50,USK51,55,56..D200904-201109

BLACK,TRIM1#,2#,44

main62530-0C010-E3iGSK5#,UPK50,USK51,55,56..D200904-201109

DK. BROWN,TRIM44

main62530-0C010-E3iGSK5#,UCK50,51,55,56,USK50,51,55,56..D200611-201005

DK. BROWN,TRIM4#

main62530-0C020-C3iGSK51,UCK51,52,56,57,USK51,52,56,57..DCB200611-200810

BLACK,TRIM1#,2#

sub62530-0C021

main62530-0C020-E3iGSK51,UCK51,52,56,57,USK51,52,56,57..DCB200611-200810

DK. BROWN,TRIM4#

sub62530-0C021

main62530-0C021-C3iGSK51,UPK51,56,USK51,52,56,57..DCB201109-201708

BLACK,TRIM1#,2#,4#

main62530-0C021-C3iUPK52,57;UPK51,56..DCB..L200811-201005

BLACK,TRIM1#,2#

main62530-0C021-C3iUPK51,56..DCB..S;GSK51,USK51,52,56,57..DCB200904-201109

BLACK,TRIM1#,2#,44

main62530-0C021-E3iGSK51,UCK51,52,56,57,USK51,52,56,57..DCB200811-201005

DK. BROWN,TRIM4#

main62530-0C021-E3iUPK51,56..DCB..S;GSK51,USK51,52,56,57..DCB200904-201109

DK. BROWN,TRIM44

main62530-0C030-C3iUCK51,56,USK51,56..CMAX200703-201005

BLACK,TRIM1#,2#

main62530-0C030-C3iUSK51,56..CMAX;UPK51,56..CMAX..S200904-201109

BLACK,TRIM1#,2#,44

main62530-0C030-C3iUPK51,56,USK51,56..CMAX201109-201308

BLACK,TRIM1#,2#,4#

main62530-0C030-E3iUPK51,56..CMAX..L200703-201005

DK. BROWN,TRIM4#

main62530-0C030-E3iUSK51,56..CMAX;UPK51,56..CMAX..S200904-201109

DK. BROWN,TRIM44

main62530-0C040-C0iUPK5#,USK51,56..CMAX..(L,S)201308-201708

BLACK,TRIM2#

main62530-0C040-C0iUSK51,56..Z201308-201708

BLACK,TRIM1#,2#,4#

62530BCLIP, QUARTER TRIM NO.1

main90467-A0006iGSK5#,UCK50,51,55,56,USK50,51,55,56..D200611-201708

62540PANEL ASSY, QUARTER TRIM, LOWER LH

main62540-0C010-C0iGSK51,USK51,56..RCB201109-201708

BLACK,TRIM1#,2#,4#

main62540-0C010-C0iGSK5#,UCK50,51,55,56,USK51,55,56..D200611-200904

BLACK,TRIM1#

main62540-0C010-C0iUPK51,55,56,USK50..D200701-201005

BLACK,TRIM1#,2#

main62540-0C010-C0iGSK5#,UPK50,USK51,55,56..D200904-201109

BLACK,TRIM1#,2#,44

main62540-0C010-E3iGSK5#,UCK50,51,55,56,USK50,51,55,56..D200611-201005

DK. BROWN,TRIM4#

main62540-0C010-E3iGSK5#,UPK50,USK51,55,56..D200904-201109

DK. BROWN,TRIM44

main62540-0C020-C3iGSK51,UCK51,52,56,57,USK51,52,56,57..DCB200611-200810

BLACK,TRIM1#,2#

sub62540-0C021

main62540-0C020-E3iGSK51,UCK51,52,56,57,USK51,52,56,57..DCB200611-200810

DK. BROWN,TRIM4#

sub62540-0C021

main62540-0C021-C3iGSK51,UPK51,56,USK51,52,56,57..DCB201109-201708

BLACK,TRIM1#,2#,4#

main62540-0C021-C3iGSK51,UCK51,52,56,57,USK51,52,56,57..DCB200811-201005

BLACK,TRIM1#,2#

main62540-0C021-C3iUPK51,56..DCB..S;GSK51,USK51,52,56,57..DCB200904-201109

BLACK,TRIM1#,2#,44

main62540-0C021-E3iGSK51,UCK51,52,56,57,USK51,52,56,57..DCB200811-201005

DK. BROWN,TRIM4#

main62540-0C021-E3iUPK51,56..DCB..S;GSK51,USK51,52,56,57..DCB200904-201109

DK. BROWN,TRIM44

main62540-0C030-C3iUPK51,56,USK51,56..CMAX201109-201308

BLACK,TRIM1#,2#,4#

main62540-0C030-C3iUSK51,56..CMAX;UPK51,56..CMAX..S200904-201109

BLACK,TRIM1#,2#,44

main62540-0C030-C3iUCK51,56,USK51,56..CMAX200703-201005

BLACK,TRIM1#,2#

main62540-0C030-E3iUPK51,56..CMAX..L200703-201005

DK. BROWN,TRIM4#

main62540-0C030-E3iUSK51,56..CMAX;UPK51,56..CMAX..S200904-201109

DK. BROWN,TRIM44

main62540-0C040-C0iUPK5#,USK51,56..CMAX..(L,S)201308-201708

BLACK,TRIM2#

main62540-0C040-C0iUSK51,56..Z201308-201708

BLACK,TRIM1#,2#,4#

64261CGARNISH, BACK PANEL, UPPER

main64261-0C050-C0iGSK51,USK51,56..RCB201109-201708

BLACK,TRIM1#,2#,4#

main64261-0C050-C0iGSK5#,UPK50,USK51,55,56..D200904-201109

BLACK,TRIM1#,2#,44

main64261-0C050-C0iGSK5#,UCK50,51,55,56,USK50,51,55,56..D200611-200904

BLACK,TRIM1#

main64261-0C050-C0iUPK51,55,56,USK50..D200904-201005

BLACK,TRIM1#,2#

main64261-0C050-E0iGSK5#,UCK50,51,55,56,USK50,51,55,56..D200611-201005

DK. BROWN,TRIM4#

main64261-0C050-E0iGSK5#,UPK50,USK51,55,56..D200904-201109

DK. BROWN,TRIM44

64271CTRIM, BACK PANEL

main64271-0C050-C0iGSK51,USK51,56..RCB200808-201708

BLACK

main64271-0C050-C0iGSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D200611-200904

BLACK,TRIM1#

64271DCLIP(FOR BACK PANEL TRIM)

main90467-05164-C0iGSK51,UPK5#,USK5#..DCB200611-201610

BLACK

sub90467-05164

main90467-05164-C0iGSK5#,UCK50,51,55,56,USK50,51,55,56..HTWC..D200611-200904

BLACK,TRIM1#

sub90467-05164

main90467-05164-C7iUPK5#,USK5#..DCB201610-201908

BLACK

sub90467-05164

main90467-05164-E3iGSK5#,UCK50,51,55,56,USK50,51,55,56..D200611-200704

DK. BROWN,TRIM4#

sub90467-05164

64275CCOVER, BACK PANEL TRIM

main64275-0C040-C0iGSK51,USK51,56..RCB201109-201708

BLACK,TRIM1#,2#,4#

main64275-0C040-C0iGSK5#,UCK50,51,55,56,USK50,51,55,56..D200611-200904

BLACK,TRIM1#

main64275-0C040-C0iGSK5#,UPK50,USK51,55,56..D200904-201109

BLACK,TRIM1#,2#,44

main64275-0C040-C0iUPK51,55,56,USK50..D200904-201005

BLACK,TRIM1#,2#

main64275-0C040-E0iGSK5#,UCK50,51,55,56,USK50,51,55,56..D200611-201005

DK. BROWN,TRIM4#

main64275-0C040-E0iGSK5#,UPK50,USK51,55,56..D200904-201109

DK. BROWN,TRIM44

64275FCOVER, BACK PANEL TRIM

main64275-0C040-C0iGSK5#,UCK50,51,55,56,USK50,51,55,56..D200611-200904

BLACK,TRIM1#

main64275-0C040-C0iGSK5#,UPK50,USK51,55,56..D201109-201708

BLACK,TRIM1#,2#,4#

main64275-0C040-C0iUPK51,55,56,USK50..D200904-201005

BLACK,TRIM1#,2#

main64275-0C040-C0iGSK5#,UPK50,USK51,55,56..D200904-201109

BLACK,TRIM1#,2#,44

main64275-0C040-E0iUPK51,55,56,USK50..D200611-201005

DK. BROWN,TRIM4#

main64275-0C040-E0iGSK5#,UPK50,USK51,55,56..D200904-201109

DK. BROWN,TRIM44

64427DCOVER, LUGGAGE COMPARTMENT TRIM BOX

main64420-0C010-C0iUPK51,56..CMAX..L200703-201005

BLACK,TRIM1#,2#

main64420-0C010-C0iUPK51,56,USK51,56..CMAX201109-201308

BLACK,TRIM1#,2#,4#

main64420-0C010-C0iUSK51,56..CMAX;UPK51,56..CMAX..S200904-201109

BLACK,TRIM1#,2#,44

main64420-0C010-E0iUCK51,56,USK51,56..CMAX200703-201005

DK. BROWN,TRIM4#

main64420-0C010-E0iUSK51,56..CMAX;UPK51,56..CMAX..S200904-201109

DK. BROWN,TRIM44

main64427-0C020-C0iUPK51,55,56,USK50..D200701-201005

BLACK,TRIM1#,2#

main64427-0C020-C0iGSK5#,UPK50,USK51,55,56..D200904-201109

BLACK,TRIM1#,2#,44

main64427-0C020-C0iGSK5#,UPK50,USK51,55,56..D201109-201708

BLACK,TRIM1#,2#,4#

main64427-0C020-C0iGSK5#,UCK50,51,55,56,USK51,55,56..D200611-200904

BLACK,TRIM1#

main64427-0C020-E1iUPK51,55,56,USK50..D200611-201005

DK. BROWN,TRIM4#

main64427-0C020-E1iGSK5#,UPK50,USK51,55,56..D200904-201109

DK. BROWN,TRIM44

64429CCLIP(FOR LUGGAGE COMPARTMENT SIDE TRAY)

main90080-46276-B3iGSK5#,UPK50,USK51,55,56..D200904-201107

GRAY,TRIM13

main90080-46276-B3iGSK5#,UPK50,USK51,55,56..D200904-201107

AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER,GRAY,TRIM13

main90080-46276-B3iGSK5#,UCK50,51,55,56,USK50,51,55,56..D200611-200904

GRAY,TRIM1#

main90080-46276-C0iGSK5#,UPK50,USK51,55,56..D201107-201308

AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER,BLACK,TRIM1#,2#,4#

main90080-46276-C0iUPK51,55,56,USK50..D200904-201005

BLACK,TRIM13,2#

main90080-46276-C0iUPK51,55,56,USK50..D200904-201005

AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER,BLACK,TRIM13,2#

main90080-46276-C0iGSK5#,UPK50,USK51,55,56..D200904-201107

BLACK,TRIM13,2#,44

main90080-46276-C0iGSK5#,UPK50,USK51,55,56..D200904-201107

AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER,BLACK,TRIM13,2#,44

main90080-46276-C0iGSK5#,UPK50,USK51,55,56..D201107-201708

BLACK,TRIM1#,2#,4#

main90080-46276-E2iGSK5#,UPK50,USK51,55,56..D200904-201107

AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER,SAND BEIGE,TRIM44

main90080-46276-E2iGSK5#,UPK50,USK51,55,56..D200904-201107

SAND BEIGE,TRIM44

main90080-46276-E2iUPK51,55,56,USK50..D200611-201005

SAND BEIGE,TRIM4#

main90080-46276-E2iUPK51,55,56,USK50..D200904-201005

AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER,SAND BEIGE,TRIM4#

64429EBOX, LUGGAGE COMPARTMENT, RH

main64429-0C010-B0iGSK5#,UCK50,51,55,56,USK50,51,55,56..D200611-200904

GRAY,TRIM1#

main64429-0C010-B0iGSK5#,UPK50,51,55,56,USK50,51,55,56..D200904-201107

GRAY,TRIM13

main64429-0C010-C0iGSK5#,UPK50,USK51,55,56..D200904-201107

BLACK,TRIM13,2#,44

main64429-0C010-C0iGSK51,USK51,56..RCB201107-201708

BLACK,TRIM1#,2#,4#

main64429-0C010-C0iUPK51,55,56,USK50..D200904-201005

BLACK,TRIM13,2#

main64429-0C010-E0iUPK51,55,56,USK50..D200611-201005

SAND BEIGE,TRIM4#

main64429-0C010-E0iGSK5#,UPK50,USK51,55,56..D200904-201107

SAND BEIGE,TRIM44

64439DBOX, LUGGAGE COMPARTMENT, LH

main64439-0C010-B0iGSK5#,UPK50,USK51,55,56..D200904-201107

AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER,GRAY,TRIM13

main64439-0C010-B0iGSK5#,UCK50,51,55,56,USK50,51,55,56..D200611-200904

GRAY,TRIM1#

main64439-0C010-B0iUPK51,55,56,USK50..D200904-201107

GRAY,TRIM13

main64439-0C010-C0iUPK51,55,56,USK50..D200904-201005

BLACK,TRIM13,2#

main64439-0C010-C0iGSK5#,UPK50,USK51,55,56..D200904-201107

BLACK,TRIM13,2#,44

main64439-0C010-C0iGSK5#,UPK50,USK51,55,56..D200904-201107

AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER,BLACK,TRIM13,2#,44

main64439-0C010-C0iGSK5#,UPK50,USK51,55,56..D201107-201308

AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER,BLACK,TRIM1#,2#,4#

main64439-0C010-C0iGSK5#,UPK50,USK51,55,56..D201107-201708

BLACK,TRIM1#,2#,4#

main64439-0C010-C0iUPK51,55,56,USK50..D200904-201005

AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER,BLACK,TRIM13,2#

main64439-0C010-E0iUPK51,55,56,USK50..D200611-201005

SAND BEIGE,TRIM4#

main64439-0C010-E0iUPK51,55,56,USK50..D200904-201005

AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER,SAND BEIGE,TRIM4#

main64439-0C010-E0iGSK5#,UPK50,USK51,55,56..D200904-201107

SAND BEIGE,TRIM44

main64439-0C010-E0iGSK5#,UPK50,USK51,55,56..D200904-201107

AUDIO-AM/FM & CD & SDARS & *BT & 4SPEAKER,SAND BEIGE,TRIM44

7152

9008011372

main90080-11372

9008011628

main90080-11628

9015906001

main90159-06001

90467A0006

main90467-A0006

90467A0011

main90467-A0011

34 parts on this diagram · 11 diagrams in section
