CONSOLE BOX & BRACKET

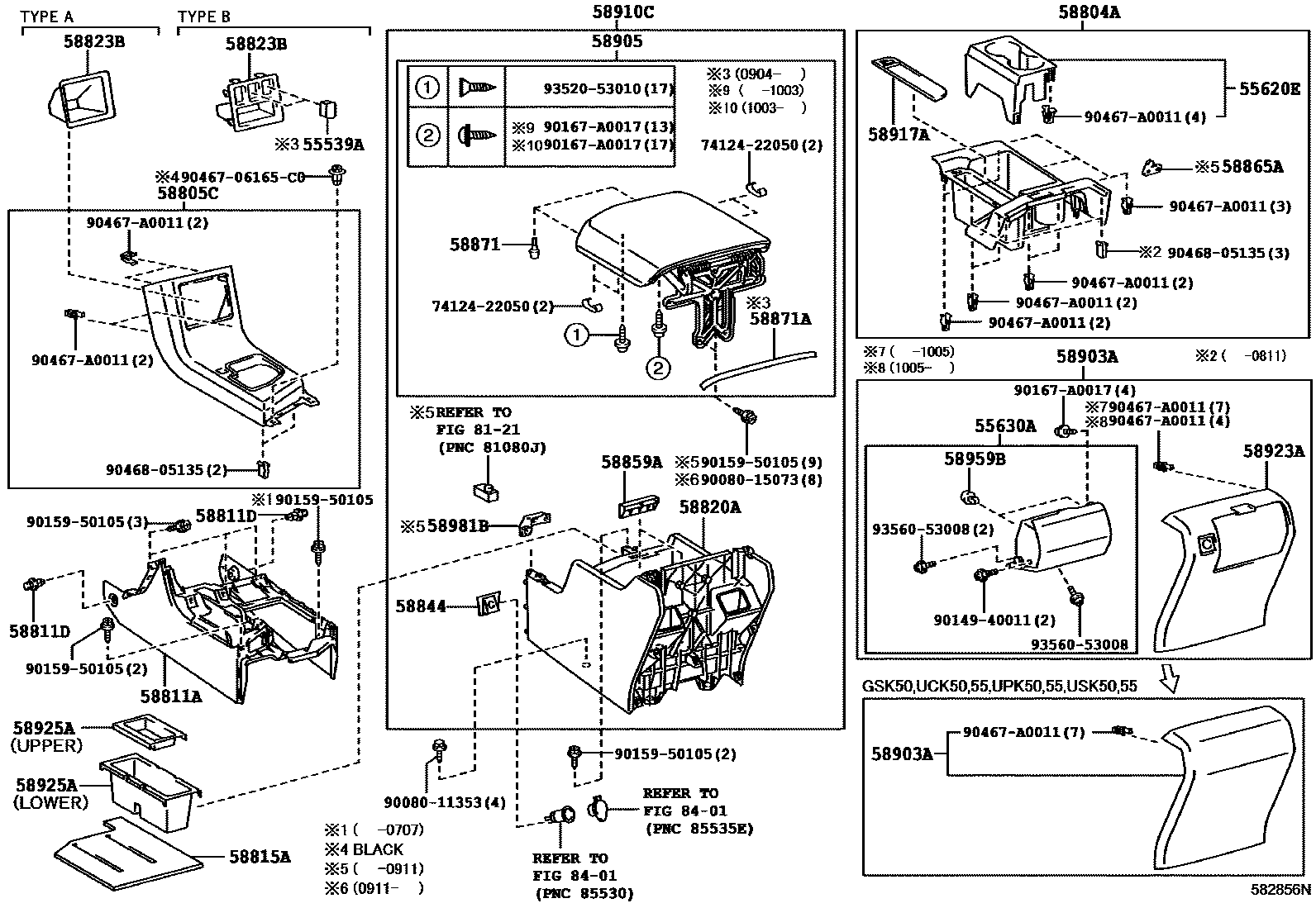

Parts diagram
55539ACOVER, SPARE SWITCH HOLE
main55539-52060-C0i200911-201005
NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK
55620EHOLDER ASSY, INSTRUMENT PANEL CUP
main55620-0C030-C0i200904-200911
BLACK,TRIM1#,2#
main55620-0C030-E0i200904-200911
NUMBER OF PASSENGER-FRONT:2,DK. BROWN,TRIM4#
55630AHOLDER, REAR CONSOLE BOX, CUP
main55630-0C010-C0i200904-201109
NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM1#,2#,44
main55630-0C010-E0i200611-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3,DK. BROWN,TRIM4#
58804APANEL SUB-ASSY, CONSOLE, UPPER
main58804-0C080-C0i200904-200910
BLACK,TRIM1#,2#
main58804-0C080-E0i200611-200904
NUMBER OF PASSENGER-FRONT:2,DK. BROWN,TRIM4#
main58804-0C090-C0i200911-201005
BLACK,TRIM1#,2#
main58804-0C090-E0i200911-201005
NUMBER OF PASSENGER-FRONT:2,DK. BROWN,TRIM4#
main58804-0C100-C0i201308-201708
NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM1#,2#,4#
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
main58805-0C040i200611-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3
main58805-0C080i200904-201005
NUMBER OF PASSENGER-FRONT:2 REAR:3
main58805-0C090-C0i201308-201708
NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM1#,2#,4#
main58805-0C120-E0supersedes 58805-0C110-C0i201308-201708
1794 EDITION,BROWN,TRIM2#
58811ABOX, CONSOLE, FRONT
main58811-0C040-C0i200611-200904
NUMBER OF PASSENGER-FRONT:2,BLACK,TRIM1#
sub58811-0C080
main58811-0C040-E0i200611-200904
NUMBER OF PASSENGER-FRONT:2,DK. BROWN,TRIM4#
sub58811-0C080
main58811-0C050-C0i201308-201708
NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM1#,2#,4#
main58811-0C051-C0i201808
NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM1#,2#,4#
58811DCLIP(FOR CONSOLE BOX)
main90467-06165-C0×2i200611-200903
BLACK
main90467-06165-C3×2i201708
BLACK
58815ACARPET, CONSOLE BOX
main58815-0C030i200611-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3
main58815-0C040i201308-201708
NUMBER OF PASSENGER-FRONT:2 REAR:3
58820ABOX ASSY, CONSOLE COMPARTMENT
main58820-0C040-C0i200611-200904
BLACK,TRIM1#,2#
main58820-0C040-E0i201008-201109
NUMBER OF PASSENGER-FRONT:2,DK. BROWN,TRIM44
main58820-0C060-C0i200904-201008
BLACK,TRIM1#,2#
main58820-0C060-E0i200904-201008
NUMBER OF PASSENGER-FRONT:2 REAR:3,DK. BROWN,TRIM4#
main58820-0C120-C0i201308-201708
NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM1#,2#,4#
main58820-0C121-C0i201808
YOUTH EDITION,BLACK,TRIM1#,2#,4#
main58820-0C130-C0i201708-201807
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD PRO,BLACK,TRIM2#
main58820-0C131-C0i201808
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD PRO,BLACK,TRIM2#
58823BBOX, CONSOLE COMPARTMENT
main58820-0C030i200611-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3,TYPE A:REFER ILLUST.
main58820-0C050i200701-200710
NUMBER OF PASSENGER-FRONT:2 REAR:3&TOWING PACKAGE-WITH,TYPE B:REFER ILLUST.
main58820-0C051i200711-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3&TOWING PACKAGE-WITH,TYPE B:REFER ILLUST.
main58820-0C090supersedes 58820-0C030i200904-201308
NUMBER OF PASSENGER-FRONT:2 REAR:3&TOWING PACKAGE-WITH,TYPE B:REFER ILLUST.
58844BEZEL, CONSOLE BOX
main58844-0C030-C0i201308-201708
NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM1#,2#,4#
main58844-0C050i200611-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3
main58844-0C040-C0supersedes 58844-0C030-C0i201109-201308
REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,BLACK,TRIM1#,2#,4#,TYPE B:REFER ILLUST.
main58844-0C040-E0supersedes 58844-0C030-E0i200703-200904
REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER,DK. BROWN,TRIM4#,TYPE B:REFER ILLUST.
58859AHOOK, CONSOLE BOX HOLDER
main58859-0C010×2i200611-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3
58865ALENS, FRONT CONSOLE BOX, NO.1
main58865-0C020i200904-200911
NUMBER OF PASSENGER-FRONT:2 REAR:3
58871CUSHION, CONSOLE BOX
main90541-05020×2i200611-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3
58871ACUSHION, CONSOLE BOX, NO.2
main58871-0C050i201708
NUMBER OF PASSENGER-FRONT:2 REAR:3
58903APANEL SUB-ASSY, CONSOLE REAR END
main58903-0C030-C0i200611-200904
BLACK,TRIM1#,2#
main58903-0C030-E0i200611-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3,DK. BROWN,TRIM4#
main58903-0C020-C0i201109-201308
NUMBER OF PASSENGER-FRONT:2,BLACK,TRIM1#,2#,4#
main58903-0C020-E0i200904-201109
NUMBER OF PASSENGER-FRONT:2,DK. BROWN,TRIM44
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-0C030-B0i200611-200707
GRAY,TRIM1#
main58905-0C030-E0i200611-200707
NUMBER OF PASSENGER-FRONT:2 REAR:3,SAND BEIGE,TRIM4#
main58905-0C030-E1i200611-200707
REDROCK,TRIM2#
main58905-0C031-B0i200708-200904
GRAY,TRIM1#
main58905-0C031-C0i200904-200907
NUMBER OF PASSENGER-FRONT:2,BLACK,TRIM2#
main58905-0C031-E0i200708-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3,SAND BEIGE,TRIM4#
main58905-0C031-E1i200708-200904
REDROCK,TRIM2#
main58905-0C032-B0i200908-200911
GRAY,TRIM1#
main58905-0C032-C0i200908-200911
NUMBER OF PASSENGER-FRONT:2,BLACK,TRIM2#
main58905-0C032-E0i200911-201003
NUMBER OF PASSENGER-FRONT:2 REAR:3,SAND BEIGE,TRIM4#
main58905-0C032-E1i200908-200911
REDROCK,TRIM21
main58905-0C091-B0i201008-201308
GRAY,TRIM1#
main58905-0C091-C0i201008-201308
NUMBER OF PASSENGER-FRONT:2,BLACK,TRIM2#
main58905-0C091-E0i201008-201308
REDROCK,TRIM21
main58905-0C091-E1i201008-201308
NUMBER OF PASSENGER-FRONT:2 REAR:3,SAND BEIGE,TRIM4#
main58905-0C100-B0i201003-201005
GRAY,TRIM1#
main58905-0C100-C0i201003-201006
NUMBER OF PASSENGER-FRONT:2,BLACK,TRIM2#
main58905-0C100-E0i201003-201005
REDROCK,TRIM2#
main58905-0C100-E1i201003-201006
NUMBER OF PASSENGER-FRONT:2 REAR:3,SAND BEIGE,TRIM4#
main58905-0C120-B0i201006-201008
GRAY,TRIM1#
main58905-0C120-C0i201006-201008
NUMBER OF PASSENGER-FRONT:2,BLACK,TRIM2#
main58905-0C120-E0i201006-201008
REDROCK,TRIM2#
main58905-0C120-E1i201006-201008
NUMBER OF PASSENGER-FRONT:2 REAR:3,SAND BEIGE,TRIM4#
main58905-0C170-B1i201308-201708
GRAY,TRIM1#
main58905-0C170-C1i201308-201708
BLACK,TRIM2#
main58905-0C170-E1i201308-201708
SAND BEIGE,TRIM4#
main58905-0C030-C0i200611-200707
NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM2#
main58905-0C080-C0i201409-201708
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD PRO,BLACK,TRIM2#
main58905-0C140-C1i201808
YOUTH EDITION,BLACK,TRIM1#,2#,4#
main58905-0C200-E0supersedes 58905-0C190-C1i201708
WESTERN PACKAGE,BROWN,TRIM2#
58910CBOX ASSY, CONSOLE, REAR
main58910-0C080-C1i200611-200707
REDROCK,TRIM2#
main58910-0C080-C2i200611-200707
GRAY,TRIM1#
main58910-0C080-E1i200611-200707
NUMBER OF PASSENGER-FRONT:2 REAR:3,SAND BEIGE,TRIM4#
main58910-0C081-C1i200708-200904
REDROCK,TRIM2#
main58910-0C081-C2i200708-200904
GRAY,TRIM1#
main58910-0C081-E1i200708-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3,SAND BEIGE,TRIM4#
main58910-0C082-C1i200908-200910
REDROCK,TRIM2#
main58910-0C082-C2i200908-200910
GRAY,TRIM1#
main58910-0C082-E1i200908-200910
NUMBER OF PASSENGER-FRONT:2 REAR:3,SAND BEIGE,TRIM4#
main58910-0C090-C0i200703-200707
BLACK,TRIM2#
main58910-0C090-C1i200703-200707
NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM1#
main58910-0C090-E0i200703-200707
NUMBER OF PASSENGER-FRONT:2 REAR:3,DK. BROWN,TRIM4#
main58910-0C091-C0i200904-200907
BLACK,TRIM21
main58910-0C091-C1i200708-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM1#
main58910-0C091-C2i200904-200907
NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM2#
main58910-0C091-E0i200904-200907
NUMBER OF PASSENGER-FRONT:2 REAR:3,DK. BROWN,TRIM4#
main58910-0C092-C0i200908-200910
BLACK,TRIM21
main58910-0C092-C1i200908-200910
NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM1#
main58910-0C092-C2i200908-200910
NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM2#
main58910-0C092-E0i200908-200910
NUMBER OF PASSENGER-FRONT:2 REAR:3,DK. BROWN,TRIM4#
main58910-0C110-C0i200911-201003
REDROCK,TRIM2#
main58910-0C110-C1i200911-201003
GRAY,TRIM1#
main58910-0C110-E0i200911-201003
NUMBER OF PASSENGER-FRONT:2 REAR:3,SAND BEIGE,TRIM4#
main58910-0C120-C0i200911-201003
REDROCK,TRIM21
main58910-0C120-C1i200911-201003
GRAY,TRIM1#
main58910-0C120-C2i200911-201003
NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM2#
main58910-0C120-E0i200911-201003
NUMBER OF PASSENGER-FRONT:2 REAR:3,SAND BEIGE,TRIM4#
main58910-0C161-C0i201008-201308
REDROCK,TRIM2#
main58910-0C161-C1i201008-201308
GRAY,TRIM1#
main58910-0C161-C3i201109-201308
NUMBER OF PASSENGER-FRONT:2 REAR:3,SAND BEIGE,TRIM4#
main58910-0C161-E0i201008-201109
NUMBER OF PASSENGER-FRONT:2 REAR:3,SAND BEIGE,TRIM4#
main58910-0C171-C0i201008-201308
REDROCK,TRIM21
main58910-0C171-C1i201008-201308
GRAY,TRIM1#
main58910-0C171-C2i201008-201308
NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM2#
main58910-0C171-C3i201109-201308
NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM4#
main58910-0C171-E0i201008-201109
NUMBER OF PASSENGER-FRONT:2 REAR:3,SAND BEIGE,TRIM4#
main58910-0C180-C0i201003-201005
REDROCK,TRIM2#
main58910-0C180-C1i201003-201005
GRAY,TRIM1#
main58910-0C180-E0i201003-201006
NUMBER OF PASSENGER-FRONT:2 REAR:3,SAND BEIGE,TRIM4#
main58910-0C190-C0i201003-201006
REDROCK,TRIM21
main58910-0C190-C1i201003-201006
GRAY,TRIM1#
main58910-0C190-C2i201003-201006
NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM2#
main58910-0C190-E0i201003-201006
NUMBER OF PASSENGER-FRONT:2 REAR:3,SAND BEIGE,TRIM4#
main58910-0C210-C0i201006-201008
REDROCK,TRIM2#
main58910-0C210-C1i201006-201008
GRAY,TRIM1#
main58910-0C210-E0i201006-201008
NUMBER OF PASSENGER-FRONT:2 REAR:3,SAND BEIGE,TRIM4#
main58910-0C220-C2i201006-201008
NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM2#
main58910-0C280-C3i201308-201708
BLACK,TRIM2#
main58910-0C280-C4i201308-201708
BLACK,TRIM4#
main58910-0C280-C5i201308-201708
BLACK,TRIM1#
main58910-0C281-C3i201808
BLACK/BLACK,TRIM2#
main58910-0C281-C4i201808
BLACK/SAND BEIGE,TRIM4#
main58910-0C281-C5i201808
BLACK/GRAY,TRIM1#
main58910-0C290-C3i201708-201807
BLACK,TRIM2#
main58910-0C290-C4i201308-201708
BLACK,TRIM4#
main58910-0C290-C5i201308-201708
BLACK,TRIM1#
main58910-0C291-C3i201808
BLACK/BLACK,TRIM2#
main58910-0C291-C4i201808
BLACK/SAND BEIGE,TRIM4#
main58910-0C291-C5i201808
BLACK/GRAY,TRIM1#
main58910-0C080-C3i200611-200707
NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM2#
main58910-0C081-C3i200708-200904
NUMBER OF PASSENGER-FRONT:2,BLACK,TRIM2#
main58910-0C082-C3i200908-200910
NUMBER OF PASSENGER-FRONT:2,BLACK,TRIM2#
main58910-0C090-C2i200703-200707
NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM2#
main58910-0C110-C2i200911-201003
NUMBER OF PASSENGER-FRONT:2,BLACK,TRIM2#
main58910-0C150-C0i201708-201807
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD PRO,BLACK,TRIM2#
main58910-0C151-C0i201808
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD PRO,BLACK,TRIM2#
main58910-0C161-C2i201008-201308
NUMBER OF PASSENGER-FRONT:2,BLACK,TRIM2#
main58910-0C180-C2i201003-201005
NUMBER OF PASSENGER-FRONT:2,BLACK,TRIM2#
main58910-0C210-C2i201006-201008
NUMBER OF PASSENGER-FRONT:2,BLACK,TRIM2#
main58910-0C230-C1i201308-201708
NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM1#,2#,4#
main58910-0C231-C1i201808
YOUTH EDITION,BLACK,TRIM1#,2#,4#
main58910-0C260-C1i201708-201807
NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM1#,2#,4#
main58910-0C261-C1i201808
NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM1#,2#,4#
main58910-0C270-C0i201708-201807
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD PRO,BLACK,TRIM2#
main58910-0C271-C0i201808
NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD PRO,BLACK,TRIM2#
main58910-0C310-C0supersedes 58910-0C300-C1i201708-201807
WESTERN PACKAGE,BLACK,TRIM2#
main58910-0C311-C0supersedes 58910-0C301-C1i201808
WESTERN PACKAGE,BLACK,TRIM2#
58917ACOVER, CONSOLE BOX, REAR
main58084-0C010-C0i201109-201308
NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM1#,2#,4#
main58084-0C010-E0i200611-200904
NUMBER OF PASSENGER-FRONT:2,DK. BROWN,TRIM4#
58923APANEL, CONSOLE REAR END
main58923-0C030-C0i200611-200904
BLACK,TRIM1#,2#
main58923-0C030-E0i200904-201005
NUMBER OF PASSENGER-FRONT:2 REAR:3,DK. BROWN,TRIM4#
main58923-0C040-C0i200904-201109
BLACK,TRIM1#,2#,44
main58923-0C040-E0i200904-201005
DK. BROWN,TRIM4#
58925APOCKET, CONSOLE BOX, REAR
main58925-0C020i200611-200904
NUMBER OF PASSENGER-FRONT:2,LOWER
main58925-0C030i200611-200904
NUMBER OF PASSENGER-FRONT:2,UPPER
58959BCUSHION, CONSOLE COMPARTMENT DOOR
main58959-60060×2i200611-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3
58981BRETAINER, CONSOLE MOUNTING, NO.1
main58981-0C040i200611-200904
NUMBER OF PASSENGER-FRONT:2 REAR:3
8121
8401
7412422050SPRING, FRONT ASH RECEPTACLE RETAINER, RH
main74124-22050
9008011353
main90080-11353
9008015073
main90080-15073
9014940011
main90149-40011
9015950105
main90159-50105
90167A0017
main90167-A0017
9046706165C0
main90467-06165C0
90467A0011
main90467-A0011
9046805135
main90468-05135
9352053010
main93520-53010
9356053008
main93560-53008

36 parts on this diagram · 7 diagrams in section

CONSOLE BOX & BRACKET — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
