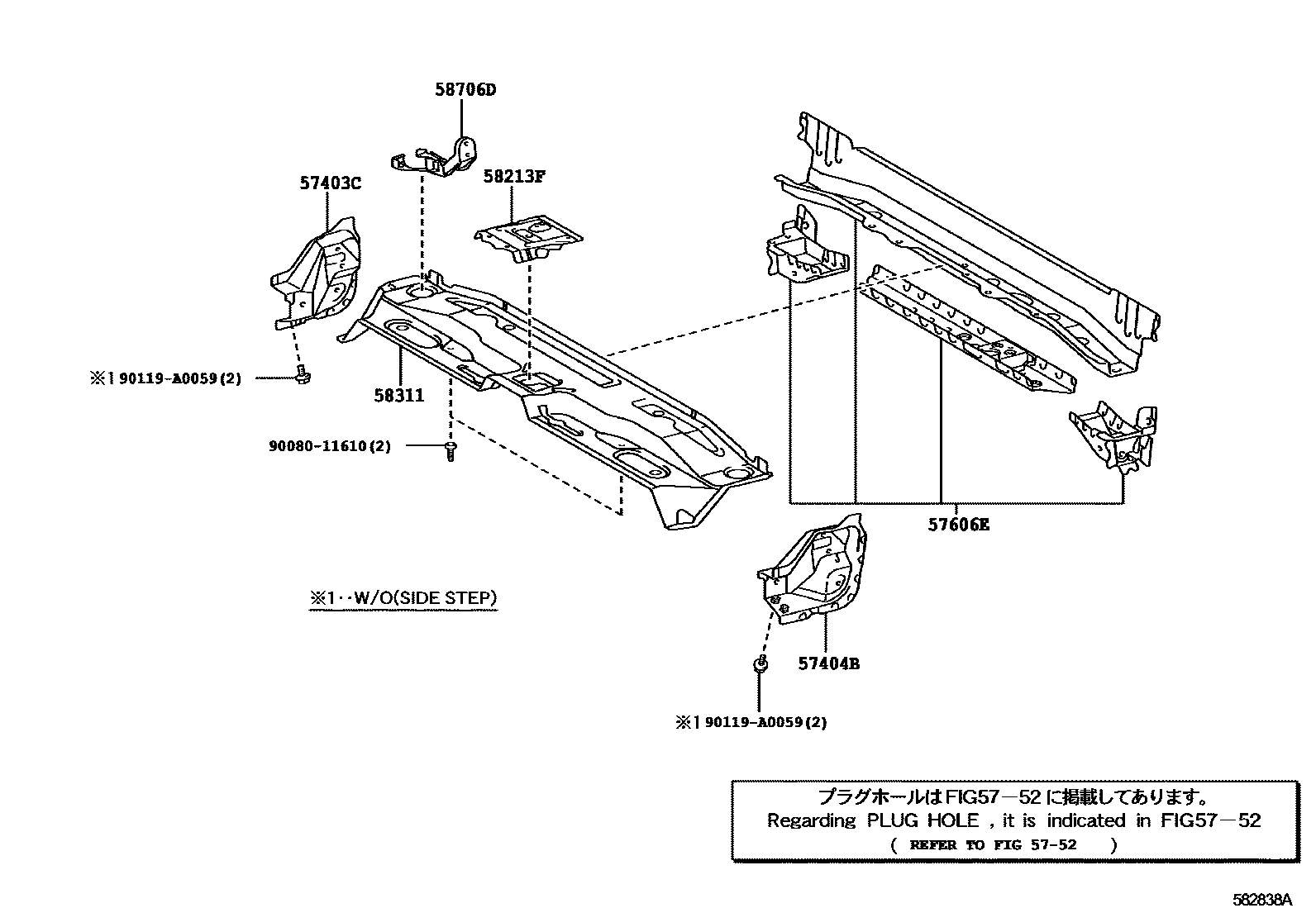

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1

57403CREINFORCE SUB-ASSY, FLOOR SIDE, INNER RH

main57403-0C040iUPK51,56..CMAX..L200703-201208

sub57403-0C042

main57403-0C042iUPK5#,USK51,56..CMAX201209-201907

main57403-0C050iUPK52,57;UPK51,56..DCB..L200611-201907

main57403-0C060iGSK51..RCB200611-201708

57404BREINFORCE SUB-ASSY, FLOOR SIDE, INNER LH

main57404-0C020iUPK51,56..CMAX..L200703-201208

sub57404-0C022

main57404-0C022iUPK5#,USK51,56..CMAX201209-201907

main57404-0C030iUSK5#..DCB..HTWC200611-201907

main57404-0C040iUSK51,56..RCB200611-201708

5752

57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-0C030iUCK51,56,USK51,56..CMAX200703-200706

sub57606-0C031

main57606-0C031iUPK5#,USK51,56..CMAX200707-201907

main57606-0C040iUPK5#..DCB;USK56,57..DCB..HTWCF200611-201907

58213FREINFORCEMENT, CENTER FLOOR PANEL

main57405-0C040iUCK51,56,USK51,56..CMAX200703-201208

sub57405-0C041

main57405-0C041iUPK5#,USK51,56..CMAX201209-201812

main57405-0C042iUPK5#..CMAX;USK56..CMAX..HTWCF201901-201907

main58213-0C040iUPK5#,USK5#..DCB200611-201812

main58213-0C041iUPK5#..DCB;USK56,57..DCB..HTWCF201901-201907

main58213-0C050iUPK51,55,56,USK50..D200611-201708

58311PAN, REAR FLOOR

main58311-0C090iUPK51,56..CMAX..L200703-201206

main58311-0C091iUPK5#..CMAX;USK56..CMAX..HTWCF201207-201907

main58311-0C100iGSK51..DCB200611-201907

main58311-0C110iUPK51,55,56,USK50..D200611-201708

58706DBRACKET SUB-ASSY, JACK CARRIER, NO.1

main58706-0C030iGSK51..DCB200611-201907

main58706-0C040iGSK51..RCB200611-201708

main58706-0C050iUPK5#..CMAX;USK56..CMAX..HTWCF201308-201907

9008011610

main90080-11610

90119A0059

main90119-A0059
