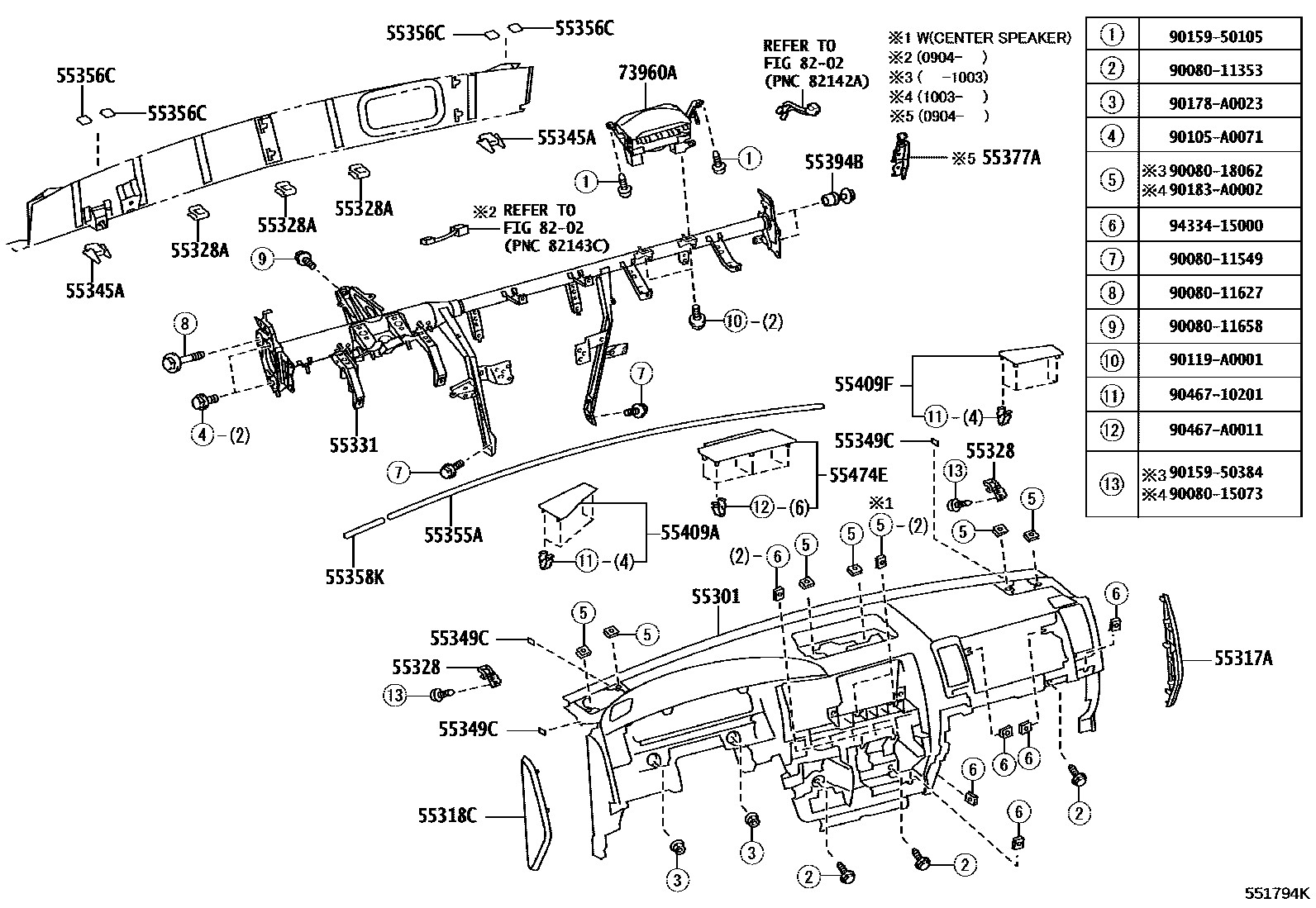

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1DRIVER SIDE 0006 1CENTER 0007 1PASSENGER SIDE 0008 1DRIVER SIDE 0009 1CENTER 0010 1PASSENGER SIDE 0011 1 0012 1DRIVER SIDE 0013 1CENTER 0014 1PASSENGER SIDE 0015 1DRIVER SIDE 0016 1CENTER 0017 1PASSENGER SIDE 0018 1DRIVER SIDE (OFFROAD PRO) 0019 1CENTER (OFFROAD PRO) 0020 1PASSENGER SIDE (OFFROAD PRO)

55301PANEL SUB-ASSY, INSTRUMENT

main55301-0C030-C0iGSK51,UCK51,52,56,57,USK51,52,56,57..L,S200611-201203

BLACK,TRIM1#,2#

main55301-0C030-C0iGSK5#,UCK50,51,55,56,USK50,51,55,56..D200611-200904

BLACK,TRIM1#

main55301-0C030-E0iUPK52,57;UPK51,55,56,USK50..D,L200611-201203

DK. BROWN,TRIM4#

main55301-0C031-C0iGSK5#,UPK5#,USK5#201203-201204

BLACK,TRIM1#,2#,4#

sub55301-0C032

main55301-0C032-C0iGSK5#,UPK5#,USK5#201204-201308

BLACK,TRIM1#,2#,4#

main55301-0C050-C0iUSK51,56..Z201308-201708

BLACK,TRIM2#

main55301-0C050-C0iGSK51,UPK5#,USK5#..L,S201308-201708

BLACK,TRIM1#,2#,4#

main55301-0C050-C0iUSK56..CMAX..S201908

AUDIO-AVN & JBL & 12PEAKER,BLACK,TRIM2#

main55301-0C050-C0iUSK56..CMAX..S201908

ACCESSORY CONNECTOR-WITH(BRAKE CONTROLLER)&AUDIO-AVN & JBL & 12PEAKER,BLACK,TRIM2#

55317APANEL, INSTRUMENT SIDE, RH

main55317-0C020-C0iGSK51,UPK5#,USK5#..L,S201109-201708

BLACK,TRIM1#,2#,4#

main55317-0C020-C0iGSK5#,UCK50,51,55,56,USK51,55,56..D200611-200904

BLACK,TRIM1#

main55317-0C020-C0iGSK5#,UCK50,51,55,56,USK51,55,56..D200611-201005

BLACK,TRIM1#,2#

main55317-0C020-C0iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57200904-201109

BLACK,TRIM1#,2#,44

main55317-0C020-C0iGSK51,UPK5#,USK5#..L,S201308-201708

BLACK,TRIM2#

main55317-0C020-E0iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57200904-201109

DK. BROWN,TRIM44

main55317-0C020-E0iGSK5#,UCK5#,USK5#200611-201005

DK. BROWN,TRIM4#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-0C020-C0iUSK50;GSK51,UCK51,52,56,57,USK51,52,56,57..L,S200611-200904

BLACK,TRIM1#

main55318-0C020-C0iUSK50;GSK51,UCK51,52,56,57,USK51,52,56,57..L,S200611-201005

BLACK,TRIM1#,2#

main55318-0C020-C0iUSK51,56..Z201308-201708

BLACK,TRIM2#

main55318-0C020-C0iUPK5#,USK5#..L,S201109-201708

BLACK,TRIM1#,2#,4#

main55318-0C020-C0iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57200904-201109

BLACK,TRIM1#,2#,44

main55318-0C020-E0iUPK52,57;UPK51,55,56,USK50..D,L200611-201005

DK. BROWN,TRIM4#

main55318-0C020-E0iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57200904-201109

DK. BROWN,TRIM44

55328PIN, INSTRUMENT PANEL, NO.1

main55328-30140iUPK5#,USK5#200611-201708

55328ASTAY, INSTRUMENT PANEL, NO.3

main55328-08090iGSK51201406-201708

main55328-22060iGSK51,UPK5#,USK5#200611-201406

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-0C030iGSK5#,UCK5#,USK5#200611-200903

main55330-0C040iUPK5#;USK56,57..HTWCF201708-201908

main55330-0C051iGSK5#,UPK5#,USK5#200904-200905

main55330-0C060iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57200906-201308

main55330-0C070iGSK51,UPK5#,USK5#201308-201406

sub55330-0C071

main55330-0C071iUPK5#,USK5#201407-201708

main55330-0C100iUSK5#..HTWC201908

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-0C020iGSK5#,UCK5#,USK5#200712-201708

main55345-30050iGSK5#,UCK5#,USK5#200611-200712

sub55345-30060

55349CCUSHION, INSTRUMENT PANEL

main55349-0C040iUPK52,57;UPK51,55,56,USK50..D,L200904-201708

55355APLATE, INSTRUMENT PANEL

main55355-0C050iGSK51200904-201708

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-0C041iUPK52,57;UPK51,55,56,USK50..D,L200904-201308

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-0C010iUPK5#,USK5#200904-201708

55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2

main55377-0C030iGSK5#,UPK5#,USK5#200904-201708

55394BBOLT, INSTRUMENT PANEL

main55394-51011iGSK5#,UCK5#,USK5#200611-201907

55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER

main55472-0C010-C0iGSK5#,UCK50,51,55,56,USK51,55,56..D200611-200904

BLACK,TRIM1#

main55472-0C010-C0iGSK5#,UCK50,51,55,56,USK51,55,56..D200611-201005

BLACK,TRIM1#,2#

main55472-0C010-C0iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57200904-201109

BLACK,TRIM1#,2#,44

main55472-0C010-C0iGSK5#,UPK5#,USK5#201109-201308

BLACK,TRIM1#,2#,4#

main55472-0C010-E0iGSK5#,UCK5#,USK5#200611-201005

DK. BROWN,TRIM4#

main55472-0C010-E0iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57200904-201109

DK. BROWN,TRIM44

main55472-0C020-C0iUSK51,56..Z201308-201708

BLACK,TRIM2#

main55472-0C020-C0iGSK51,UPK5#,USK5#..L,S201308-201708

BLACK,TRIM1#,2#,4#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55473-0C010-C0iGSK5#,UPK5#,USK5#201109-201308

BLACK,TRIM1#,2#,4#

main55473-0C010-C0iUSK50;GSK51,UCK51,52,56,57,USK51,52,56,57..L,S200611-201005

BLACK,TRIM1#,2#

main55473-0C010-C0iGSK5#,UCK50,51,55,56,USK51,55,56..D200611-200904

BLACK,TRIM1#

main55473-0C010-C0iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57200904-201109

BLACK,TRIM1#,2#,44

main55473-0C010-E0iUPK52,57;UPK51,55,56,USK50..D,L200611-201005

DK. BROWN,TRIM4#

main55473-0C010-E0iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57200904-201109

DK. BROWN,TRIM44

main55473-0C020-C0iGSK51,UPK5#,USK5#..L,S201308-201708

BLACK,TRIM1#,2#,4#

main55473-0C020-C0iGSK51,UPK5#,USK5#..L,S201308-201708

BLACK,TRIM2#

55474EPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.3

main55474-0C010-C0iUSK50;GSK51,UCK51,52,56,57,USK51,52,56,57..L,S200611-200904

BLACK,TRIM1#

main55474-0C010-C0iUSK50;GSK51,UCK51,52,56,57,USK51,52,56,57..L,S200611-201005

BLACK,TRIM1#,2#

main55474-0C010-C0iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57200904-201109

BLACK,TRIM1#,2#,44

main55474-0C010-C0iGSK5#,UPK5#,USK5#201109-201308

BLACK,TRIM1#,2#,4#

main55474-0C010-E0iUPK52,57;UPK51,55,56,USK50..D,L200611-201005

DK. BROWN,TRIM4#

main55474-0C010-E0iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57200904-201109

DK. BROWN,TRIM44

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0C010iGSK5#,UCK5#,USK5#200611-200904

main73960-0C030iUPK52,57;UPK51,55,56,USK50..D,L200904-201308

main73960-0C031iUPK5#,USK5#201308-201907

8202

9008011353

main90080-11353

9008011549

main90080-11549

9008011627

main90080-11627

9008011658

main90080-11658

9008015073

main90080-15073

9008018062

main90080-18062

90105A0071

main90105-A0071

90119A0001

main90119-A0001

9015950105

main90159-50105

9015950384

main90159-50384

90178A0023

main90178-A0023

90183A0002

main90183-A0002

9046710201

main90467-10201

90467A0011

main90467-A0011

9433415000

main94334-15000

33 parts on this diagram · 20 diagrams in section
