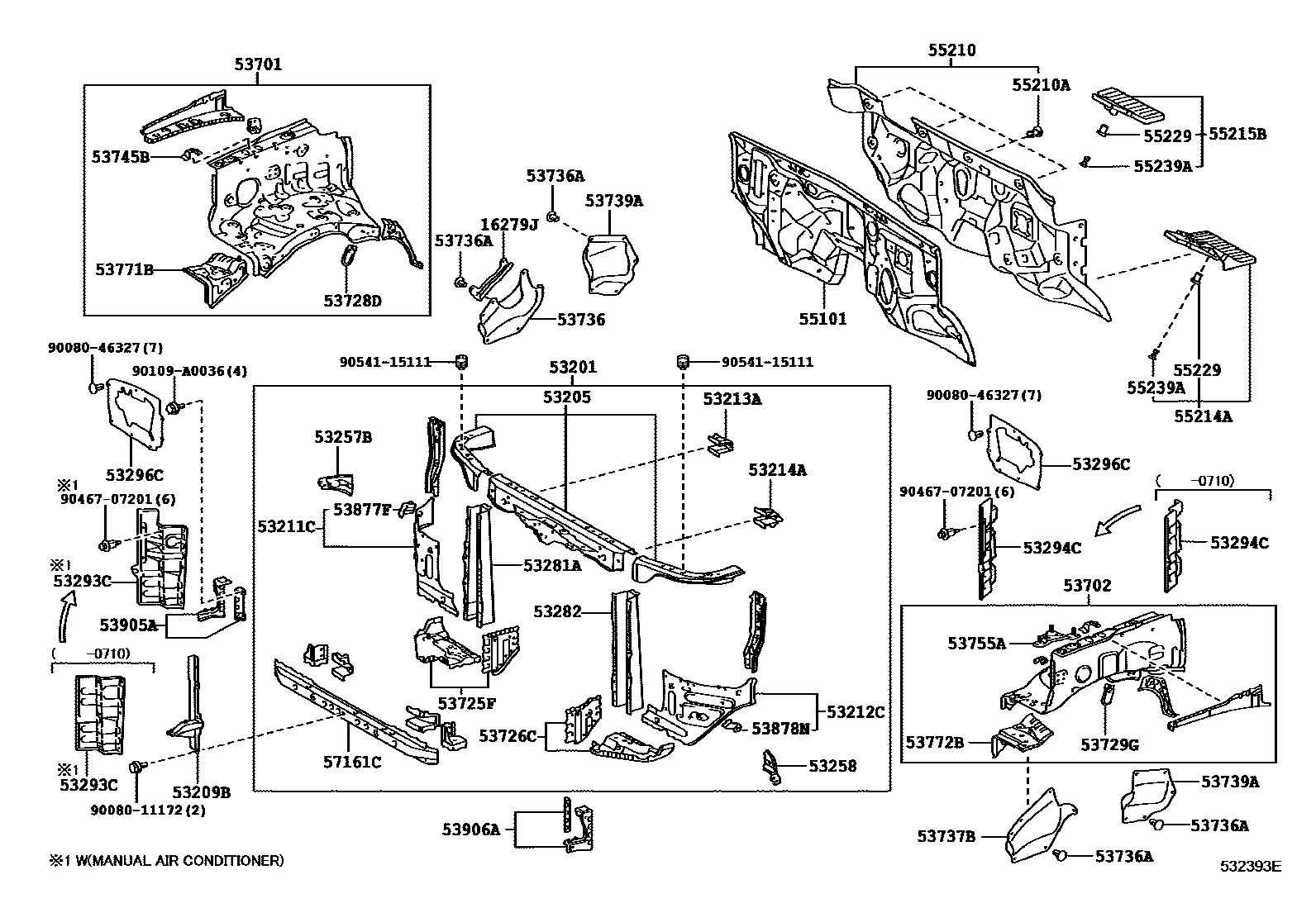

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1

16279JPROTECTOR, HOSE

main16279-0S010i1URFE,3URFBE..UPK5#,USK56,57200611-201907

53201SUPPORT SUB-ASSY, RADIATOR

main53201-0C070iGSK5#,UCK5#,USK5#200611-200807

sub53201-0C071

main53201-0C071iGSK5#,UPK5#,USK5#200808-200912

main53201-0C080iUPK52,57;UPK51,55,56,USK50..D,L201001-201208

sub53201-0C081

main53201-0C081iGSK5#,UPK5#,USK5#201209-201308

sub53201-0C082

main53201-0C090iGSK51201308-201907

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-0C030iGSK5#,UCK5#,USK5#200611-200807

sub53205-0C031

main53205-0C031iGSK5#,UCK5#,USK5#200808-200912

main53205-0C040iUPK52,57;UPK51,55,56,USK50..D,L201001-201208

sub53205-0C041

main53205-0C041iGSK5#,UPK5#,USK5#201209-201308

main53205-0C050iGSK51201308-201907

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-0C060iGSK5#,UCK5#,USK5#200611-201308

main53209-0C110iGSK51201308-201907

53211CSUPPORT, RADIATOR, RH

main53211-0C902iGSK5#,UCK5#,USK5#200611-200904

53212CSUPPORT, RADIATOR, LH

main53212-0C902iGSK5#,UCK5#,USK5#200611-200904

53213ASUPPORT, RADIATOR, UPPER RH

main53213-0C010iGSK5#,UCK5#,USK5#200611-201308

main53213-0C020iGSK51201308-201907

53214ASUPPORT, RADIATOR, UPPER LH

main53214-0C010iGSK5#,UCK5#,USK5#200611-201308

main53214-0C020iGSK51201308-201907

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-0C020iGSK5#,UCK5#,USK5#200611-201308

main53257-0C030iGSK51201308-201907

53258BRACKET, FRONT END PANEL MOUNTING, LH

main53258-0C010iGSK5#,UCK5#,USK5#200611-201308

main53258-0C020iGSK51201308-201907

53281AREINFORCEMENT, FRONT BODY MOUNTING, RH

main53281-0C020iGSK5#,UCK5#,USK5#200611-201907

53282REINFORCEMENT, FRONT BODY MOUNTING, LH

main53282-0C020iUSK5#..HTWC200611-201907

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-0C010iGSK5#,UCK50,51,55,56,USK50,51,55,56200611-200710

sub53293-0C020

main53293-0C020iUPK51,55,56,USK50..D,L200711-201308

main53293-0C030iUSK51,55,56200904-201308

TOWING PACKAGE-WITH

main53293-0C040iUPK5#,USK5#201308-201708

main53293-0C060iUPK5#;USK56,57..HTWCF201708-201907

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-0C010iGSK5#,UCK5#,USK5#200611-200710

sub53294-0C020

main53294-0C020iGSK5#,UCK5#,USK5#200711-201308

main53294-0C030iGSK51201308-201708

main53294-0C040iUPK5#;USK56,57..HTWCF201708-201907

53296CSHIELD, HEATER AIR

main53296-0C010iGSK5#,UCK5#,USK5#200611-201308

main53296-0C030iGSK51201308-201602

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-0C110iGSK5#,UCK5#,USK5#200611-201308

main53701-0C120iGSK51201308-201907

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-0C201iGSK5#,UCK5#,USK5#200611-201308

main53702-0C210iUPK5#,USK5#201308-201907

53725FAPRON, FRONT FENDER NO.2 SIDE, RH

main53725-0C901iGSK5#,UCK5#,USK5#200611-201308

main53725-0C902iGSK51201308-201907

53726CAPRON, FRONT FENDER NO.2 SIDE, LH

main53726-0C901iGSK5#,UCK5#,USK5#200611-201308

main53726-0C902iGSK51201308-201907

53728DBRACKET, FENDER APRON, RH

main53728-0C010iGSK5#,UCK5#,USK5#200611-201907

53729GBRACKET, FENDER APRON, LH

main53728-0C010iGSK5#,UCK5#,USK5#200611-201907

53736SEAL, FRONT FENDER APRON, RH

main53736-0C030iGSK5#,UCK5#,USK5#200611-201907

53736ACLIP(FOR FRONT FENDER APRON SEAL)

main90080-46327iGSK5#,UCK5#,USK5#200611-201907

53737BSEAL, FRONT FENDER APRON, LH

main53737-0C030iGSK5#,UCK5#,USK5#200611-201907

53739ASEAL, FRONT FENDER APRON, REAR LH

main53739-0C020iGSK5#,UCK5#,USK5#200611-201907

53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH

main53745-0C010iGSK5#,UCK5#,USK5#200611-201308

main53745-0C020iGSK51201308-201907

53755AREINFORCEMENT, BRAKE ACTUATOR MOUNTING, NO.1

main53755-0C030iGSK5#,UCK5#,USK5#200611-201907

53771BSUPPORT, BATTERY CARRIER, RH

main53771-0C030iGSK5#,UCK5#,USK5#200611-201907

53772BSUPPORT, BATTERY CARRIER, LH

main53772-0C010iGSK5#,UCK5#,USK5#200611-201907

53877FBRACKET, FRONT FENDER LINER, RH

main53877-0C030iGSK5#,UCK5#,USK5#200611-201907

53878NBRACKET, FRONT FENDER LINER, LH

main53878-0C020iGSK5#,UCK5#,USK5#200611-201907

53905ASUPPORT SUB-ASSY, FRONT END PANEL, RH

main53905-0C010iGSK5#,UCK5#,USK5#200611-201308

main53905-0C020iGSK51201308-201907

53906ASUPPORT SUB-ASSY, FRONT END PANEL, LH

main53906-0C010iGSK5#,UCK5#,USK5#200611-201308

main53906-0C020iGSK51201308-201907

55101PANEL SUB-ASSY, DASH

main55101-0C060iGSK5#,UCK5#,USK5#200611-200903

sub55101-0C061

main55101-0C061iGSK5#,UCK5#,USK5#200904-201001

main55101-0C080iUPK52,57;UPK51,55,56,USK50..D,L201001-201907

55210INSULATOR ASSY, DASH PANEL

main55210-0C040iGSK5#,UCK5#,USK5#200611-201212

sub55210-0C042

main55210-0C041iGSK5#,UPK5#,USK5#201301-201305

sub55210-0C042

main55210-0C042iGSK5#,UPK5#,USK5#201306-201907

55210ACLIP

main90467-11122iGSK5#,UCK5#,USK5#200611-201907

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-0C010iGSK5#,UCK5#,USK5#200611-201907

55215BPAD, DASH PANEL INSULATOR, NO.3

main55215-0C010iGSK5#,UCK5#,USK5#200611-200904

main55215-0C020iUPK52,57;UPK51,55,56,USK50..D,L200904-201907

55229PLATE, DASH PANEL INSULATOR, NO.4

main55229-48010iGSK5#,UCK5#,USK5#200611-201907

55239APLATE, DASH PANEL INSULATOR, NO.3

main55239-48020iGSK5#,UCK5#,USK5#200611-201907

57161CMEMBER, FRONT CROSS

main57161-0C030iGSK5#,UCK5#,USK5#200611-200807

sub57161-0C031

main57161-0C031iGSK5#,UCK5#,USK5#200808-201907

9008011172

main90080-11172

9008046327

main90080-46327

90109A0036

main90109-A0036

9046707201

main90467-07201

9054115111

main90541-15111

46 parts on this diagram · 3 diagrams in section
