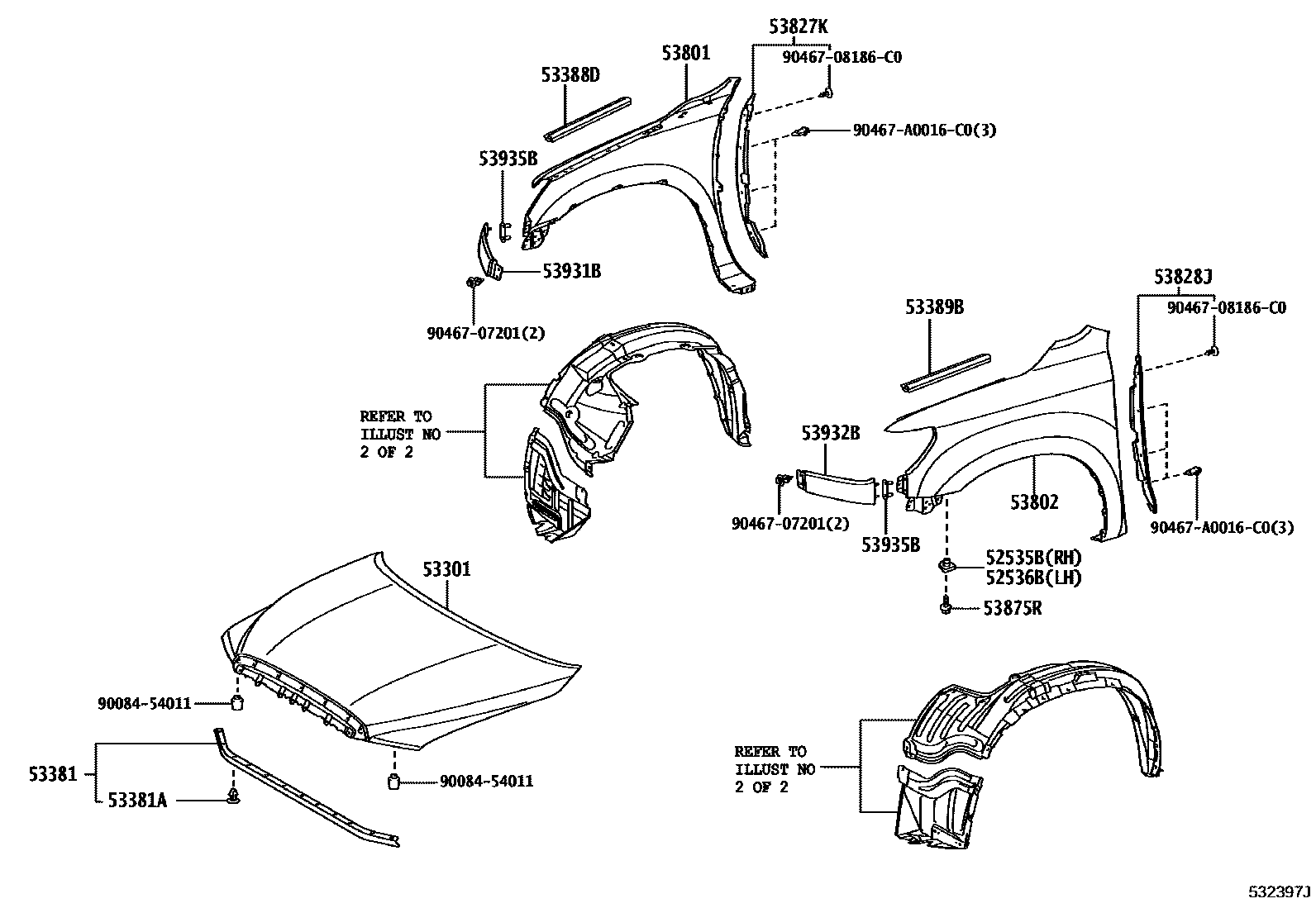

HOOD & FRONT FENDER

0001 1 0002 1RESIN BUMPER 0003 1STEEL BUMPER 0004 1 0005 1 0006 1

52535BRETAINER, FRONT BUMPER SIDE, RH

main52535-30150iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57200611-201308

52536BRETAINER, FRONT BUMPER SIDE, LH

main52535-30150iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57200611-201308

53301HOOD SUB-ASSY

main53301-0C030iUPK52,57;UPK51,55,56,USK50..D,L201002-201308

main53301-0C040iGSK5#,UCK5#,USK5#200611-201002

sub53301-0C030

main53301-0C050iUPK5#,USK5#201308-201708

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-0C020iUPK52,57;UPK51,55,56,USK50..D,L200611-201907

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iGSK5#,UCK5#,USK5#200611-201907

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-0C020iGSK5#,UCK5#,USK5#200611-201308

main53388-0C030iUPK5#,USK5#201308-201907

53389BSEAL, HOOD TO FRONT FENDER, LH

main53388-0C030iUPK5#,USK5#201308-201907

main53389-0C010iGSK5#,UCK5#,USK5#200611-201308

53801FENDER SUB-ASSY, FRONT RH

main53801-0C190iUPK52,57;UPK51,55,56,USK50..D,L201002-201308

main53801-0C220iGSK5#,UPK5#,USK5#200611-201002

sub53801-0C190

main53811-0C060iGSK51201308-201908

main53811-0C061iUSK5#..HTWC201908

53802FENDER SUB-ASSY, FRONT LH

main53802-0C170iUPK52,57;UPK51,55,56,USK50..D,L201002-201308

main53802-0C200iGSK5#,UCK5#,USK5#200611-201002

sub53802-0C170

main53812-0C050iGSK51201308-201907

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0C010iGSK5#,UCK5#,USK5#200611-201907

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0C010iUPK52,57;UPK51,55,56,USK50..D,L200611-201907

53875RSCREW, NO.3

main90080-15077iGSK5#,UCK5#,USK5#200611-201308

53931BPANEL, FRONT END, RH

main53931-0C901iGSK5#,UCK5#,USK5#200611-201308

main53931-0C903iUPK5#,USK5#201308-201907

53932BPANEL, FRONT END, LH

main53932-0C901iGSK5#,UCK5#,USK5#200611-201308

main53932-0C903iGSK51201308-201907

53935BPROTECTOR, FRONT END PANEL

main53935-0C010iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57200611-201308

9008454011

main90084-54011

9046707201

main90467-07201

9046708186C0

main90467-08186C0

90467A0016C0

main90467-A0016C0

19 parts on this diagram · 6 diagrams in section
