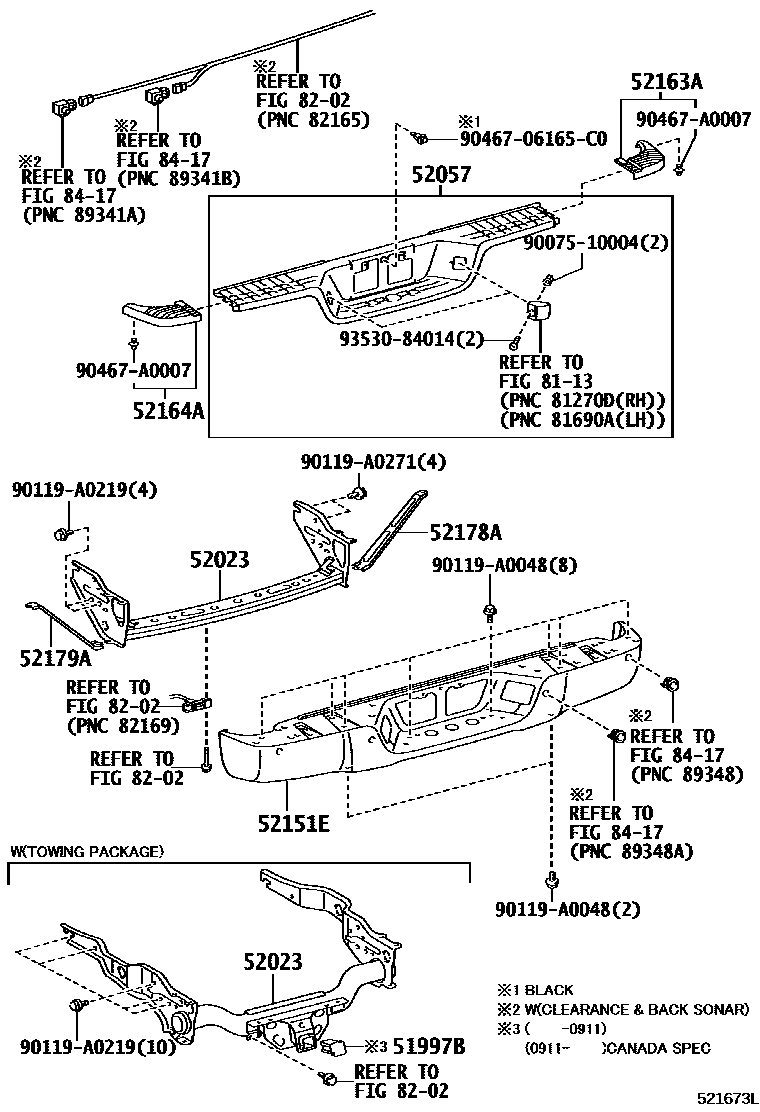

REAR BUMPER & BUMPER STAY

0001 1STEEL BUMPER 0002 1RESIN BUMPER 0003 1STEEL BUMPER 0004 1RESIN BUMPER 0005 1STEEL BUMPER 0006 1RESIN BUMPER

51997BCAP, RECEIVER HITCH

main51997-0C040iUPK50,51,55,56,USK50,51,55,56200611-200911

TOWING PACKAGE-WITH

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main51908-0C040iUPK52,57200611-201308

TOWING PACKAGE-WITH

main52023-0C120iGSK5#,UCK50,51,55,56,USK50,51,55,56200611-201308

main52023-0C121iGSK51,UPK5#,USK5#201308-201507

sub52023-0C122

main52023-0C122iUPK5#,USK5#201508-201701

main52023-0C123iUPK5#,USK5#201701-201708

52057PAD SUB-ASSY, REAR BUMPER, LH

main52057-0C030iGSK5#,UCK5#,USK5#200611-200904

TOWING PACKAGE-WITH

main52057-0C030iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57200904-201308

main52057-0C030iUCK51,56,USK51,56..S;GSK50,UCK50,55,USK50,55200611-200904

CLEARANCE & BACK SONAR-WITH(FRONT & REAR)

main52057-0C030iUCK51,56,USK51,56..S;GSK50,UCK50,55,USK50,55200611-200904

TOWING PACKAGE-WITH&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)

main52057-0C060iUPK5#,USK5#201308-201507

sub52057-0C061

main52057-0C061iUPK5#,USK5#201508-201708

52151EBAR, REAR BUMPER

main52151-0C060iGSK5#,UCK5#,USK5#200611-201308

PLATED

main52151-0C060iGSK5#,UCK5#,USK5#200611-200904

PLATED,TOWING PACKAGE-WITH

52163APLATE, REAR BUMPER, RH

main52163-0C040iGSK5#,UCK5#,USK5#200611-201308

main52163-0C070iGSK51201308-201708

52164APLATE, REAR BUMPER, LH

main52164-0C040iUPK52,57;UPK51,55,56,USK50..D,L200611-201308

main52164-0C060iGSK51201308-201708

52178AREINFORCEMENT, REAR BUMPER BAR CORNER, RH

main52178-0C030iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57200611-201308

main52178-0C050iUPK5#,USK5#..L,S201308-201708

52179AREINFORCEMENT, REAR BUMPER BAR CORNER, LH

main52178-0C030iGSK5#,UCK5#,USK5#200611-201308

main52179-0C040iUPK5#,USK5#..L,S201308-201708

8113

8202

8417

9007510004

main90075-10004

90119A0048

main90119-A0048

90119A0219

main90119-A0219

90119A0271

main90119-A0271

9046706165C0

main90467-06165C0

90467A0007

main90467-A0007

9353084014

main93530-84014

18 parts on this diagram · 6 diagrams in section
