REAR SPRING & SHOCK ABSORBER

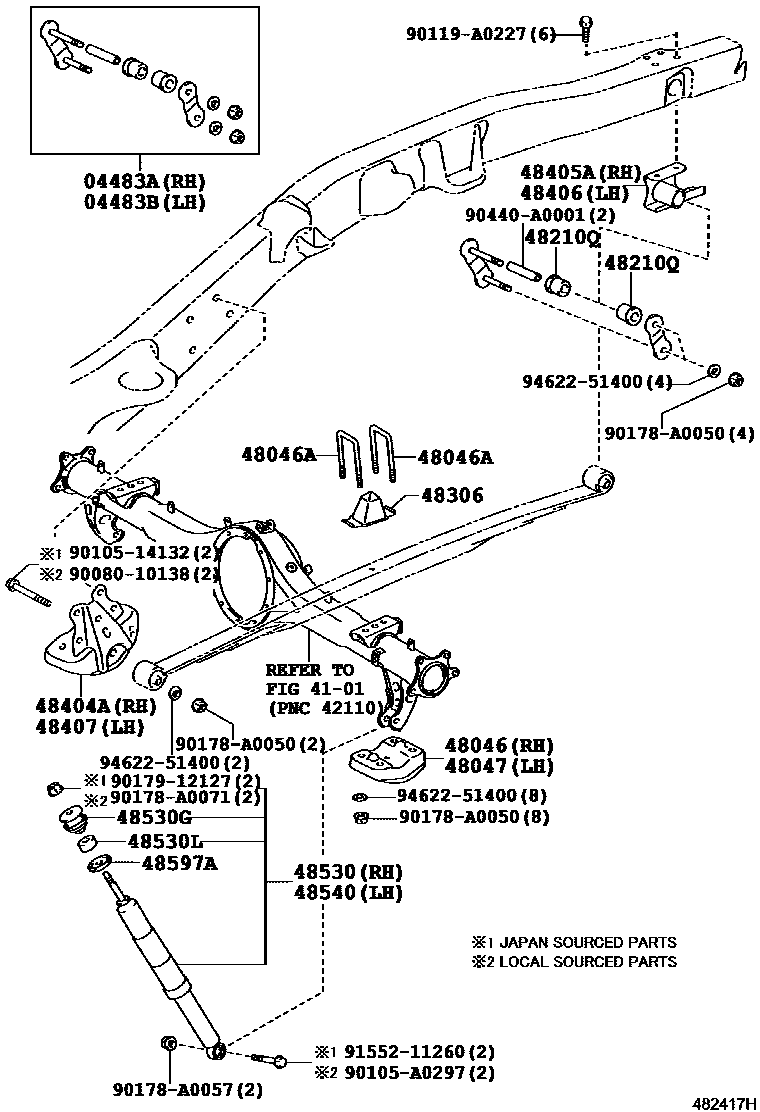

Parts diagram
04483ASHACKLE KIT, REAR SPRING, RH
main04483-0C040i200611-201907
main04483-0C050i201308-201401
sub04483-0C040
04483BSHACKLE KIT, REAR SPRING, LH
main04483-0C040i200611-201907
main04483-0C050i201308-201401
sub04483-0C040
4101
48046SEAT SUB-ASSY, SPRING U BOLT, RH
main48473-0C010i200611-201907
48046ABOLT, U(FOR REAR SPRING)
main90117-A0003i200611-200904
L=185,MEXICO SPEC
main90117-A0004i200611-201907
L=170
48047SEAT SUB-ASSY, SPRING U BOLT, LH
main48474-0C010i200611-201907
48210SPRING ASSY, REAR RH
main48210-0C090i200611-201105
MAIN 3+HELPER 1-LEAF,OFFROAD PACKAGE
main48210-0C091i201105-201308
MAIN 3+HELPER 1-LEAF,OFFROAD PACKAGE
main48210-0C100i200611-200709
MAIN 3+HELPER 1-LEAF,OFFROAD PACKAGE
main48210-0C101i200709-201105
MAIN 3+HELPER 1-LEAF,OFFROAD PACKAGE
main48210-0C102i201105-201708
MAIN 3+HELPER 1-LEAF,OFFROAD PACKAGE
main48210-0C110i200703-201105
MAIN 3+HELPER 1-LEAF,OFFROAD PACKAGE
main48210-0C111i201105-201708
MAIN 3+HELPER 1-LEAF,OFFROAD PACKAGE
main48210-0C120i200611-201105
MAIN 3+HELPER 1-LEAF,OFFROAD PACKAGE
main48210-0C121i201105-201308
MAIN 3+HELPER 1-LEAF,OFFROAD PACKAGE
main48210-0C130i200611-200709
MAIN 3+HELPER 1-LEAF,OFFROAD PACKAGE
main48210-0C131i200709-201105
MAIN 3+HELPER 1-LEAF,OFFROAD PACKAGE
main48210-0C132i201105-201907
MAIN 3+HELPER 1-LEAF,OFFROAD PACKAGE
main48210-0C132i201109-201308
MAIN 3+HELPER 1-LEAF,ROCK WARRIOR PACKAGE
main48210-0C132i201409-201907
MAIN 3+HELPER 1-LEAF,TRD PRO
main48210-0C140i200808-201109
MAIN 3+HELPER 1-LEAF,ROCK WARRIOR PACKAGE
main48210-0C140i200703-201109
MAIN 3+HELPER 1-LEAF,OFFROAD PACKAGE
main48210-0C150i200611-201105
MAIN 3+HELPER 1-LEAF
main48210-0C151i201105-201409
MAIN 3+HELPER 1-LEAF
main48210-0C160i200611-201105
MAIN 3+HELPER 1-LEAF
main48210-0C161i201105-201907
MAIN 3+HELPER 1-LEAF
main48210-0C170i200611-201105
MAIN 3+HELPER 1-LEAF
main48210-0C171i201105-201308
MAIN 3+HELPER 1-LEAF
main48210-0C180i200703-201105
MAIN 3+HELPER 1-LEAF
main48210-0C181i201105-201907
MAIN 3+HELPER 1-LEAF
main48210-0C190i200701-201109
MAIN 3+HELPER 1-LEAF
main48210-0C192i201109-201708
MAIN 3+HELPER 1-LEAF
main48210-0C200i201109-201708
MAIN 3+HELPER 1-LEAF,OFFROAD PACKAGE
main48210-0C210i200703-201109
MAIN 3+HELPER 1-LEAF
main48210-0C212i201109-201708
MAIN 3+HELPER 1-LEAF
main48210-0C220i200611-200904
MAIN 3+HELPER 2-LEAF,MEXICO SPEC
main48210-0C230i200611-201105
MAIN 3+HELPER 1-LEAF
main48210-0C231i201105-201308
MAIN 3+HELPER 1-LEAF
main48210-0C240i200611-201105
MAIN 3+HELPER 1-LEAF
main48210-0C241i201105-201402
MAIN 3+HELPER 1-LEAF
sub48210-0C242
main48210-0C242i201402-201907
MAIN 3+HELPER 1-LEAF
main48210-0C250i200703-201105
MAIN 3+HELPER 1-LEAF
main48210-0C251i201105-201907
MAIN 3+HELPER 1-LEAF
main48210-0C260i200701-201109
MAIN 3+HELPER 1-LEAF
main48210-0C262i201109-201708
MAIN 3+HELPER 1-LEAF,NO.1
main48210-0C280i200703-201109
MAIN 3+HELPER 1-LEAF
main48210-0C282i201109-201907
MAIN 3+HELPER 1-LEAF
main48210-0C290i200701-201109
MAIN 3+HELPER 1-LEAF
main48210-0C292i201109-201708
MAIN 3+HELPER 1-LEAF
main48210-0C300i200701-201109
MAIN 3+HELPER 1-LEAF
main48210-0C302i201109-201907
MAIN 3+HELPER 1-LEAF
main48210-0C310i200611-200709
MAIN 3+HELPER 1-LEAF
main48210-0C320i200611-200709
MAIN 3+HELPER 1-LEAF
main48210-0C330i200701-201109
MAIN 3+HELPER 1-LEAF,OFFROAD PACKAGE
main48210-0C340i200701-201109
MAIN 3+HELPER 1-LEAF,OFFROAD PACKAGE
main48210-0C340i200808-201109
MAIN 3+HELPER 1-LEAF,ROCK WARRIOR PACKAGE
main48210-0C350i200703-201105
MAIN 3+HELPER 1-LEAF,OFFROAD PACKAGE
main48210-0C351i201105-201708
MAIN 3+HELPER 1-LEAF,OFFROAD PACKAGE
main48210-0C351i201109-201308
MAIN 3+HELPER 1-LEAF,ROCK WARRIOR PACKAGE
main48210-0C360i201308-201708
MAIN 3+HELPER 1-LEAF,OFFROAD PACKAGE
48210QBUSH(FOR REAR SPRING SHACKLE)
main90385-A0001i200611-201907
48306BUMPER SUB-ASSY, REAR SPRING
main48306-0C010i200611-201907
48404ABRACKET SUB-ASSY, SPRING, NO.3 RH
main48404-0C010i200611-201708
48405ABRACKET SUB-ASSY, SPRING, NO.4 RH
main48405-0C010i200611-201708
48406BRACKET SUB-ASSY, SPRING, NO.4 LH
main48406-0C010i200611-201708
48407BRACKET SUB-ASSY, SPRING, NO.3 LH
main48407-0C010i200611-201708
48530ABSORBER ASSY, SHOCK, REAR RH
main48530-09M80i200611-201308
MARK 48530-0C080
main48530-09M90i200611-201308
MARK 48530-0C010,OFFROAD PACKAGE
main48530-09N10i200611-201308
MARK 48530-0C060
main48530-09N20i200703-201308
MARK 48530-0C020,OFFROAD PACKAGE
main48530-09N40i200611-201308
MARK 48530-0C030,OFFROAD PACKAGE
main48530-09N40i200808-201308
MARK 48530-0C030,ROCK WARRIOR PACKAGE
main48530-09N50i200808-201308
MARK 48530-0C040,ROCK WARRIOR PACKAGE
main48530-09N50i200703-201308
MARK 48530-0C040,OFFROAD PACKAGE
main48530-09N91i201308-201708
MARK 48530-0C011,OFFROAD PACKAGE
main48530-09N92i201308-201708
MARK 48530-0C021,OFFROAD PACKAGE
main48530-09N93i201308-201708
MARK 48530-0C031,OFFROAD PACKAGE
main48530-09N94i201308-201708
MARK 48530-0C041,OFFROAD PACKAGE
main48530-09N95i201308-201708
MARK 48530-0C061
main48530-09N96i201708-202111
MARK 48530-0C081,TRD SPORT
main48530-09N96i201308-201708
MARK 48530-0C081
main48530-09N97i201308-201708
MARK 48530-0C120,OFFROAD PACKAGE
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
main48505-0C010i200611-201708
main48505-0C010i201708-202111
TRD SPORT
main48505-0C020i200611-201708
OFFROAD PACKAGE
main48505-0C020i200808-201308
ROCK WARRIOR PACKAGE
48530LCUSHION, REAR SHOCK ABSORBER, NO.3
main47131-0C010i200611-201708
main47131-0C010i201708-202111
TRD SPORT
main47131-0C040i200611-201708
OFFROAD PACKAGE
main47131-0C040i200808-201308
ROCK WARRIOR PACKAGE
48540ABSORBER ASSY, SHOCK, REAR LH
main48530-09M80i200611-201308
MARK 48530-0C080
main48530-09M90i200611-201308
MARK 48530-0C010,OFFROAD PACKAGE
main48530-09N10i200611-201308
MARK 48530-0C060
main48530-09N20i200703-201308
MARK 48530-0C020,OFFROAD PACKAGE
main48530-09N40i200611-201308
MARK 48530-0C030,OFFROAD PACKAGE
main48530-09N40i200808-201308
MARK 48530-0C030,ROCK WARRIOR PACKAGE
main48530-09N50i200808-201308
MARK 48530-0C040,ROCK WARRIOR PACKAGE
main48530-09N50i200703-201308
MARK 48530-0C040,OFFROAD PACKAGE
main48530-09N91i201308-201708
MARK 48530-0C011,OFFROAD PACKAGE
main48530-09N92i201308-201708
MARK 48530-0C021,OFFROAD PACKAGE
main48530-09N93i201308-201708
MARK 48530-0C031,OFFROAD PACKAGE
main48530-09N94i201308-201708
MARK 48530-0C041,OFFROAD PACKAGE
main48530-09N95i201308-201708
MARK 48530-0C061
main48530-09N96i201308-201708
MARK 48530-0C081
main48530-09N96i201708-202111
MARK 48530-0C081,TRD SPORT
main48530-09N97i201308-201708
MARK 48530-0C120,OFFROAD PACKAGE
48597ARETAINER, REAR SHOCK ABSORBER CUSHION
main48597-0C010i200611-201708
main48597-0C010i201708-202111
TRD SPORT
9008010138
main90080-10138
9010514132
main90105-14132
90105A0297
main90105-A0297
90119A0227
main90119-A0227
90178A0050
main90178-A0050
90178A0057
main90178-A0057
90178A0071
main90178-A0071
9017912127
main90179-12127
90440A0001
main90440-A0001
9155211260
main91552-11260
9462251400
main94622-51400

29 parts on this diagram · 4 diagrams in section
