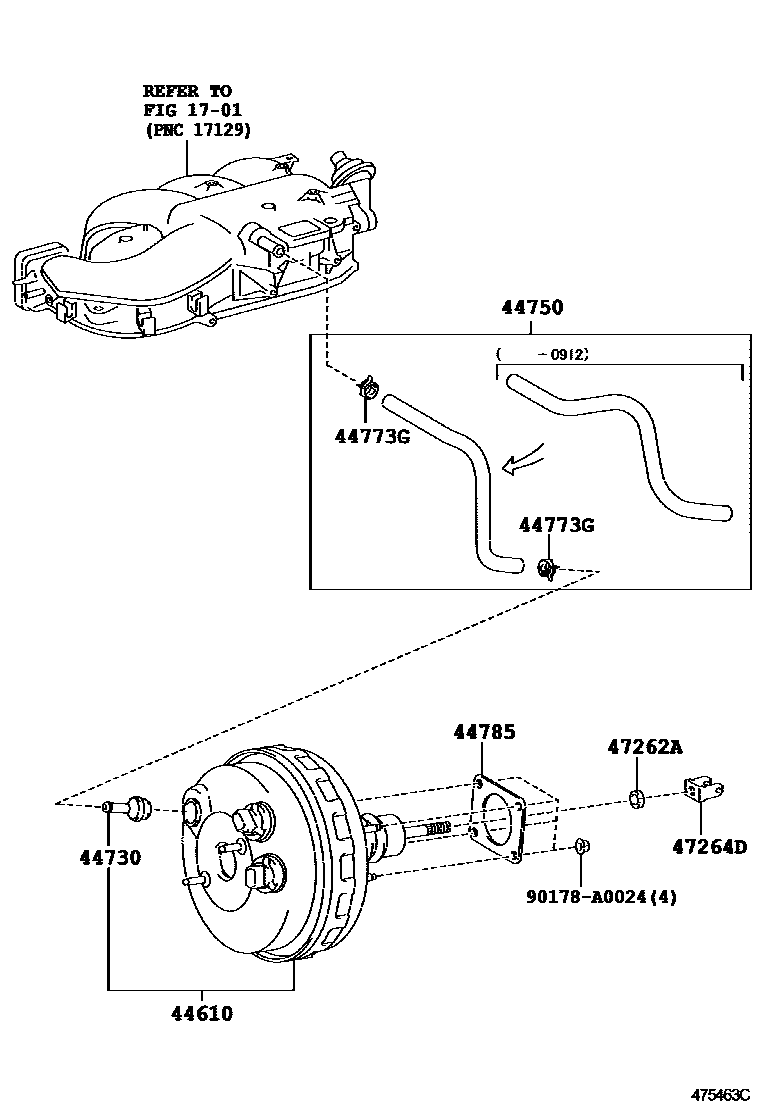

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

1701

44610BOOSTER ASSY, BRAKE

main44610-0C070iUSK51..D;GSK5#,UCK50,51,55,USK50,55..DCB,RCB200611-200809

sub44610-0C071

main44610-0C071iUSK51..D;UPK51..DCB..S;GSK5#,UPK50,USK55200809-201708

sub44610-0C072

main44610-0C090iUSK51..L,S;UCK51..CMAX;UCK52,56,57,USK52,56,57200611-200809

sub44610-0C091

main44610-0C091iUSK56;UPK51..CMAX;UPK56,USK51,52,57..CMAX,DCB200809-201708

sub44610-0C092

main44610-0C110iUPK5#,USK5#201708-201808

sub44610-0C111

main44610-0C111iUPK5#;USK56,57..HTWCF201808-201907

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-0C010iGSK5#,UCK5#,USK5#200611-201807

main44730-60070iUPK5#;USK56,57..HTWCF201808-201907

44750HOSE ASSY, VACUUM

main44750-0C080iGSK5#200611-200912

main44750-0C081iGSK5#200912-201205

main44750-0C082iGSK51201205-201409

main44750-0C091iUCK5#200611-200904

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iUPK5#,USK5#201104-201907

main96133-41500iGSK5#200611-201409

44785GASKET, BRAKE BOOSTER

main44785-04020iUSK5#..HTWC200611-201907

47262ANUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK

main94120-41000iGSK5#,UCK5#,USK5#200611-201907

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-22040iUPK5#;USK56,57..HTWCF201708-201907

main47264-63020iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57200611-201708

90178A0024

main90178-A0024

9 parts on this diagram · 3 diagrams in section
