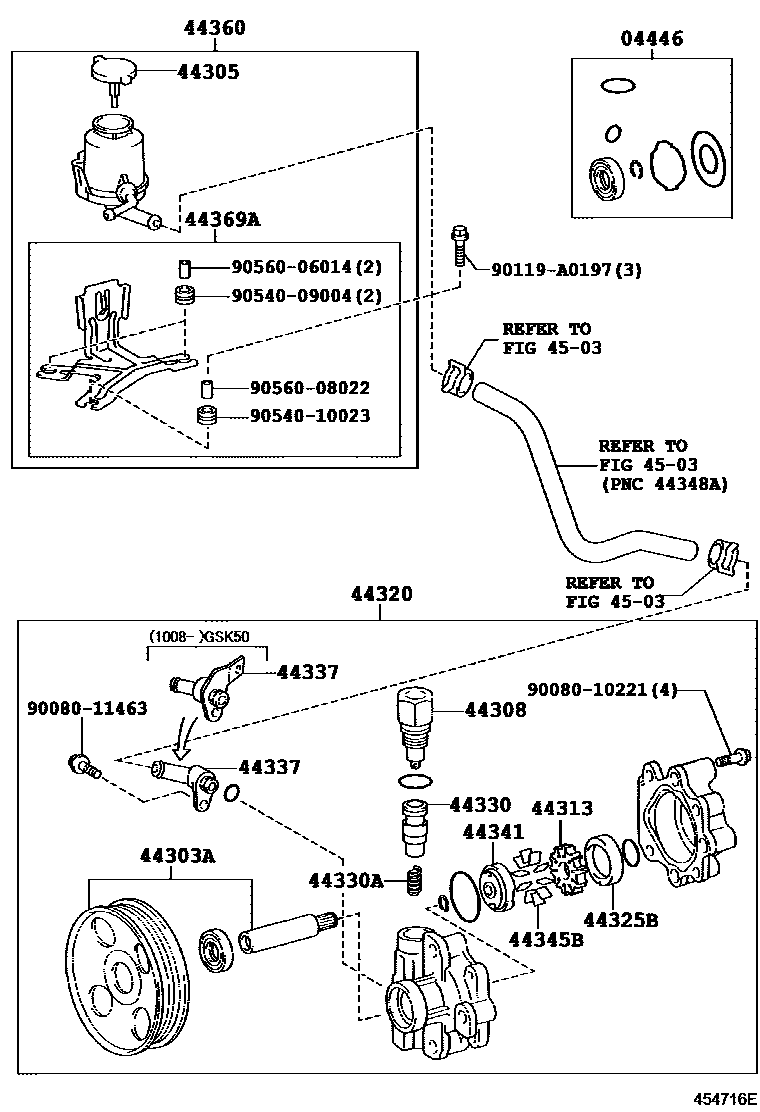

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0003 1

04446GASKET KIT, POWER STEERING PUMP

main04446-0C020iUPK52,57;UPK51,55,56,USK50..D,L200611-201907

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-0C050iUCK5#200611-200904

main44303-0C060iGSK51200611-201409

main44303-0C070iUSK5#..HTWC200701-201907

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-0C020iGSK5#,UCK5#,USK5#200611-200709

sub44305-0C040

main44305-0C040iGSK5#,UCK5#,USK5#200710-201907

44308UNION SUB-ASSY, PRESSURE PORT

main44308-34010iGSK5#,UCK5#,USK5#200611-201907

44313ROTOR, VANE PUMP

main44313-60010iGSK51200611-201907

MARK 0

main44313-60020iUPK5#,USK5#200611-201907

MARK 1

main44313-60030iUPK52,57;UPK51,55,56,USK50..D,L200611-201907

MARK 2

main44313-60040iUPK5#;USK56,57..HTWCF200611-201907

MARK 3

main44313-60050iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57200611-201907

MARK 4

44320PUMP ASSY, VANE

main44310-0C070iGSK5#200611-201008

main44310-0C080iUCK5#200611-200904

main44310-0C090iUPK5#;USK56,57..HTWCF200701-201907

main44310-0C110iUPK50;UPK51,56..S200904-201308

main44310-0C120iGSK5#201008-201409

44325BRING, VANE PUMP CAM

main44325-0C110iGSK5#,UCK5#,USK5#200611-200708

MARK 0

sub44325-0C160

main44325-0C120iGSK5#,UCK5#,USK5#200611-200708

MARK 1

sub44325-0C170

main44325-0C130iGSK5#,UCK5#,USK5#200611-200708

MARK 2

sub44325-0C180

main44325-0C140iGSK5#,UCK5#,USK5#200611-200708

MARK 3

sub44325-0C190

main44325-0C150iGSK5#,UCK5#,USK5#200611-200708

MARK 4

sub44325-0C200

main44325-0C160iGSK5#,UCK5#,USK5#200709-201907

MARK 0

main44325-0C170iUPK5#,USK5#200709-201907

MARK 1

main44325-0C180iUPK52,57;UPK51,55,56,USK50..D,L200709-201907

MARK 2

main44325-0C190iUPK5#;USK56,57..HTWCF200709-201907

MARK 3

main44325-0C200iGSK51200709-201907

MARK 4

44330VALVE ASSY, FLOW CONTROL

main44330-0C010iGSK5#,UCK5#,USK5#200611-201907

MARK A

main44330-0C020iGSK51200611-201907

MARK B

main44330-0C030iUPK5#;USK56,57..HTWCF200611-201907

MARK C

main44330-0C040iGSK5#,USK51,52,55,56,57200611-201907

MARK D

main44330-0C050iGSK5#,UCK5#,USK5#200611-201907

MARK E

main44330-0C060iUPK5#;USK56,57..HTWCF200611-201907

MARK F

main44330-0C130iUPK50;UPK51,56..S200904-201308

MARK A

main44330-0C140iUPK50;UPK51,56..S200904-201308

MARK B

main44330-0C150iUPK52,57;UPK51,55,56..D,L200904-201308

MARK C

main44330-0C160iUPK50;UPK51,56..S200904-201308

MARK D

main44330-0C170iUPK50;UPK51,56..S200904-201308

MARK E

main44330-0C180iUPK50;UPK51,56..S200904-201308

MARK F

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-14173iGSK5#,UCK5#,USK5#200611-201907

44337UNION, POWER STEERING SUCTION PORT

main44337-0C030iGSK5#200611-201008

main44337-0C040iUCK5#200611-200904

main44337-0C050iUSK5#..HTWC200701-201907

main44337-0C060iGSK5#201008-201409

44341PLATE, VANE PUMP SIDE, FRONT

main44341-0C010iGSK51201312-201907

main44341-60040iGSK51,UPK5#,USK5#200611-201312

44345BPLATE, VANE PUMP

main44345-0C010iGSK51200611-201907

MARK 0

main44345-0C020iGSK51200611-201907

MARK 1

main44345-0C030iGSK5#,UCK5#,USK5#200611-201907

MARK 2

main44345-0C040iUPK5#;USK56,57..HTWCF200611-201907

MARK 3

main44345-0C050iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57200611-201907

MARK 4

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-0C050iGSK5#,UCK5#,USK5#200611-201907

44369ABRACKET, OIL RESERVOIR, NO.1

main44390-0C060iGSK5#,UCK5#,USK5#200611-201907

4503

9008010221

main90080-10221

9008011463

main90080-11463

90119A0197

main90119-A0197

9054009004

main90540-09004

9054010023

main90540-10023

9056006014

main90560-06014

9056008022

main90560-08022

22 parts on this diagram · 2 diagrams in section
