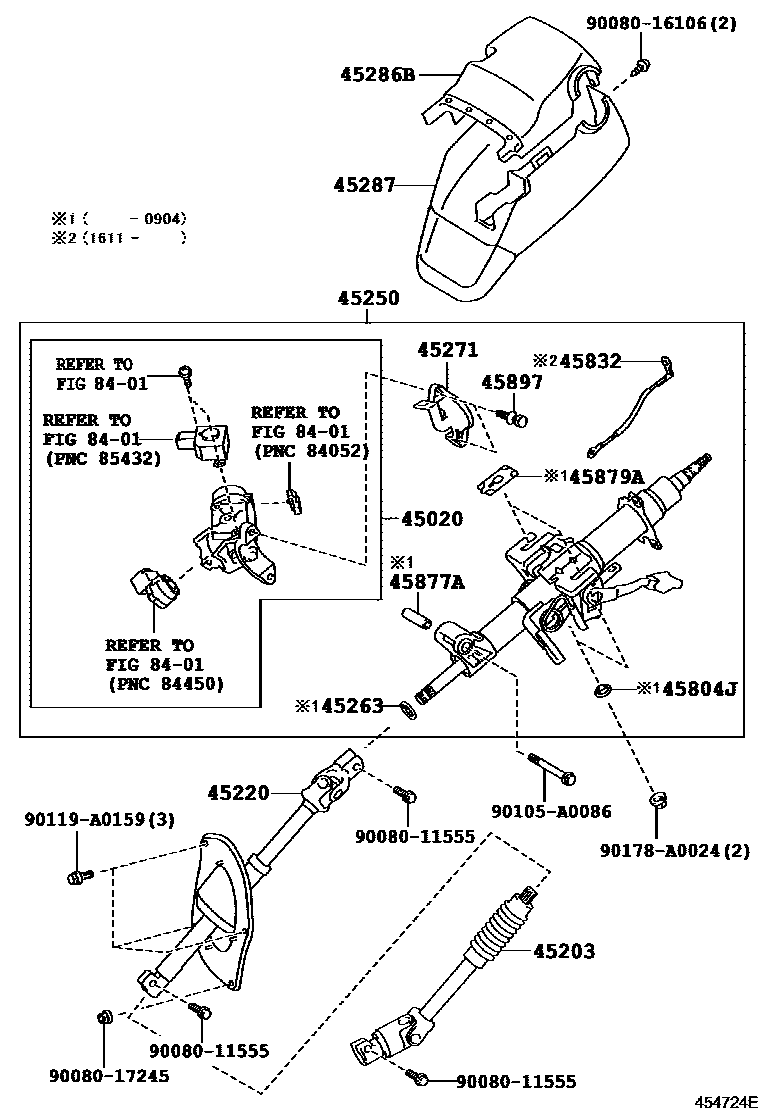

STEERING COLUMN & SHAFT

0001 1W/O(SMART ENTRY) 0002 1ELECTRIC TILT & TELESCOPIC ST0004 1W(SMART ENTRY) 0005 1ELECTRIC TILT & TELESCOPIC ST

45020BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH

main45020-04010iUPK52,57;UPK51,55,56,USK50..D,L200904-201907

main45020-04010iUCK51,56,USK51,56..L200611-200904

POWER MEMORY PACKAGE

main45020-0C010iUSK51,56..HTWC..S201908

NUMBER OF PASSENGER-FRONT:2 REAR:3&OFFROAD PACKAGE

main45020-0C010iUSK5#..HTWC..S201908

NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD PRO

main45020-0C010iUSK5#..HTWC..S201908

NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD SPORT

45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2

main45203-0C010iGSK5#,UCK5#,USK5#200611-200710

sub45203-0C011

main45203-0C011iGSK5#,UCK5#,USK5#200711-201907

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-0C010iUPK52,57;UPK51,55,56,USK50..D,L200611-201907

45250COLUMN ASSY, STEERING

main45250-0C170iUCK51,56,USK51,56..L200611-200904

NUMBER OF PASSENGER-FRONT:2

main45250-0C170iUCK51,56,USK51,56..L200611-200904

NUMBER OF PASSENGER-FRONT:2 REAR:3

main45250-0C180iGSK5#,UCK5#,USK5#..SR5200611-200904

main45250-0C210iUPK52,57;UPK51,55,56,USK50..D200904-201008

sub45250-0C250

main45250-0C220iUSK51,56..L200904-201008

NUMBER OF PASSENGER-FRONT:2

sub45250-0C260

main45250-0C220iUPK51,56..L200904-201008

NUMBER OF PASSENGER-FRONT:2 REAR:3

sub45250-0C260

main45250-0C240iUSK51,56..Z201308-201708

main45250-0C250iGSK5#,UPK5#,USK5#..SR5201009-201907

main45250-0C260iUSK51,56..L201009-201907

NUMBER OF PASSENGER-FRONT:2 REAR:3

main45250-0C260iUSK51,56..L201009-201308

NUMBER OF PASSENGER-FRONT:2

main45250-0C300iUSK51,56..HTWC..Z201708-201908

main45250-0C320iUSK51,56..HTWC..Z201908

main45250-0C340iUSK56..HTWC..S201908

NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD PRO

main45250-0C340iUSK51,56..HTWC..L201908

NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD SPORT

main45250-0C340iUSK51,56..HTWC..L201908

NUMBER OF PASSENGER-FRONT:2 REAR:3&OFFROAD PACKAGE

45263RING, STEERING COLUMN, NO.1

main45263-35020iGSK5#,UCK5#,USK5#200611-201308

POWER MEMORY PACKAGE

main45263-35020iUSK51,56..L201009-201308

NUMBER OF PASSENGER-FRONT:2

main45263-35020iUSK51,56..L201009-201308

NUMBER OF PASSENGER-FRONT:2 REAR:3

45271CLAMP, STEERING COLUMN, UPPER

main45271-04010iUSK51,56..Z201308-201908

main45271-06020iUPK51,56..L200611-201308

POWER MEMORY PACKAGE

main45271-06020iGSK51201308-201907

45286BCOVER, STEERING COLUMN, UPR

main45286-0C050-C0iGSK51,UPK51,56,USK51,52,56,57..S200904-201109

NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM1#,2#,44

main45286-0C050-C0iUCK51,56,USK51,56..L200611-201005

BLACK,TRIM1#,2#

main45286-0C050-C0iUCK51,56,USK51,56..L200611-200904

NUMBER OF PASSENGER-FRONT:2,BLACK,TRIM1#

main45286-0C050-C0iUCK51,56,USK51,56..L200611-201005

NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM1#,2#

main45286-0C050-C0iUPK51,56..L200904-201005

NUMBER OF PASSENGER-FRONT:2,BLACK,TRIM1#,2#

main45286-0C050-C0iUSK51,56..L200904-201109

BLACK,TRIM1#,2#,44

main45286-0C050-C0iUSK51,56..L200904-201109

NUMBER OF PASSENGER-FRONT:2,BLACK,TRIM1#,2#,44

main45286-0C050-C0iUSK51,56..L201109-201912

BLACK,TRIM1#,2#,4#

main45286-0C050-C0iUSK51,56..L201109-201308

NUMBER OF PASSENGER-FRONT:2,BLACK,TRIM1#,2#,4#

main45286-0C050-C0iUSK51,56..L201109-201708

NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM1#,2#,4#

main45286-0C050-C0iUSK51,56..L201908-201912

BLACK,TRIM2#

main45286-0C050-C0iUSK51,56..L201908-201912

NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD PRO,BLACK,TRIM1#,2#,4#

main45286-0C050-C0iUSK51,56..L201908-201912

NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD SPORT,BLACK,TRIM1#,2#,4#

main45286-0C050-C0iUSK51,56..L201908-201912

NUMBER OF PASSENGER-FRONT:2 REAR:3&OFFROAD PACKAGE,BLACK,TRIM1#,2#,4#

main45286-0C050-E0iUSK51,56..L200904-201109

NUMBER OF PASSENGER-FRONT:2 REAR:3,DK. BROWN,TRIM44

main45286-0C050-E0iUSK51,56..L200904-201109

NUMBER OF PASSENGER-FRONT:2,DK. BROWN,TRIM44

main45286-0C050-E0iUSK51,56..L200904-201109

DK. BROWN,TRIM44

main45286-0C050-E0iUCK51,56,USK51,56..L200611-201005

DK. BROWN,TRIM4#

main45286-0C050-E0iGSK51,UCK51,52,56,57,USK51,52,56,57..S200611-201005

NUMBER OF PASSENGER-FRONT:2 REAR:3,DK. BROWN,TRIM4#

main45286-0C050-E0iGSK51,UCK51,52,56,57,USK51,52,56,57..S200611-201005

NUMBER OF PASSENGER-FRONT:2,DK. BROWN,TRIM4#

main45286-0C061-C0iUPK5#,USK5#..S201109-201708

BLACK,TRIM1#,2#,4#

main45286-0C061-C0iUPK52,57;UPK51,55,56,USK50..D200611-201005

BLACK,TRIM1#,2#

main45286-0C061-C0iGSK51,UCK51,52,56,57,USK51,52,56,57..S200611-200904

BLACK,TRIM1#

main45286-0C061-C0iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5200904-201109

BLACK,TRIM1#,2#,44

main45286-0C061-E0iGSK5#,UCK5#,USK5#..SR5200611-201005

DK. BROWN,TRIM4#

main45286-0C061-E0iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5200904-201109

DK. BROWN,TRIM44

main45286-0C070-C0iUSK51,56..Z201308-201908

BLACK,TRIM2#

main45286-0C080-C0iUSK5#..S201912

BLACK,TRIM1#,2#,4#

main45286-0C080-C0iUSK5#..S201912

BLACK,TRIM2#

main45286-0C080-C0iUSK5#..S201912

NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD PRO,BLACK,TRIM1#,2#,4#

main45286-0C080-C0iUSK5#..S201912

NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD SPORT,BLACK,TRIM1#,2#,4#

main45286-0C080-C0iUSK5#..S201912

NUMBER OF PASSENGER-FRONT:2 REAR:3&OFFROAD PACKAGE,BLACK,TRIM1#,2#,4#

45287COVER, STEERING COLUMN, LWR

main45287-0C090-C0iUCK51,56,USK51,56..L200611-200903

NUMBER OF PASSENGER-FRONT:2,BLACK,TRIM1#

sub45287-0C120

main45287-0C090-C0iUCK51,56,USK51,56..L200611-200903

NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM1#,2#

sub45287-0C120

main45287-0C090-C0iGSK50,UCK50,55,USK55200611-200903

BLACK,TRIM1#,2#

sub45287-0C120

main45287-0C090-E0iGSK51,UCK51,52,56,57,USK51,52,56,57..S200611-200903

NUMBER OF PASSENGER-FRONT:2 REAR:3,DK. BROWN,TRIM4#

sub45287-0C120

main45287-0C090-E0iUCK51,56,USK51,56..L200611-200903

DK. BROWN,TRIM4#

sub45287-0C120

main45287-0C090-E0iUCK51,56,USK51,56..L200611-200903

NUMBER OF PASSENGER-FRONT:2,DK. BROWN,TRIM4#

sub45287-0C120

main45287-0C101-C0iGSK5#,UCK50,51,55,56,USK50,51,55,56..D200611-200904

BLACK,TRIM1#

main45287-0C101-C0iGSK5#,UCK50,51,55,56,USK50,51,55,56..D200611-201005

BLACK,TRIM1#,2#

main45287-0C101-C0iGSK5#,UPK5#,USK5#..SR5201109-201708

BLACK,TRIM1#,2#,4#

main45287-0C101-C0iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5200904-201109

BLACK,TRIM1#,2#,44

main45287-0C101-E0iGSK5#,UCK5#,USK5#..SR5200611-201005

DK. BROWN,TRIM4#

main45287-0C101-E0iUPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57..SR5200904-201109

DK. BROWN,TRIM44

main45287-0C120-C0iGSK50,UPK50,USK55201109-201308

NUMBER OF PASSENGER-FRONT:2,BLACK,TRIM1#,2#,4#

main45287-0C120-C0iUPK51,56..L200904-201005

BLACK,TRIM1#,2#

main45287-0C120-C0iUPK51,56..L200904-201005

NUMBER OF PASSENGER-FRONT:2,BLACK,TRIM1#,2#

main45287-0C120-C0iUPK51,56..L200904-201005

NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM1#,2#

main45287-0C120-C0iUSK51,56..L200904-201109

BLACK,TRIM1#,2#,44

main45287-0C120-C0iUSK51,56..L200904-201109

NUMBER OF PASSENGER-FRONT:2,BLACK,TRIM1#,2#,44

main45287-0C120-C0iUSK51,56..L200904-201109

NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM1#,2#,44

main45287-0C120-C0iUSK51,56..L201109-201907

BLACK,TRIM1#,2#,4#

main45287-0C120-C0iUSK51,56..L201109-201708

NUMBER OF PASSENGER-FRONT:2 REAR:3,BLACK,TRIM1#,2#,4#

main45287-0C120-E0iUPK51,56..L200904-201005

NUMBER OF PASSENGER-FRONT:2,DK. BROWN,TRIM4#

main45287-0C120-E0iGSK51,UPK51,56,USK51,52,56,57..S200904-201109

NUMBER OF PASSENGER-FRONT:2,DK. BROWN,TRIM44

main45287-0C120-E0iGSK51,UPK51,56,USK51,52,56,57..S200904-201109

DK. BROWN,TRIM44

main45287-0C120-E0iGSK50,UPK50,USK55200904-201109

NUMBER OF PASSENGER-FRONT:2 REAR:3,DK. BROWN,TRIM44

main45287-0C120-E0iUPK51,56..L200904-201005

DK. BROWN,TRIM4#

main45287-0C120-E0iUPK51,56..L200904-201005

NUMBER OF PASSENGER-FRONT:2 REAR:3,DK. BROWN,TRIM4#

main45287-0C130-C0iUSK51,56..Z201308-201908

BLACK,TRIM2#

main45287-0C140-C0iUSK56..S201908

NUMBER OF PASSENGER-FRONT:2 REAR:3&OFFROAD PACKAGE,BLACK,TRIM1#,2#,4#

main45287-0C140-C0iUSK51,56..L201908

BLACK,TRIM1#,2#,4#

main45287-0C140-C0iUSK51,56..L201908

NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD PRO,BLACK,TRIM1#,2#,4#

main45287-0C140-C0iUSK51,56..L201908

NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD SPORT,BLACK,TRIM1#,2#,4#

main45287-0C150-C0iUSK51,56..Z201908

BLACK,TRIM2#

45804JCOLLAR SUB-ASSY, BREAK AWAY

main45804-22030iUSK51,56..L201009-201308

NUMBER OF PASSENGER-FRONT:2 REAR:3

main45804-22030iGSK5#,UCK5#,USK5#200611-201308

POWER MEMORY PACKAGE

main45804-22030iUSK51,56..L201009-201308

NUMBER OF PASSENGER-FRONT:2

45832CABLE, TILT STEERING SUPPORT BOND

main45832-04010iUPK5#;USK51,56..HTWC..L;USK56,57..HTWCF..(L,S)201611-201907

45877ASPACER, STEERING COLUMN BRACKET

main45877-35030iGSK50,UPK50,USK55200611-201308

POWER MEMORY PACKAGE

main45877-35030iGSK50,UPK50,USK55201009-201308

NUMBER OF PASSENGER-FRONT:2 REAR:3

main45877-35030iGSK50,UPK50,USK55201009-201308

NUMBER OF PASSENGER-FRONT:2

45879ACAPSULE, BREAK AWAY

main45879-22070iUSK51,56..L201009-201308

NUMBER OF PASSENGER-FRONT:2 REAR:3

main45879-22070iGSK5#,UCK5#,USK5#200611-201308

POWER MEMORY PACKAGE

main45879-22070iUSK51,56..L201009-201308

NUMBER OF PASSENGER-FRONT:2

45897BOLT, STEERING LOCK SET

main45897-08010iUSK51,56..HTWC..S201908

NUMBER OF PASSENGER-FRONT:2 REAR:3&OFFROAD PACKAGE

main45897-08010iUPK5#,USK5#..L,S201308-201907

main45897-08010iUSK51,56..L200611-201308

POWER MEMORY PACKAGE

main45897-08010iUSK5#..HTWC..S201908

NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD SPORT

main45897-08010iUSK51,56..HTWC..S201908

NUMBER OF PASSENGER-FRONT:2 REAR:3&TRD PRO

main45897-12020iUSK51,56..Z201308-201908

8401

9008011555

main90080-11555

9008016106

main90080-16106

9008017245

main90080-17245

90105A0086

main90105-A0086

90119A0159

main90119-A0159

90178A0024

main90178-A0024

20 parts on this diagram · 4 diagrams in section
