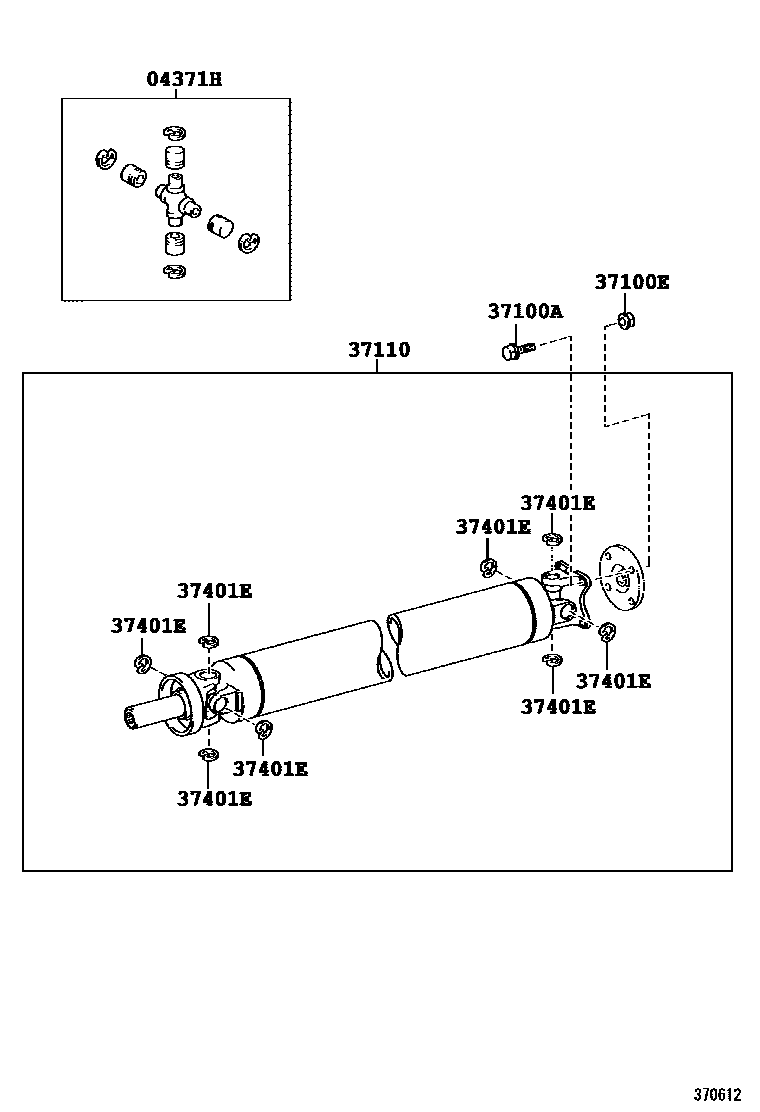

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1 0003 1FRONT 0004 1REAR 0005 1REAR 0006 1REAR

04371HSPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT

main04371-0C080iGSK51,UPK51,52,USK51,52200611-201006

sub04371-0C081

main04371-0C081iGSK50201006-201308

sub04371-0C094

main04371-0C082iUPK56,USK56,57201107-201708

sub04371-0C084

main04371-0C084iGSK51,UPK51,USK51,52201107-201708

main04371-0C090iUPK55,USK55200611-201006

sub04371-0C093

main04371-0C093iUPK56,USK56,57201006-201308

sub04371-0C082

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-0C100iUSK51200701-200808

sub37100-0C101

main37100-0C101iUSK51200809-201002

sub37100-0C102

main37100-0C102iUSK51201003-201004

sub37100-0C103

main37100-0C103iUSK51201004-201005

sub37100-0C105

main37100-0C105iUSK51201006-201012

sub37100-0C106

main37100-0C106iUSK51201101-201708

main37100-0C110iUSK52200701-200808

sub37100-0C111

main37100-0C111iUSK52200809-201002

sub37100-0C112

main37100-0C112iUSK52201003-201004

sub37100-0C113

main37100-0C113iUSK52201004-201005

sub37100-0C114

main37100-0C115iUSK52201006-201103

sub37100-0C116

main37100-0C116iUSK52201104-201708

main37100-0C120iUCK51200611-200904

sub37100-0C121

main37100-0C130iUCK52200611-200904

sub37100-0C131

main37100-0C140iGSK51200611-201002

sub37100-0C141

main37100-0C141iGSK51201003-201004

sub37100-0C142

main37100-0C142iGSK51201004-201005

sub37100-0C144

main37100-0C144iGSK51201006-201103

sub37100-0C145

main37100-0C145iGSK51201104-201409

main37100-0C150iUSK56200701-201003

sub37100-0C151

main37100-0C151iUSK56201004-201005

sub37100-0C153

main37100-0C153iUSK56201006-201103

sub37100-0C154

main37100-0C154iUSK56201104-201703

sub37100-0C155

main37100-0C155iUSK56..HTWC201704-201907

main37100-0C160iUSK57200701-201003

sub37100-0C161

main37100-0C161iUSK57201004-201005

sub37100-0C163

main37100-0C163iUSK57201006-201103

sub37100-0C164

main37100-0C164iUSK57201104-201703

sub37100-0C165

main37100-0C165iUSK57201704-201907

main37100-0C170iUCK56200611-200904

sub37100-0C171

main37100-0C180iUCK57200611-200904

sub37100-0C181

main37100-0C190iUPK51200904-201002

sub37100-0C191

main37100-0C191iUPK51201003-201004

sub37100-0C192

main37100-0C192iUPK51201004-201005

sub37100-0C193

main37100-0C194iUPK51201006-201103

sub37100-0C195

main37100-0C195iUPK51201104-201907

main37100-0C200iUPK52200904-201002

sub37100-0C201

main37100-0C201iUPK52201003-201004

sub37100-0C202

main37100-0C202iUPK52201004-201005

sub37100-0C204

main37100-0C210iUPK56200904-201003

sub37100-0C211

main37100-0C211iUPK56201004-201005

sub37100-0C213

main37100-0C213iUPK56201006-201103

sub37100-0C214

main37100-0C214iUPK56201104-201703

sub37100-0C215

main37100-0C215iUPK56201704-201907

main37100-0C220iUPK57200904-201003

sub37100-0C221

main37100-0C221iUPK57201004-201005

sub37100-0C223

37100ABOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90105-A0187iUPK52,57;UPK51,55,56,USK50..D,L200611-201907

37100ENUT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90178-A0087iUPK57;UPK55,56..D,L200611-201907

37110SHAFT ASSY, PROPELLER

main37110-0C080iUSK50200701-200808

sub37110-0C081

main37110-0C081iUSK50200809-201002

sub37110-0C082

main37110-0C082iUSK50201003-201004

sub37110-0C083

main37110-0C083iUSK50201004-201005

sub37110-0C085

main37110-0C090iUCK50200611-200904

sub37110-0C091

main37110-0C100iGSK50200611-201002

sub37110-0C101

main37110-0C101iGSK50201003-201004

sub37110-0C102

main37110-0C102iGSK50201004-201005

sub37110-0C103

main37110-0C104iGSK50201006-201012

sub37110-0C105

main37110-0C105iGSK50201101-201308

main37110-0C110iUSK55200701-201003

sub37110-0C111

main37110-0C111iUSK55201004-201005

sub37110-0C113

main37110-0C113iUSK55201006-201012

sub37110-0C114

main37110-0C114iUSK55201101-201308

sub37110-0C115

main37110-0C120iUCK55200611-200904

sub37110-0C121

main37110-0C170iUPK50200904-201002

sub37110-0C171

main37110-0C171iUPK50201003-201004

sub37110-0C172

main37110-0C172iUPK50201004-201005

sub37110-0C174

main37110-0C174iUPK50201006-201012

sub37110-0C175

main37110-0C175iUPK50201101-201308

main37110-0C180iUPK55200904-201003

sub37110-0C181

main37110-0C181iUPK55201004-201005

sub37110-0C183

37401ERING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)

main90521-A0003iUCK55,USK55200611-201704

T=1.49

main90521-A0004iUCK55,USK55200611-201704

T=1.56

main90521-A0005iUPK57;UPK56..D,L200611-201704

T=1.59

main90521-A0006iUSK55200611-201704

T=1.51

main90521-A0007iGSK51,UCK51,52,USK51,52200611-201907

T=1.46,PURPLE

main90521-A0008iUPK52;UPK51..D,L200611-201907

T=1.52,BLACK

main90521-A0009iUCK56,57,USK56,57200611-201907

T=1.59,YELLOW

main90521-A0010iUPK51..S;GSK51,USK51,52200611-201907

T=1.64,BLUE

main90521-A0011iUCK56,57,USK56,57200611-201907

T=1.54,BLACK

main90521-A0012iUSK50200611-201907

T=1.57,BLACK

main90521-A0013iUSK55200611-201907

T=1.62,BLACK

main90521-A0014iUSK50200611-201907

T=1.49,BLACK

main90521-A0015iUSK56;UPK56,USK57..S200611-201907

T=1.51,COPPER

main90521-A0016iGSK50,UCK50,USK50200611-201907

T=1.56,SILVER

6 parts on this diagram · 6 diagrams in section
