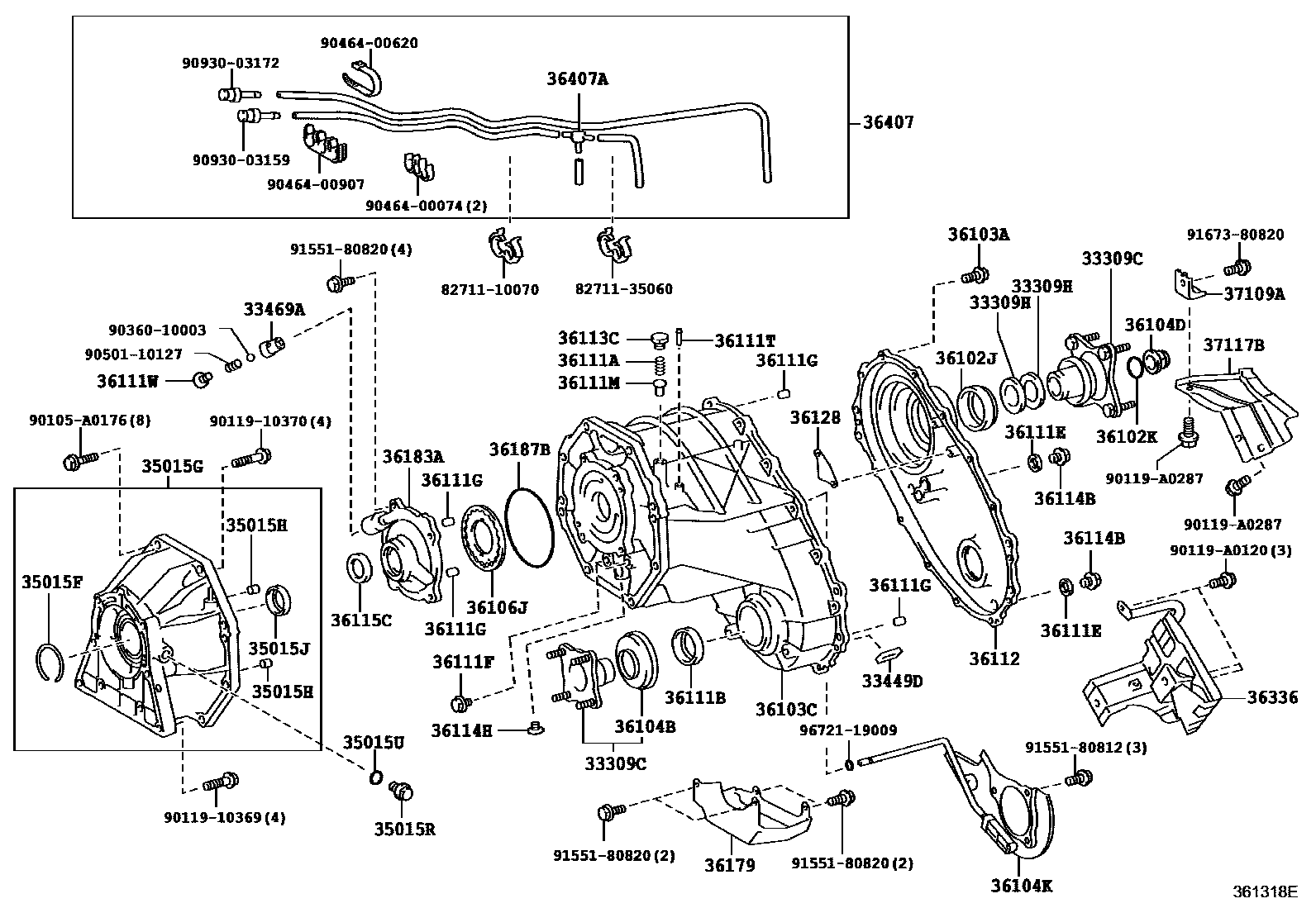

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1 0003 1 0004 1 0005 1

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-0C020iUPK56;USK56,57..HTWCF201308-201907

REAR

main33309-34010iUPK57;UPK55,56..D,L200611-201308

REAR

main33309-34020iUPK57;UPK55,56..D,L200611-201308

FRONT

33309HWASHER, TRANSFER OUTPUT SHAFT

main36275-34010iUCK55,56,57,USK55,56,57200611-201308

T=0.8

33449DMAGNET (FOR TRANSFER CASE)

main33449-0C010iUSK56,57..HTWC201308-201907

main33449-60010iUCK55,56,57,USK55,56,57200611-201308

33469ASEAT, RELIEF VALVE (FOR TRANSFER EXTENSION REAR HOUSING)

main33469-60020iUCK55,56,57,USK55,56,57200611-201308

35015FRING, HOLE SNAP(FOR TRANSFER ADAPTER)

main90520-A0045iUSK56,57..HTWC201403-201907

main90521-80004iUPK57;UPK55,56..D,L200611-201907

35015GADAPTER, TRANSFER, REAR

main35015-0C030iUCK55,56,57200611-200904

main35015-0C040iUSK56,57..HTWC200701-201907

main35015-0C050iUPK57;UPK55,56..D,L200904-201507

sub35015-34010

main35015-34010iUPK56201507-201907

35015HPIN, RING(FOR TRANSFER CASE)

main90250-11003iUPK56;USK56,57..HTWCF200611-201907

35015JSEAL, OIL(FOR TRANSFER CASE ADAPTER REAR)

main90311-51008iUSK55,56;UPK56,USK57..S200611-201907

sub90311-51010

35015RPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSMISSION CASE ADAPTER)

main90341-18059iUCK55,56,57200611-201907

35015URING, O(FOR TRANSMISSION CASE ADAPTER)

main90301-15004iUCK55,56,57200611-201907

36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)

main90311-50040iUPK57;UPK55,56..D,L200611-201308

sub90311-50065

main90311-A0026iUPK56,USK56,57201308-201907

36102KRING, O

main90301-31003iUCK55,56,57,USK55,56,57200611-201308

main90301-A0035iUPK56,USK56,57201308-201907

36103ABOLT (FOR TRANSFER CASE)

main90148-A0024iUPK56;USK56,57..HTWCF201308-201907

*8-1.25PX60

main91551-00845iUPK57;UPK55,56..D,L200611-201308

*8-1.25PX45-22

36103CCASE, TRANSFER, FRONT

main36103-0C010iUPK56;USK56,57..HTWCF201308-201907

main36103-34020iUCK55,56,57,USK55,56,57200611-201308

sub36103-34H10

sub36103-34H20

36104BDEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)

main33325-34020iUCK55,56,57,USK55,56,57200611-201308

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90177-A0018iUPK56;USK56,57..HTWCF201308-201907

main90179-24011iUPK57;UPK55,56..D,L200611-201308

36104KSEPARATOR SUB-ASSY, TRANSFER OIL

main36104-34010iUCK55,56,57,USK55,56,57200611-201308

36106JROTOR, TRANSFER OIL PUMP

main36106-34010iUCK55,56,57,USK55,56,57200611-201308

36111ASPRING, COMPRESSION (FOR TRANSFER CASE)

main90501-20091iUCK55,56,57,USK55,56,57200611-201308

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-50039iUCK55,56,57,USK55,56,57200611-201308

main90311-A0023iUPK56,USK56,57201308-201907

36111EGASKET (FOR TRANSFER CASE)

main90430-18008iUCK55,56,57,USK55,56,57200611-201308

36111FPLUG (FOR TRANSFER CASE)

main36136-0C010iUPK56,USK56,57201308-201907

DRAIN

main90341-24006iUCK55,56,57,USK55,56,57200611-201308

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214iUCK55,56,57,USK55,56,57200611-201308

L=14,OD=10

36111MPIN, SLOTTED SPRING (FOR TRANSFER CASE)

main90241-07003iUCK55,56,57,USK55,56,57200611-201308

36111TTUBE (FOR TRANSFER CASE)

main90441-05001iUCK55,56,57,USK55,56,57200611-201907

sub90406-T0007

36111WPLUG, TIGHT NO.2(FOR TRANSFER CASE)

main90341-18039iUCK55,56,57,USK55,56,57200611-201308

36112CASE, TRANSFER, REAR

main36104-0C010iUSK56,57..HTWC201308-201907

main36104-34020iUCK55,56,57,USK55,56,57200611-201205

sub36103-34H20

main36104-34021iUPK56,USK55,56,57201205-201308

sub36103-34H10

36113CPLUG (FOR TRANSFER CASE)

main90341-14012iUCK55,56,57,USK55,56,57200611-201308

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iUPK57;UPK55,56..D,L200611-201308

36114HPLUG, NO.2 (FOR TRANSFER CASE)

main90341-14008iUCK55,56,57,USK55,56,57200611-201308

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-51009iUCK55,56,57,USK55,56,57200611-201308

36128DEFLECTOR, BREATHER OIL

main36128-34010iUCK55,56,57,USK55,56,57200611-201308

36179PROTECTOR, TRANSFER CASE LOWER

main36179-0C010iUSK56,57..HTWC201308-201907

main36179-34010iUCK55,56,57,USK55,56,57200611-201204

sub36179-34011

main36179-34011iUPK56,USK55,56,57201205-201308

36183APLATE, TRANSFER OIL PUMP

main36183-34011iUCK55,56,57,USK55,56,57200611-201308

36187BRING, O (FOR TRANSFER OIL STRAINER)

main96721-31130iUPK57;UPK55,56..D,L200611-201308

36336INSULATOR, TRANSFER HEAT

main36336-0C010iUPK57;UPK55,56..D,L200611-201308

36407HOSE SUB-ASSY, TRANSFER BREATHER

main36407-0C100iUPK56201308-201907

main36407-0C110iUSK56,57..HTWC201308-201907

main36407-34020iUCK55,56,57200611-200904

main36407-34031iUSK55,56,57200701-201308

main36407-34060iUPK57;UPK55,56..D,L200904-201308

36407AWAY, 3(FOR TRANSFER BREATHER HOSE)

main90413-04001iUCK55,56,57,USK55,56,57200611-201907

37109ABRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR

main37109-34010iUCK55,56,57,USK55,56,57200611-201308

37117BINSULATOR, PROPELLER SHAFT HEAT

main37117-0C030iUCK55,56,57,USK55,56,57200611-201308

8271110070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10070

8271135060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35060

90105A0176

main90105-A0176

9011910369

main90119-10369

9011910370

main90119-10370

90119A0120

main90119-A0120

90119A0287

main90119-A0287

9036010003

main90360-10003

9046400074

main90464-00074

9046400620

main90464-00620

9046400907

main90464-00907

9050110127

main90501-10127

9093003159

main90930-03159

9093003172

main90930-03172

9155180812

main91551-80812

9155180820

main91551-80820

9167380820

main91673-80820

9672119009

main96721-19009

58 parts on this diagram · 5 diagrams in section
