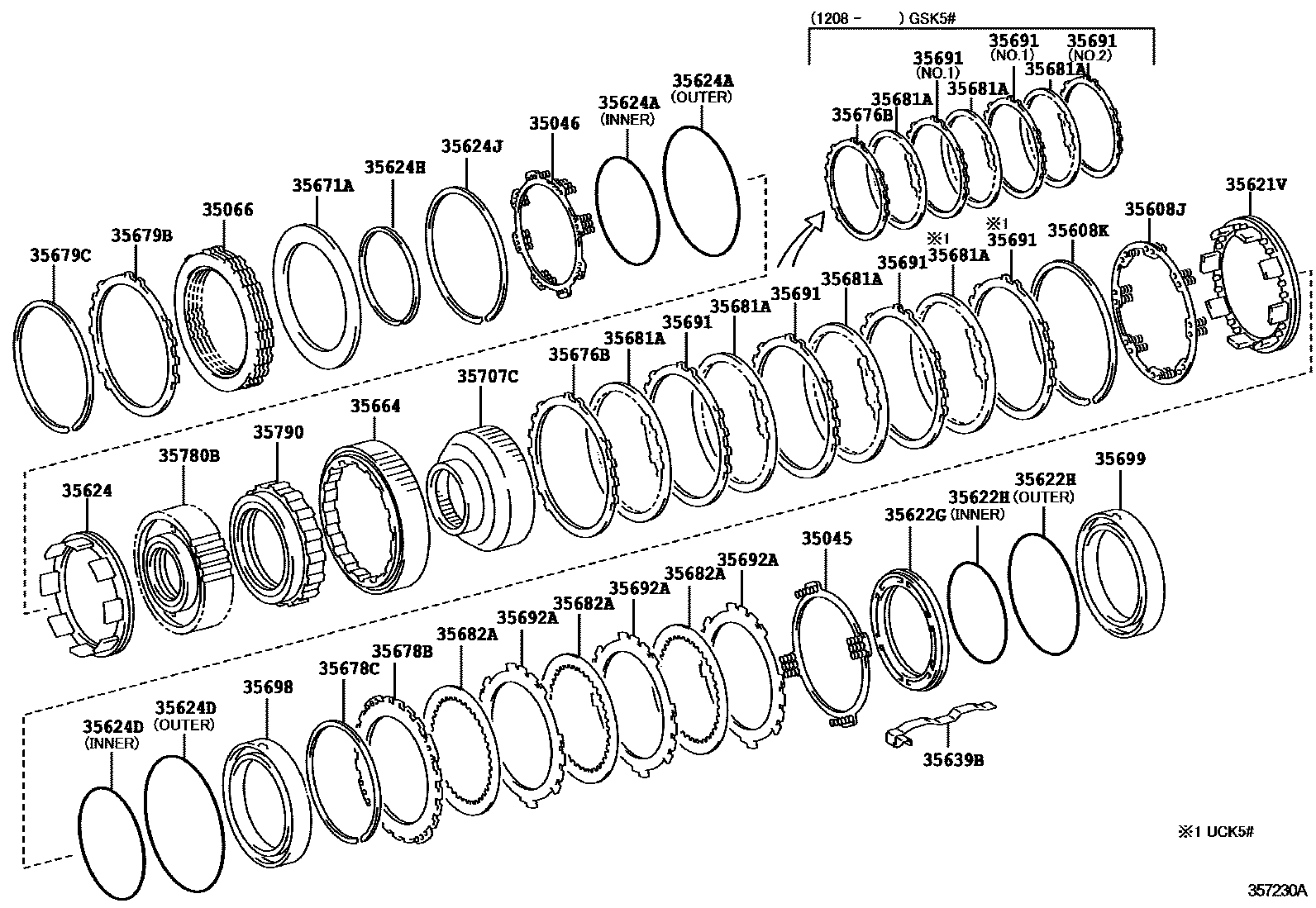

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35046SPRING SUB-ASSY, BRAKE PISTON RETURN, NO.3
35608KRING, SNAP (FOR BRAKE PISTON RETURN SPRING)
35622GPISTON, BRAKE, NO.2
35622HRING, O (FOR BRAKE PISTON NO.2)
OUTER
OUTER
INNER
INNER
35624ARING, O (FOR 2ND BRAKE PISTON)
INNER
OUTER
INNER
OUTER
35624DRING, O (FOR BRAKE PISTON NO.4)
INNER
OUTER
INNER
OUTER
INNER
35624HRING, SNAP (FOR 2ND BRAKE PISTON)
35624JRING, HOLE SNAP (FOR 2ND BRAKE PISTON)
35639BSPRING, BRAKE PLATE STOPPER
35671APLATE, BRAKE CUSHION
35676BFLANGE, BRAKE, NO.1
T=2.0,MARK 0
T=2.2,MARK 1
T=2.4,MARK 2
T=2.6,MARK 3
T=2.0,MARK 0
T=2.2,MARK 1
T=2.4,MARK 2
T=2.6,MARK 3
T=2.2,MARK 1
T=2.4,MARK 2
T=2.6,MARK 3
T=2.0,MARK 0
T=2.2,MARK 1
T=2.4,MARK 2
T=2.6,MARK 3
35678BFLANGE, BRAKE, NO.2
T=4.6
T=4.6
T=2.0 MARK 0
T=2.1 MARK 1
T=2.2 MARK 2
T=2.3 MARK 3
T=2.4 MARK 4
T=2.5 MARK 5
T=2.6 MARK 6
T=2.7 MARK 7
T=4.6
35678CRING, SNAP (FOR BRAKE NO.2)
35679BFLANGE, BRAKE, NO.3
NO.1
NO.2
35679CRING, SNAP (FOR BRAKE NO.3)
35692APLATE, BRAKE, NO.2
35698CYLINDER, BRAKE, NO.1
35699CYLINDER, BRAKE, NO.2
35707CRACE SUB-ASSY, 1 WAY CLUTCH, INNER
35780BCLUTCH ASSY, 1 WAY N0.2
TOWING PACKAGE-WITH
35790CLUTCH ASSY, 1 WAY
30 parts on this diagram · 3 diagrams in section
