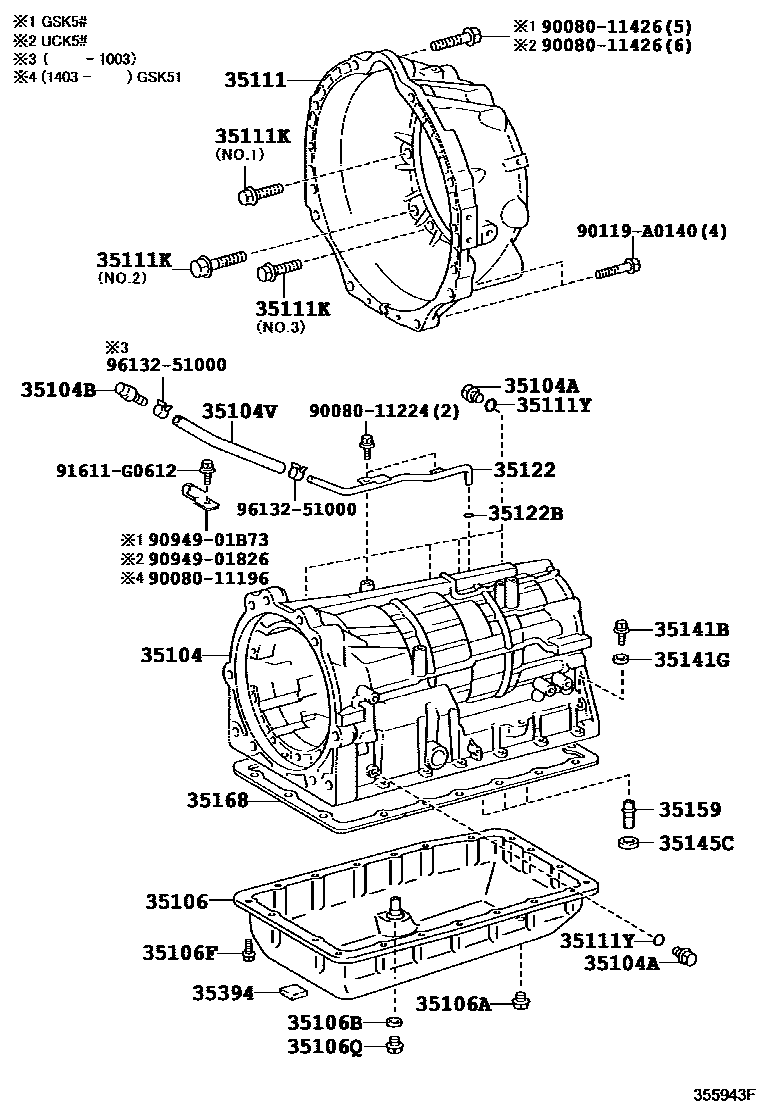

TRANSMISSION CASE & OIL PAN (ATM)
35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104APLUG, AUTOMATIC TRANSMISSION CASE
35104BPLUG, BREATHER, NO.1 (ATM)
35104VHOSE (FOR BREATHER PLUG)
35106APLUG SUB-ASSY, DRAIN (ATM)
35106BGASKET, DRAIN PLUG (ATM)
35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)
35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)
*10-1.5PX35-30,NO.1:REFER ILLUST.
*10-1.50PX35-29.3,NO.2:REFER ILLUST.
*12-1.75PX38-30,NO.3:REFER ILLUST.
*10-1.5PX35-29.3
*10-1.5PX35-29.3,NO.1:REFER ILLUST.
*10-1.5PX35-29.3,NO.3:REFER ILLUST.
*12-1.75PX38-30,NO.2:REFER ILLUST.
35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)
35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)
35122BRING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION)
35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)
35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)
35145CGASKET, TRANSAXLE CASE
35159GASKET, BRAKE DRUM
NO.2
NO.1
NO.2
NO.1
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
9008011196
main90080-11196
9008011224
main90080-11224
9008011426
main90080-11426
90119A0140
main90119-A0140
9094901826
main90949-01826
9094901B73
main90949-01B73
91611G0612
main91611-G0612
9613251000
main96132-51000
28 parts on this diagram · 4 diagrams in section
