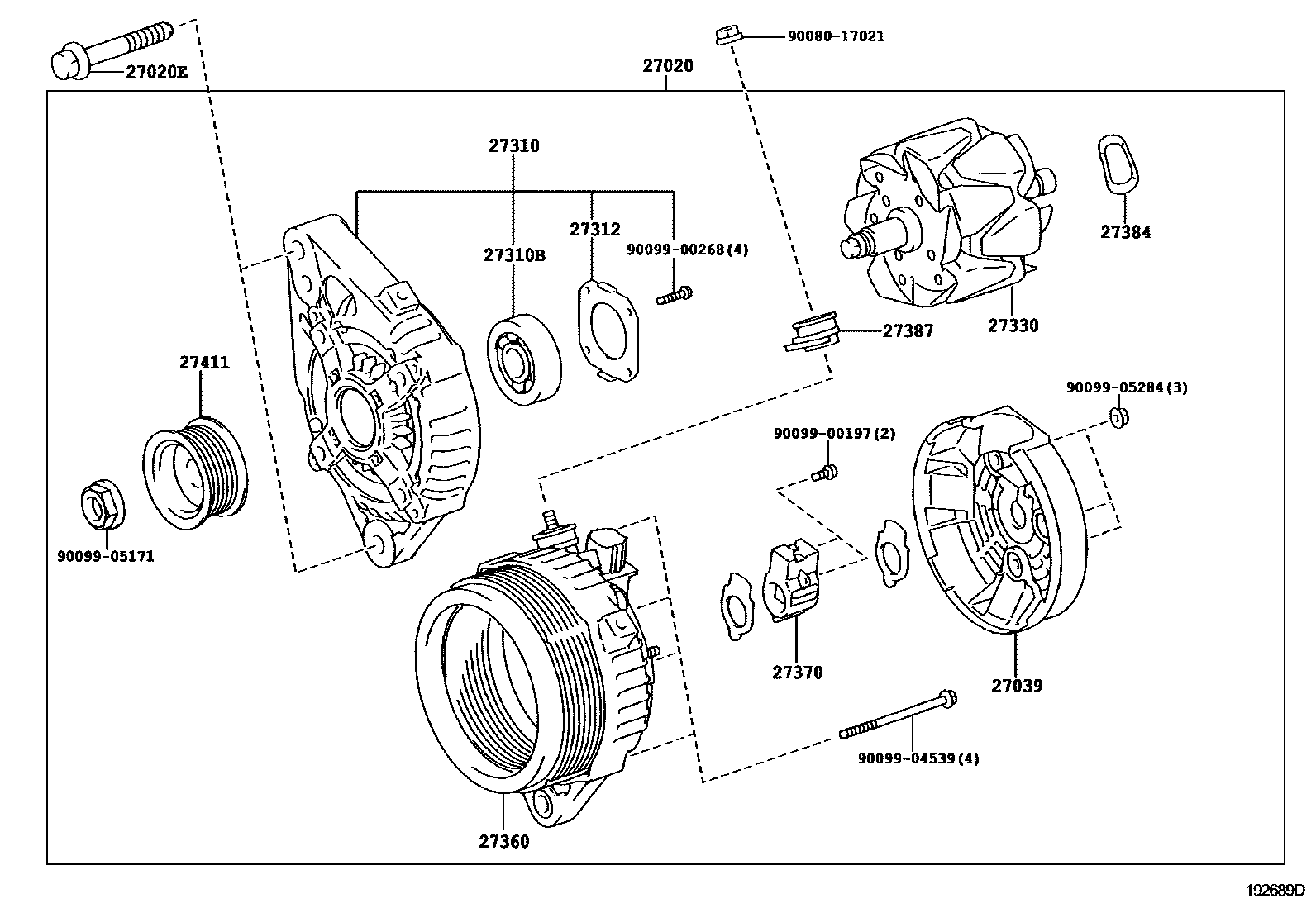

ALTERNATOR
27020ALTERNATOR ASSY
12V 130A,TOWING PACKAGE-WITH
12V 130A
12V 100A
12V 100A
12V 130A
12V 130A,REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER
12V 150A,TOWING PACKAGE-WITH&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER
12V 150A,TOWING PACKAGE-WITH
12V 150A
12V 100A
27020EBOLT(FOR ALTERNATOR)
27039COVER, ALTERNATOR REAR END
TOWING PACKAGE-WITH(HITCH ONLY)
TOWING PACKAGE-WITH
27310FRAME ASSY, DRIVE END, ALTERNATOR
TOWING PACKAGE-WITH
TOWING PACKAGE-WITH(HITCH ONLY)
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
TOWING PACKAGE-WITH(HITCH ONLY)
TOWING PACKAGE-WITH
27312PLATE, RETAINER
27330ROTOR ASSY, ALTERNATOR
sub27330-33090
REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER
sub27330-33090
TOWING PACKAGE-WITH&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER
TOWING PACKAGE-WITH
27360COIL ASSY, ALTERNATOR
TOWING PACKAGE-WITH
REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER
TOWING PACKAGE-WITH&REAR AUDIO-REAR SEAT ENTERTAINMENT & DVD PLAYER
TOWING PACKAGE-WITH
TOWING PACKAGE-WITH
TOWING PACKAGE-WITH(HITCH ONLY)
27370HOLDER ASSY, ALTERNATOR BRUSH
TOWING PACKAGE-WITH
TOWING PACKAGE-WITH(HITCH ONLY)
27384WASHER
TOWING PACKAGE-WITH(HITCH ONLY)
TOWING PACKAGE-WITH
27387INSULATOR, TERMINAL
TOWING PACKAGE-WITH
TOWING PACKAGE-WITH(HITCH ONLY)
27411PULLEY, ALTERNATOR
sub27411-0P230
sub27411-38090
TOWING PACKAGE-WITH
TOWING PACKAGE-WITH(HITCH ONLY)
9008017021
main90080-17021
9009900197
main90099-00197
9009900268
main90099-00268
9009904539
main90099-04539
9009905171
main90099-05171
9009905284
main90099-05284
18 parts on this diagram · 5 diagrams in section
