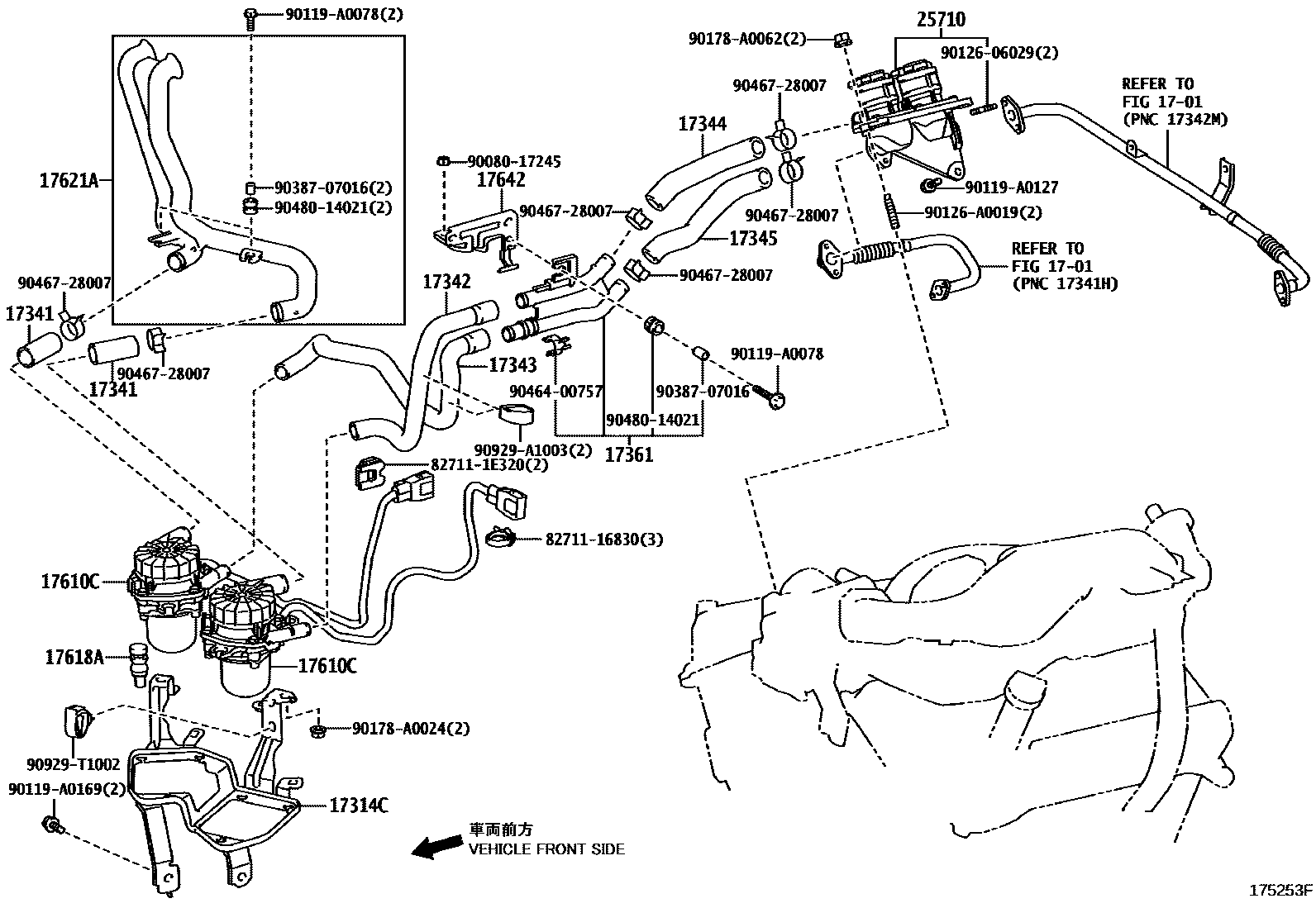

MANIFOLD AIR INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1701

17314CBRACKET, AIR PUMP

main17314-0F010i2UZFE..UCK5#200611-200904

main17314-0S010i1GRFE..GSK5#200611-201409

main17314-0S020i1URFE,3UR#..UPK5#,USK5#201109-201907

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-0S010i1URFE,3UR#..UPK5#,USK5#200611-201907

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17342-0F020i2UZFE..UCK5#200611-200904

main17342-0P010i1GRFE..GSK5#200611-201010

main17342-0P020i1GRFE..GSK5#201010-201409

main17342-0S010i3UR#..USK5#200701-201907

17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)

main17343-0P010i1GRFE..GSK5#200611-201010

main17343-0S010i1URFE,3UR#..UPK5#,USK5#200701-201907

main17362-50030i2UZFE..UCK5#200611-200904

17344HOSE, NO.4(FOR AIR INJECTION SYSTEM)

main17341-31071i1GRFE..GSK5#200611-201010

main17341-38050i3UR#..USK51,52,55,56,57200904-201907

main17341-38050i3URFE..USK5#200701-200904

ENGINE NO.=3XXXXXX

main17341-38050i3URFE..USK5#200701-200904

ENGINE NO.=5XXXXXX

main17341-38140i1URFE..UPK5#201308-201907

main17341-50190i2UZFE..UCK5#200611-200904

17345HOSE, NO.5(FOR AIR INJECTION SYSTEM)

main17342-31041i1GRFE..GSK5#200611-201010

17361TUBE, AIR

main17360-50060i2UZFE..UCK5#200611-200904

main17361-0P010i1GRFE..GSK5#200611-201010

main17361-31030i1GRFE..GSK51201010-201409

main17361-38010i1URFE..UPK50;1URFE..UPK51,56..S200904-201308

main17361-38040i1URFE..UPK5#201308-201907

17610CPUMP ASSY, AIR

main17610-0C010i2UZFE..UCK5#200611-200904

main17610-0P010i1GRFE..GSK5#201010-201409

main17610-0S010i1URFE,3UR#..UPK5#,USK5#200904-201109

MARK 17610-0S010

main17610-0S010i1GRFE..GSK5#200611-201308

main17610-0S030i3UR#..USK5#201109-201308

MARK 17610-0S030

main17610-0S030i1URFE,3UR#..UPK5#,USK5#201308-201907

17618AINSULATOR, AIR PUMP

main17618-0C010i3URFE..USK5#200611-201907

main17618-0F010i2UZFE..UCK5#200611-200904

17621AINLET, AIR PUMP

main17621-0F010i2UZFE..UCK5#200611-200904

main17621-0S011i3UR#..USK5#200611-201109

sub17621-0S012

main17621-0S012i1GRFE..GSK5#201109-201409

TYPE A:REFER ILLUST.

main17621-0S020i1URFE,3URFBE..UPK5#,USK56,57201308-201907

main17621-38030i3UR#..USK5#201109-201308

17642BRACKET, AIR PUMP WIRE

main17642-0F010i2UZFE..UCK5#200611-200904

main17642-0P010i1GRFE..GSK5#200611-201010

main17642-0S010i1GRFE..GSK5#200701-201907

25710VALVE ASSY, AIR SWITCHING

main25710-31010i1GRFE..GSK5#200611-201010

sub25710-31011

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E320

9008017245

main90080-17245

90119A0078

main90119-A0078

90119A0127

main90119-A0127

90119A0169

main90119-A0169

9012606029

main90126-06029

90126A0019

main90126-A0019

90178A0024

main90178-A0024

90178A0062

main90178-A0062

9038707016

main90387-07016

9046400757

main90464-00757

9046728007

main90467-28007

9048014021

main90480-14021

90929A1003

main90929-A1003

90929T1002

main90929-T1002

29 parts on this diagram · 7 diagrams in section
