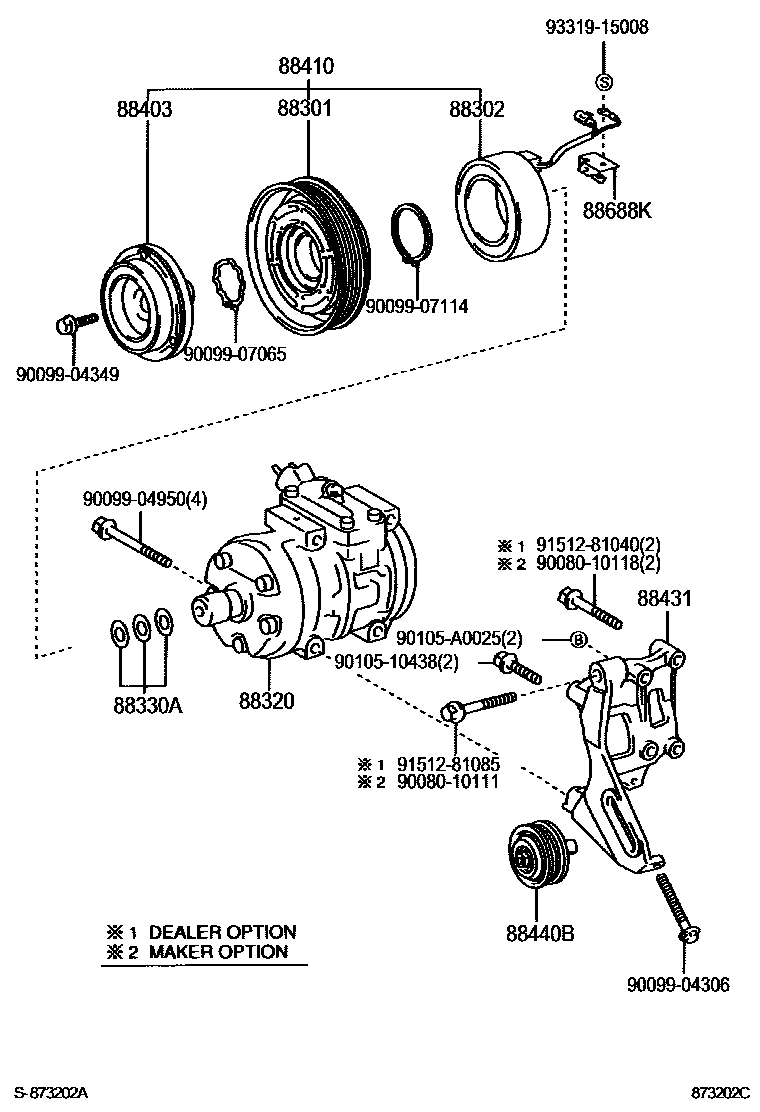

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-0C010iUCK30,40199902-200408

main88412-12150iVCK30,40199902-200408

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-0C010iUCK30,40199902-200408

main88411-2A030iVCK30,40199902-200408

88320COMPRESSOR ASSY, COOLER

main88320-0C010iUCK30,40199902-200408

main88320-0C020iVCK30,40199902-200408

main88320-0C090iGSK30200408

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iUCK30,40,VCK30,40199902-200408

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-0C010iUCK3#,4#199902-200408

main88403-30290iVCK30,40199902-200408

88410CLUTCH ASSY, MAGNET

main88410-0C010iUCK30,40199902-200408

main88410-34040iVCK30,40199902-200408

main88410-35430iGSK30200408

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-0C011iUCK30,40199902-200601

sub88431-0C012

main88431-0C012iUCK3#,4#200602

main88431-0C020iVCK30,40199902-200408

88440BPULLEY ASSY, IDLE

main88440-04040iVCK30,40199902-200408

88688KBRACKET, COOLER COMPRESSOR

main88688-0C040iUCK30,40199902-199908

NO.1

sub88688-0C041

main88688-0C040iUCK30,40..DLX,SR5199902-200208

sub88688-0C041

main88688-0C041iUCK3#,4#199908-200408

NO.1

main88688-0C080iUCK30,40199902-200408

NO.2

main88688-2D770iVCK30,40199902-200408

9008010111

main90080-10111

9008010118

main90080-10118

9009904306

main90099-04306

9009904349

main90099-04349

9009904950

main90099-04950

9009907065

main90099-07065

9009907114

main90099-07114

9010510438

main90105-10438

90105A0025

main90105-A0025

9151281040

main91512-81040

9151281085

main91512-81085

9331915008

main93319-15008

21 parts on this diagram · 5 diagrams in section
