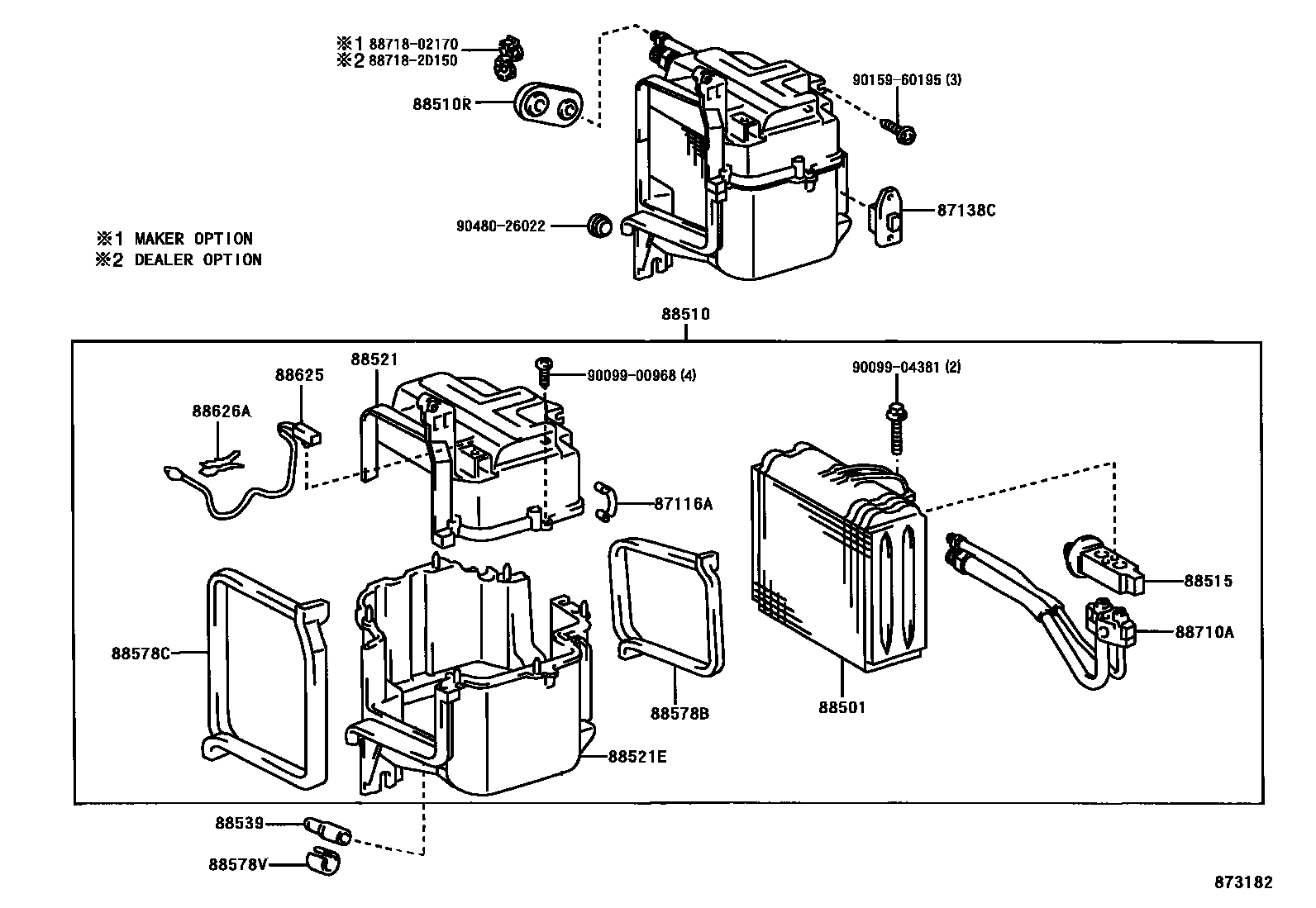

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1 0004 1 0005 1O-RING

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-04020iUCK31,41199902-200408

87138CRESISTOR, BLOWER

main87138-0C010iUCK30,40,VCK30,40199902-200408

main87138-0C020iUCK31,41200310-200408

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0C010iUCK30,40,VCK30,40199902-200208

main88501-0C040iGSK30,UCK30,40200208-200408

main88501-0C060iUCK31,41200310-200612

88510UNIT ASSY, COOLER

main88510-0C020iUCK30,40,VCK30,40199902-200208

main88510-0C040iVCK30,40200208-200408

main88510-0C050iGSK30,UCK30,40200208-200612

main88510-0C060iVCK30,40200208-200309

DEALER OPTION

main88510-0C070iUCK30,40..DLX,SR5200208-200309

DEALER OPTION

main88510-0C090iUCK31,41200310-200612

88510RGROMMET (FOR COOLER UNIT)

main90080-48069iGSK30,UCK3#,4#200408

main90080-48069iUCK30,40,VCK30,40200111-200408

DEALER OPTION

main90480-24008iUCK30,40..DLX,SR5199902-200208

sub90099-32137

88515VALVE, COOLER EXPANSION

main88515-02100iUCK30,40,VCK30,40200310-200408

sub88515-07040

main88515-0C050iUCK30,40,VCK30,40200208-200310

sub88515-07040

main88515-20100iUCK30,40,VCK30,40199902-200208

sub88515-22240

88521CASE, COOLER UNIT

main88521-0C010iUCK30,40,VCK30,40199902-200208

main88521-0C070iUCK30,40,VCK30,40200208-200408

main88521-0C090iUCK31,41200310-200408

88521ECASE SUB-ASSY, COOLING UNIT

main88521-0C020iUCK30,40,VCK30,40199902-200208

main88521-0C080iUCK30,40,VCK30,40200208-200408

main88521-0C100iUCK31,41200310-200408

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-0C030iGSK30,UCK3#,4#200208-200408

main88539-89113iUCK30,40,VCK30,40199902-200208

88578BPACKING, COOLING UNIT, NO.1

main88578-04120iUCK30,40,VCK30,40199902-200208

main88578-0C070iUCK31,41200310-200612

88578CPACKING, COOLING UNIT, NO.2

main88578-04130iUCK30,40,VCK30,40199902-200208

main88578-0C060iUCK31,41200310-200612

88578VPACKING, COOLING UNIT, NO.3

main88578-0C010iUCK30,40,VCK30,40199902-200612

88625THERMISTOR, COOLER, NO.1

main88625-0C010iUCK30,40,VCK30,40199902-200408

main88625-60140iUCK31,41200310-200408

(J)

main88625-60140iUCK30,40,VCK30,40..DLX,SR5200208-200309

DEALER OPTION

88626AHOLDER, THERMISTOR

main88626-28010iUCK30,40,VCK30,40199902-200408

88710ATUBE ASSY, AIR CONDITIONER

main88710-0C010iUCK30,40,VCK30,40199902-200208

main88710-0C060iVCK30,40200208-200408

main88710-0C070iUCK3#,4#200208-200408

8871802170PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-02170

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

9009900968

main90099-00968

9009904381

main90099-04381

9015960195

main90159-60195

9048026022

main90480-26022

21 parts on this diagram · 5 diagrams in section
