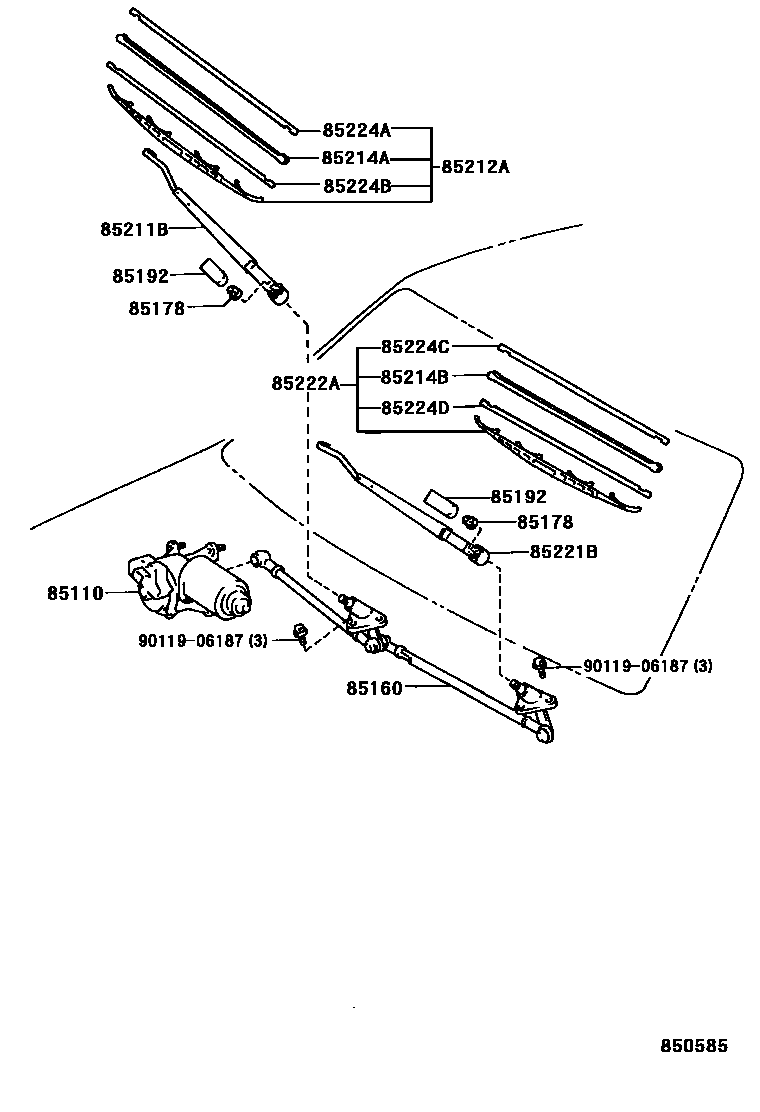

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0C010iUCK30,40,VCK30,40..USA199902-200408

main85110-0C020iGSK30,UCK3#,4#199902-200408

COLD SPEC

main85110-0C020iUCK31,41200310-200408

85160LINK ASSY, WINDSHIELD WIPER

main85150-0C010iGSK30,UCK30,40..USA199902-200408

main85150-0C020iUCK30,40,VCK30,40..USA199902-200408

COLD SPEC

main85150-0C030iUCK30,40,VCK30..CND199902-200408

main85150-0C050iUCK31,41..USA200310-200408

main85150-0C060iUCK31,41..CND200310-200408

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08113iUCK3#,4#,VCK30,40199902-200408

85192COVER, WINDSHIELD WIPER ARM

main85192-12800iUCK30,40,VCK30,40199902-200408

85211BARM, FRONT WIPER, RH

main85211-0C010iGSK30,UCK3#,4#199902-200408

85212ABLADE, FR WIPER, RH

main85212-0C010iUCK30,40,VCK30,40199902-200309

sub85212-0C011

main85212-0C011iUCK3#,4#,VCK30,40200309-200606

sub85212-0C012

main85212-0C012iGSK30,UCK3#,4#200607

85214ARUBBER, WIPER, RH

main85214-0C010iUCK30,40,VCK30,40199902-200309

sub85214-0C011

main85214-0C011iUCK3#,4#,VCK30,40200309-200606

sub85214-0C012

main85214-0C012iGSK30,UCK3#,4#200607

85214BRUBBER, WIPER, LH

main85214-0C010iUCK30,40,VCK30,40199902-200309

sub85214-0C011

main85214-0C011iUCK3#,4#,VCK30,40200309-200606

sub85214-0C012

main85214-0C012iGSK30,UCK3#,4#200607

85221BARM, FRONT WIPER, LH

main85221-0C010iUCK30,40,VCK30,40199902-200408

85222ABLADE, FR WIPER, LH

main85222-0C010iUCK30,40,VCK30,40199902-200309

sub85222-0C011

main85222-0C011iUCK3#,4#,VCK30,40200309-200606

sub85222-0C012

main85222-0C012iGSK30,UCK3#,4#200607

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-AA030iUCK30,40,VCK30,40199902-200208

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-AA030iUCK30,40,VCK30,40199902-200208

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-0C010iUCK30,40,VCK30,40199902-200208

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-0C010iUCK30,40,VCK30,40199902-200208

9011906187

main90119-06187

15 parts on this diagram · 2 diagrams in section
