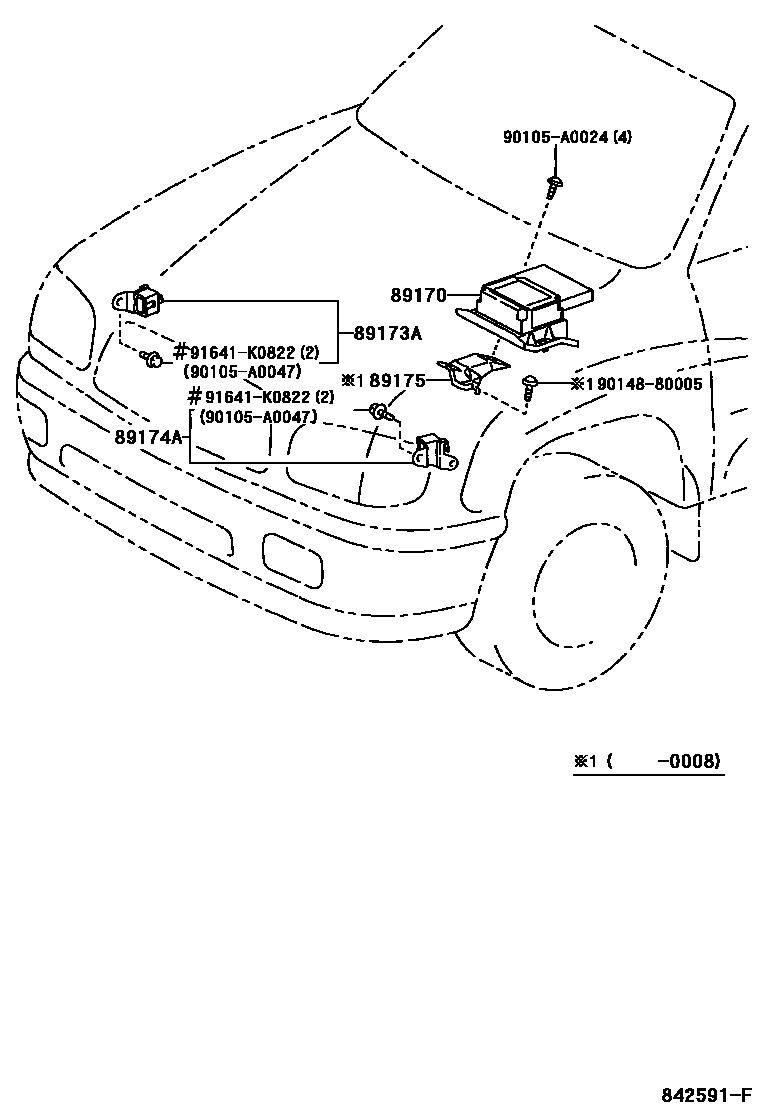

AIR BAG

0001 1 0002 1

89170SENSOR ASSY, AIRBAG

main89170-0C010iUCK30,40,VCK30,40199902-200004

main89170-0C011iUCK30,40,VCK30,40200004-200008

main89170-0C050iUCK30,40,VCK30,40200008-200208

main89170-0C060iUCK30,40,VCK30,40..DLX,SR5200208-200408

W(STEEL BUMPER)

main89170-0C080iUCK30,40,VCK30,40200208-200408

W(RESIN BUMPER)

main89170-0C100iUCK31,41200310-200408

main89170-0C150iGSK30..6F..SR5200410-200508

W(BENCH SEAT & STEEL BUMPER)

main89170-0C160iGSK30..6F..SR5200410-200508

W(BENCH SEAT & RESIN BUMPER)

main89170-0C170iGSK30,UCK30,40..SR5200408-200508

W(SEPALATE SEAT & STEEL BUMPER)

main89170-0C180iGSK30,UCK30,40..ACB200408-200508

W(SEPALATE SEAT & RESIN BUMPER)

main89170-0C190iUCK31,41200408-200508

W(SEPALATE SEAT)

main89170-0C200iUCK31,41200408-200508

W(BENCH SEAT)

main89170-0C210iUCK31,41200408-200508

W(SEPALATE SEAT & SIDE AIR BAG)

main89170-0C220iUCK31,41200408-200508

W(BENCH SEAT & SIDE AIR BAG)

sub89170-0C221

main89170-0C230iGSK30..DLX;UCK40..DLX..CND200508-200608

W(BENCH SEAT & STEEL BUMPER)

main89170-0C240iGSK30..DLX;UCK40..DLX..CND200508-200608

main89170-0C250iUCK31,41200508

main89170-0C260iUCK31,41200508-200606

W(SIDE AIR BAG)

main89170-0C261iUCK31,41200607

W(SIDE AIR BAG)

main89170-0C390iGSK30,UCK30,40..SR5200508

W(STEEL BUMPER)

main89170-0C400iGSK30,UCK30,40..ACB200508

89173ASENSOR, AIRBAG, FRONT RH

main89173-09181iGSK30,UCK30,40200408

main89173-09200iUCK31,41200408

main89173-39295iUCK31,41200310-200408

main89173-49165iUCK30,40,VCK30,40200208-200408

89174ASENSOR, AIRBAG, FRONT LH

main89174-09021iGSK30,UCK30,40200408

main89174-09040iUCK31,41200408

main89174-39165iUCK31,41200310-200408

main89174-49065iUCK30,40,VCK30,40200208-200408

89175BRACKET, AIRBAG SENSOR

main89175-0C010iUCK30,40,VCK30,40199902-200008

90105A0024

main90105-A0024

90105A0047

main90105-A0047

9014880005

main90148-80005

91641K0822

main91641-K0822

8 parts on this diagram · 2 diagrams in section
