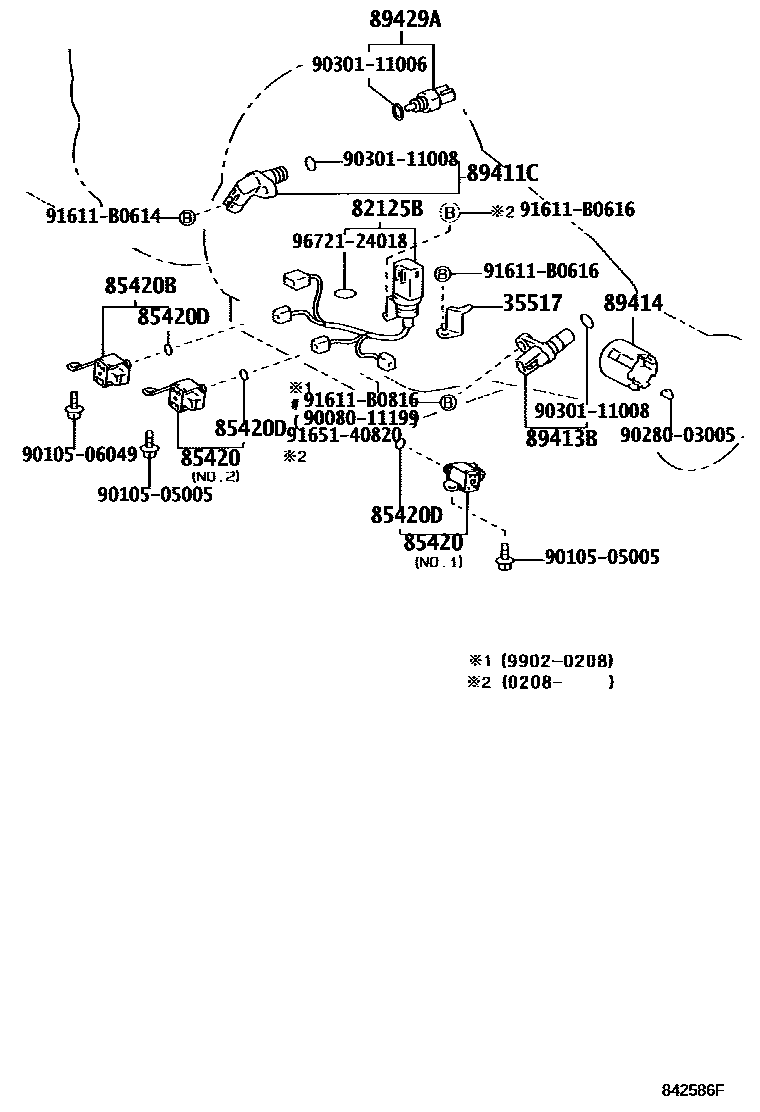

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1 0004 1 0005 1

35517PLATE, TRANSMISSION WIRE LOCK

main35517-30010iUCK30..SR5;UCK40..USA;VCK30,40..4HC;UCK40..SR5..CND;UCK30..LIMD..USA199902-200408

82125BWIRE, TRANSMISSION

main82125-22240iVCK30,40..4HC200008-200208

main82125-30400iVCK30,40..4HC199902-200008

main82125-60310iUCK30,40199902-200408

85420SOLENOID ASSY, TRANSMISSION

main35250-30050iUCK40,VCK40..4HC200208-200408

NO.1

main35250-30050iUCK3#,41,VCK30..4HC200008-200408

DENSO,NO.1

main35250-30070iUCK40,VCK40..4HC200208-200408

NO.2

main35250-30070iUCK30,40,VCK30,40..4HC200008-200408

DENSO,NO.2

main85420-21090iVCK30,40..4HC199902-200008

NO.1 & NO.2 DENSO

main85420-21100iVCK30,40..4HC199902-200008

NO.1 & NO.2 AISIN

main85420-22150iUCK30,40199902-200208

NO.1

sub35250-30050

main85420-22170iUCK30;VCK40..SR5..CND199902-200208

NO.2

sub35250-30070

85420BSOLENOID ASSY, TRANSMISSION

main35250-50030iUCK30,40,VCK30,40..4HC200008-200408

main85420-30260iUCK30..SR5;UCK40..USA;VCK30,40..4HC;UCK40..SR5..CND;UCK30..LIMD..USA199902-200208

DENSO

sub35250-50030

main85420-30270iUCK30..SR5;UCK40..USA;VCK30,40..4HC;UCK40..SR5..CND;UCK30..LIMD..USA199902-200208

AISIN

sub35250-50030

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iUCK3#,4#,VCK30,40..4HC199902-200408

89411CSENSOR, SPEED

main89411-50010iUCK30,VCK40..4HC199902-200408

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-24010iUCK3#,VCK30..4HC199902-200408

main89413-32010iGSK30,UCK3#,4#..5HC200408

sub89413-32011

89414ROTOR, SENSOR

main35736-34010iUCK4#200208-200408

main89414-22010iUCK3#199902-200408

main89414-35020iVCK40..4HC199902-200408

89429ASENSOR, TEMPERATURE

main89429-34010iUCK30,40199902-200408

main89429-35042iVCK30,40..4HC199902-200408

9008011199

main90080-11199

9010505005

main90105-05005

9010506049

main90105-06049

9028003005

main90280-03005

9030111006

main90301-11006

9030111008

main90301-11008

91611B0614

main91611-B0614

91611B0616

main91611-B0616

91611B0816

main91611-B0816

9165140820

main91651-40820

9672124018

main96721-24018

20 parts on this diagram · 5 diagrams in section
