CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

83731CABLE, CRUISE CONTROL

main83731-0C010iVCK30,40..LIMD,SR5199902-200008

main83731-34040iVCK30,40..LIMD,SR5200008-200208

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-06010iUCK30,40,VCK30,40..LIMD,SR5199902-200008

main84630-0C010iUCK30,40;VCK30,40..LIMD,SR5200008-200208

88200DACTUATOR ASSY, CRUISE CONTROL

main88001-0C010iVCK30,40..LIMD,SR5199902-200008

main88200-0C010iVCK30,40..LIMD,SR5200008-200208

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-35110iVCK30,40..LIMD,SR5200008-200208

88240COMPUTER ASSY, CRUISE CONTROL

main88240-0C010iVCK30,40..LIMD,SR5200008-200208

88280CSWITCH ASSY, CLUTCH

main88280-14030iVCK30,40..5F..SR5199902-200408

88292BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.2

main88292-34020iVCK30,40..LIMD,SR5199902-200208

9008011173

main90080-11173

9015950265

main90159-50265

9016840113

main90168-40113

9017906069

main90179-06069

9017906074

main90179-06074

9321915008

main93219-15008

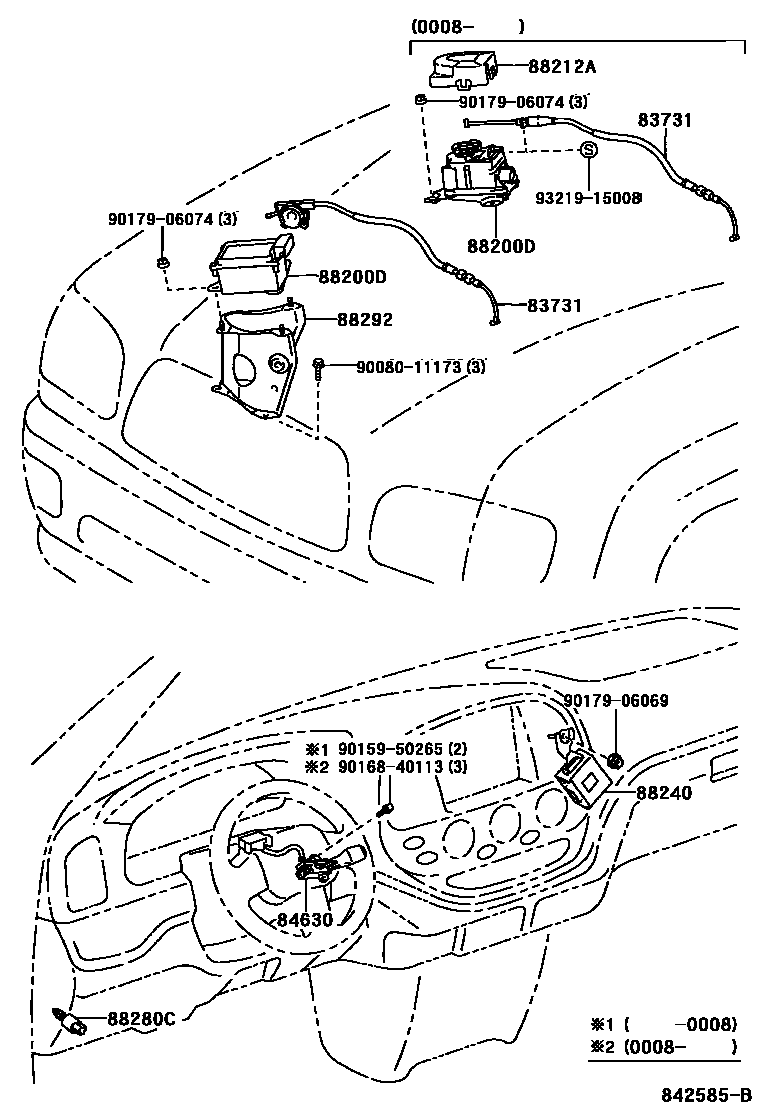

13 parts on this diagram · 2 diagrams in section
