METER

0001 1W/O(TACHO METER) 0002 1W(TACHO METER) 0003 1W(TACHO METER) 0004 1 0005 1SPEEDOMETER SENSOR 0006 1ACCESSORY METER

83100METER ASSY, COMBINATION

main83800-0C340iGSK30..6F..DLX200408-200608

main83800-0C350iGSK30..5HC..DLX..USA200408-200608

main83800-0C371iGSK30..6F..SR5200408

main83800-0C381iGSK30..5HC..SR5200408

main83800-0C391iUCK3#,4#..USA200408-200510

main83800-0C392iUCK3#,4#..USA200510

main83800-0C401iUCK3#,4#..CND200408-200508

main83800-0C440iGSK30..CND200408-200508

main83800-0C450iUCK3#,4#..CND200508-200510

main83800-0C451iUCK3#,4#..CND200510

main83800-0C460iGSK30..CND200508-200608

83100BBULB, COMBINATION METER, NO.1

main83120-04080iUCK30,40,VCK30,40199902-200408

14V 3.4W,GREEN CAP,TYPE C:REFER TO ILLUSTRATION

main83120-04090iUCK30,40;VCK30,40..4HC..(LIMD,SR5)199902-200408

14V 1.12W,TYPE D:REFER TO ILLUSTRATION

main83120-60020iUCK3#,4#,VCK30,40199902-200408

12V 1.4W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION

main90010-06003iUCK30,40,VCK30,40199902-200408

14V 3.0W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION

main90011-11012iUCK30,40;VCK30,40..LIMD,SR5199902-200408

14V 3W,W(GREEN CAP),TYPE E:REFER TO ILLUSTRATION

83110SPEEDOMETER ASSY

main83220-0C010iVCK30,40..(DLX,SR5)..USA199902-200208

sub83220-0C070

main83220-0C020iUCK30,40,VCK30,40..(LIMD,SR5)..USA199902-200208

W(TACHOMETER)

sub83220-0C090

main83220-0C030iVCK30,40..CND199902-200208

sub83220-0C080

main83220-0C040iUCK30,40,VCK30,40..SR5..CND199902-200208

W(TACHOMETER)

sub83220-0C100

main83220-0C040iUCK30,40..(DLX,LIMD)..CND200008-200208

sub83220-0C100

main83220-0C070iVCK30..DLX..USA200208-200408

main83220-0C080iVCK30..CND200208-200408

main83220-0C090iUCK3#,4#,VCK30,40..(LIMD,SR5)..USA200208-200408

main83220-0C100iUCK3#,4#..CND200208-200408

83132CASE, COMBINATION METER

main83841-0C010iVCK30,40..DLX,SR5199902-200208

main83841-0C030iUCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA;VCK30,40..LIMD,SR5199902-200208

W(TACHOMETER)

main83841-0C030iUCK30,40..(DLX,LIMD)..CND200008-200208

main83841-0C190iVCK30..DLX200208-200408

main83841-0C210iVCK30..SR5;UCK3#,4#,VCK40200208-200408

83134COVER, COMBINATION METER, NO.1

main83821-0C010iVCK30..5F..DLX199902-200408

main83821-0C020iVCK30,40..4HC..(DLX,SR5)199902-200408

main83821-0C030iVCK30,40..5F..SR5199902-200408

W(TACHOMETER)

main83821-0C040iUCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA;VCK30,40..4HC..(LIMD,SR5)199902-200408

W(TACHOMETER)

main83821-0C040iUCK30,40..(DLX,LIMD)..CND200008-200208

main83821-0C280iGSK30,UCK3#,4#200408-200612

83138GLASS, SPEEDOMETER

main83852-0C010iVCK30,40..DLX,SR5199902-200408

main83852-0C030iUCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA;VCK30,40..LIMD,SR5199902-200408

W(TACHOMETER)

main83852-0C030iUCK30,40..(DLX,LIMD)..CND200008-200208

main83852-0C310iUCK3#,4#;GSK30..CND;GSK30..SR5200408-200612

main83852-0C340iGSK30..DLX..USA200408-200608

83145LENS, METER, NO.1

main83831-0C010iVCK30..DLX199902-200408

main83831-0C030iUCK30,40,VCK30,40..(LIMD,SR5)..USA199902-200208

W(TACHOMETER)

main83831-0C080iUCK30,40..(DLX,LIMD)..CND200008-200208

main83831-0C080iUCK30,40,VCK30,40..SR5..CND199902-200208

W(TACHOMETER)

main83831-0C210iVCK30..SR5;UCK3#,4#,VCK40200208-200408

83145ALENS, METER, NO.2

main83832-0C010iVCK30,40..DLX,SR5199902-200208

main83832-0C030iUCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA;VCK30,40..LIMD,SR5199902-200208

W(TACHOMETER)

main83832-0C030iUCK30,40..(DLX,LIMD)..CND200008-200208

main83832-0C190iVCK30..5F..DLX200208-200408

main83832-0C200iVCK30..4HC..DLX200208-200408

main83832-0C210iUCK3#,4#,VCK30,40..(LIMD,SR5)..USA200208-200408

main83832-0C270iUCK3#,4#..CND200208-200408

83145BLENS, METER, NO.3

main83833-0C010iVCK30,40..(DLX,SR5)..USA199902-200208

main83833-0C060iVCK30,40..CND199902-200208

main83833-0C190iVCK30..DLX200208-200408

83145DLENS, METER, NO.5

main83835-0C020iUCK3#,4#,VCK30,40..4HC199902-200408

main83835-0C040iUCK30,40..(DLX,LIMD)..CND200008-200208

sub83835-0C020

main83835-0C040iUCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA;VCK30,40..4HC..(LIMD,SR5)199902-200208

W(TACHOMETER)

sub83835-0C020

83145FLENS, METER, NO.7

main83837-0C020iVCK30,40..4HC..(DLX,SR5)199902-200408

main83837-0C040iUCK40..SD..SR5;UCK40..SD..LIMD..USA;UCK30,VCK30,40..ACB..SD..4HC199902-200408

W(TACHOMETER)

main83837-0C040iUCK30,40..(DLX,LIMD)..CND200008-200208

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-0C010iVCK30,40..DLX,SR5199902-200208

main83882-0C030iUCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA;VCK30,40..LIMD,SR5199902-200208

W(TACHOMETER)

main83882-0C030iUCK30,40..(DLX,LIMD)..CND200008-200208

main83882-0C190iVCK30..DLX200208-200408

main83882-0C210iVCK30..SR5;UCK3#,4#,VCK40200208-200408

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83883-0C010iVCK30,40..DLX,SR5199902-200208

main83883-0C030iUCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA;VCK30,40..LIMD,SR5199902-200208

W(TACHOMETER)

main83883-0C030iUCK30,40..(DLX,LIMD)..CND200008-200208

main83883-0C190iVCK30..DLX..USA200208-200408

main83883-0C210iVCK30..SR5;UCK3#,4#,VCK40200208-200408

main83883-0C250iVCK30..CND200208-200408

83247PLATE, METER CIRCUIT

main83861-0C010iVCK30,40..5F199902-200208

main83861-0C020iVCK30,40..4HC..(DLX,SR5)199902-200208

main83861-0C030iVCK30,40..LIMD,SR5199902-200208

W(TACHOMETER)

main83861-0C050iUCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA199902-200208

W(TACHOMETER)

main83861-0C050iUCK30,40..(DLX,LIMD)..CND200008-200208

main83861-0C190iVCK30..DLX200208-200408

main83861-0C210iVCK30,40..5F..SR5200208-200408

main83861-0C220iVCK30,40..4HC..SR5200208-200408

main83861-0C230iUCK3#,4#200208-200408

83247BPLATE, METER CIRCUIT, NO.2

main83862-0C040iVCK30,40..4HC..(LIMD,SR5)199902-200208

main83862-0C050iUCK30,40199902-200208

main83862-0C200iVCK30..4HC..DLX200208-200408

main83863-0C210iVCK40;VCK30..5F;VCK30..4HC..SR5200208-200408

main83863-0C230iUCK3#,4#200208-200408

83271RELAY, METER CONTROL

main83271-04020iUCK30,40,VCK30,40199902-200208

83293COMPUTER, TOTAL COUNTER MODULE

main83293-0C010iUCK30,40..USA199902-200408

W(TACHOMETER)

main83293-0C020iVCK30,40..SR5199902-200408

W(TACHOMETER)

main83293-0C030iVCK30,40..SR5..CND199902-200208

W(TACHOMETER)

main83293-0C040iUCK30,40..(DLX,LIMD)..CND200008-200208

main83293-0C040iUCK30,40..SR5..CND199902-200408

W(TACHOMETER)

main83293-0C050iVCK30,40..(DLX,SR5)..USA199902-200408

main83293-0C060iVCK30..CND199902-200408

9006902065

main90069-02065

9006902066

main90069-02066

9356855016

main93568-55016

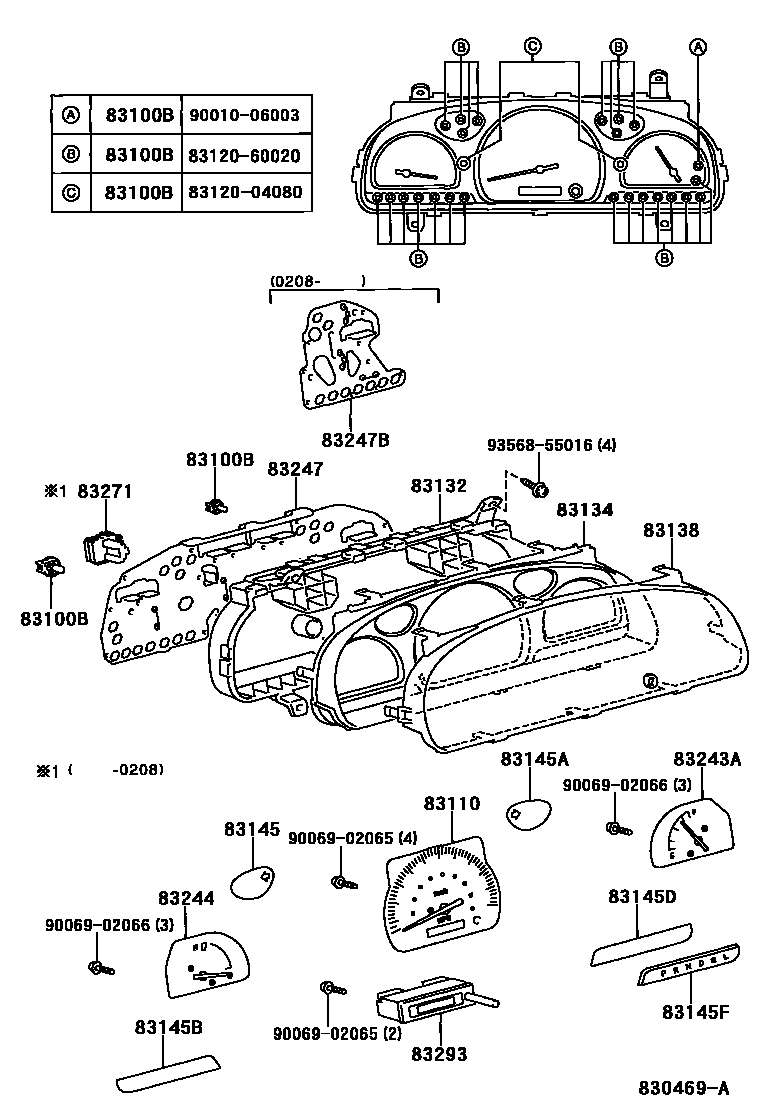

20 parts on this diagram · 6 diagrams in section
