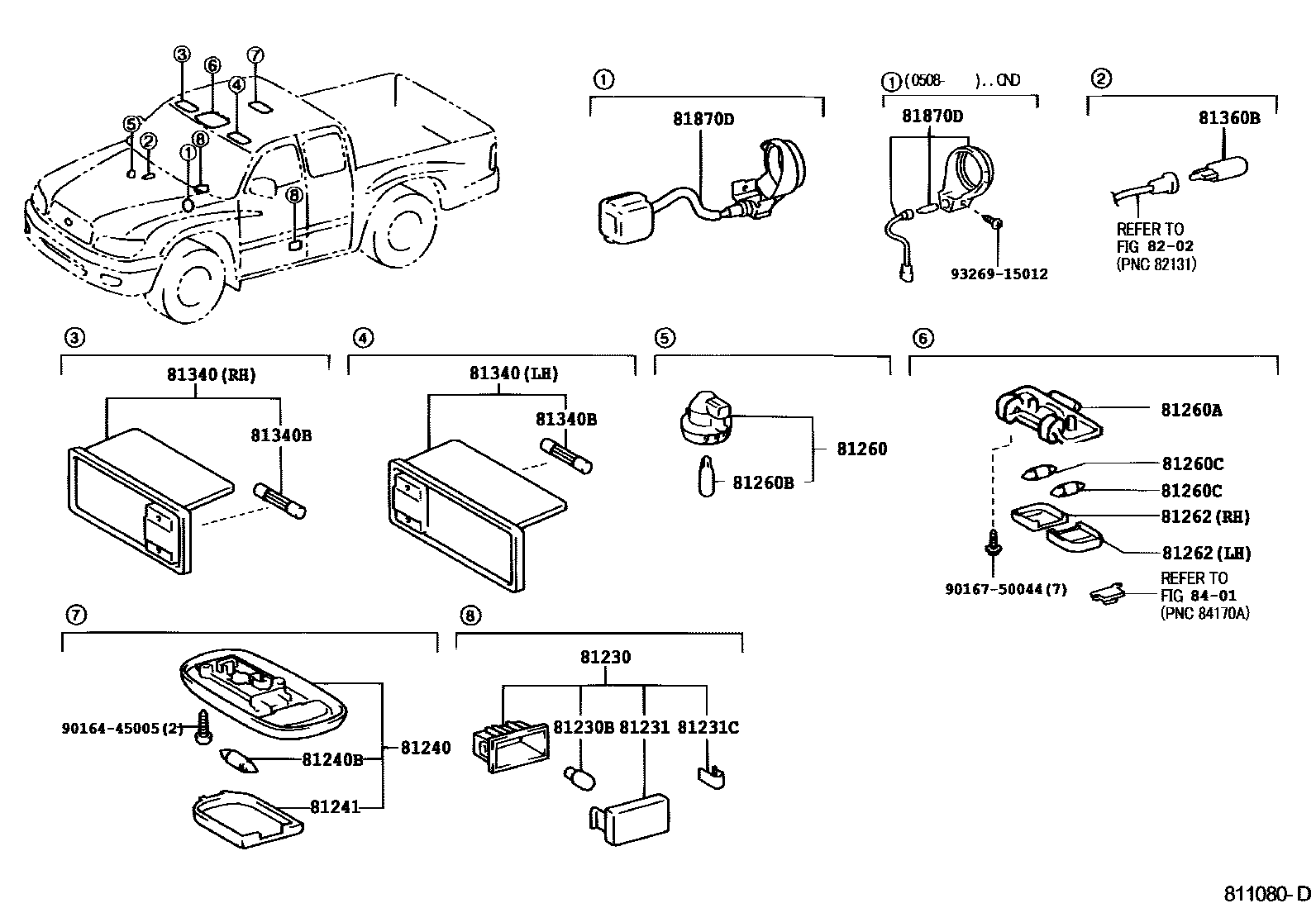

INTERIOR LAMP
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 3.8W
81231LENS, COURTESY LAMP
81231CCLIP, COURTESY LAMP
81240LAMP ASSY, ROOM, NO.1
MOON MIST,TRIM10
MD.CHARCOAL,TRIM11
MD.CHARCOAL,TRIM1#
MD.GRAY,TRIM12
MD.OAK,TRIM4#
FAWN,TRIM42,43
MD.CHARCOAL,TRIM11
MD.GRAY,TRIM12
MD.OAK,TRIM4#
MD.CHARCOAL,TRIM11
MD.GRAY,TRIM12
FAWN,TRIM4#
W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),MD.CHARCOAL,TRIM11
W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),MD.GRAY,TRIM12
W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),MD.OAK,TRIM4#
W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),MD.CHARCOAL,TRIM11
W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),MD.GRAY,TRIM12
W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),FAWN,TRIM4#
81240BBULB, ROOM LAMP, NO.1
12V 8W,NO.1
12V 8W
12V 5W,NO.2
81241LENS, ROOM LAMP, NO.1
MD.CHARCOAL,TRIM11
MD.GRAY,TRIM12
MD.OAK,TRIM4#
FAWN,TRIM4#
W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),RH
W(REAR SEAT AUDIO) OR W(REAR SEAT ENTERTAINMENT),LH
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81260CBULB(FOR MAP LAMP)
12V 8W
12V 5W
81262LENS, MAP LAMP
RH
LH
81340LAMP ASSY, VANITY
LH
MOON MIST,TRIM10,LH
MD.CHARCOAL,TRIM11,LH
MD.GRAY,TRIM12,LH
MD.OAK,TRIM4#,LH
FAWN,TRIM42,43,LH
RH
MOON MIST,TRIM10,RH
MD.CHARCOAL,TRIM11,RH
MD.GRAY,TRIM12,RH
MD.OAK,TRIM4#,RH
FAWN,TRIM42,43,RH
81340BBULB (FOR VANITY LAMP)
12V 1.5W
81360BBULB, STEP OR SPOT LAMP
14V 1.4W
8202
8401
9016445005
main90164-45005
9016750044
main90167-50044
9326915012
main93269-15012
