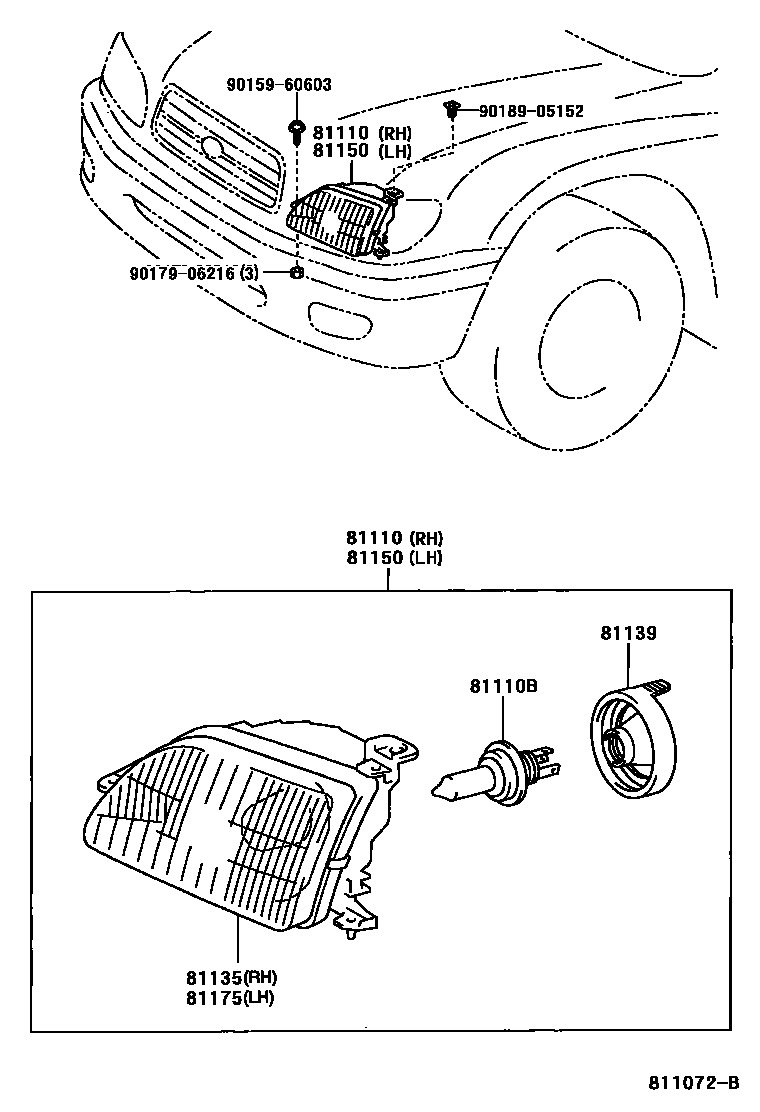

HEADLAMP

0001 1 0002 1 0003 1 0004 1

81110HEADLAMP ASSY, RH

main81110-0C010iUCK30,40,VCK30,40199902-200408

main81110-0C020iUCK31,41200310-200408

main81110-0C030iUCK31,41200408

sub81110-0C031

main81110-0C040iGSK30,UCK30,40200408

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058iUCK30,40,VCK30,40199902-200612

12V 60/55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-0C010iUCK30,40,VCK30,40199902-200408

main81130-0C020iUCK31,41200310-200408

sub81110-0C020

main81130-0C030iUCK31,41200408

sub81130-0C031

main81130-0C040iGSK30,UCK30,40200408

81139COVER, HEADLAMP SOCKET

main81139-02060iUCK30,40,VCK30,40199902-200408

main81139-0C020iUCK31,41200310-200612

main90075-65002iUCK31,41200408-200612

81150HEADLAMP ASSY, LH

main81150-0C010iUCK30,40,VCK30,40199902-200408

main81150-0C020iUCK31,41200310-200408

main81150-0C030iUCK31,41200408

sub81150-0C031

main81150-0C040iGSK30,UCK30,40200408

81175UNIT ASSY, HEADLAMP, LH

main81170-0C010iUCK30,40,VCK30,40199902-200408

main81170-0C020iUCK31,41200310-200408

sub81150-0C020

main81170-0C030iUCK31,41200408

sub81170-0C031

main81170-0C040iGSK30,UCK30,40200408

9015960603

main90159-60603

9017906216

main90179-06216

9018905152

main90189-05152

9 parts on this diagram · 4 diagrams in section
