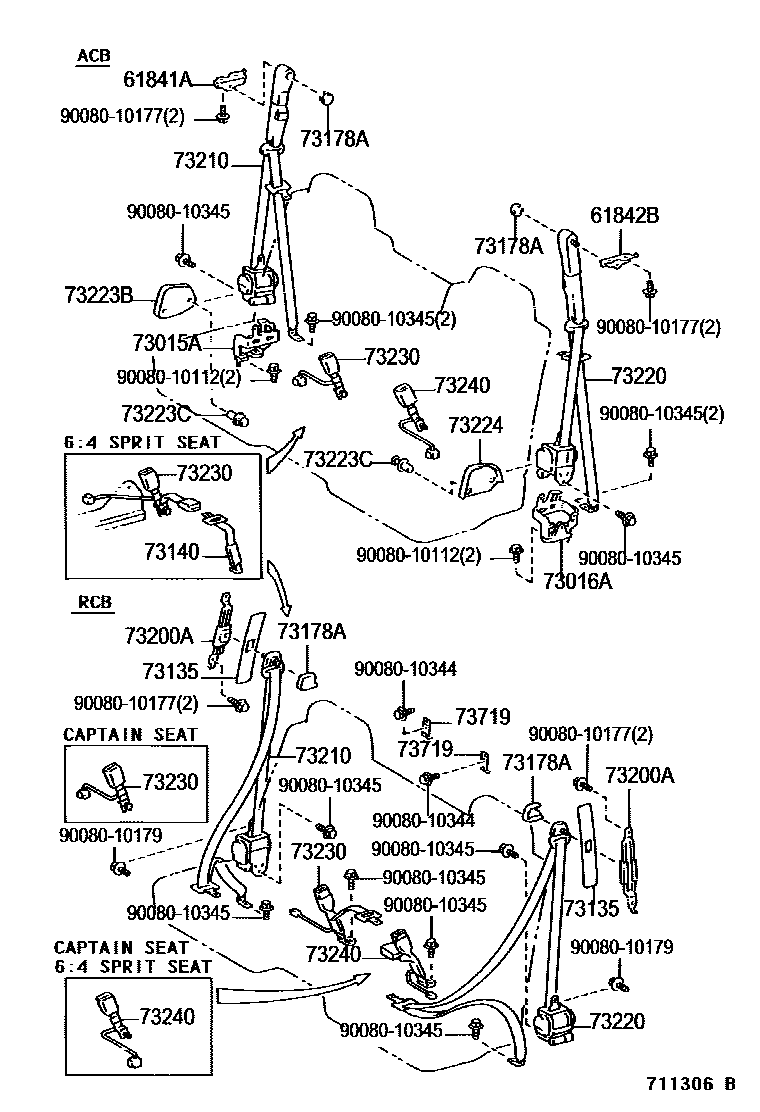

SEAT BELT

0001 1FRONT SEAT 0002 1REAR SEAT 0003 1FRONT SEAT(CAPTAIN SEAT TYPE)0004 1FRONT SEAT(4:6 SPLIT SEAT TYP0005 1FRONT SEAT(BENCH SEAT TYPE) 0006 1FRONT SEAT(CAPTAIN SEAT TYPE)0007 1FRONT SEAT(4:6 SPLIT SEAT TYP0008 1REAR SEAT 0009 1REAR SEAT

61841ABRACKET, SHOULDER BELT ANCHOR, RH

main61841-0C010iVCK30,40..ACB;UCK30,40..LIMD;UCK30,40..ACB..SR5..USA199902-200408

61842BBRACKET, SHOULDER BELT ANCHOR, LH

main61842-0C010iUCK30,40,VCK30,40..ACB199902-200408

73015ABRACKET SUB-ASSY, BELT OUTER ANCHOR, RH

main73015-0C010iUCK30,40,VCK30,40..ACB199902-200408

main73015-34010iGSK30,UCK30,40..ACB¥3,500200408

73016ABRACKET SUB-ASSY, BELT OUTER ANCHOR, LH

main73016-0C010iUCK30,40,VCK30,40..ACB199902-200408

main73016-34010iGSK30,UCK30,40..ACB¥3,500200408

73135COVER, SHOULDER BELT ANCHORAGE PLATE

main73135-0C010-B0iUCK40,VCK40..RCB..USA199902-200208

MOON MIST,TRIM10

main73135-0C010-B1iUCK40,VCK40..RCB..USA199902-200408

MD.CHARCOAL,TRIM11

main73135-0C010-B2iUCK40..RCB..USA200208-200408

MD.GRAY,TRIM12

main73135-0C010-E0iUCK40,VCK30,40..RCB199902-200408

MD.OAK,TRIM4#

main73135-0C010-E1iGSK30,UCK30,40..DLX200408-200608

FAWN,TRIM42,43

73140BELT ASSY, FRONT SEAT LAP TYPE, LH

main73140-0C010-B3iUCK30,40,VCK30,40..4HC..(LIMD,SR5)199902-200408

CHARCOAL,TRIM11

sub73140-0C010

main73140-0C010-B4iUCK30,40,VCK30,40..4HC..(LIMD,SR5)199902-200208

BLUISH GRAY,TRIM10

sub73140-0C010

main73140-0C010-B5iUCK30,40,VCK30,40..4HC..(LIMD,SR5)200208-200408

SHADOW GRAY,TRIM12

sub73140-0C010

main73140-0C010-E3iUCK30,40,VCK30,40..4HC..(LIMD,SR5)199902-200408

OAK,TRIM4#

sub73140-0C010

73178ACAP, SEAT BELT ANCHOR COVER

main73178-07020-B3iUCK40,VCK40..RCB..USA199902-200008

MD.CHARCOAL,TRIM11

sub73178-07020¥720

main73178-07020-B5iUCK40,VCK40..RCB..USA199902-200008

MOON MIST,TRIM10

sub73178-07020¥720

main73178-07020-E3iUCK40,VCK30,40..RCB199902-200008

MD.OAK,TRIM4#

sub73178-07020¥720

main73178-0C010-B0iUCK30,40,VCK30,40..ACB199902-200208

MOON MIST,TRIM10

sub73178-0C010

main73178-0C010-B1iUCK30,40,VCK30,40..ACB199902-200408

MD.CHARCOAL,TRIM11

sub73178-0C010

main73178-0C010-B2iGSK30,UCK30,40..ACB200208-200408

MD.GRAY,TRIM12

sub73178-0C010

main73178-0C010-E0iVCK30,40..ACB;UCK30,40..LIMD;UCK30,40..ACB..SR5..USA199902-200408

MD.OAK,TRIM4#

sub73178-0C010

main73178-0C010-E1iGSK30,UCK30,40..ACB200408

FAWN,TRIM42,43

sub73178-0C010

main73178-0C020-B0iUCK31,41200408

MD.CHARCOAL,TRIM11

main73178-0C020-B1iUCK31,41200408

MD.GRAY,TRIM12

main73178-0C020-E0iGSK30,UCK3#,4#..DCB,RCB200408

FAWN,TRIM42,43

main73178-33020-B1iUCK31,41200310-200408

MD.CHARCOAL,TRIM11,(J)

sub73178-33020¥570

main73178-33020-E0iUCK31,41200310-200408

MD.OAK,TRIM4#,(J)

sub73178-33020¥570

main73178-33020-P1iUCK31,41200310-200408

MD.GRAY,TRIM12,(J)

sub73178-33020¥570

main73178-AA010-B1iUCK40..RCB..USA200008-200408

MD.CHARCOAL,TRIM11

sub73178-AA010¥330

sub73178-33020¥570

main73178-AA010-B1iUCK40,VCK30..DLX200208-200408

MD.CHARCOAL,TRIM1#

sub73178-AA010¥330

sub73178-33020¥570

main73178-AA010-B1iUCK31,41200310-200408

MD.CHARCOAL,TRIM11,(L)

sub73178-AA010¥330

sub73178-33020¥570

main73178-AA010-B4iUCK40,VCK40..RCB..USA200008-200208

MOON MIST,TRIM10

sub73178-AA010¥330

sub73178-33020¥570

main73178-AA010-B6iUCK31,41200310-200408

MD.GRAY,TRIM12,(L)

sub73178-AA010¥330

sub73178-33020¥570

main73178-AA010-B6iUCK40..RCB..USA200208-200408

MD.GRAY,TRIM12

sub73178-AA010¥330

sub73178-33020¥570

main73178-AA010-E1iUCK31,41200310-200408

MD.OAK,TRIM4#,(L)

sub73178-AA010¥330

sub73178-33020¥570

main73178-AA010-E1iUCK40,VCK30..RCB200008-200408

MD.OAK,TRIM4#

sub73178-AA010¥330

sub73178-33020¥570

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-0C010iUCK40,VCK30..RCB199902-200608

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0C010-B2iUCK30,40,VCK30,40..ACB199902-200107

CHARCOAL,TRIM11

sub73210-0C011¥37,800

main73210-0C010-B3iUCK30,40,VCK30,40..ACB199902-200107

BLUISH GRAY,TRIM10

sub73210-0C011¥37,800

main73210-0C010-E2iUCK30,40,VCK30,40..ACB199902-200107

OAK,TRIM4#

sub73210-0C011¥37,800

main73210-0C011-B2iUCK30,40,VCK30,40..ACB200107-200408

CHARCOAL,TRIM11

sub73210-0C011¥37,800

main73210-0C011-B3iUCK30,40,VCK30,40..ACB200107-200208

BLUISH GRAY,TRIM10

sub73210-0C011¥37,800

main73210-0C011-B4iUCK30,40,VCK30,40..ACB200208-200408

SHADOW GRAY,TRIM12

sub73210-0C011¥37,800

main73210-0C011-E2iUCK30,40,VCK30,40..ACB200107-200408

OAK,TRIM4#

sub73210-0C011¥37,800

main73210-0C020-B2iUCK40,VCK40..RCB..USA199902-200008

CHARCOAL,TRIM11

main73210-0C020-B3iUCK40,VCK40..RCB..USA199902-200008

BLUISH GRAY,TRIM10

main73210-0C020-E2iUCK40,VCK30,40..RCB199902-200008

OAK,TRIM4#

main73210-0C021-B2iUCK40..RCB..USA200008-200408

CHARCOAL,TRIM11

sub73210-0C021

main73210-0C021-B2iUCK40,VCK30..DLX200208-200310

CHARCOAL,TRIM1#

sub73210-0C021

main73210-0C021-B3iUCK40,VCK40..RCB..USA200008-200208

BLUISH GRAY,TRIM10

sub73210-0C021

main73210-0C021-B4iUCK40..RCB..USA200208-200408

SHADOW GRAY,TRIM12

sub73210-0C021

main73210-0C021-E2iUCK40,VCK30..RCB200008-200408

OAK,TRIM4#

sub73210-0C021

main73210-0C031-B1iUCK31,41200310-200408

CHRCOAL,TRIM11

sub73210-0C031¥37,800

main73210-0C031-B4iUCK31,41200310-200408

SHADOW GRAY,TRIM12

sub73210-0C031¥37,800

main73210-0C031-E1iUCK31,41200310-200408

OAK,TRIM4#

sub73210-0C031¥37,800

main73210-0C040-B0iUCK31,41200408

SHADOW GRAY,TRIM12

main73210-0C040-B1iUCK31,41200408

MD.CHARCOAL,TRIM11

main73210-0C040-E0iUCK31,41200408

FAWN,TRIM42,43

main73210-0C050-E0iGSK30,UCK30,40..DLX200408-200508

FAWN,TRIM42,43

main73210-0C060-B0iGSK30,UCK30,40..ACB200408

MD.GRAY,TRIM12

sub73210-0C060

main73210-0C060-B1iGSK30,UCK30,40..ACB200408

MD.CHARCOAL,TRIM11

sub73210-0C060

main73210-0C060-E0iGSK30,UCK30,40..ACB200408

FAWN,TRIM42,43

sub73210-0C060

main73210-0C070-E0iGSK30,UCK30,40..DLX200508-200608

FAWN,TRIM4#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0C010-B2iUCK30,40,VCK30,40..ACB199902-200107

CHARCOAL,TRIM11

sub73220-0C011

main73220-0C010-B3iUCK30,40,VCK30,40..ACB199902-200107

BLUISH GRAY,TRIM10

sub73220-0C011

main73220-0C010-E2iUCK30,40,VCK30,40..ACB199902-200107

OAK,TRIM4#

sub73220-0C011

main73220-0C011-B2iUCK30,40,VCK30,40..ACB200107-200408

CHARCOAL,TRIM11

sub73220-0C011

main73220-0C011-B3iUCK30,40,VCK30,40..ACB200107-200208

BLUISH GRAY,TRIM10

sub73220-0C011

main73220-0C011-B4iUCK30,40,VCK30,40..ACB200208-200408

SHADOW GRAY,TRIM12

sub73220-0C011

main73220-0C011-E2iUCK30,40,VCK30,40..ACB200107-200408

OAK,TRIM4#

sub73220-0C011

main73220-0C020-B2iUCK40,VCK40..RCB..USA199902-200008

CHARCOAL,TRIM11

main73220-0C020-B3iUCK40,VCK40..RCB..USA199902-200008

BLUISH GRAY,TRIM10

main73220-0C020-E2iUCK40,VCK30,40..RCB199902-200008

OAK,TRIM4#

main73220-0C021-B2iUCK40,VCK30..DLX200208-200310

CHARCOAL,TRIM1#

sub73220-0C021

main73220-0C021-B2iUCK40,VCK40..RCB..USA200008-200408

CHARCOAL,TRIM11

sub73220-0C021

main73220-0C021-B3iUCK40,VCK40..RCB..USA200008-200208

BLUISH GRAY,TRIM10

sub73220-0C021

main73220-0C021-B4iUCK40..RCB..USA200208-200408

SHADOW GRAY,TRIM12

sub73220-0C021

main73220-0C021-E2iUCK40,VCK30,40..RCB200008-200408

OAK,TRIM4#

sub73220-0C021

main73220-0C031-B1iUCK31,41200310-200408

CHARCOAL,TRIM11

sub73220-0C031¥37,800

main73220-0C031-B4iUCK31,41200310-200408

SHADOW GRAY,TRIM12

sub73220-0C031¥37,800

main73220-0C031-E1iUCK31,41200310-200408

OAK,TRIM4#

sub73220-0C031¥37,800

main73220-0C040-B0iUCK31,41200408

SHADOW GRAY,TRIM12

main73220-0C040-B1iUCK31,41200408

MD.CHARCOAL,TRIM11

main73220-0C040-E0iUCK31,41200408

FAWN,TRIM42,43

main73220-0C050-E0iGSK30,UCK30,40..DLX200408-200508

FAWN,TRIM42,43

main73220-0C060-B0iGSK30,UCK30,40..ACB200408

MD.GRAY,TRIM12

sub73220-0C060

main73220-0C060-B1iGSK30,UCK30,40..ACB200408

MD.CHARCOAL,TRIM11

sub73220-0C060

main73220-0C060-E0iGSK30,UCK30,40..ACB200408

FAWN,TRIM42,43

sub73220-0C060

main73220-0C070-E0iGSK30,UCK30,40..DLX200508-200608

FAWN,TRIM4#

73223BCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-0C010-B0iUCK30,40,VCK30,40..ACB199902-200208

MOON MIST,TRIM10

main73223-0C010-B1iUCK30,40,VCK30,40..ACB199902-200408

MD.CHARCOAL,TRIM11

main73223-0C010-B2iUCK30,40,VCK30,40..ACB200208-200408

MD.GRAY,TRIM12

main73223-0C010-E0iUCK30,40,VCK30,40..ACB199902-200408

MD.OAK,TRIM4#

main73223-0C020-B0iGSK30,UCK30,40..ACB200408

MD.CHARCOAL,TRIM11

main73223-0C020-B1iGSK30,UCK30,40..ACB200408

MD.GRAY,TRIM12

main73223-0C020-E0iGSK30,UCK30,40..ACB200408

FAWN,TRIM42,43

73223CCLIP, FRONT SEAT BELT RETRACTOR COVER

main90080-46276-B0iUCK30,40,VCK30,40..ACB199902-200208

MOON MIST,TRIM10

main90080-46276-B1iGSK30,UCK30,40..ACB199902-200408

MD.CHARCOAL,TRIM11

main90080-46276-B2iGSK30,UCK30,40..ACB200208-200408

MD.GRAY,TRIM12

main90080-46276-E0iUCK30,40,VCK30,40..ACB199902-200408

MD.OAK,TRIM4#

main90080-46276-E1iGSK30,UCK30,40..ACB200408

FAWN,TRIM42,43

73224COVER, FRONT SEAT BELT RETRACTOR, LH

main73224-0C010-B0iUCK30,40,VCK30,40..ACB199902-200208

MOON MIST,TRIM10

main73224-0C010-B1iUCK30,40,VCK30,40..ACB199902-200408

MD.CHARCOAL,TRIM11

main73224-0C010-B2iUCK30,40,VCK30,40..ACB200208-200408

MD.GRAY,TRIM12

main73224-0C010-E0iUCK30,40,VCK30,40..ACB199902-200408

MD.OAK,TRIM4#

main73224-0C020-B0iGSK30,UCK30,40..ACB200408

MD.CHARCOAL,TRIM11

main73224-0C020-B1iGSK30,UCK30,40..ACB200408

MD.GRAY,TRIM12

main73224-0C020-E0iGSK30,UCK30,40..ACB200408

FAWN,TRIM42,43

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0C010-B1iUCK30,40,VCK30,40..4HC..(LIMD,SR5)199902-200408

W(6:4 SPRIT SEAT),CHARCOAL,TRIM11

sub73230-0C010

main73230-0C010-B2iUCK30,40,VCK30,40..4HC..(LIMD,SR5)199902-200208

W(6:4 SPRIT SEAT),BLUISH GRAY,TRIM10

sub73230-0C010

main73230-0C010-B3iUCK30,40,VCK30,40..4HC..(LIMD,SR5)200208-200408

W(6:4 SPRIT SEAT),SHADOW GRAY,TRIM12

sub73230-0C010

main73230-0C010-E3iUCK30,40,VCK30,40..4HC..(LIMD,SR5)199902-200408

W(6:4 SPRIT SEAT),OAK,TRIM4#

sub73230-0C010

main73230-0C020-B1iVCK40..RCB..USA199902-200208

W(BENCH SEAT),CHARCOAL,TRIM11

sub73230-0C020

main73230-0C020-B2iVCK40..RCB..USA199902-200208

W(BENCH SEAT),BLUISH GRAY,TRIM10

sub73230-0C020

main73230-0C020-E2iVCK40..RCB;UCK40,VCK30..DLX199902-200408

W(BENCH SEAT),OAK,TRIM4#

sub73230-0C020

main73230-0C040-B0iVCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5199902-200208

MOON MIST,TRIM10

sub73230-0C040¥5,800

main73230-0C040-B1iUCK30,40,VCK30,40..ACB199902-200408

MD.CHARCOAL,TRIM11

sub73230-0C040¥5,800

main73230-0C040-B2iUCK31,41200310-200408

DK.CHARCOAL,TRIM11

sub73230-0C040¥5,800

main73230-0C040-B3iUCK30,40,VCK30,40..ACB200208-200408

MD.GRAY,TRIM12

sub73230-0C040¥5,800

main73230-0C040-B4iUCK31,41200310-200408

DK.GRAY,TRIM12

sub73230-0C040¥5,800

main73230-0C040-E0iUCK30,40,VCK30,40..ACB199902-200408

MD.OAK,TRIM4#

sub73230-0C040¥5,800

main73230-0C040-E1iUCK31,41200310-200408

OAK,TRIM4#

sub73230-0C040¥5,800

main73230-0C060-B0iGSK30,UCK3#,4#..LIMD,SR5200408

W(FRONT CAPTAIN SEAT),MD.CHARCOAL,TRIM11

main73230-0C060-B1iGSK30,UCK3#,4#..LIMD,SR5200408

W(FRONT CAPTAIN SEAT),MD.GRAY,TRIM12

main73230-0C060-E0iGSK30,UCK3#,4#..LIMD,SR5200408

W(FRONT CAPTAIN SEAT),FAWN,TRIM42,43

main73230-0C080-E0iGSK30,UCK30,40..DLX200408-200508

W(BENCH SEAT),FAWN,TRIM42,43

main73230-0C090-B0iGSK30,UCK3#,4#..5HC..(LIMD,SR5)200408-200508

W(4:6 SPRIT SEAT),MD.CHARCOAL,TRIM11

sub73230-0C090

main73230-0C090-B1iGSK30,UCK3#,4#..5HC..(LIMD,SR5)200408-200508

W(4:6 SPRIT SEAT),MD.GRAY,TRIM12

sub73230-0C090

main73230-0C090-E0iGSK30,UCK3#,4#..5HC..(LIMD,SR5)200408-200508

W(4:6 SPRIT SEAT),FAWN,TRIM42,43

sub73230-0C090

main73230-0C120-E0iGSK30,UCK30,40..DLX200508-200608

FAWN,TRIM4#

main73230-0C130-B0iGSK30,UCK3#,4#..5HC..(LIMD,SR5)200508

MD.CHARCOAL,TRIM11

sub73230-0C130

main73230-0C130-B1iGSK30,UCK3#,4#..5HC..(LIMD,SR5)200508

MD.GRAY,TRIM12

sub73230-0C130

main73230-0C130-E0iGSK30,UCK3#,4#..5HC..(LIMD,SR5)200508

FAWN,TRIM4#

sub73230-0C130

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0C030-B2iVCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5199902-200208

MOON MIST,TRIM10

sub73230-0C030¥5,800

main73230-0C030-B3iUCK30,40,VCK30,40..LIMD,SR5199902-200408

MD.CHARCOAL,TRIM11

sub73230-0C030¥5,800

main73230-0C030-B4iUCK30,40,VCK30,40..LIMD,SR5200208-200408

MD.GRAY,TRIM12

sub73230-0C030¥5,800

main73230-0C030-E1iUCK30,40,VCK30,40..LIMD,SR5199902-200408

MD.OAK,TRIM4#

sub73230-0C030¥5,800

main73230-0C050-B0iUCK30,40..CND;UCK30,40,VCK30,40..LIMD199902-200208

W(POWER SEAT),MOON MIST,TRIM10

sub73230-0C050

main73230-0C050-B1iUCK31,41..LIMD200310-200408

MD.CHARCOAL,TRIM11

sub73230-0C050

main73230-0C050-B1iUCK30,40,VCK30,40..LIMD199902-200408

W(POWER SEAT),MD.CHARCOAL,TRIM11

sub73230-0C050

main73230-0C050-B3iUCK31,41..LIMD200310-200408

MD.GRAY,TRIM12

sub73230-0C050

main73230-0C050-B3iUCK30..SD..SR5..USA200305-200408

MD.GRAY,TRIM1#

sub73230-0C050

main73230-0C050-B3iUCK30,40..LIMD200208-200408

W(POWER SEAT),MD.GRAY,TRIM12

sub73230-0C050

main73230-0C050-B4iUCK31,41..LIMD200310-200408

DK.GRAY,TRIM12

sub73230-0C050

main73230-0C050-E0iUCK30,40..LIMD199902-200408

W(POWER SEAT),MD.OAK,TRIM4#

sub73230-0C050

main73230-0C050-E0iUCK31,41..LIMD200310-200408

MD.OAK,TRIM40

sub73230-0C050

main73230-0C050-E1iUCK31,41..LIMD200310-200408

OAK,TRIM40

sub73230-0C050

main73240-0C010-B3iVCK40..RCB..USA199902-200208

W(BENCH SEAT),CHARCOAL,TRIM11

sub73240-0C010

main73240-0C010-B4iVCK40..RCB..USA199902-200208

W(BENCH SEAT),BLUISH GRAY,TRIM10

sub73240-0C010

main73240-0C010-E3iVCK40..RCB;UCK40,VCK30..DLX199902-200408

W(BENCH SEAT),OAK,TRIM4#

sub73240-0C010

main73240-0C020-B1iUCK31,41..SR5200310-200408

MD.CHARCOAL,TRIM11

sub73240-0C020

main73240-0C020-B2iUCK31,41..SR5200310-200408

MD.GRAY,TRIM12

sub73240-0C020

main73240-0C020-B3iUCK31,41..SR5200310-200408

DK.GRAY,TRIM12

sub73240-0C020

main73240-0C020-E1iUCK31,41..SR5200310-200408

MD.OAK,TRIM4#

sub73240-0C020

main73240-0C030-B0iGSK30,UCK3#,4#..LIMD,SR5200408

MD.CHARCOAL,TRIM11

sub73104-0C010

sub82541-0C010

main73240-0C030-B1iGSK30,UCK3#,4#..LIMD,SR5200408

MD.GRAY,TRIM12

sub73104-0C010

sub82541-0C010

main73240-0C030-E0iGSK30,UCK3#,4#..LIMD,SR5200408

FAWN,TRIM42,43

sub73104-0C010

sub82541-0C010

main73240-0C040-B0iUCK3#,4#..LIMD200408

W(POWER SEAT),MD.CHARCOAL,TRIM11

main73240-0C040-B1iUCK3#,4#..LIMD200408

W(POWER SEAT),MD.GRAY,TRIM12

main73240-0C040-E0iUCK3#,4#..LIMD200408

W(POWER SEAT),FAWN,TRIM42,43

main73240-0C051-E0iGSK30,UCK30,40..DLX200408-200608

W(BENCH SEAT),FAWN,TRIM42,43

73719BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR

main73719-34010iUCK40,VCK30..RCB¥450199902-200405

sub73719-34011¥450

main73719-34010iUCK40,VCK40..RCB..4HC..USA¥450200008-200108

W(FRONT CAPTAIN SEAT)

sub73719-34011¥450

main73719-34011iUCK40,VCK30..RCB¥450200405-200608

9008010112

main90080-10112

9008010177

main90080-10177

9008010179

main90080-10179¥90

9008010344

main90080-10344

9008010345

main90080-10345

21 parts on this diagram · 9 diagrams in section
