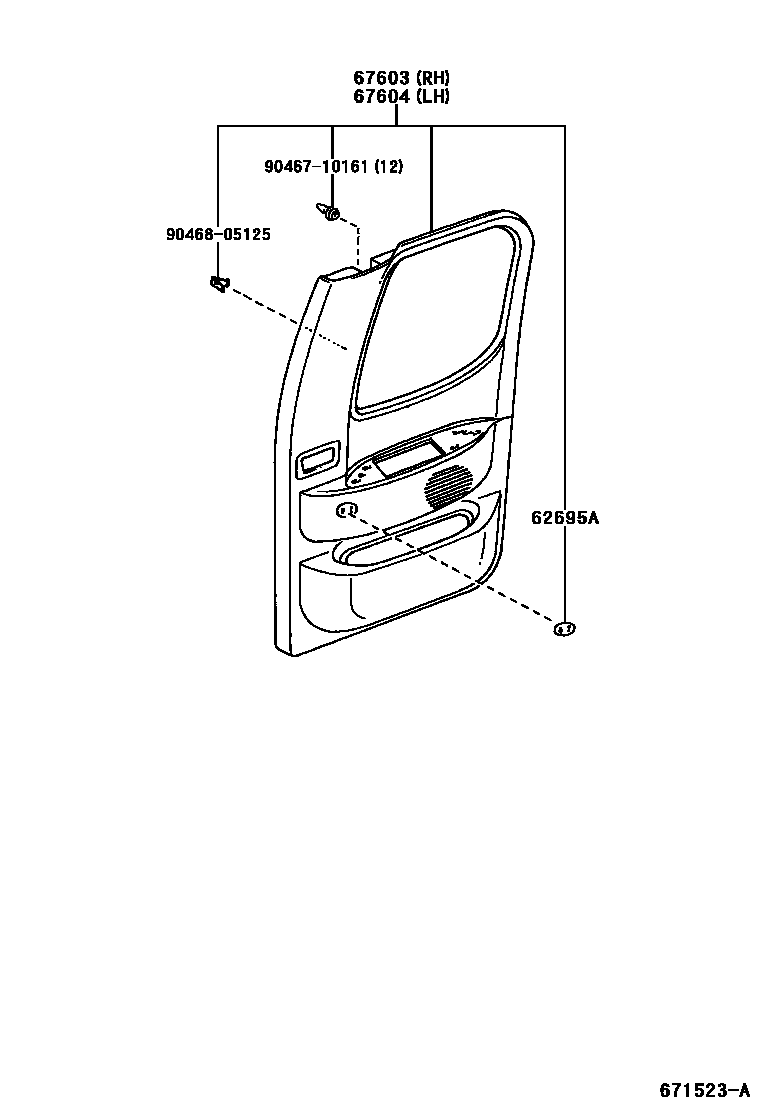

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1

62695ASTOPPER, SIDE TRIM COVER

main62695-34010-B0iUCK30,40,VCK30,40..ACB199902-200208

MOON MIST,TRIM10

sub62695-34010

main62695-34010-B1iUCK30,40,VCK30,40..ACB199902-200408

MD CHARCOAL,TRIM11

sub62695-34010

main62695-34010-B1iGSK30,UCK30,40..ACB200408

MD.CHARCOAL,TRIM11

sub62695-34010

main62695-34010-B3iUCK30,40,VCK30,40..ACB200208-200408

MD.GRAY,TRIM12

sub62695-34010

main62695-34010-E0iUCK30,40,VCK30,40..ACB199902-200408

MD OAK,TRIM4#

sub62695-34010

main62695-34010-E1iGSK30,UCK30,40..ACB200408

FAWN,TRIM42,43

sub62695-34010

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main62510-0C010-B0iUCK30,40,VCK30,40..ACB199902-200208

MOON MIST,TRIM10

main62510-0C010-B1iUCK30,40,VCK30,40..ACB199902-200208

MD.CHARCOAL,TRIM11

main62510-0C010-E0iUCK30,40,VCK30,40..ACB199902-200208

MD.OAK,TRIM4#

main62510-0C040-B0iUCK30,40,VCK30,40..ACB200208-200408

MD.CHARCOAL,TRIM11

main62510-0C040-B1iGSK30,UCK30,40..ACB200208-200408

MD.GRAY,TRIM12

main62510-0C040-E0iUCK30,40,VCK30,40..ACB200208-200408

MD.OAK,TRIM4#

main62510-0C040-E1iGSK30,UCK30,40..ACB200408

FAWN,TRIM42,43

main67630-0C050-B0iUCK31,41..SR5200310-200408

CHARCOAL,TRIM11

main67630-0C050-B1iUCK31,41..SR5200310-200408

CHARCOAL,TRIM12

main67630-0C050-E0iUCK31,41..SR5200310-200408

OAK,TRIM4#

main67630-0C051-B0iUCK31,41..SR5200408

DK. CHARCOAL,TRIM11

main67630-0C051-B1iUCK31,41..SR5200408

GRAY,TRIM12

main67630-0C051-E0iUCK31,41..SR5200408

FAWN,TRIM4#

main67630-0C060-B4iUCK31,41..SR5200310-200408

MED. CHARCOAL,TRIM11

main67630-0C060-B4iUCK31,41..SR5200310-200408

W(AM/FM CASSETTE CD 8SPEAKER JBL),MED. CHARCOAL,TRIM11

main67630-0C060-B5iUCK31,41..LIMD200310-200408

MEDIUM GRAY,TRIM12

main67630-0C060-B5iUCK31,41..LIMD200310-200408

W(AM/FM CASSETTE CD 8SPEAKER JBL),MEDIUM GRAY,TRIM12

main67630-0C060-E2iUCK31,41..LIMD200310-200408

MED. OAK,TRIM4#

main67630-0C060-E2iUCK31,41..SR5200310-200408

W(AM/FM CASSETTE CD 8SPEAKER JBL),MED. OAK,TRIM4#

main67630-0C061-B0iUCK31,41..SR5200408

DK. CHARCOAL,TRIM11

main67630-0C061-B0iUCK31,41..LIMD200408

W(AM/FM CASSETTE CD 8SPEAKER JBL),DK. CHARCOAL,TRIM11

main67630-0C061-B1iUCK31,41..LIMD200408

GRAY,TRIM12

main67630-0C061-B1iUCK31,41..LIMD200408

W(AM/FM CASSETTE CD 8SPEAKER JBL),GRAY,TRIM12

main67630-0C061-E0iUCK31,41..SR5200408

W(AM/FM CASSETTE CD 8SPEAKER JBL),FAWN,TRIM4#

main67630-0C061-E0iUCK31,41..LIMD200408

FAWN,TRIM4#

main67630-0C070-E2iUCK31,41..LIMD200310-200408

LEATHER,MED. OAK,TRIM4#

main67630-0C071-E0iUCK31,41..LIMD200408

LEATHER,FAWN,TRIM4#

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main62520-0C010-B0iUCK30,40,VCK30,40..ACB199902-200208

MOON MIST,TRIM10

main62520-0C010-B1iUCK30,40,VCK30,40..ACB199902-200208

MD.CHARCOAL,TRIM11

main62520-0C010-E0iUCK30,40,VCK30,40..ACB199902-200208

MD.OAK,TRIM4#

main62520-0C040-B0iGSK30,UCK30,40..ACB200208-200408

MD.CHARCOAL,TRIM11

main62520-0C040-B1iUCK30,40,VCK30,40..ACB200208-200408

MD.GRAY,TRIM12

main62520-0C040-E0iUCK30,40,VCK30,40..ACB200208-200408

MD.OAK,TRIM4#

main62520-0C040-E1iGSK30,UCK30,40..ACB200408

FAWN,TRIM42,43

main67640-0C050-B0iUCK31,41..SR5200310-200408

CHARCOAL,TRIM11

main67640-0C050-B1iUCK31,41..SR5200310-200408

CHARCOAL,TRIM12

main67640-0C050-E0iUCK31,41..SR5200310-200408

OAK,TRIM4#

main67640-0C051-B0iUCK31,41..SR5200408

DK. CHARCOAL,TRIM11

main67640-0C051-B1iUCK31,41..SR5200408

GRAY,TRIM12

main67640-0C051-E0iUCK31,41..SR5200408

FAWN,TRIM4#

main67640-0C060-B4iUCK31,41..SR5200310-200408

MED. CHARCOAL,TRIM11

main67640-0C060-B4iUCK31,41..LIMD200310-200408

W(AM/FM CASSETTE CD 8SPEAKER JBL),MED. CHARCOAL,TRIM11

main67640-0C060-B5iUCK31,41..LIMD200310-200408

MEDIUM GRAY,TRIM12

main67640-0C060-B5iUCK31,41..LIMD200310-200408

W(AM/FM CASSETTE CD 8SPEAKER JBL),MEDIUM GRAY,TRIM12

main67640-0C060-E2iUCK31,41..LIMD200310-200408

MED. OAK,TRIM4#

main67640-0C060-E2iUCK31,41..SR5200310-200408

W(AM/FM CASSETTE CD 8SPEAKER JBL),MED. OAK,TRIM4#

main67640-0C061-B0iUCK31,41..SR5200408

DK. CHARCOAL,TRIM11

main67640-0C061-B0iUCK31,41..LIMD200408

W(AM/FM CASSETTE CD 8SPEAKER JBL),DK. CHARCOAL,TRIM11

main67640-0C061-B1iUCK31,41..LIMD200408

GRAY,TRIM12

main67640-0C061-B1iUCK31,41..LIMD200408

W(AM/FM CASSETTE CD 8SPEAKER JBL),GRAY,TRIM12

main67640-0C061-E0iUCK31,41..SR5200408

W(AM/FM CASSETTE CD 8SPEAKER JBL),FAWN,TRIM4#

main67640-0C061-E0iUCK31,41..LIMD200408

FAWN,TRIM4#

main67640-0C070-E2iUCK31,41..LIMD200310-200408

LEATHER,MED. OAK,TRIM4#

main67640-0C071-E0iUCK31,41..LIMD200408

LEATHER,FAWN,TRIM4#

9046710161

main90467-10161

9046805125

main90468-05125

5 parts on this diagram · 4 diagrams in section
