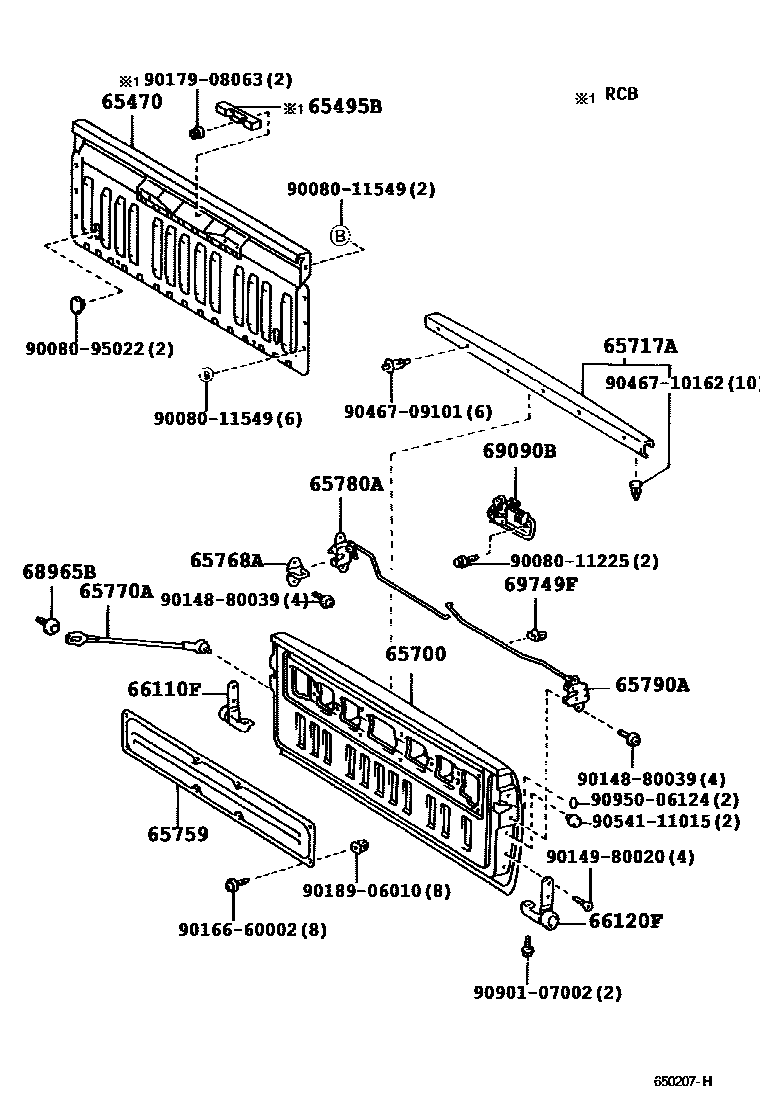

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1 0003 1

65470BOARD ASSY, HEADER

main65405-0C010iUCK30,40,VCK30,40199902-200408

main65405-0C020iUCK30,40..SSD200208-200408

main65405-0C030iUCK31,41200310-200408

65495BWEIGHT, HEADER BOARD

main65495-0C010iUCK40,VCK30..RCB200311-200608

main65495-34020iUCK40,VCK30,40..RCB199902-200311

sub65495-0C010

65700GATE ASSY, REAR BODY TAIL

main65700-0C020iUCK30,40,VCK30,40199902-200008

main65700-0C021iUCK30,40,VCK30,40..SD200008-200408

main65700-0C040iUCK30,40..SSD200208-200408

main65700-0C060iUCK31,41200310-200408

65717APROTECTOR, TAIL GATE, RH

main65717-0C010iUCK30,40,VCK30,40..SD200008-200408

main65717-0C020iUCK30,40..SSD200208-200408

main65717-0C030iUCK31,41200310-200408

65759COVER, TAIL GATE SERVICE HOLE

main65759-0C010iUCK30,40,VCK30,40199902-200408

main65759-0C020iUCK30,40..SSD200208-200408

65768ASTRIKER, TAIL GATE LOCK

main65768-0C010iGSK30,UCK3#,4#199902-200408

65770ASTAY ASSY, TAIL GATE

main65770-0C010iUCK30,40,VCK30,40199902-199912

sub65770-0C020

sub65770-0C030

main65770-0C020iUCK30,40,VCK30,40199912-200604

RH

sub65770-0C090

main65770-0C030iGSK30,UCK30,40199912-200605

LH

sub65770-0C090

main65770-0C040iUCK31,41200310-200604

LH

sub65770-0C100

main65770-0C050iUCK31,41200310-200605

RH

sub65770-0C100

main65770-0C090iGSK30,UCK30,40200605

RH

main65770-0C100iUCK31,41200605

LH

65780ALOCK ASSY, TAIL GATE, RH

main65780-0C010iUCK30,40,VCK30,40..SD199902-200408

main65780-0C020iUCK30,40..SSD200208-200408

main65780-0C030iUCK31,41200310-200408

65790ALOCK ASSY, TAIL GATE, LH

main65790-0C010iUCK30,40,VCK30,40..SD199902-200408

main65790-0C020iUCK30,40..SSD200208-200408

main65790-0C030iUCK31,41200310-200408

66110FHINGE ASSY, TAIL GATE, RH

main66110-0C010iUCK30,40,VCK30,40199902-200203

main66110-0C011iUCK30,40,VCK30,40200203-200310

sub66110-0C012

main66110-0C012iUCK3#,4#,VCK30,40200310-200408

66120FHINGE ASSY, TAIL GATE, LH

main66120-0C010iUCK30,40,VCK30,40199902-200203

main66120-0C011iUCK30,40,VCK30,40200203-200310

sub66120-0C012

main66120-0C012iUCK3#,4#,VCK30,40200310-200408

68965BSHAFT, TAIL GATE STAY

main68965-0C010iGSK30,UCK3#,4#199902-200408

69090BHANDLE ASSY, TAIL GATE

main69090-0C010iUCK30,40,VCK30,40..DLX,SR5199902-200208

BLACK(LESS COLOR)

main69090-0C010iUCK3#,4#,VCK30,40..DLX,SR5200208-200408

main69090-0C030-A0iUCK40..SR5..CND;UCK30..SD..SR5..USA200008-200408

WHITE,056

sub69090-0C030

main69090-0C030-B0iUCK30,40,VCK30,40..LIMD200008-200208

GRAY M.M.OP.,1C7

sub69090-0C030

main69090-0C030-B1iUCK4#..SR5..CND200208-200408

GRAY M.M.,1E3

sub69090-0C030

main69090-0C030-C0iUCK40..SR5..CND;UCK30..SD..SR5..USA200008-200408

BLACK,202

sub69090-0C030

main69090-0C030-D0iUCK30,40,VCK30,40..LIMD200008-200208

RED MM,3K4

sub69090-0C030

main69090-0C030-D1iUCK3#,4#..LIMD200208-200408

DK. RED M.M.,3Q3

sub69090-0C030

main69090-0C030-G0iUCK3#,4#..LIMD200208-200408

DK.GREEN MC.,6Q7

sub69090-0C030

main69090-0C030-G0iUCK30,40,VCK30,40..LIMD200008-200208

DK.GREEN MC.,2FC ,6Q7

sub69090-0C030

main69090-0C030-J0iUCK3#,4#..LIMD200408

BLUE MC.,8M6

sub69090-0C030

69749FCLAMP, RAIL GATE LOCK LINK

main69749-34010iUCK30,40,VCK30,40199902-200408

9008011225

main90080-11225

9008011549

main90080-11549

9008095022

main90080-95022

9014880039

main90148-80039

9014980020

main90149-80020

9016660002

main90166-60002

9017908063

main90179-08063

9018906010

main90189-06010

9046709101

main90467-09101

9046710162

main90467-10162

9054111015

main90541-11015

9090107002

main90901-07002

9095006124

main90950-06124

27 parts on this diagram · 3 diagrams in section
