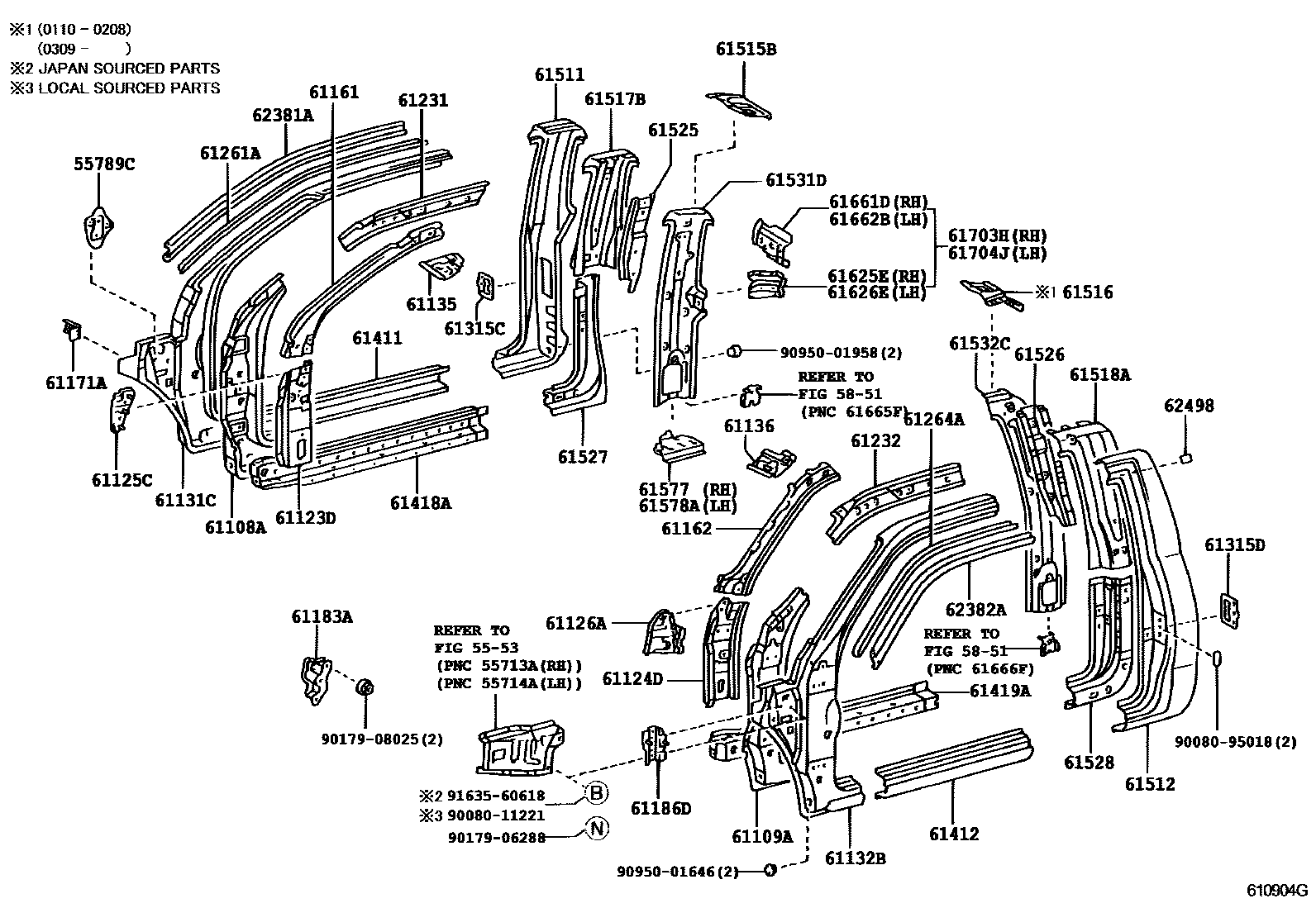

SIDE MEMBER
5553
55789CBRACKET, FUSE BOX MOUNTING, NO.2
5851
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61123DPANEL, COWL SIDE, INNER RH
61124DPANEL, COWL SIDE, INNER LH
61125CREINFORCEMENT, COWL SIDE PANEL, RH
61126AREINFORCEMENT, COWL SIDE PANEL, LH
61131CPILLAR, FRONT BODY, OUTER RH
61132BPILLAR, FRONT BODY, OUTER LH
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61171ABRACKET, ANTENNA POLE MOUNTING
61183ABRACKET, INSTRUMENT PANEL SIDE, NO.2 RH
61186DBRACKET, WIRING HARNESS TO COWL SIDE
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61261CHANNEL, ROOF DRIP, RH
61261ACHANNEL, ROOF DRIP SIDE, FRONT RH
61264ACHANNEL, ROOF DRIP SIDE, FRONT LH
61315CRETAINER, DOOR LOCK STRIKER, RH
61315DRETAINER, DOOR LOCK STRIKER, LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61511PILLAR, QUARTER LOCK, RH
61512PILLAR, QUARTER LOCK, LH
61525REINFORCEMENT, QUARTER LOCK PILLER, UPPER RH
61526REINFORCEMENT, QUARTER LOCK PILLER, UPPER LH
61527REINFORCEMENT, QUARTER LOCK PILLER, LOWER RH
61528REINFORCEMENT, QUARTER LOCK PILLER, LOWER LH
61577PLATE, CAB REAR PILLAR, LOWER RH
61578APLATE, CAB REAR PILLAR, LOWER LH
61625EEXTENSION, QUARTER PANEL, INNER REAR RH
61626EEXTENSION, QUARTER PANEL, INNER REAR LH
61703HREINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH
61704JREINFORCEMENT SUB-ASSY, ROOF SIDE, INNER LH
9008011221
main90080-11221
9008095018
main90080-95018
9017906288
main90179-06288
9017908025
main90179-08025
9095001646
main90950-01646
9095001958
main90950-01958
9163560618
main91635-60618
59 parts on this diagram · 3 diagrams in section
