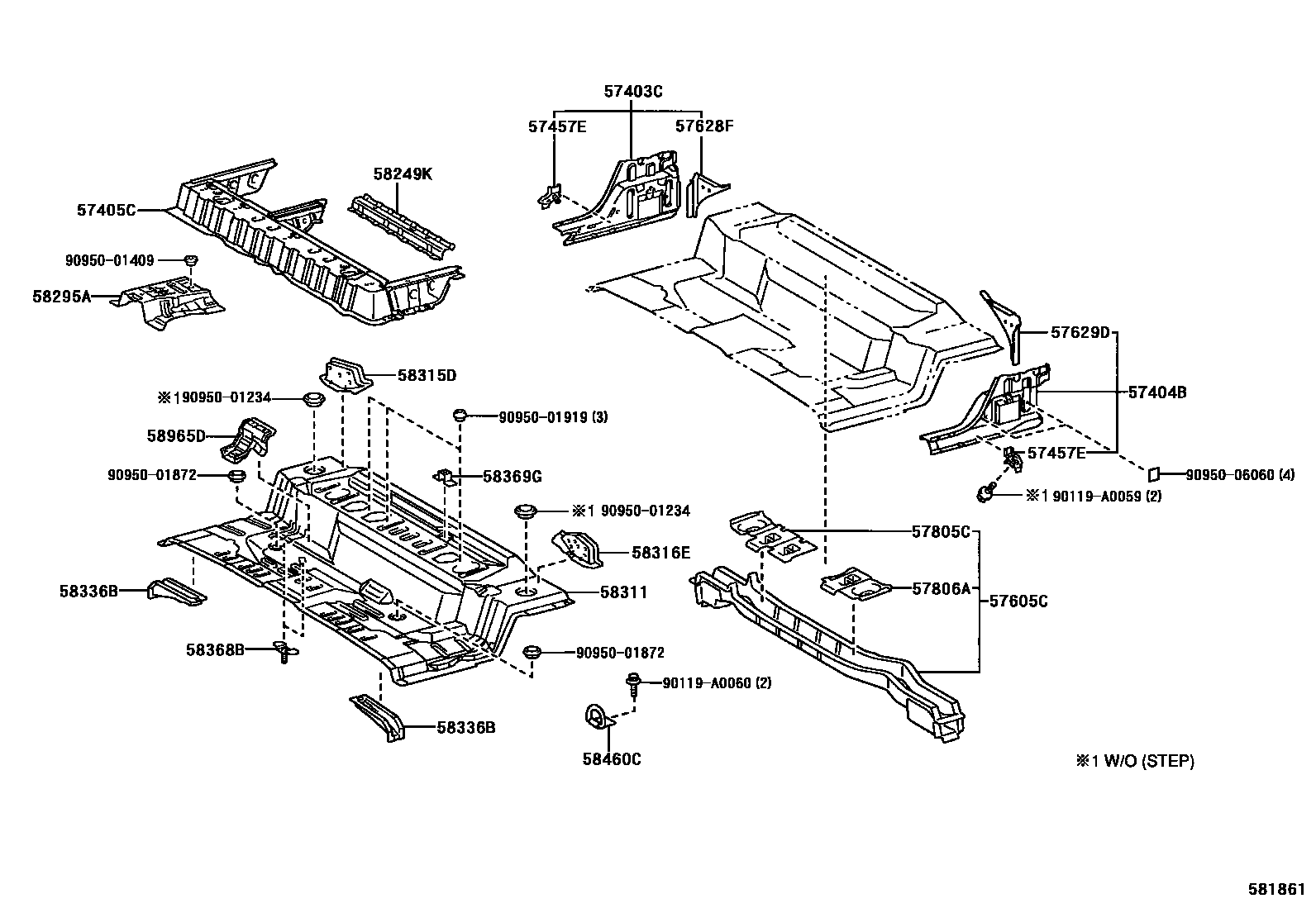

REAR FLOOR PANEL & REAR FLOOR MEMBER

57403CREINFORCE SUB-ASSY, FLOOR SIDE, INNER RH

main57403-0C020iUCK31,41200310-200408

57404BREINFORCE SUB-ASSY, FLOOR SIDE, INNER LH

main57404-0C010iUCK31,41200310-200408

57405CMEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR

main57405-0C020iUCK31,41200310-200408

57457EPATCH, FLOOR SIDE MEMBER, RR RH

main57457-0C010iUCK31,41200310-200408

57605CMEMBER SUB-ASSY, REAR FLOOR CROSS

main57605-0C050iUCK31,41200310-200408

57628FPLATE, REAR FLOOR SIDE MEMBER, RH

main57628-0C040iUCK31,41200310-200408

57629DPLATE, REAR FLOOR SIDE MEMBER, LH

main57629-0C040iUCK31,41200310-200408

57805CREINFORCEMENT SUB-ASSY, NO.1 SEAT LEG, REAR NO.1

main57805-34010iUCK31,41200310-200408

57806AREINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.2

main57806-34010iUCK31,41200310-200408

58249KBRACKET, CENTER FLOOR BOARD SUPPORT

main58249-0C010iUCK31,41200310-200408

58295AREINFORCEMENT, SEAT BELT ANCHOR FLOOR

main58295-0C020iUCK31,41200310-200408

58311PAN, REAR FLOOR

main58311-0C050iUCK31,41200310-200408

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-0C010iUCK31,41200310-200408

58316ERETAINER, REAR SEAT SET

main58316-0C010iUCK31,41200310-200408

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-0C020iUCK31,41200310-200408

58368BBRACKET, FUEL TUBE, NO.2

main58369-47010iUCK31,41200310-200408

58369GBRACKET, FUEL TUBE, NO.3

main58369-32010iUCK31,41200310-200408

58460CSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-35012iUCK31,41200310-200408

58965DBRACKET, JACK SUPPORT

main58965-0C030iUCK31,41200310-200408

90119A0059

main90119-A0059

90119A0060

main90119-A0060

9095001234

main90950-01234

9095001409

main90950-01409

9095001872

main90950-01872

9095001919

main90950-01919

9095006060

main90950-06060

26 parts on this diagram · 1 diagram in section
