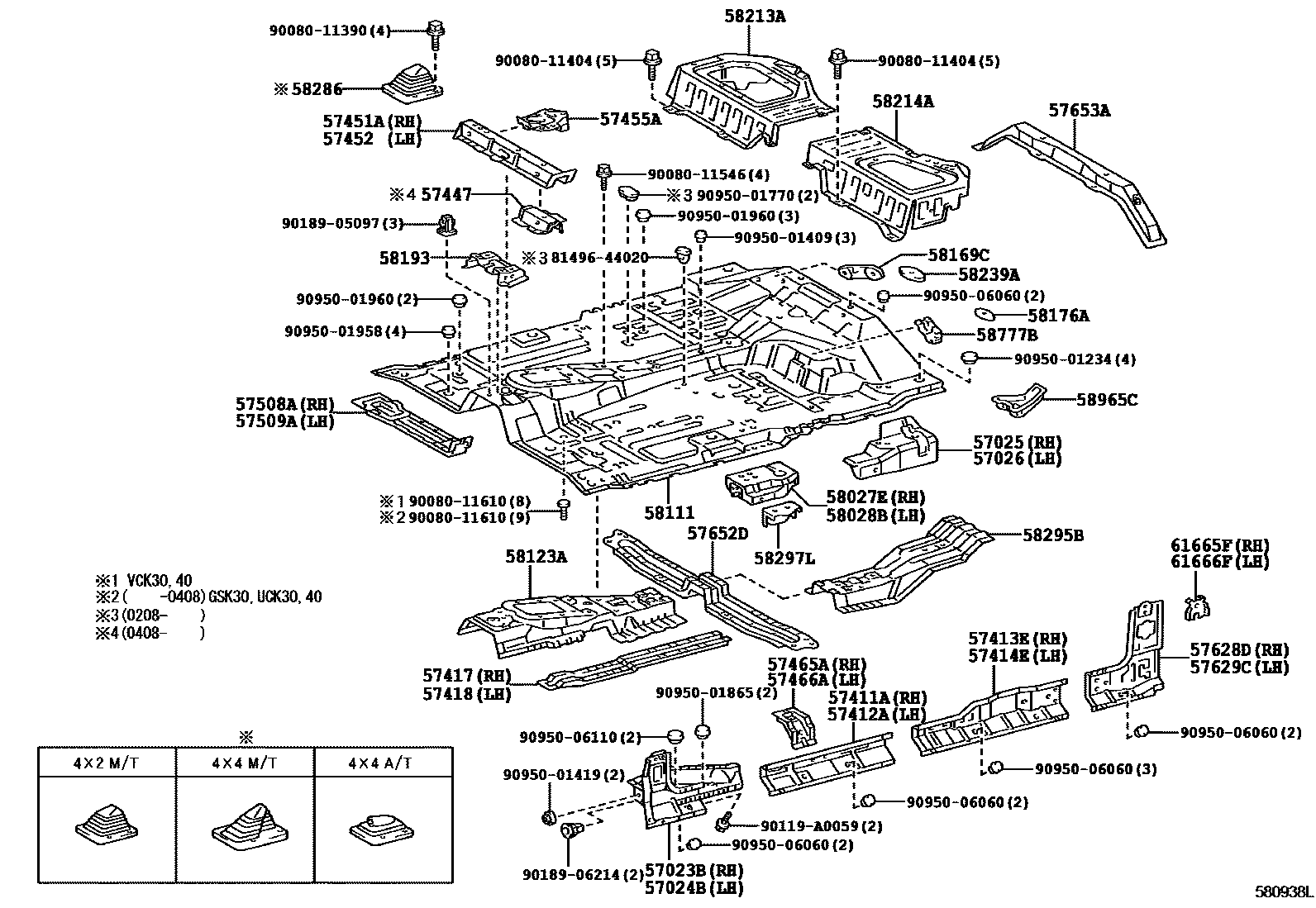

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1

57023BBRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH

main57023-0C010iUCK30,40,VCK30,40199902-199909

sub57023-0C011

main57023-0C011iUCK30,40,VCK30,40199909-200212

sub57023-0C012

main57023-0C012iUCK3#,4#,VCK30,40200212-200408

57024BBRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH

main57024-0C010iUCK30,40,VCK30,40199902-199909

sub57024-0C011

main57024-0C011iUCK30,40,VCK30,40199909-200212

sub57024-0C012

main57024-0C012iUCK3#,4#,VCK30,40200212-200408

57025BRACKET SUB-ASSY, BODY MOUNTING, NO.3 RH

main57025-0C010iGSK30,UCK30,40..ACB199902-200408

main57025-0C020iUCK40,VCK30..RCB199902-200408

sub57025-0C021

main57025-0C021iGSK30,UCK30,40..DLX200408-200608

57026BRACKET SUB-ASSY, BODY MOUNTING, NO.3 LH

main57026-0C010iUCK30,40,VCK30,40..ACB199902-200408

main57026-0C020iUCK40,VCK30,40..RCB199902-200608

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-0C010iUCK30,40,VCK30,40199902-200408

main57411-0C020iUCK31,41200310-200408

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-0C010iUCK30,40,VCK30,40199902-200408

main57412-0C020iUCK31,41200310-200408

57413EMEMBER, FLOOR SIDE, INNER REAR RH

main57413-0C010iUCK30,40,VCK30,40..ACB199902-200408

57414EMEMBER, FLOOR SIDE, INNER REAR LH

main57414-0C010iUCK30,40,VCK30,40..ACB199902-200408

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-0C010iUCK30,40,VCK30,40199902-200608

main58102-0C010iUCK30,40,VCK30,40..ACB200208-200408

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-0C010iGSK30,UCK30,40..DLX199902-200608

main58102-0C010iUCK30,40,VCK30,40..ACB200208-200408

57447PATCH, CENTER FLOOR CROSSMEMBER

main57447-0C020iUCK31,41200311-200408

57451AMEMBER, FRONT FLOOR CROSS, RH

main57450-0C011iUCK40..RCB..USA200306-200408

W(VSC)

main57450-0C040iUCK3#,4#,VCK30,40200311-200408

main57451-0C010iUCK30,40,VCK30,40199902-200109

sub57451-0C011

main57451-0C011iUCK3#,4#,VCK30,40200109-200311

sub57451-0C020

main57451-0C020iGSK30,UCK3#,4#200408

main57451-0C020iUCK31,41200310-200408

W(VSC)

57452MEMBER, FRONT FLOOR CROSS, LH

main57452-0C010iUCK30,40,VCK30,40199902-200408

57455ABRACKET, FRONT FLOOR CROSSMEMBER

main57455-0C011iUCK40..ACB;UCK40..DLX;UCK3#,41,VCK30,40200306-200408

main57455-0C030iGSK30,UCK3#,4#200408

57465AGUSSET, CENTER FLOOR CROSSMEMBER, RH

main57465-0C010iUCK30,40,VCK30,40199902-200408

57466AGUSSET, CENTER FLOOR CROSSMEMBER, LH

main57465-0C010iUCK30,40,VCK30,40199902-200408

57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-0C010iUCK30,40,VCK30,40199902-200212

sub57508-0C011

main57508-0C011iUCK3#,4#,VCK30,40200212-200408

57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main57509-0C010iUCK30,40,VCK30,40199902-200212

sub57509-0C011

main57509-0C011iUCK3#,4#,VCK30,40200212-200408

57628DPLATE, REAR FLOOR SIDE MEMBER, RH

main57628-0C010iUCK30,40,VCK30,40..ACB199902-200408

main57628-0C020iGSK30,UCK30,40..DLX199902-200502

sub57628-0C021

main57628-0C021iGSK30,UCK30,40..DLX200502-200608

57629CPLATE, REAR FLOOR SIDE MEMBER, LH

main57629-0C010iUCK30,40,VCK30,40..ACB199902-200408

main57629-0C020iUCK40,VCK30..RCB199902-200502

sub57629-0C021

main57629-0C021iGSK30,UCK30,40..DLX200502-200608

57652DMEMBER, REAR FLOOR CROSS, NO.1

main57605-0C010iUCK30,40,VCK30,40..4HC..(LIMD,SR5)199902-200208

W(REAR BENCH SEAT)

sub57605-0C011

main57605-0C011iUCK30,40,VCK30,40..ACB..4HC200208-200309

W(FRONT 6:4 SPRIT SEAT)

sub57605-0C012

main57605-0C012iUCK40..RCB..USA200306-200408

W(FRONT 6:4 SPRIT SEAT)

sub57605-0C081

main57605-0C020iVCK40..ACB..5F;VCK40..4HC..(LIMD,SR5);UCK30,40,VCK30..LIMD,SR5199902-200208

W(REAR SEPARATE SEAT)

sub57605-0C021

main57605-0C021iUCK30,40,VCK30,40..ACB200208-200306

W(FRONT CAPTAIN SEAT)

sub57605-0C022

main57605-0C022iUCK30,40,VCK30,40..ACB200306-200408

W(FRONT CAPTAIN SEAT)

sub57605-0C071

main57605-0C030iVCK40..RCB;UCK40,VCK30..DLX199902-200208

W(6:4 SPRIT REAR SEAT)

sub57605-0C031

main57605-0C031iUCK40,VCK30..DLX200208-200306

W(FRONT BENCH SEAT)

sub57605-0C032

main57605-0C032iUCK40,VCK30..DLX200306-200408

W(FRONT BENCH SEAT)

sub57605-0C061

main57605-0C061iGSK30,UCK30,40..DLX200408-200608

W(FRONT BENCH SEAT)

main57605-0C071iUCK30,40..ACB;GSK30..6F..SR5200408-200411

W(FRONT CAPTAIN SEAT)

main57605-0C081iGSK30,UCK30,40..ACB..5HC200408

W(FRONT 6:4 SPRIT SEAT)

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57606-0C010iUCK30,40,VCK30,40..ACB200204-200306

sub57606-0C011

main57606-0C011iUCK30,40,VCK30,40..ACB200306-200408

main57606-0C021iGSK30,UCK30,40..ACB200408

main57653-0C010iUCK30,40,VCK30,40..ACB199902-200204

sub57606-0C010

58027EREINFORCE SUB-ASSY, SEAT BELT ANCHOR ,RH

main58027-0C010iUCK30,40,VCK30,40..ACB199902-200408

58028BREINFORCE SUB-ASSY, SEAT BELT ANCHOR, LH

main58028-0C010iUCK30,40,VCK30,40..ACB199902-200408

58111PAN, FRONT FLOOR

main58111-0C010iVCK30..5F..SR5;VCK40..ACB..4HC199902-200208

sub58111-0C014

main58111-0C011iVCK40..4HC;VCK30..5F..SR5200208-200212

sub58111-0C012

main58111-0C012iVCK40..4HC;VCK30..5F..SR5200212-200310

sub58111-0C014

main58111-0C014iGSK30..6F..SR5200408

W(FRONT CAPTAIN SEAT)

main58111-0C014iVCK40..4HC;VCK30..5F..SR5200310-200408

main58111-0C020iUCK30,40,VCK30..ACB..4HC199902-200208

sub58111-0C024

main58111-0C021iVCK30..4HC..SR5200208-200212

W(FRONT 6:4 SPRIT SEAT)

sub58111-0C022

main58111-0C022iUCK30,40,VCK30..ACB..4HC200212-200310

W(FRONT 6:4 SPRIT SEAT)

sub58111-0C024

main58111-0C024iUCK30,40,VCK30..ACB..4HC200310-200408

W(FRONT 6:4 SPRIT SEAT)

main58111-0C030iVCK40..ACB..5F199902-200208

sub58111-0C034

main58111-0C031iVCK40..5F200208-200212

sub58111-0C032

main58111-0C032iVCK40..5F200212-200310

sub58111-0C034

main58111-0C034iVCK40..5F200310-200408

main58111-0C040iVCK30..5F..DLX;VCK40..RCB..4HC199902-200212

sub58111-0C041

main58111-0C041iVCK30..5F..DLX200212-200306

sub58111-0C042

main58111-0C042iVCK30..5F..DLX200306-200408

main58111-0C042iGSK30..6F..DLX200408-200608

W(FRONT BENCH SEAT)

main58111-0C050iUCK40,VCK30..RCB..4HC199902-200212

sub58111-0C051

main58111-0C051iUCK40..RCB..USA200208-200309

W(FRONT BENCH SEAT)

sub58111-0C052

main58111-0C052iGSK30,UCK30,40..5HC..DLX200306-200608

W(FRONT BENCH SEAT)

main58111-0C060iVCK40..RCB..5F199902-200208

main58111-0C090iUCK30,40..ACB200208-200212

W(FRONT CAPTAIN SEAT)

sub58111-0C091

main58111-0C091iUCK30,40..ACB200212-200310

W(FRONT CAPTAIN SEAT)

sub58111-0C093

main58111-0C093iUCK30,40..ACB200310-200411

W(FRONT CAPTAIN SEAT)

main58111-0C101iUCK31,41200310-200408

sub58111-0C110

sub81496-44020

sub90080-11372

main58111-0C120iUCK31,41200408

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-0C010iUCK30,40,VCK30,40199902-200208

main58123-0C013iUCK40..ACB;UCK40..DLX;UCK3#,41,VCK30,40200306-200408

58169CPATCH, FRONT FLOOR REAR

main58169-0C010iGSK30,UCK30,40..ACB200408

main58169-34010iUCK30,40,VCK30,40..ACB199902-200408

58176APLATE, REAR SEAT SETTING NUT

main58176-35010iUCK30,40,VCK30,40..ACB199902-200408

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-0C010iUCK30,40,VCK30,40199902-200008

main58193-0C020iUCK30,40,VCK30,40200008-200408

58213APANEL, SEAT FLOOR, RH

main58201-0C010iUCK30,40,VCK30,40..ACB199902-200310

main58201-0C012iUCK30,40,VCK30,40..ACB200310-200401

sub58201-0C013

main58201-0C013iUCK30,40,VCK30,40..ACB200401-200408

main58201-0C020iGSK30,UCK30,40..ACB200408

58214APANEL, SEAT FLOOR, LH

main58202-0C010iUCK30,40,VCK30,40..ACB199902-200408

58239APLATE, BELT ANCHOR NUT

main58239-34010iUCK30,40,VCK30,40..ACB199902-200408

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-0C010iGSK30..6F199902-200408

main58280-0C020iVCK40..5F199902-200408

main58280-0C030iVCK40..4HC199902-200408

58295BREINFORCEMENT, SEAT BELT ANCHOR FLOOR

main58295-0C010iUCK30,40,VCK30,40..ACB199902-200306

sub58295-0C011

main58295-0C011iGSK30,UCK30,40..ACB200306-200408

main58295-0C030iGSK30,UCK30,40..DLX200408-200608

58297LBRACKET, SEAT BELT RETRACTOR MOUNTING

main58297-0C010iUCK30,40,VCK30,40..ACB199902-200408

58777BHOLDER, TOOL BAG

main58777-34010iUCK30,40,VCK30,40..ACB199902-200408

58965CHOLDER, JACK

main58965-0C010iUCK30,40,VCK30,40..ACB199902-200408

61665FREINFORCE, SEAT BELT ANCHOR, RH

main61665-35020iUCK30,40,VCK30,40199902-200408

61666FREINFORCE, SEAT BELT ANCHOR, LH

main61666-35010iUCK30,40,VCK30,40199902-200408

8149644020GUIDE, REAR COMBINATION LAMP

main81496-44020

9008011390

main90080-11390

9008011404

main90080-11404

9008011546

main90080-11546

9008011610

main90080-11610

90119A0059

main90119-A0059

9018905097

main90189-05097

9018906214

main90189-06214

9095001234

main90950-01234

9095001409

main90950-01409

9095001419

main90950-01419

9095001770

main90950-01770

9095001865

main90950-01865

9095001958

main90950-01958

9095001960

main90950-01960

9095006060

main90950-06060

9095006110

main90950-06110

56 parts on this diagram · 3 diagrams in section
