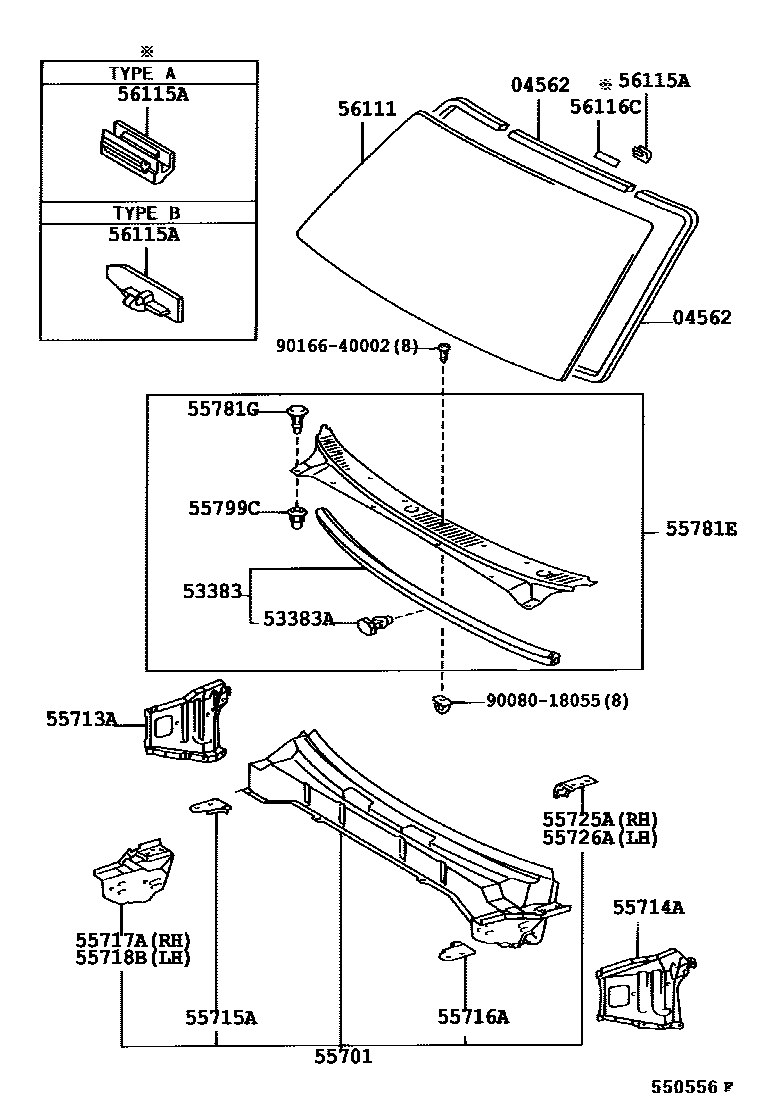

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

04562DAM KIT, WINDSHIELD GLASS

main56117-0C030iUCK30,40,VCK30,40199902-200102

L=3249

main56117-0C040iUCK30,40,VCK30,40199902-200102

L=703

main90998-91001iUCK30,40,VCK30,40199902-200608

L=3500

sub90998-91004

main90998-91002iUCK30,40,VCK30,40199902-200608

L=750

sub90998-91003

main90998-91003iGSK30,UCK3#,4#..LIMD,SR5200208-200408

L=750

main90998-91004iUCK31,41200208-200408

L=3500

53383SEAL, HOOD TO COWL TOP

main53383-0C010iUCK30,40,VCK30,40199902-200408

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08101iUCK30,40,VCK30,40199902-200408

55701PANEL SUB-ASSY, COWL

main55700-0C010iUCK30,40,VCK30,40199902-200307

sub55700-0C011

main55700-0C011iUCK3#,4#,VCK30,40200307-200311

sub55700-0C012

main55700-0C012iUCK3#,4#,VCK30,40200311-200408

sub55700-0C020

main55700-0C020iGSK30,UCK3#,4#200408

55713APANEL, COWL TOP SIDE, RH

main55713-0C030iUCK30,40,VCK30,40200110-200408

main55713-34020iUCK30,40,VCK30,40199902-200110

55714APANEL, COWL TOP SIDE, LH

main55714-0C030iUCK30,40,VCK30,40200110-200408

main55714-34020iUCK30,40,VCK30,40199902-200110

55715ABRACE, COWL TOP TO APRON, RH

main55715-0C010iUCK30,40,VCK30,40199902-200408

55716ABRACE, COWL TOP TO APRON, LH

main55716-0C010iUCK3#,4#,VCK30,40199902-200408

55717APANEL, COWL TOP SIDE, INNER RH

main55717-0C020iUCK30,40,VCK30,40200110-200408

main55717-34020iUCK30,40,VCK30,40199902-200110

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-0C020iGSK30,UCK3#,4#200110-200408

main55718-34020iUCK30,40,VCK30,40199902-200110

55725AREINFORCEMENT, HOOD HINGE MOUNTING, RH

main55725-0C020iUCK30,40,VCK30,40200204-200312

main55725-34020iUCK3#,4#,VCK30,40199902-200408

55726AREINFORCEMENT, HOOD HINGE MOUNTING, LH

main55726-0C020iUCK30,40,VCK30,40200204-200312

main55726-34020iGSK30,UCK3#,4#199902-200408

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0C010iUCK30,40,VCK30,40..USA199902-200408

main55708-0C020iUCK30,40,VCK30,40199902-200408

COLD SPEC

main55708-0C040iUCK31,41200310-200408

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07045-22iUCK40,VCK30..DLX199902-200408

BLACK,TRIM4#

sub90467-07045

main90467-07045-22iUCK3#,4#,VCK30,40..LIMD,SR5200208-200408

BLACK,TRIM11,12,4#

sub90467-07045

main90467-07045-22iGSK30,UCK3#,4#200408

BLACK

sub90467-07045

main90467-07045-22iUCK30,40,VCK30,40..LIMD,SR5199902-200208

BLACK,TRIM10,11,4#

sub90467-07045

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90467-08184iUCK30,40,VCK30,40199902-200408

56111GLASS, WINDSHIELD

main56101-0C010iUCK30,40,VCK30,40..LIMD,SR5199902-200208

*LAM,T=5.3,GREEN

main56101-0C011iUCK30,40,VCK30,40..LIMD,SR5200208-200403

*LAM,T=5.3,GREEN

sub56101-0C012

main56101-0C012iUCK30,40,VCK30,40..LIMD,SR5200403-200408

*LAM,T=5.3,GREEN

sub56101-0C050

main56101-0C020iUCK40,VCK30,40..DLX199902-200208

*LAM,T=5.3,GREEN

main56101-0C021iUCK40,VCK30..DLX200208-200403

*LAM,T=5.3,GREEN

sub56101-0C022

main56101-0C022iUCK40,VCK30..DLX200403-200408

*LAM,T=5.3,GREEN

sub56101-0C060

main56101-0C031iUCK31,41200310-200408

*LAM,T=5.3,GREEN

main56101-0C040iUCK31,41200408

*LAM,T=5.3,GREEN

main56101-0C050iGSK30,UCK30,40..ACB200408

*LAM,T=5.3,GREEN

main56101-0C060iGSK30,UCK30,40..DLX200408-200608

*LAM,T=5.3,GREEN,W(TOP SHADE)

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iUCK31,41199902-200408

TYPE A:REFER TO ILLUSTRATION

main56115-30100iUCK31,41200310-200408

main56115-33040iUCK30,40,VCK30,40199902-199910

TYPE B:REFER TO ILLUSTRATION

sub56115-30100

sub56116-22050

56116SPACER, WINDSHIELD GLASS

main56116-22050iUCK31,41200310-200408

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iUCK30,40,VCK30,40199902-200408

9008018055

main90080-18055

9016640002

main90166-40002

21 parts on this diagram · 2 diagrams in section
